Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle Assy(HEV OR BEV OR FCEV)

16 part groups · 2 illustrations

Illustrations

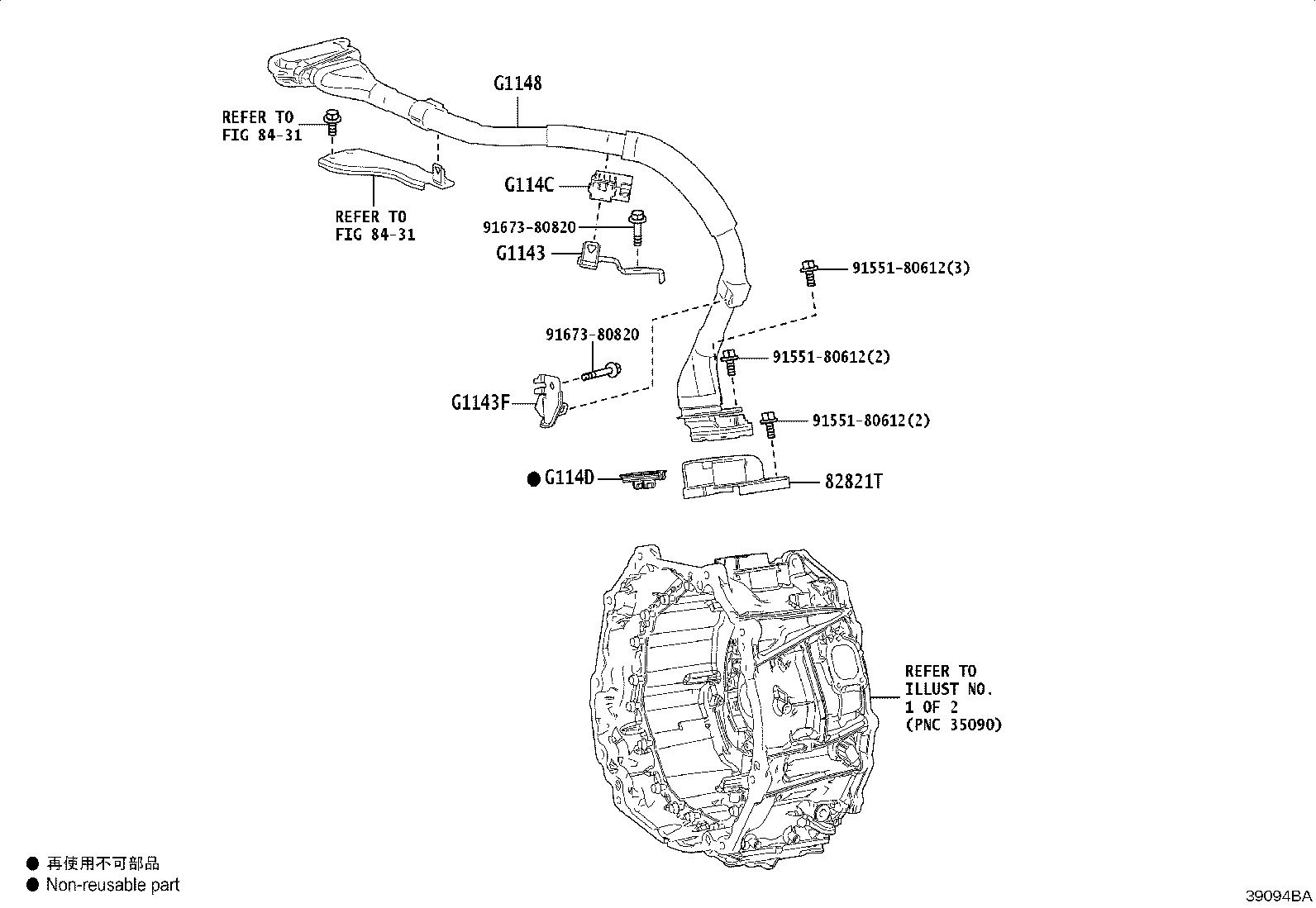

Figure 39094AB 39094AB 2024-03 → — Figure 39094BA 39094BA 2024-03 → —

Part groups

PNCDescription
31290 Cover Assy, Transmission Input Damper
35090 Module Assy, Hybrid
35106T Pan Sub-assy, Transmission Oil
35119B Cover, Transmission Housing
35168D Gasket, Transmission Oil Pan
35178 Gasket, Transmission Drain Plug
35188D Bearing, Radial Ball
35394C Magnet, Oil Cleaner
35482D Clamp, Temperature Sensor
35697A Ring, Transaxle Oil Seal
82821T Cover, Connector
G1143 Bracket, Motor Cable
G1143F Bracket, Motor Cable, NO.2
G1148 Cable, Motor
G114C Protector, Motor Cable
G114D Cap, Motor Cable Terminal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
