Toyota Lexus GX550/550H
2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe
Supported model
Data version 2024-02

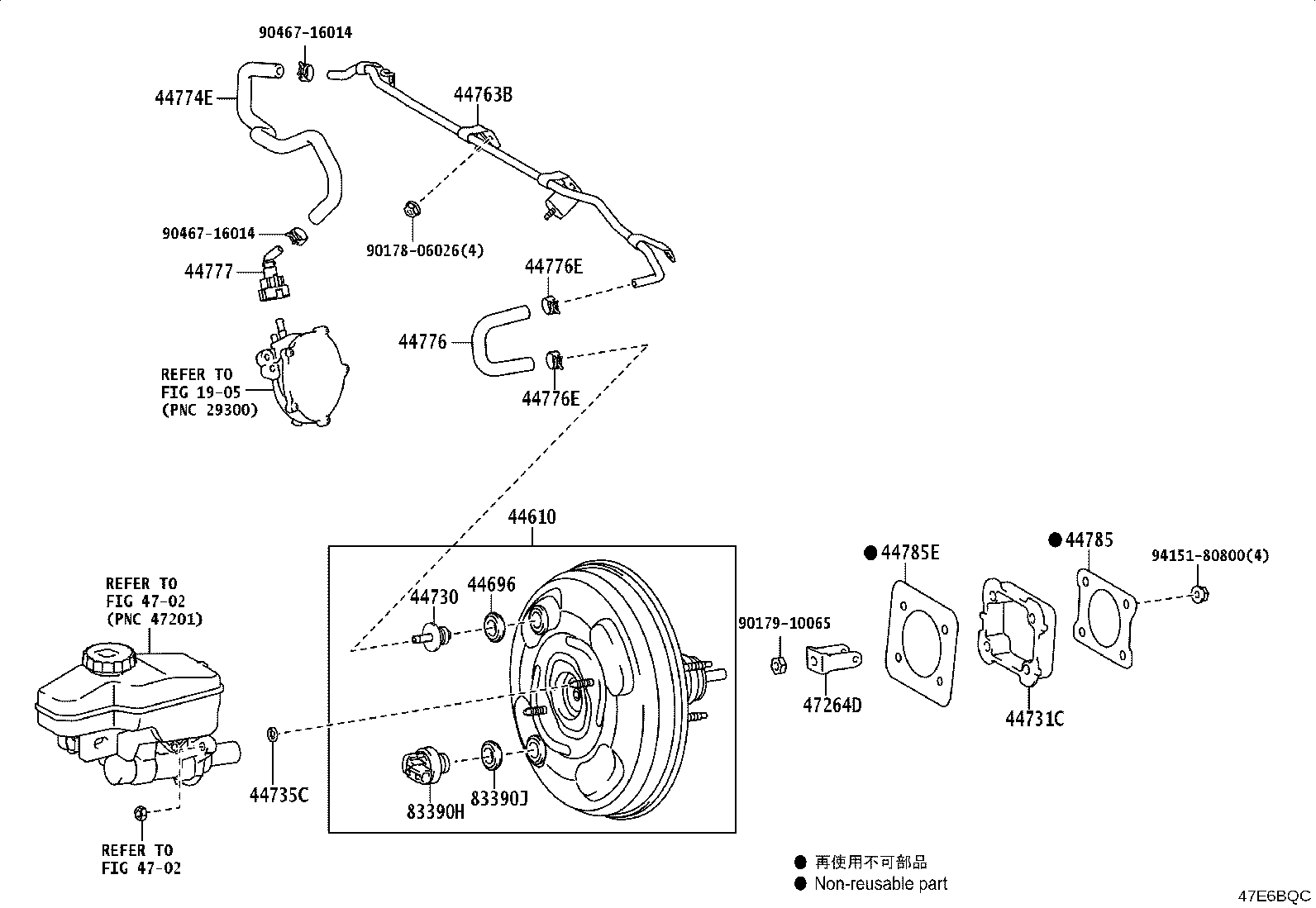

Brake Booster & Vacuum Tube
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44731C | Bracket, Brake Booster |
| 44735C | Ring, Booster Bracket Stopper |
| 44763B | Tube, Tube Connector TO Tube Connector |
| 44774A | Clip(FOR UNION TO CONNECTOR TUBE HOSE) |
| 44774E | Hose, Union TO Connector Tube |
| 44776 | Hose, Brake Booster |
| 44776E | Clip(FOR BRAKE BOOSTER HOSE) |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44785 | Gasket, Brake Booster |
| 44785E | Gasket, Brake Booster, NO.2 |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 83390H | Switch Assy, Vacuum Warning |
| 83390J | Grommet, Vacuum Warning Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
