Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Frame

27 part groups · 3 illustrations

Illustrations

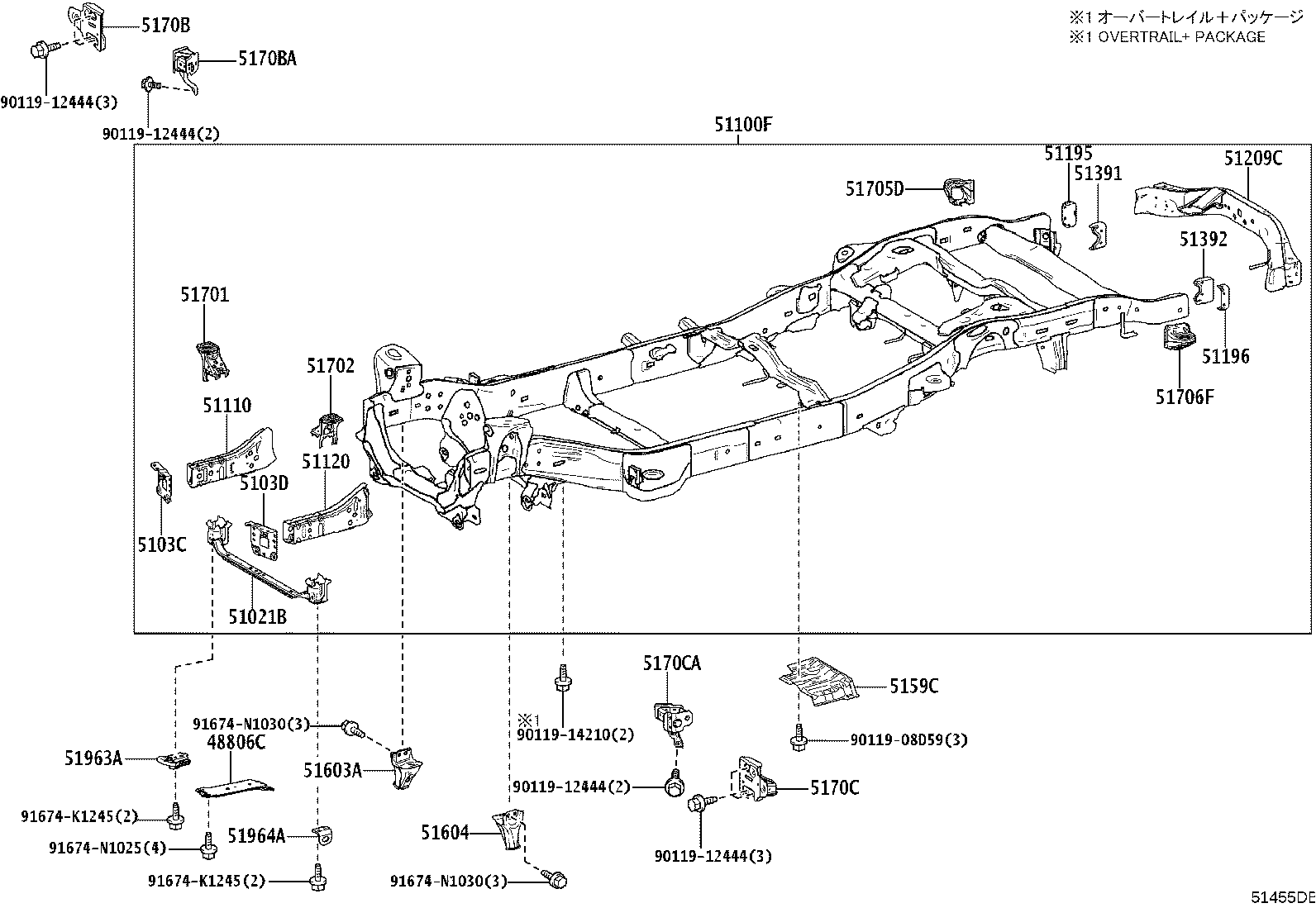

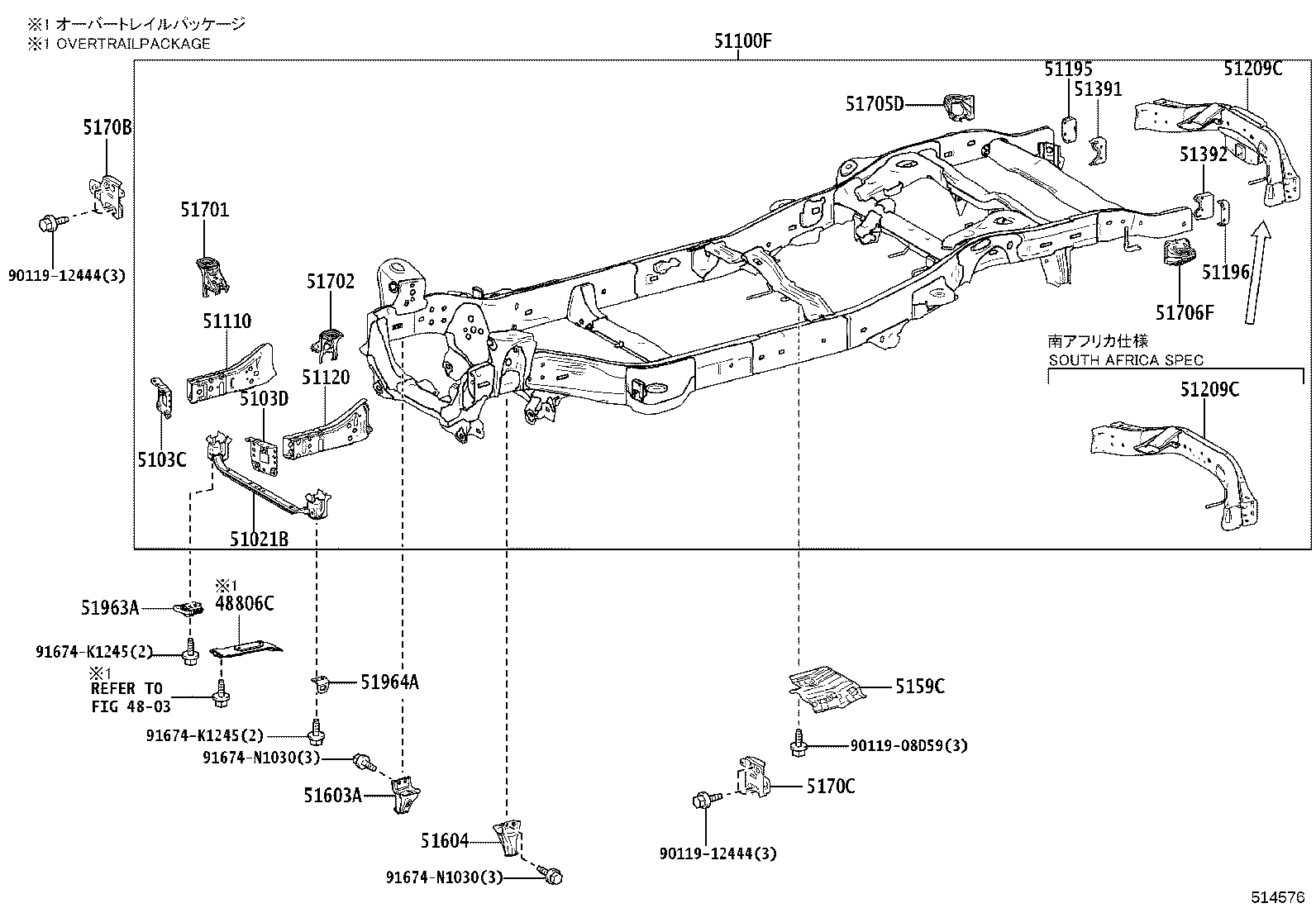

Figure 51455EC 51455EC 2024-02 → — Figure 514576 514576 2024-02 → — Figure 51455DB 51455DB 2024-03 → —

Part groups

PNCDescription
48806C Brace Sub-assy, Front Stabilizar, Center
51021B Crossmember Sub-assy, Frame Auxiliary
5103C Plate Sub-assy, Side Rail Extension, RH
5103D Plate Sub-assy, Side Rail Extension, LH
51100F Frame Sub-assy
51110 Extension Assy, Side Rail, RH
51120 Extension Assy, Side Rail, LH
51195 Patch, Rear Frame Rail, RH
51196 Patch, Rear Frame Rail, LH
51209C Crossmember Sub-assy, Frame, Rear
51391 Gusset, Frame Rear Crossmember, RH
51392 Gusset, Frame Rear Crossmember, LH
5159C Insulator, Frame Crossmember Heat
51603A Bracket Sub-assy, Front Bound Stopper, RH
51604 Bracket Sub-assy, Front Bound Stopper, LH
51701 Bracket Sub-assy, Cab Mounting, NO.1 RH
51702 Bracket Sub-assy, Cab Mounting, NO.1 LH
51705D Bracket Sub-assy, Cab Rear Mounting, RH
51706F Bracket Sub-assy, Cab Rear Mounting, LH
5170B Reinforce Sub-assy, Cab Mounting Bracket, NO.1 RH
5170BA Reinforce Sub-assy, Cab Mounting Bracket, NO.2 RH
5170C Reinforce Sub-assy, Cab Mounting Bracket, NO.1 LH
5170CA Reinforce Sub-assy, Cab Mounting Bracket, NO.2 LH
51729A Cover, NO.2 Cab Mounting, RH
5172A Cover, NO.2 Cab Mounting, LH
51963A Hook, Transport, Front RH
51964A Hook, Transport, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
