Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

7 part groups · 2 illustrations

Illustrations

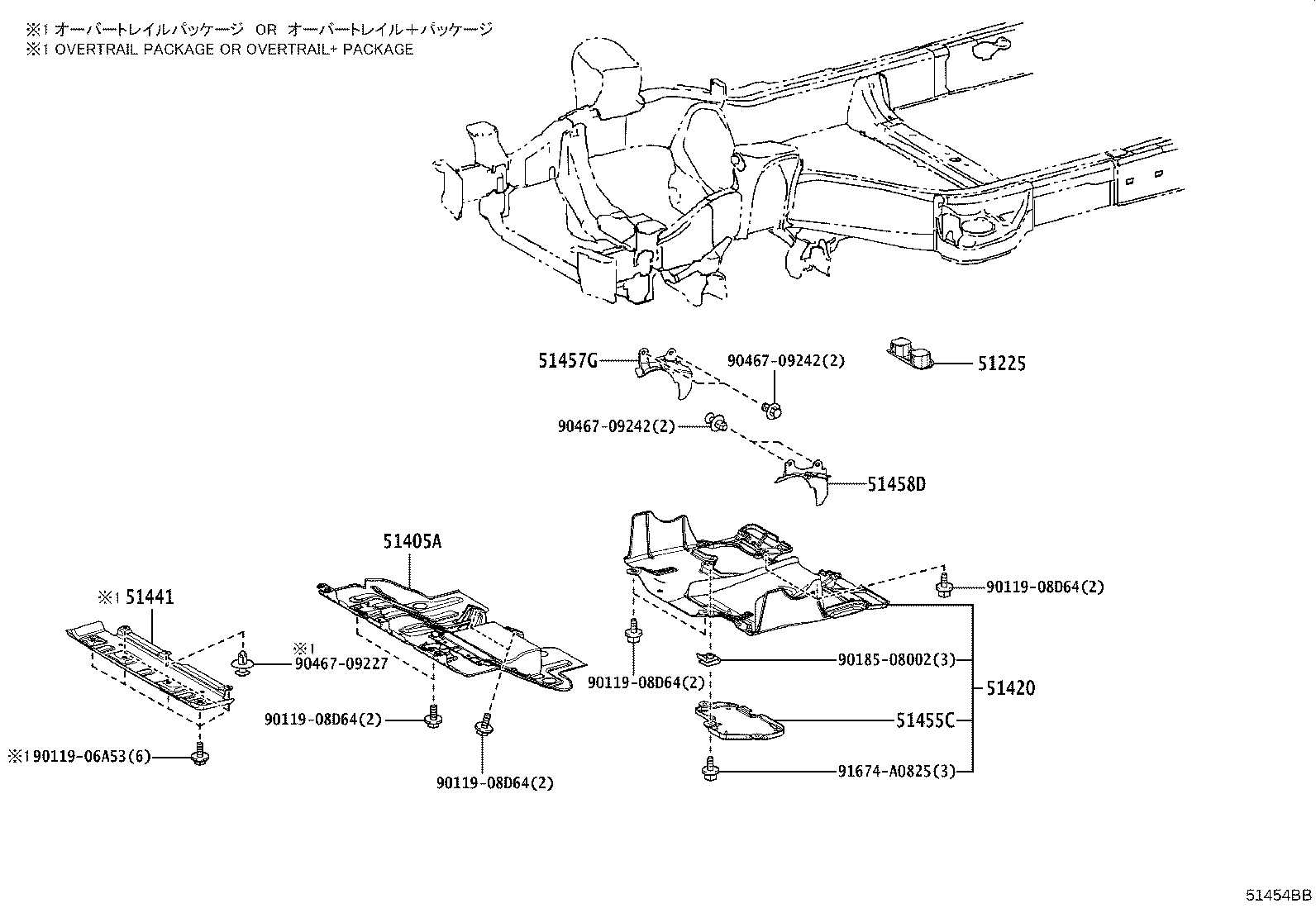

Figure 51454DB 51454DB 2024-02 → — Figure 51454BB 51454BB 2024-02 → —

Part groups

PNCDescription
51225 Cover, Engine Mounting Hole, NO.3
51405A Cover Sub-assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51441 Cover, Engine Under, NO.1
51455C Seal, Engine Under Cover, NO.2
51457G Seal, Frame Under, NO.2 RH
51458D Seal, Frame Under, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
