Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

21 part groups · 2 illustrations

Illustrations

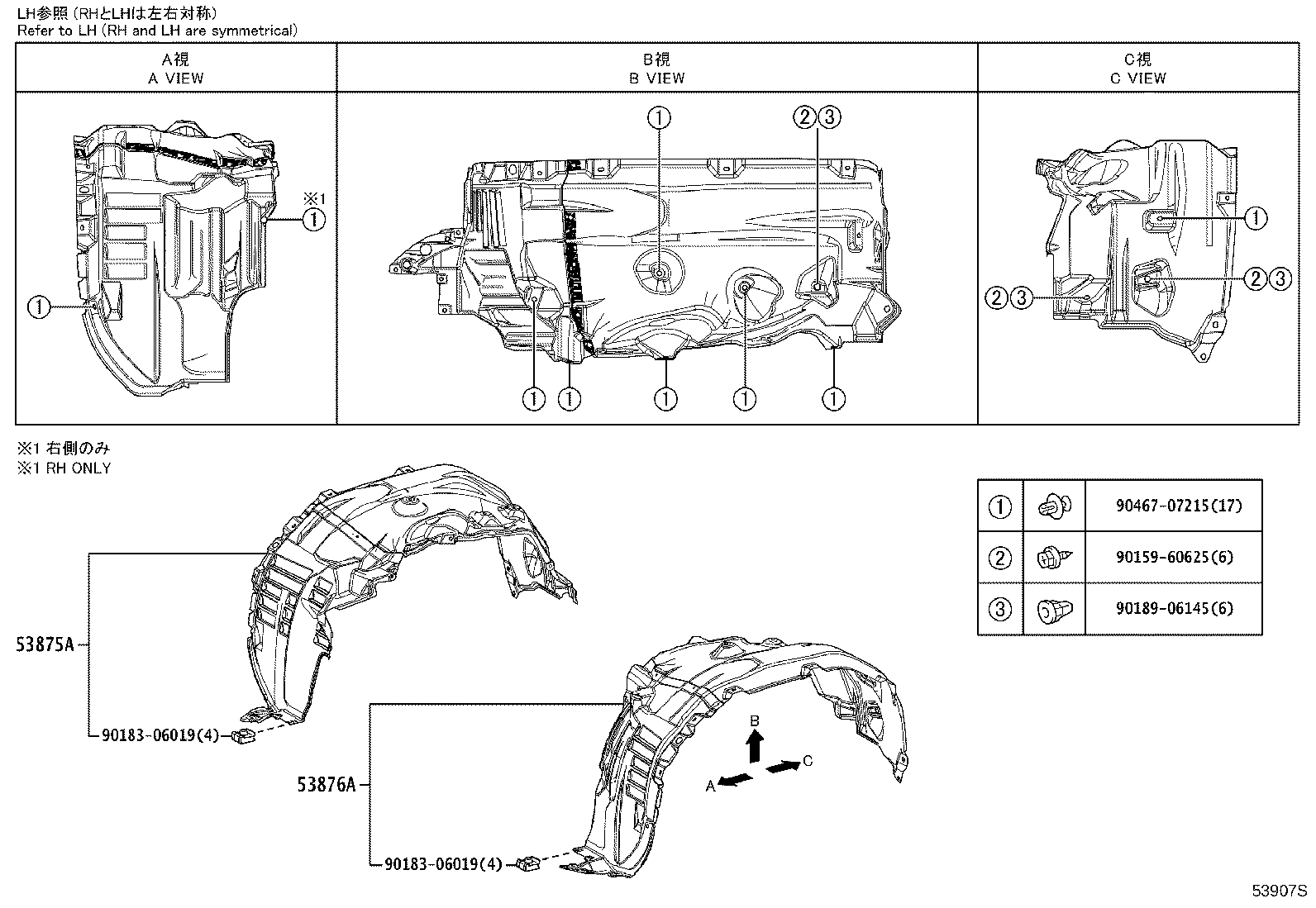

Figure 53907RB 53907RB 2024-02 → — Figure 53907S 53907S 2024-02 → —

Part groups

PNCDescription
53153E Guide, Front Side Air
53154E Guide, Front Side Air, NO.2
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53807D Reinforcement Sub-assy, Front Fender, Top RH
53808D Reinforcement Sub-assy, Front Fender, Top LH
53811B Panel, Front Fender, RH
53812D Panel, Front Fender, LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53837A Bracket, Front Side Panel, NO.2
53838C Bracket, Front Side Panel, NO.2 LH
53857 Retainer, Front Wheel Opening Extension, RH
53857B Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53858B Retainer, Front Wheel Opening Extension, LH
53875A Liner, Front Fender, RH
53876A Liner, Front Fender, LH
55739G Stopper, Hood
65487 Clip, Corner Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
