Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

7 part groups · 3 illustrations

Illustrations

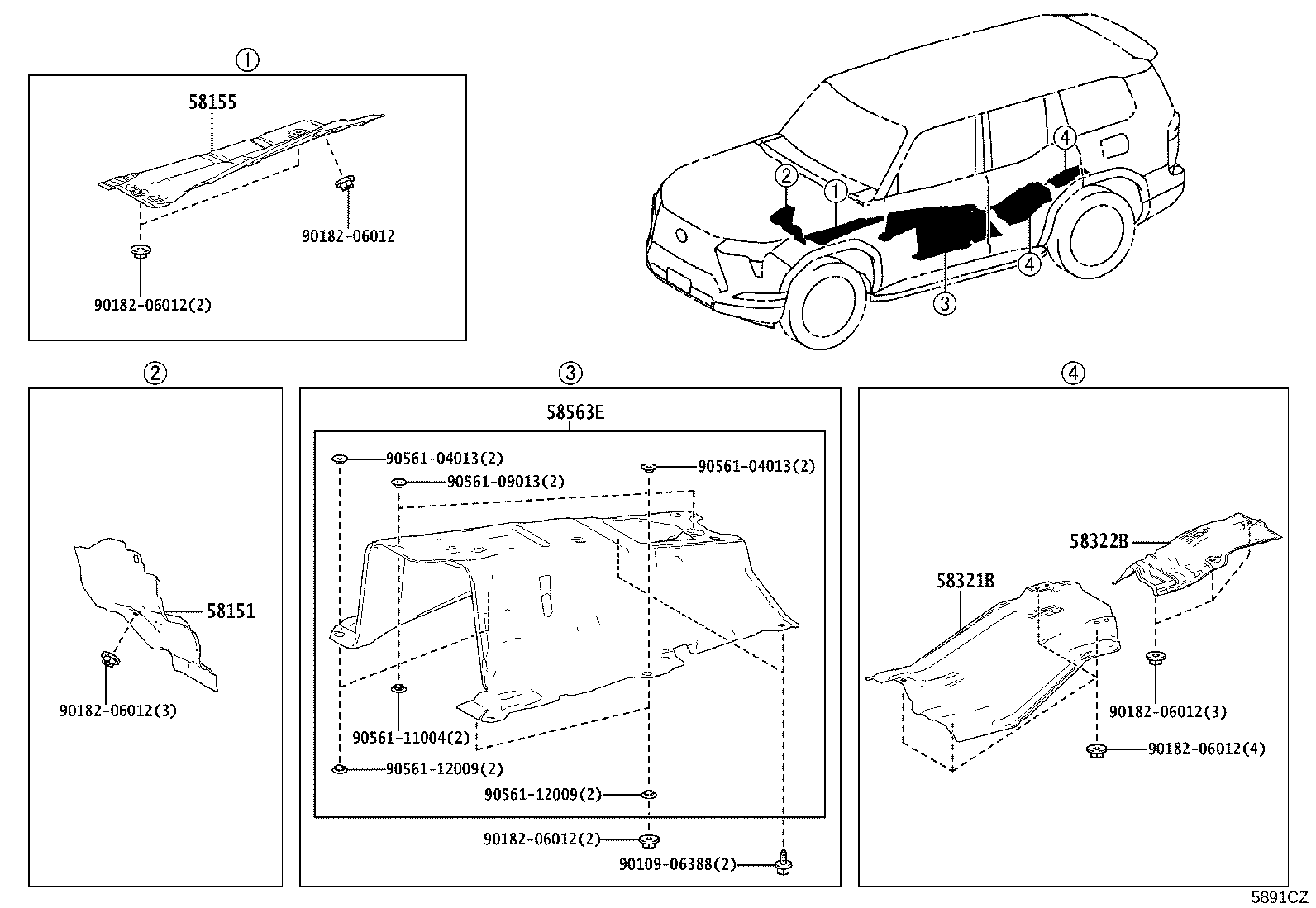

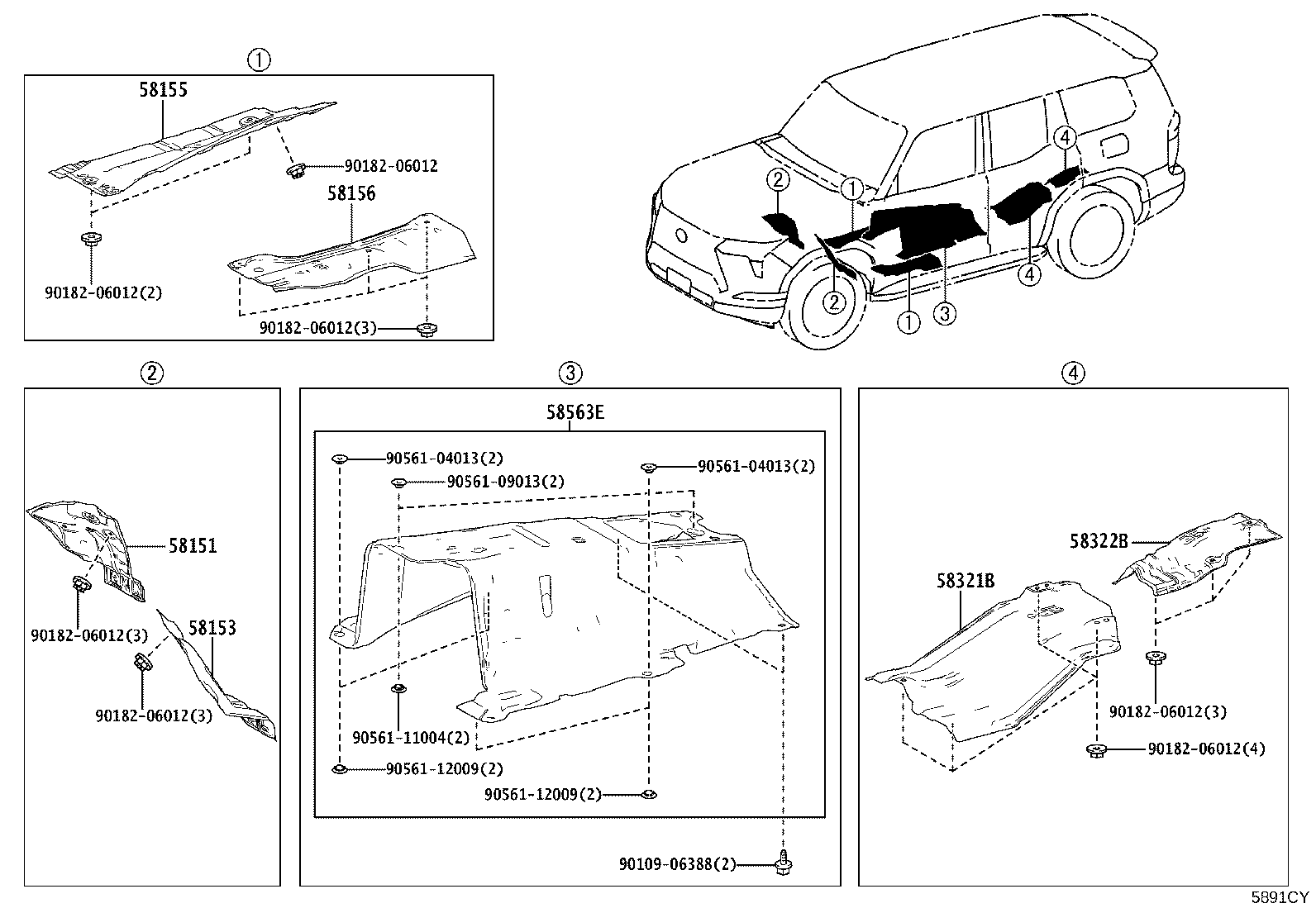

Figure 5891CX 5891CX 2024-02 → — Figure 5891CY 5891CY 2024-02 → — Figure 5891CZ 5891CZ 2024-03 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58153 Insulator, Front Floor Heat, NO.2
58155 Insulator, Front Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58321B Insulator, Rear Floor Heat, NO.1
58322B Insulator, Rear Floor Heat, NO.2
58563E Silencer, Front Floor, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
