Toyota Lexus GX550/550H
2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe
Supported model
Data version 2024-02

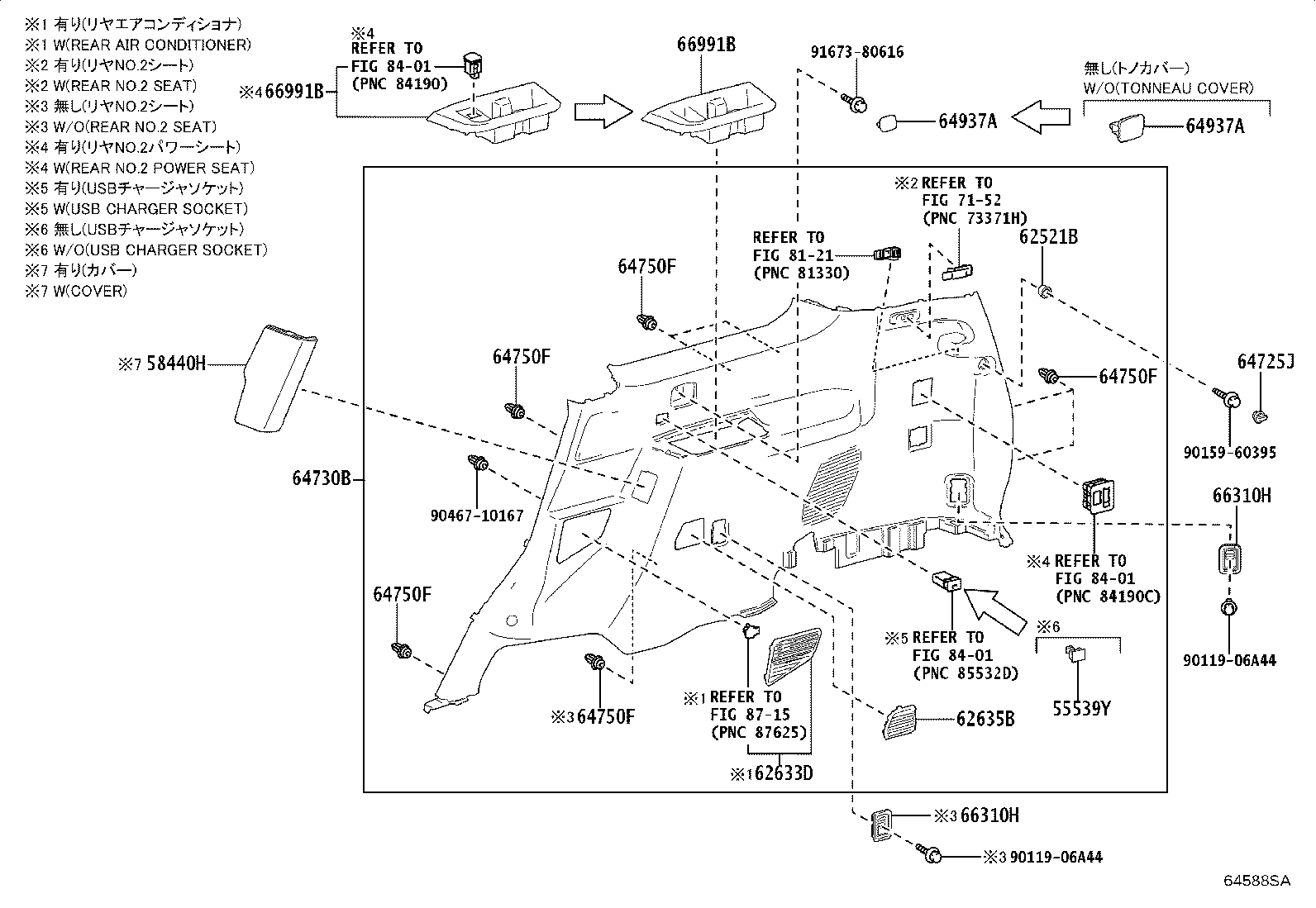

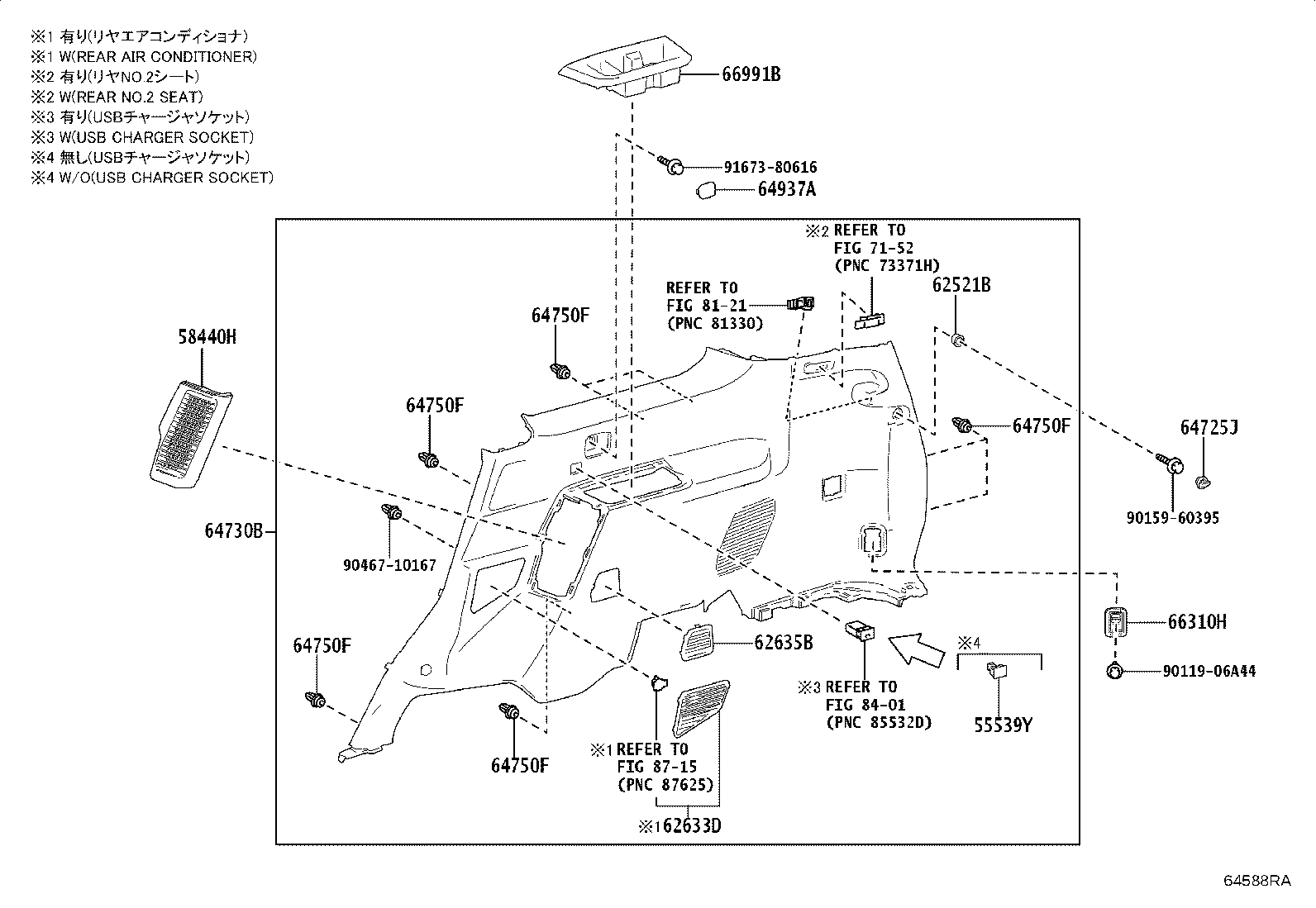

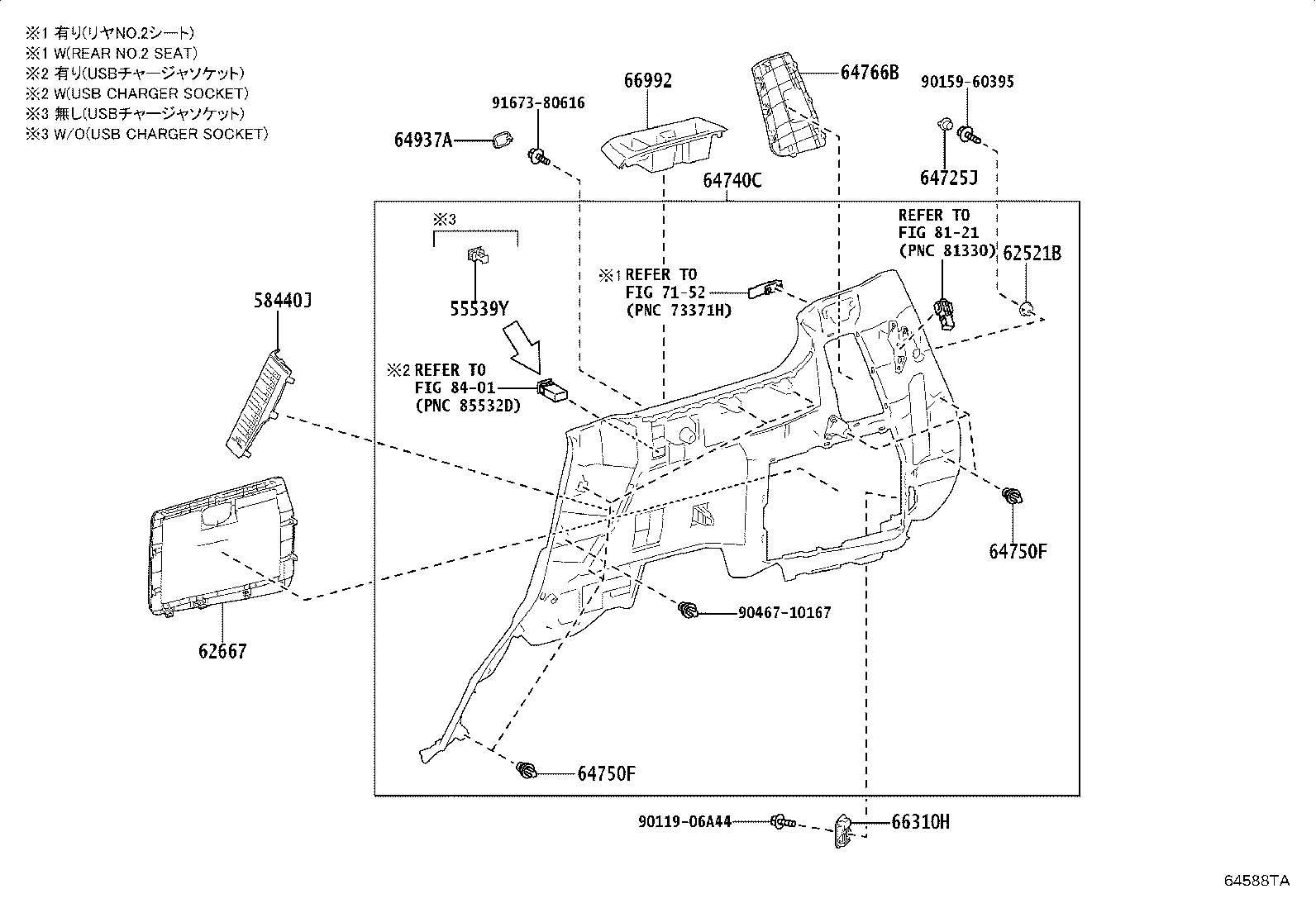

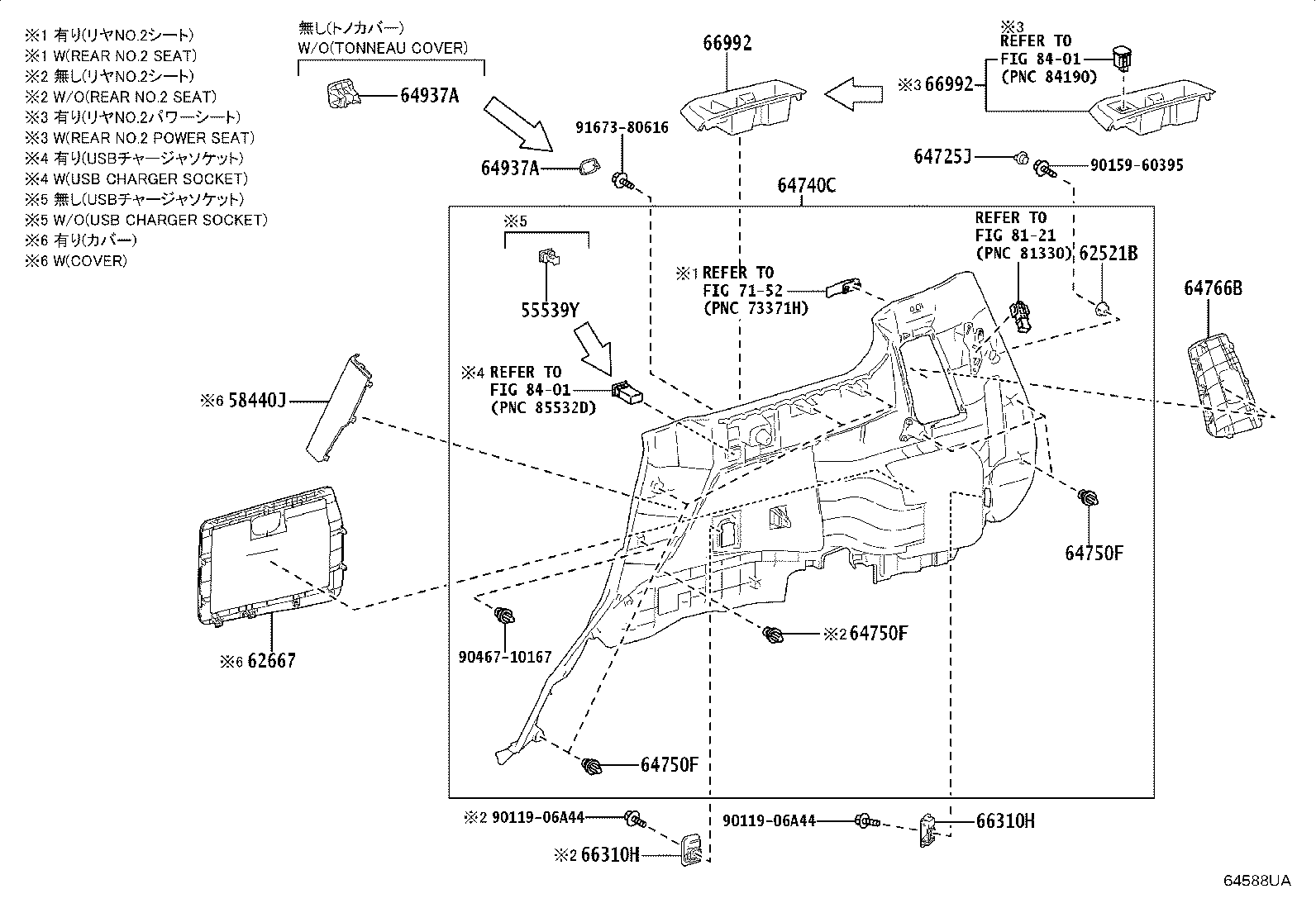

Inside Trim Board
54 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539Y | Cover, Spare Switch Hole |
| 58440H | Cover Assy, Battery Service Hole, RH |
| 58440J | Cover Assy, Battery Service Hole, LH |
| 62111B | Clip(FOR COWL SIDE TRIM) |
| 62111C | Board, Cowl Side Trim, RH |
| 62112 | Board, Cowl Side Trim, LH |
| 62117B | Clip, NO.1(FOR COWL SIDE TRIM) |
| 62170A | Airbag Assy, Curtain Shield, RH |
| 62170B | Bolt, W/Washer |
| 62180A | Airbag Assy, Curtain Shield, LH |
| 62180C | Clip, Curtain Shield Airbag |
| 62211U | Garnish Assy, Front Pillar, RH |
| 62212B | Garnish Assy, Front Pillar, LH |
| 62217H | Clip, Center Piller Garnish |
| 62217J | Clip, Center Piller Garnish |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62331C | Weatherstrip, Rear Door Opening Trim, RH |
| 62332C | Weatherstrip, Rear Door Opening Trim, LH |
| 62401A | Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER) |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62431B | Garnish, Roof Side Rail, NO.1 RH |
| 62432B | Garnish, Roof Side Rail, NO.1 LH |
| 62476A | Cap, Roof Side Inner Garnish, RH |
| 62477A | Cap, Roof Side Inner Garnish, LH |
| 62489A | Clip, Roof Side Inner Garnish |
| 62510K | Clip(FOR QUARTER TRIM FRONT PANEL) |
| 62510P | Panel Assy, Quarter Trim, Front RH |
| 62520P | Panel Assy, Quarter Trim, Front LH |
| 62521B | Cover, Quarter Trim, RH |
| 62566B | Clamp, Rocker Panel Inner Protecter, NO.1 |
| 62597D | Clip |
| 62630P | Panel Assy, Quarter Trim, Rear RH |
| 62633D | Cover, Quarter Trim Base, Front RH |
| 62635B | Cover, Quarter Trim Base, Rear RH |
| 62640K | Clip(FOR QUARTER TRIM REAR PANEL) |
| 62640P | Panel Assy, Quarter Trim, Rear LH |
| 62667 | Cover, Quarter Trim, LH |
| 64725J | Hook, Luggage Compartment Trim, NO.1 |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64766B | Cover, Quarter Trim Jack |
| 64937A | Cap, Tonneau Cover Holder, NO.1 |
| 66310H | Hook Assy, Rope |
| 66991B | Holder, Cup, NO.1 |
| 66992 | Holder, Cup, NO.2 |
| 67910 | Plate Assy, Door Scuff, RH |
| 67917C | Plate, Rear Door Scuff, RH |
| 67918E | Plate, Rear Door Scuff, LH |
| 67920 | Plate Assy, Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
