Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

14 part groups · 3 illustrations

Illustrations

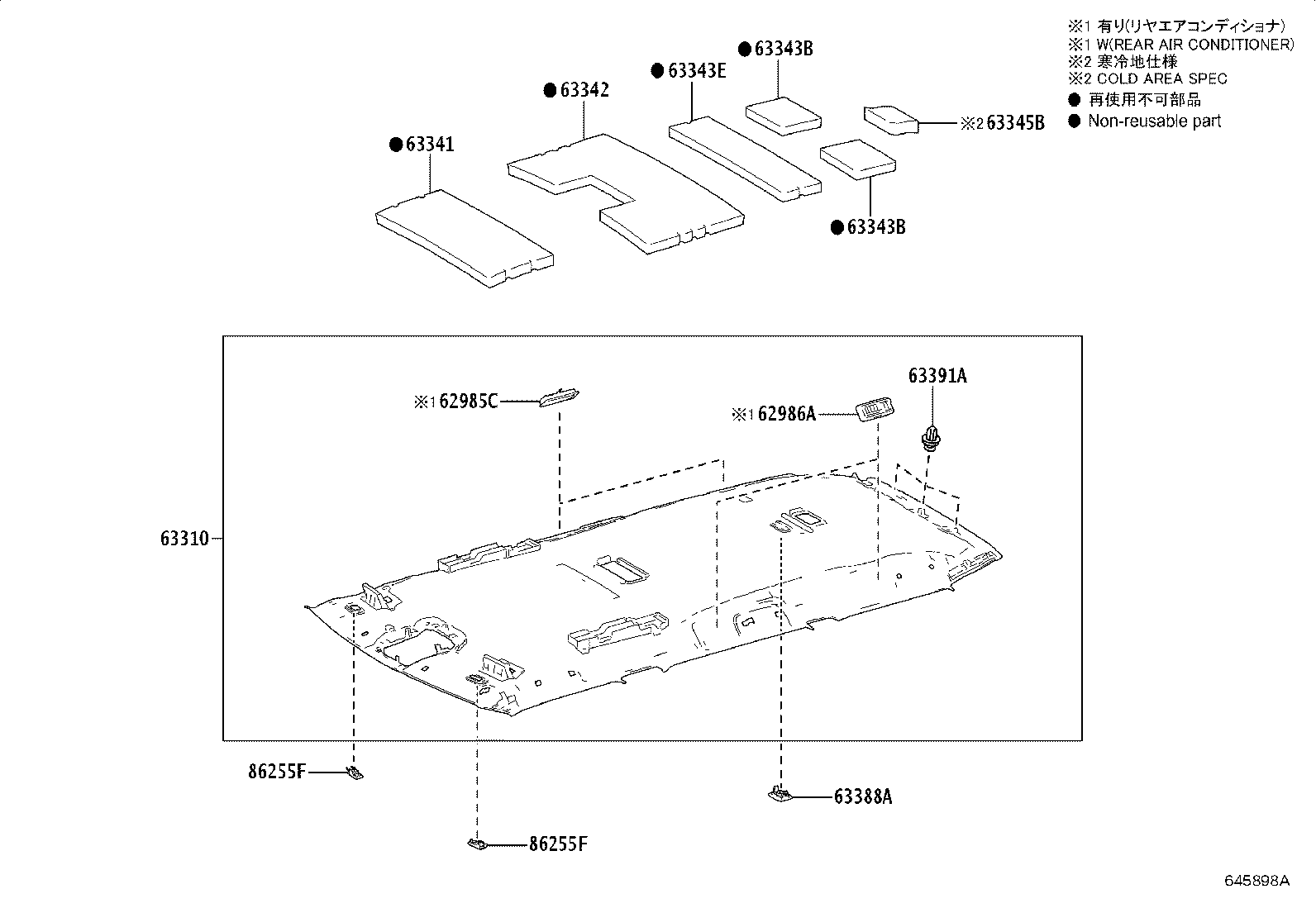

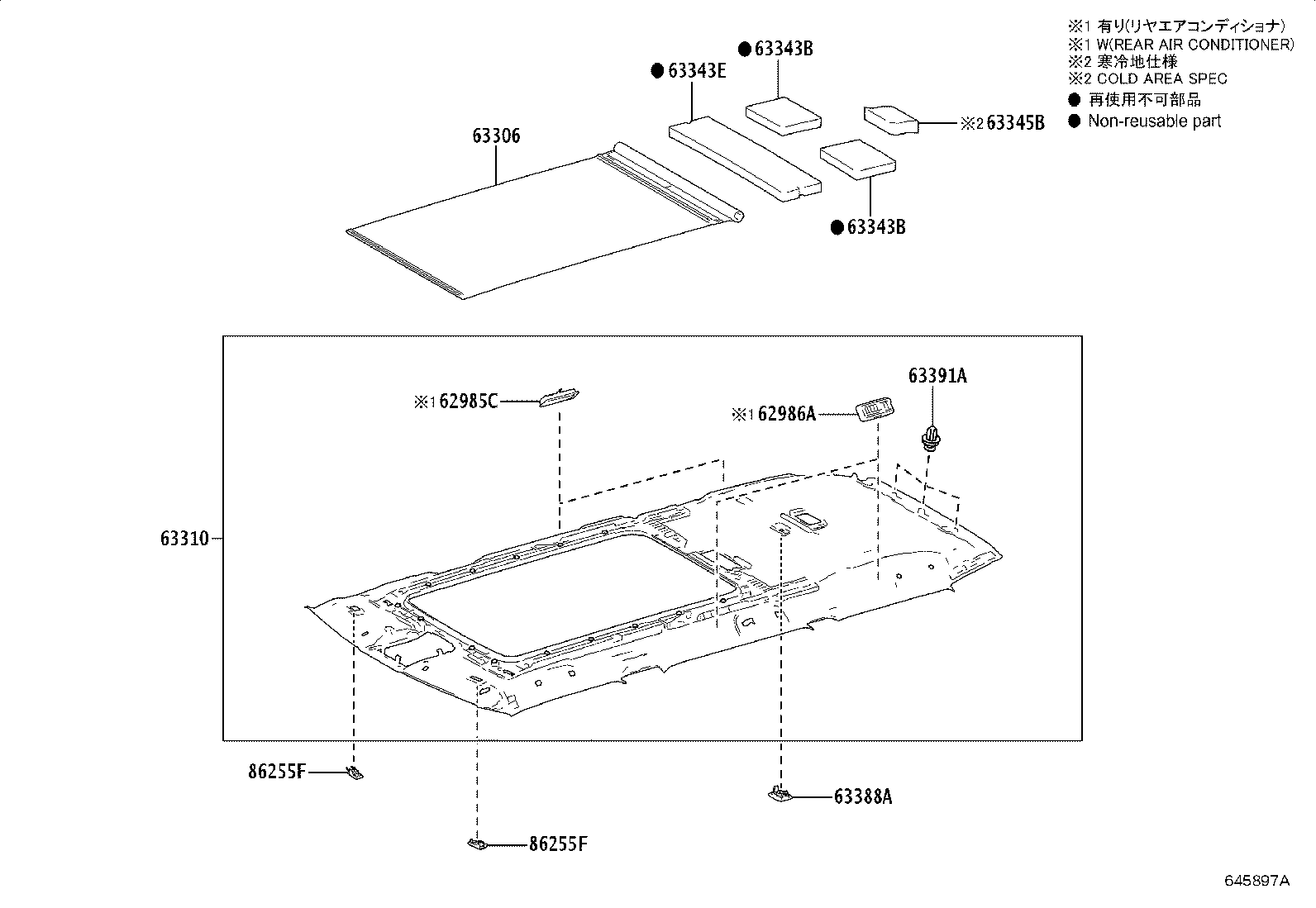

Figure 645896A 645896A 2023-12 → — Figure 645897A 645897A 2023-12 → — Figure 645898A 645898A 2023-12 → —

Part groups

PNCDescription
62985C Register, Roof Side Air Outlet, RH
62986A Register, Roof Side Air Outlet, LH
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63317A Retainer, Roof Headlining
63332A Retainer, Roof Headlining, Rear
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343B Pad, Roof Silencer, Rear
63343E Pad, Roof Silencer, NO.3
63345B Pad, Roof Silencer, Center
63388A Cover, Roof Headlining Holder
63391A Clip(FOR ROOF HEADLINING TRIM)
86255F Case, Microphone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
