Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

94 part groups · 16 illustrations

Illustrations

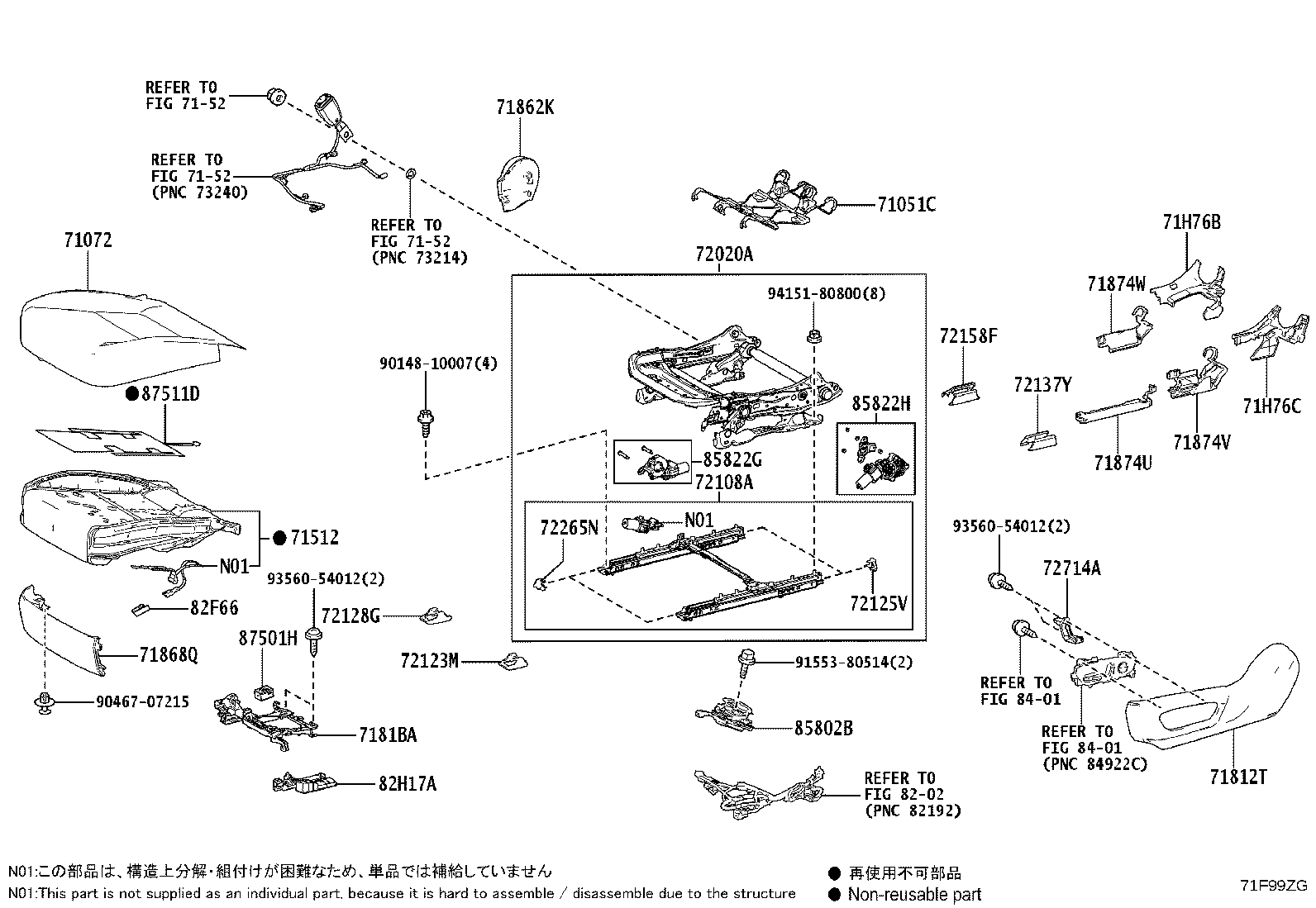

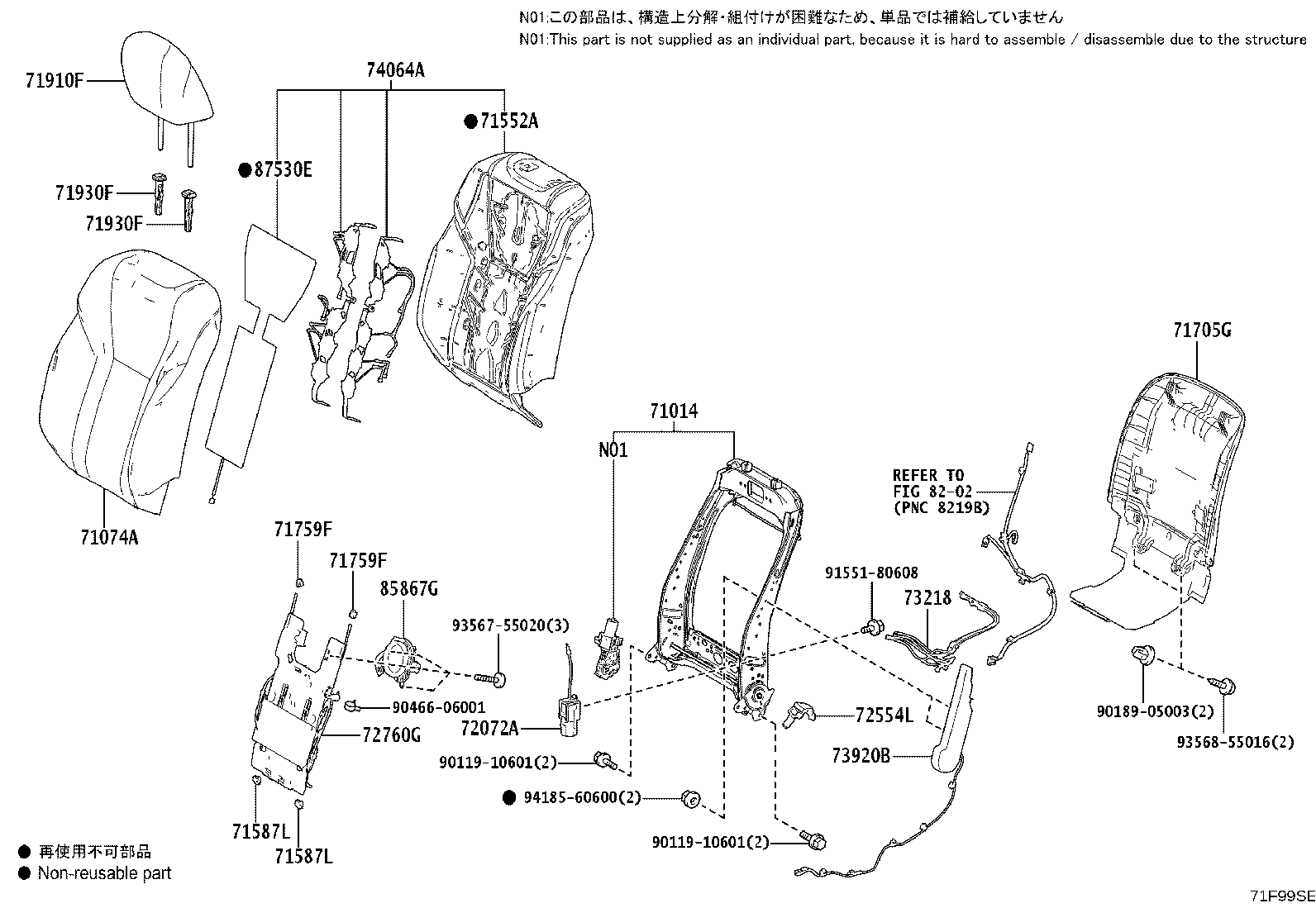

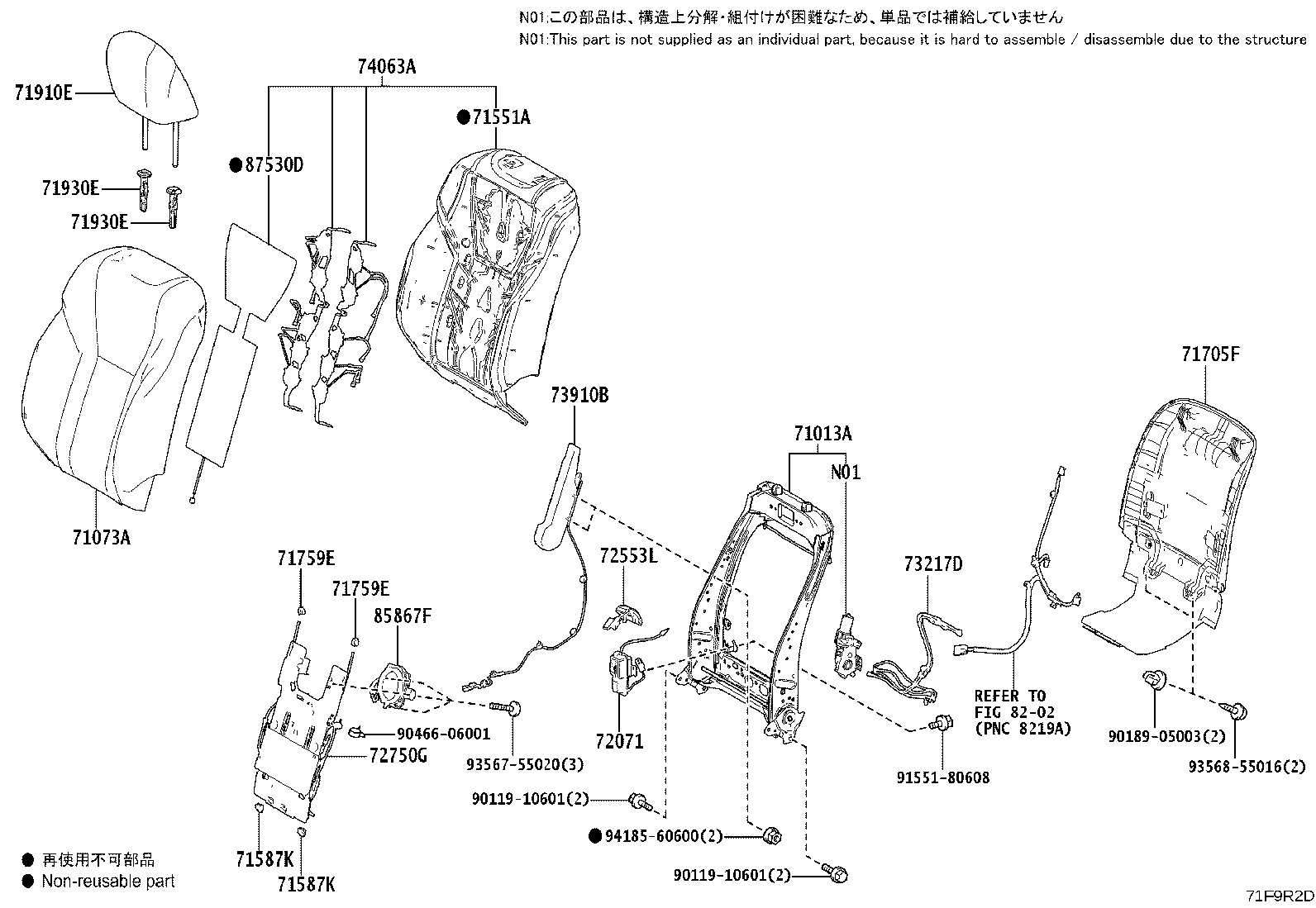

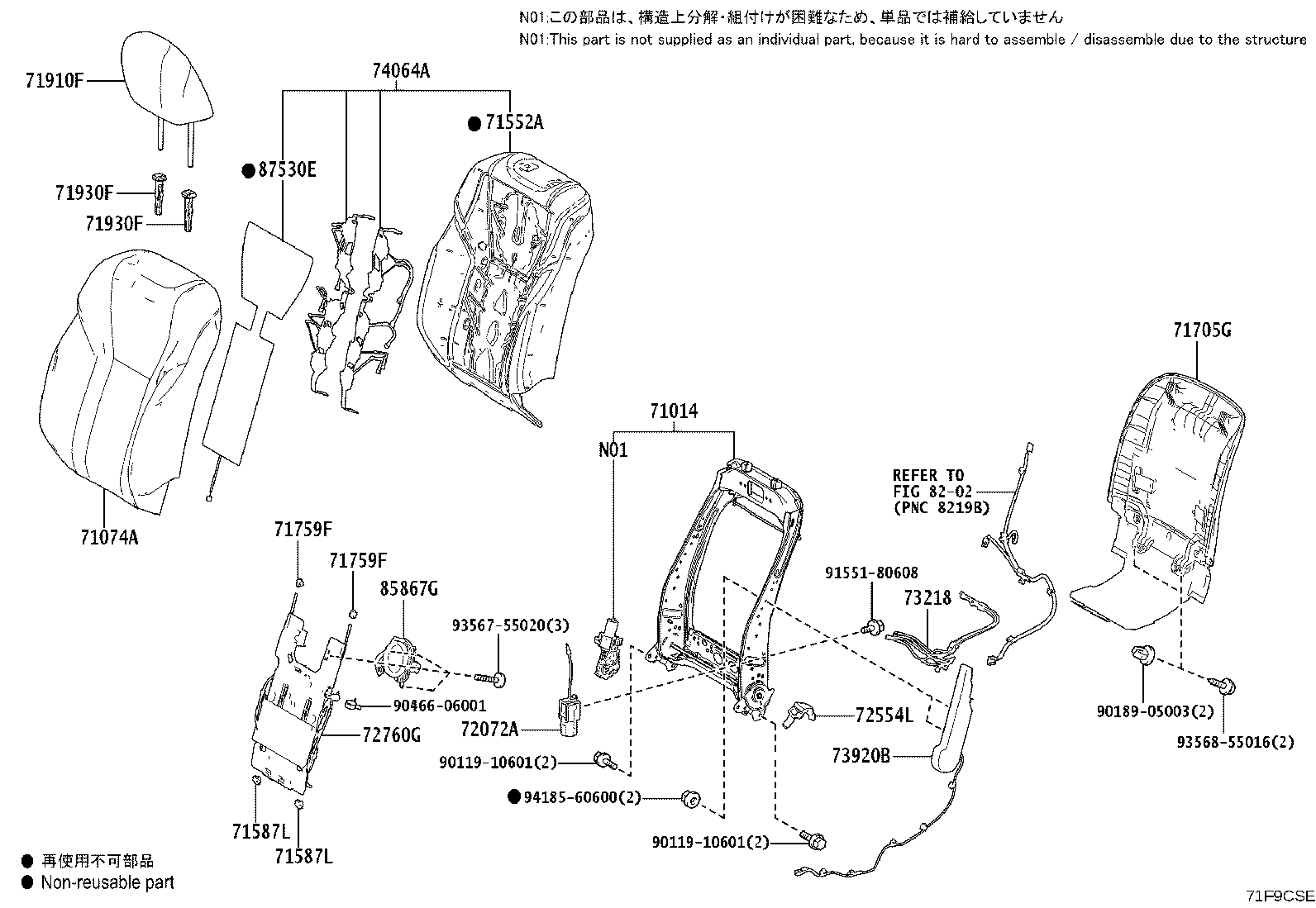

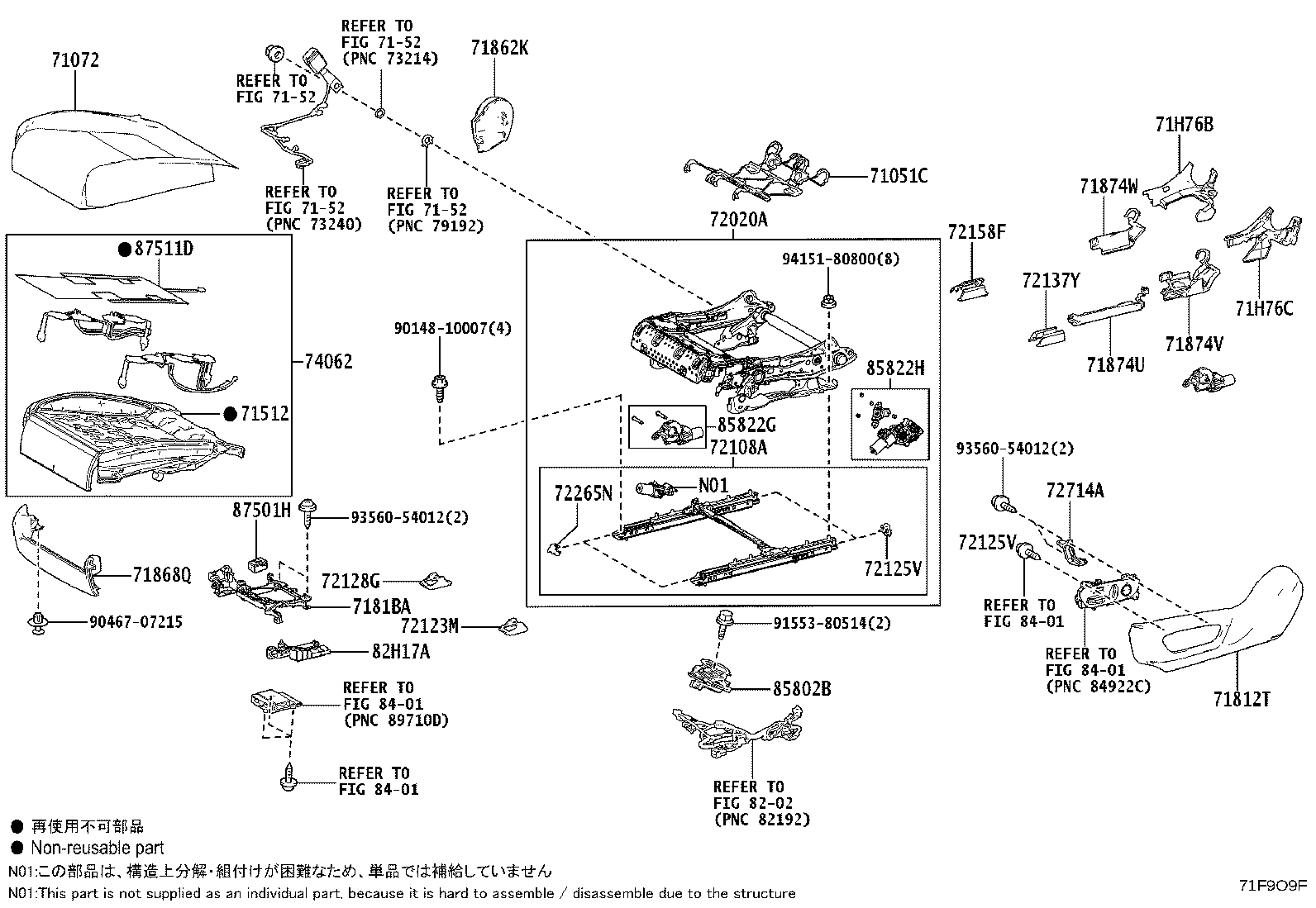

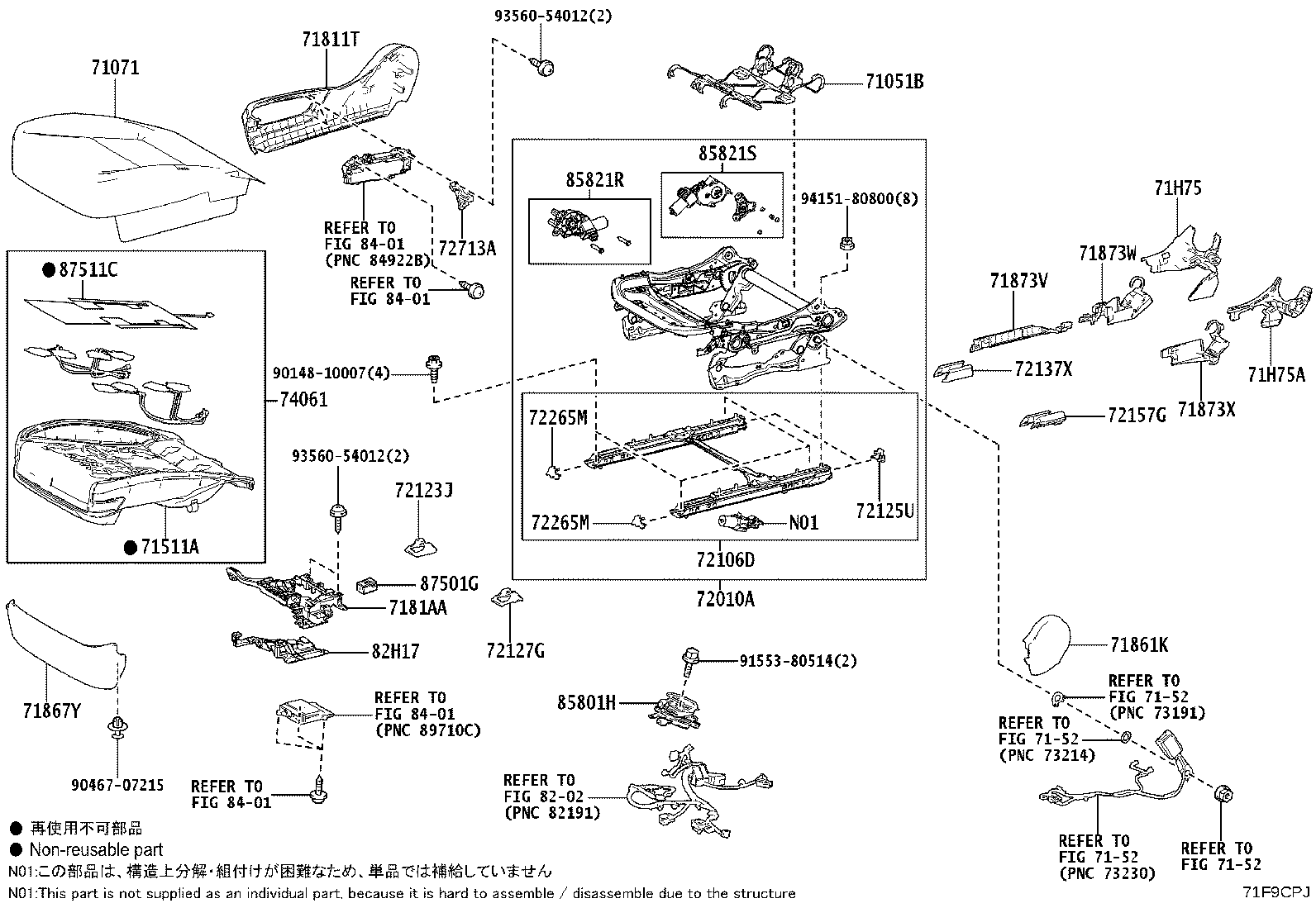

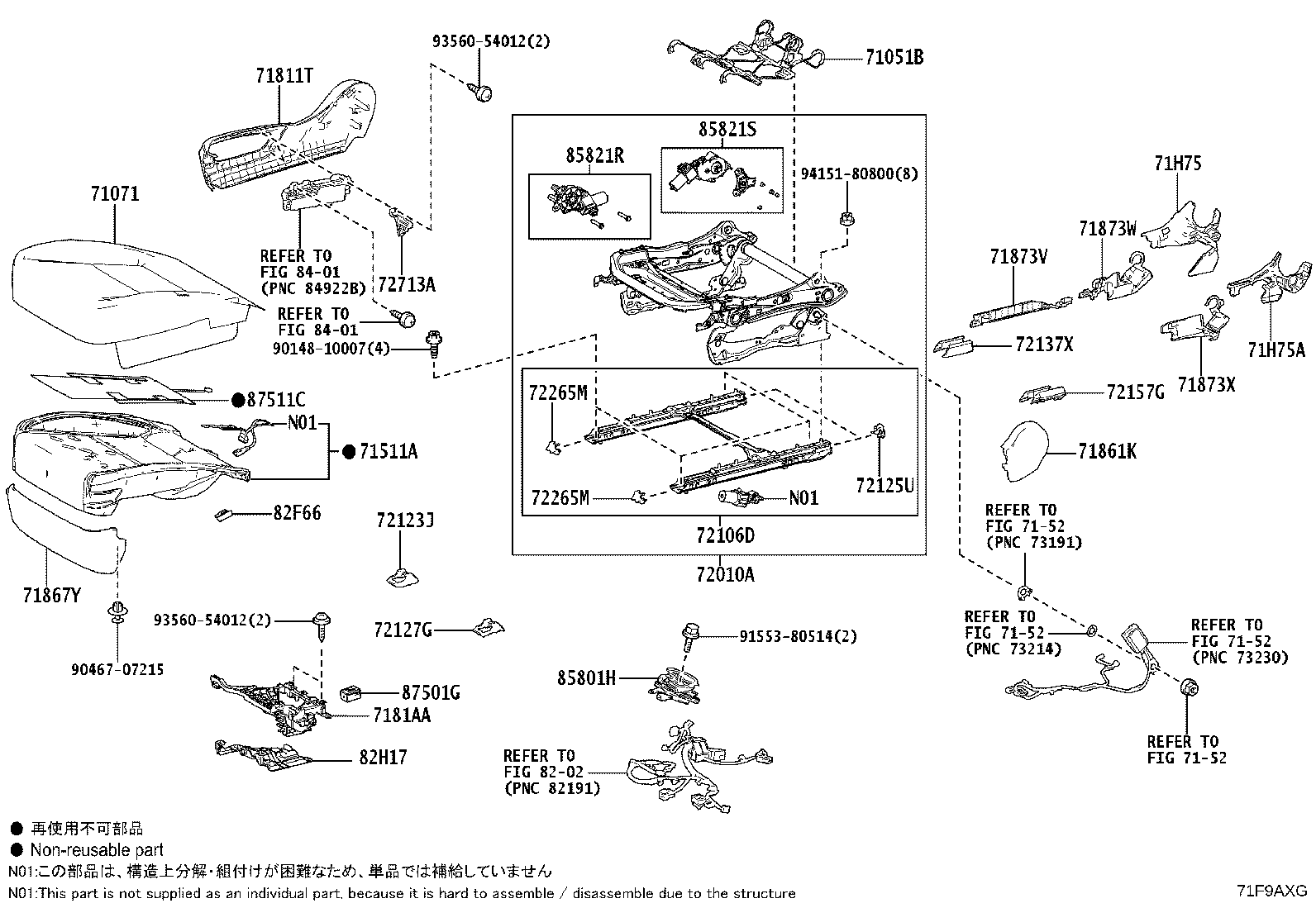

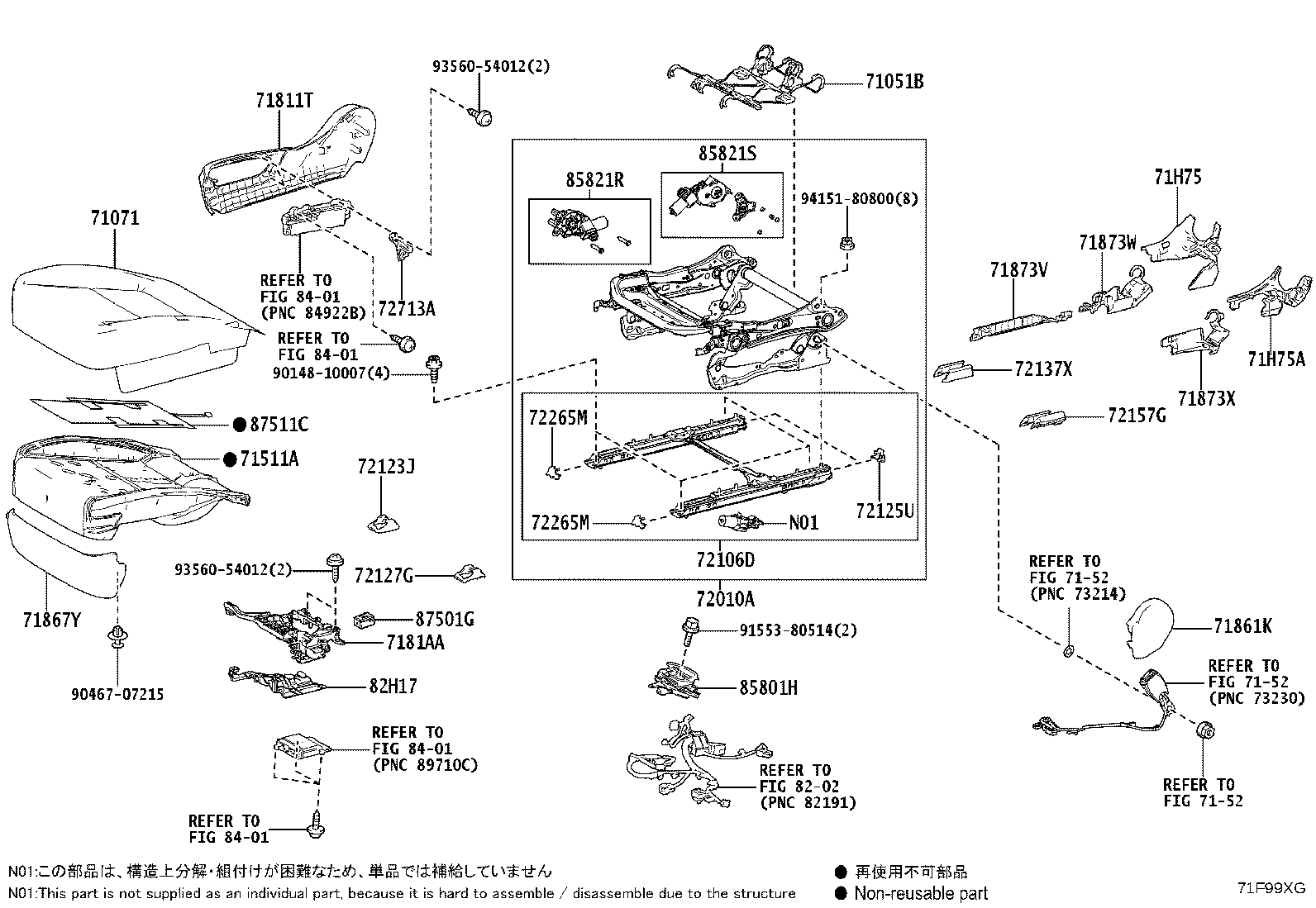

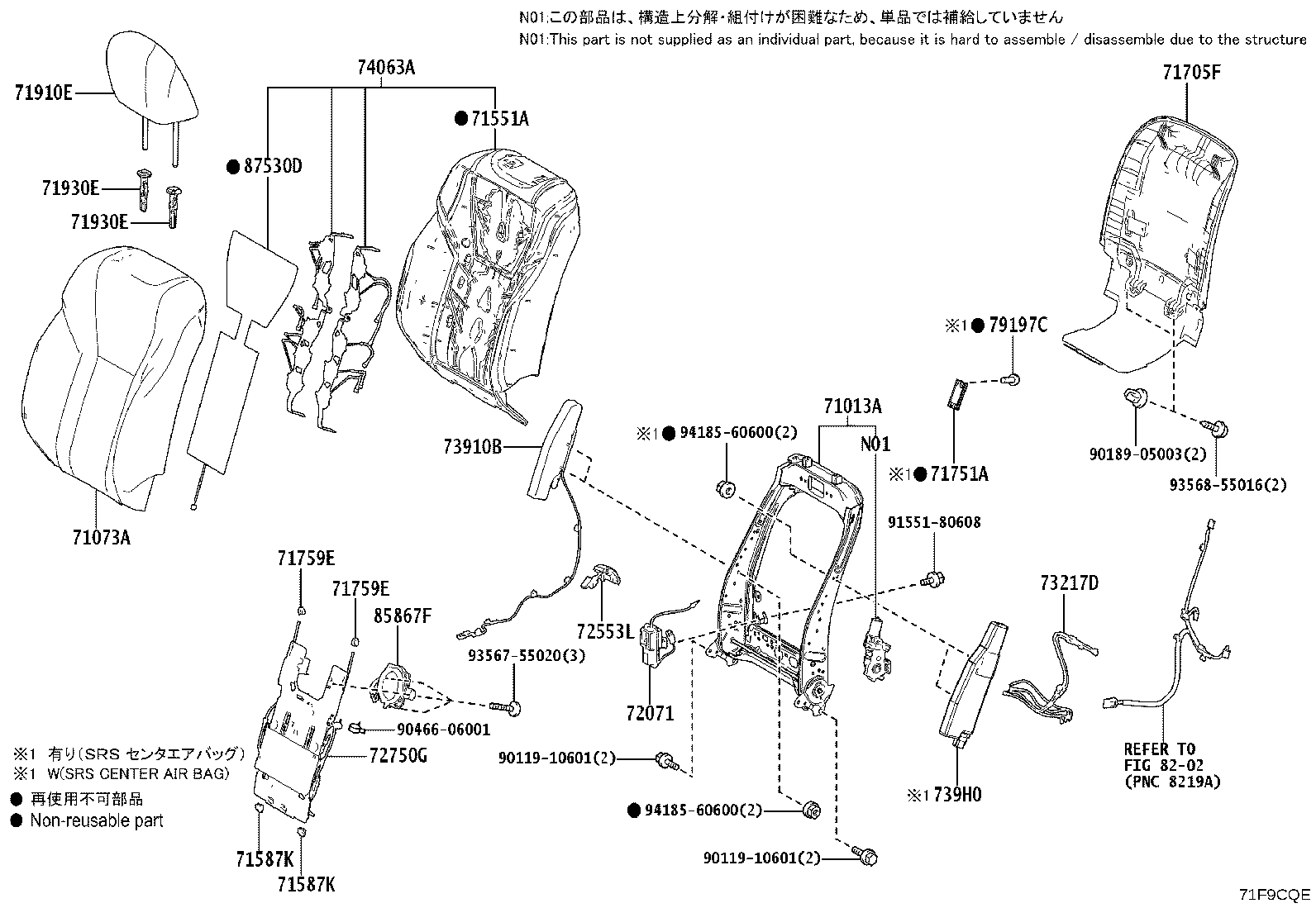

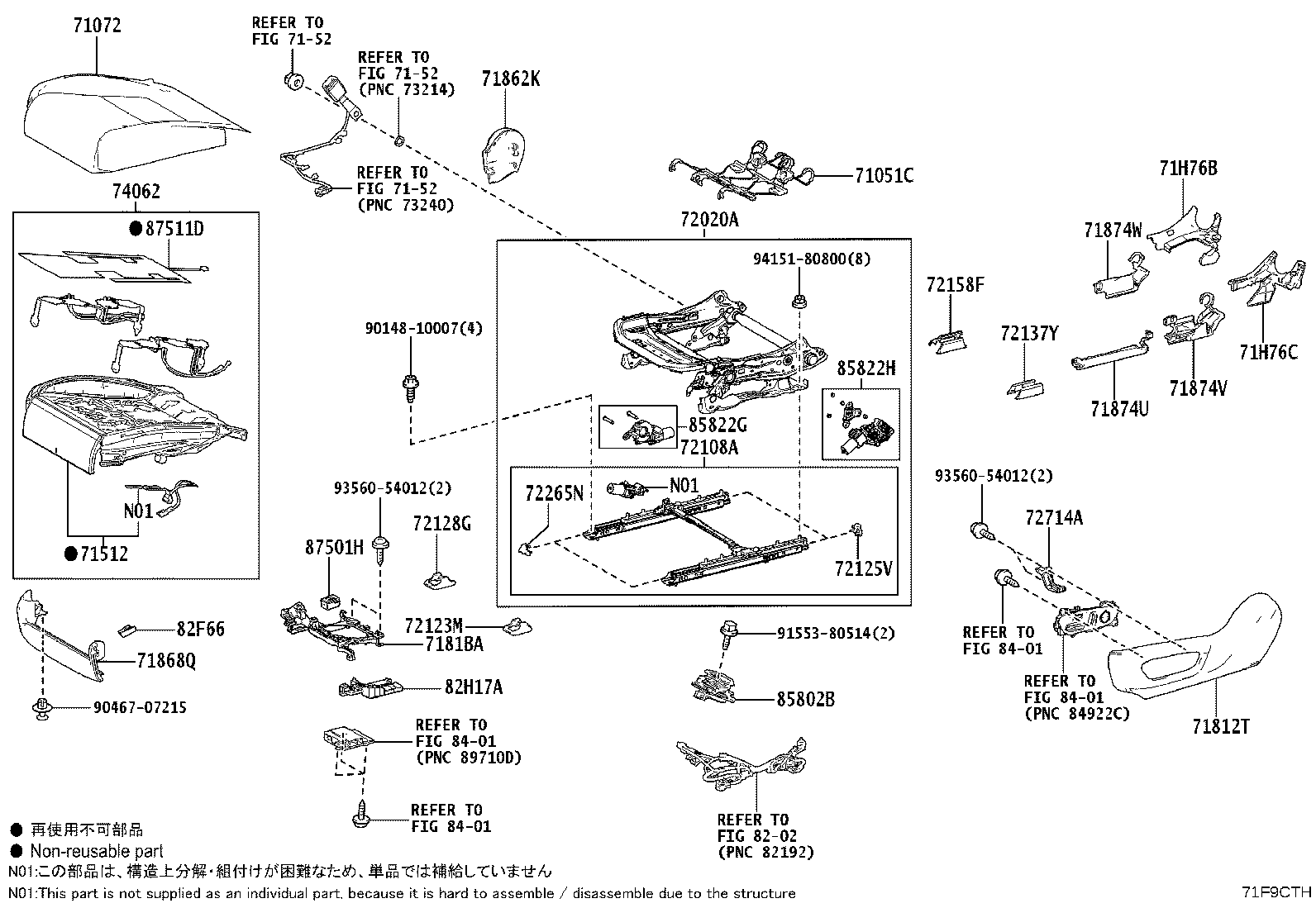

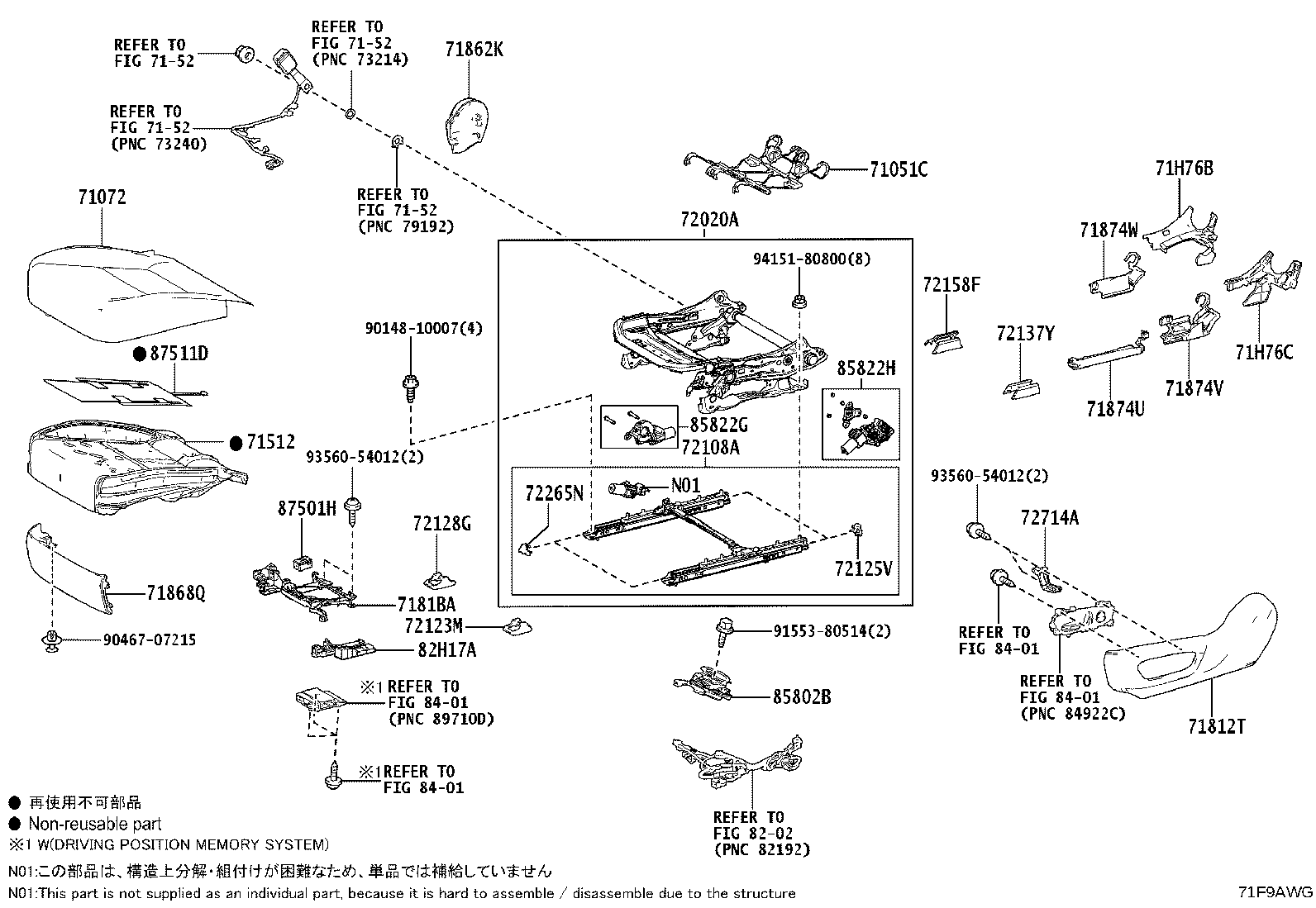

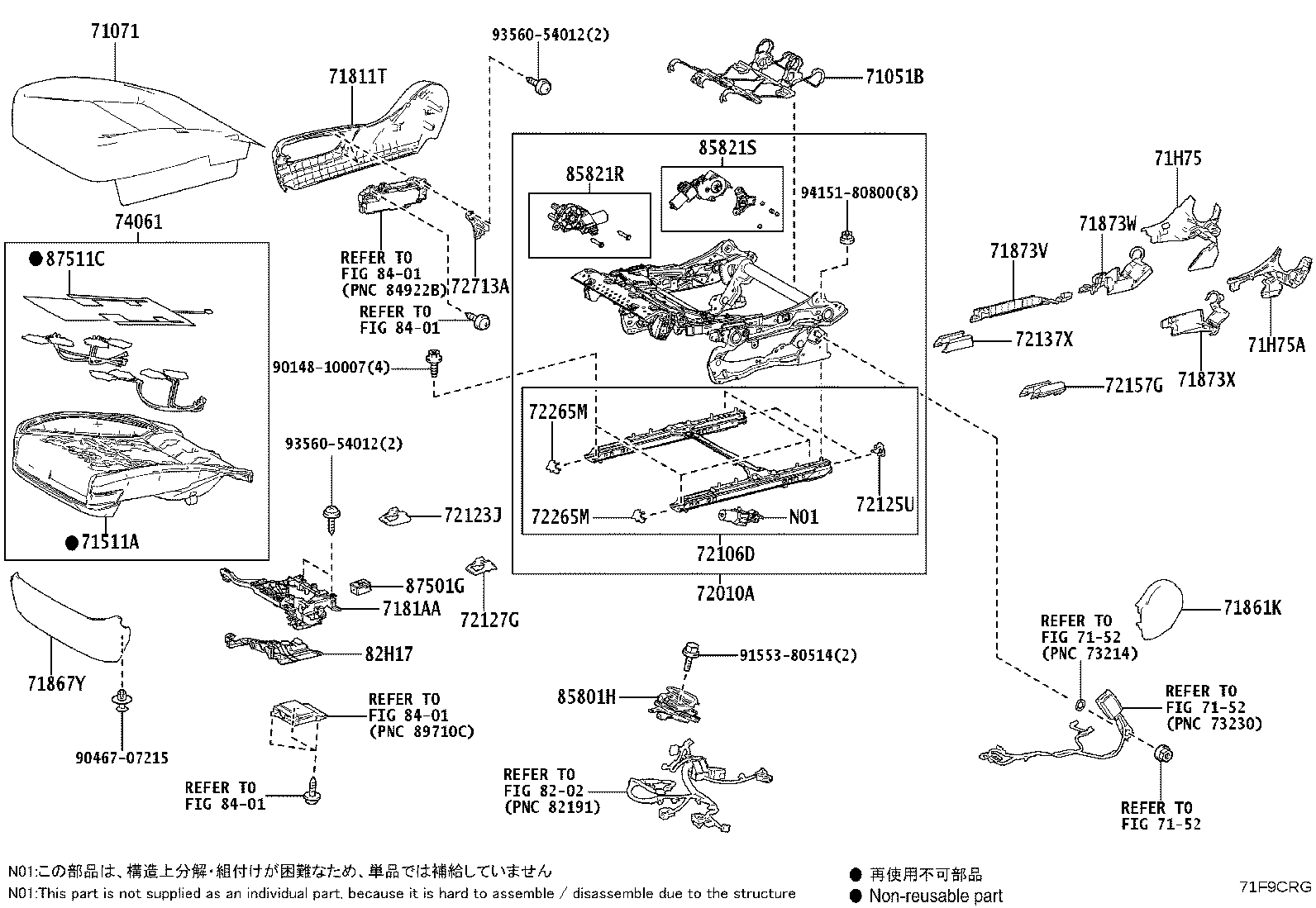

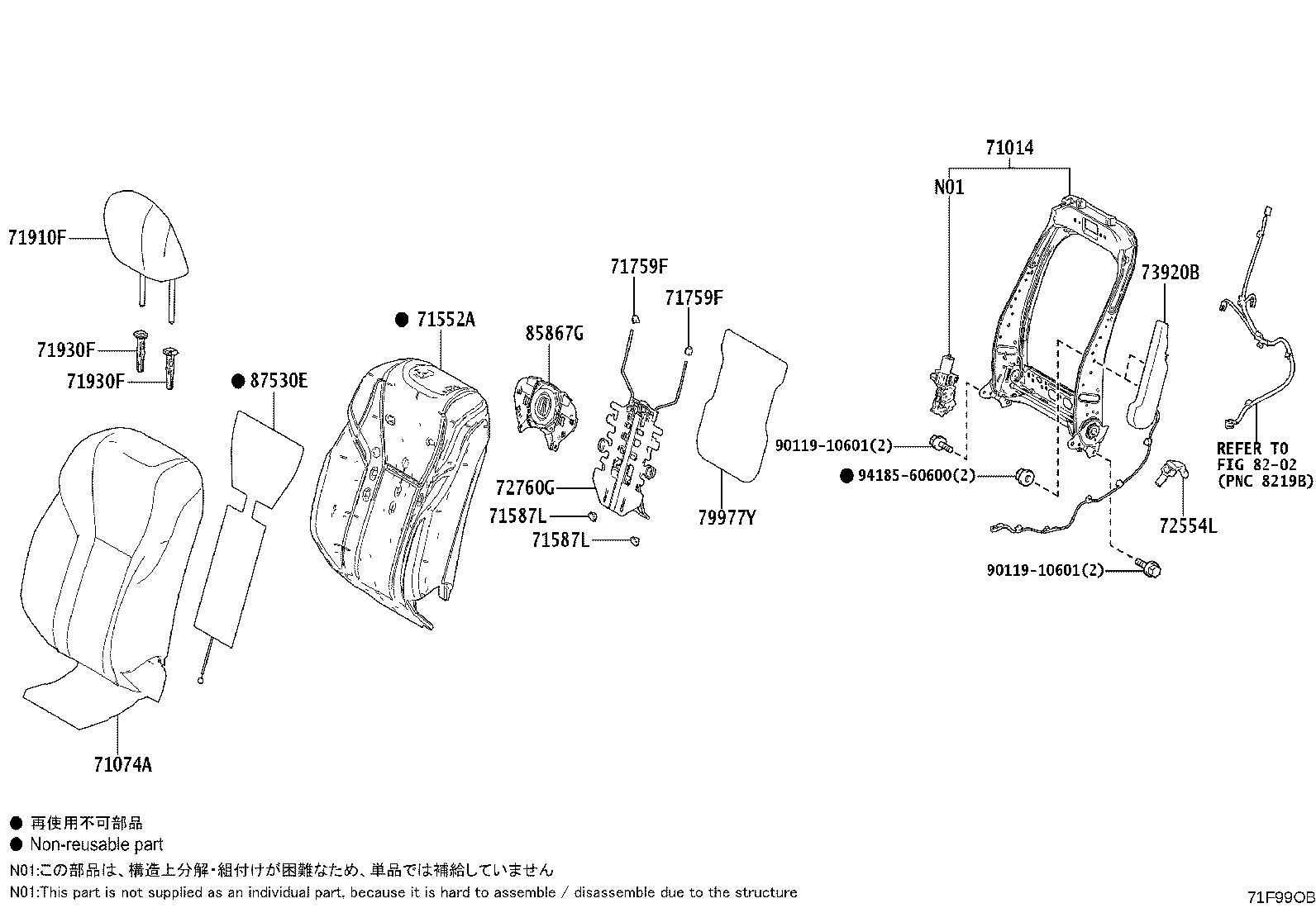

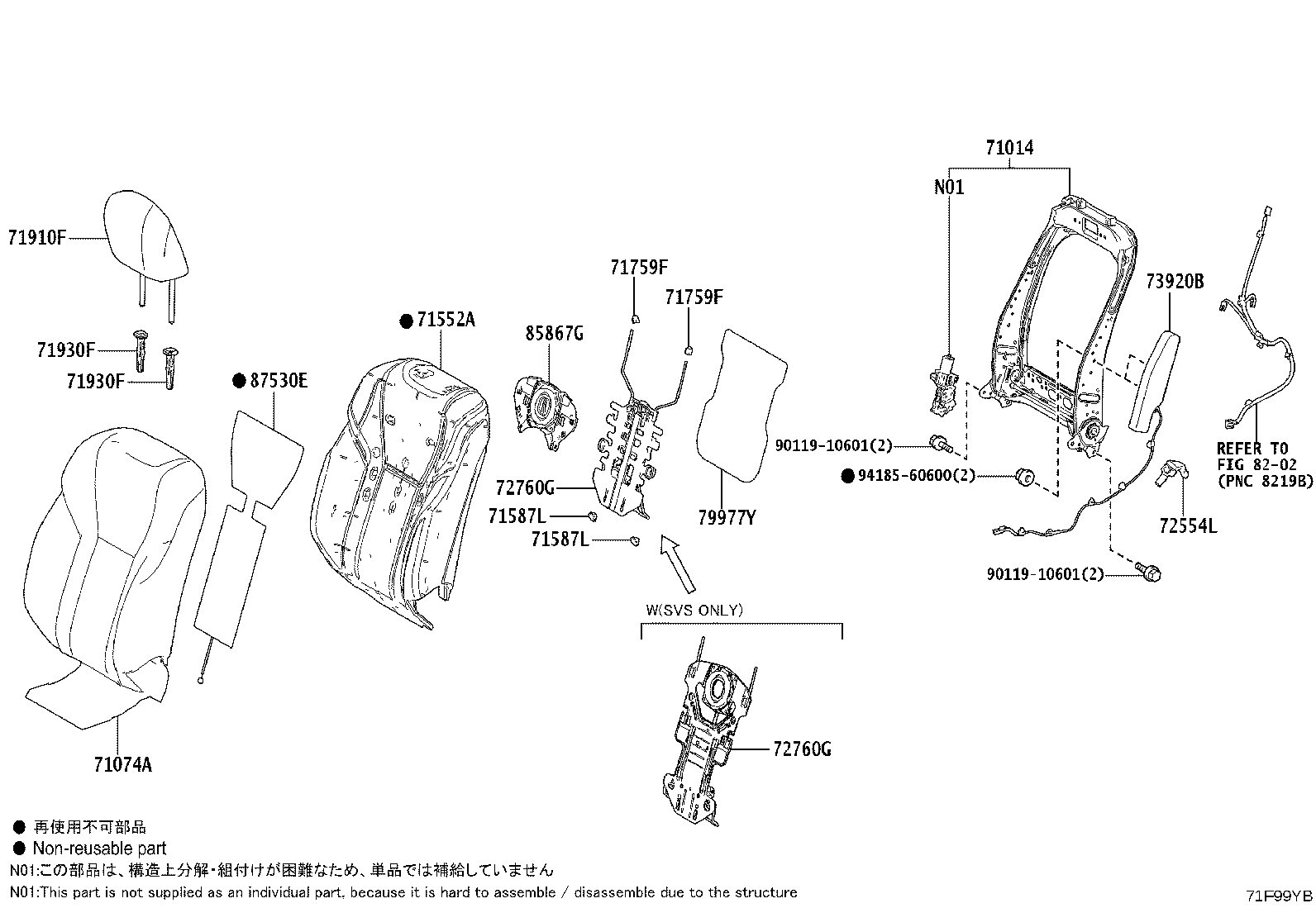

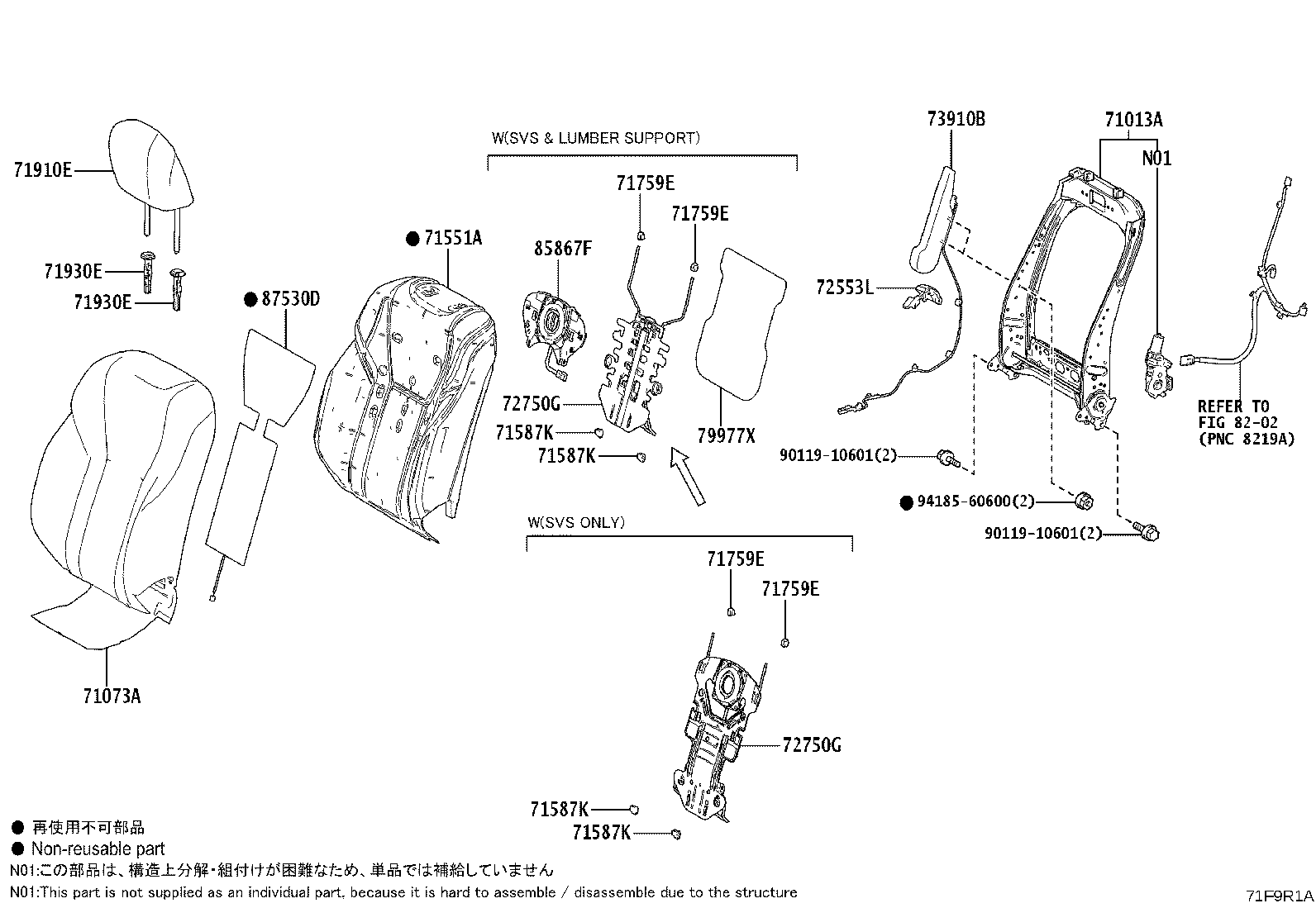

Figure 71F99WB 71F99WB 2024-02 → — Figure 71F9CQE 71F9CQE 2024-02 → — Figure 71F99XG 71F99XG 2024-02 → — Figure 71F9CRG 71F9CRG 2024-02 → — Figure 71F99YB 71F99YB 2024-02 → — Figure 71F9CSE 71F9CSE 2024-02 → — Figure 71F99ZG 71F99ZG 2024-02 → — Figure 71F9CTH 71F9CTH 2024-02 → — Figure 71F99OB 71F99OB 2024-02 → — Figure 71F99SE 71F99SE 2024-02 → — Figure 71F9AWG 71F9AWG 2024-02 → — Figure 71F9O9F 71F9O9F 2024-02 → — Figure 71F9R1A 71F9R1A 2024-02 → — Figure 71F9R2D 71F9R2D 2024-02 → — Figure 71F9AXG 71F9AXG 2024-02 → — Figure 71F9CPJ 71F9CPJ 2024-02 → —

Part groups

PNCDescription
71013A Frame Sub-assy, Front Seatback, RH
71014 Frame Sub-assy, Front Seatback, LH
71051B Spring Sub-assy, Front Seat Cushion, RH
71051C Spring Sub-assy, Front Seat Cushion, LH
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71705F Board Sub-assy, Front Seatback, RH
71705G Board Sub-assy, Front Seatback, LH
71751A Hanger, Seat Cover
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
7181AA Holder, Front Seat Cushion Wire Harness, RH
7181BA Holder, Front Seat Cushion Wire Harness, LH
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71867Y Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT)
71868Q Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT)
71873V Shield, Front Seat Cushion, Lower RH
71873W Shield, Front Seat Cushion, Lower RH, Outer
71873X Shield, Front Seat Cushion, Lower RH, Inner
71874U Shield, Front Seat Cushion, Lower LH
71874V Shield, Front Seat Cushion, Lower LH, Outer
71874W Shield, Front Seat Cushion, Lower LH, Inner
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71H75 Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT)
71H75A Cover, Reclining Adjuster Inside, RH Inner(FOR RH SEAT)
71H76B Cover, Reclining Adjuster Inside, LH Inner(FOR LH SEAT)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
72010A Adjuster Assy, Front Seat, RH
72020A Adjuster Assy, Front Seat, LH
72071 Pump Sub-assy, Lumber Support
72072A Pump Sub-assy, Lumber Support, LH
72106D Rail Sub-assy, Seat Track, Upper RH
72108A Rail Sub-assy, Seat Track, Upper LH
72123J Cover, Seat Track Bracket, Outer Front RH
72123M Cover, Seat Track Bracket, Outer Front LH
72125U Cover, Seat Track, Upper Rear RH
72125V Cover, Seat Track, Upper Rear LH
72127G Cover, Seat Track Bracket, Inner Front RH
72128G Cover, Seat Track Bracket, Inner Front LH
72137X Cover, Seat Track Bracket, Outer Rear RH
72137Y Cover, Seat Track Bracket, Outer Rear LH
72157G Cover, Seat Track Bracket, Inner Rear RH
72158F Cover, Seat Track Bracket, Inner Rear LH
72265M Cover, Seat Track Upper Rail, RH
72265N Cover, Seat Track Upper Rail, LH
72553L Protector, Reclining Cover, RH
72554L Protector, Reclining Cover, LH
72713A Bracket, Seat Adjuster Shield Clamp, RH
72714A Bracket, Seat Adjuster Shield Clamp, LH
72750G Adjuster Assy, Lumbar Support, RH
72760G Adjuster Assy, Lumbar Support, LH
73217D Tube, Adjuster, RH
73218 Tube, Adjuster, LH
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
739H0 Airbag Assy, Front Seat Center, RH
74061 Bag Sub-assy, Seat Cushion Pad, RH
74062 Bag Sub-assy, Seat Cushion Pad, LH
74063A Bag Sub-assy, Seatback Pad, RH
74064A Bag Sub-assy, Seatback Pad, LH
79197C Hook, Seatback Cover
79977X Felt, Seatback, RH
79977Y Felt, Seatback, LH
82F66 Holder, Connector
82H17 Protector, Wiring Harness, RH
82H17A Protector, Wiring Harness, LH
85801H Blower Sub-assy, Seat Cushion Climate, RH
85802B Blower Sub-assy, Seat Cushion Climate, LH
85821R Motor Assy, Power Seat Tilt, RH
85821S Motor Assy, Power Seat Lifter, RH
85822G Motor Assy, Power Seat Tilt, LH
85822H Motor Assy, Power Seat Lifter, LH
85867F Blower, Seatback Climate Control, RH
85867G Blower, Seatback Climate Control, LH
87501G Control Sub-assy, Seat Heater, RH
87501H Control Sub-assy, Seat Heater, LH
87511C Heater Assy, Front Seat Cushion, RH
87511D Heater Assy, Front Seat Cushion, LH
87530D Heater Assy, Front Seatback, RH
87530E Heater Assy, Front Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
