Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

202 part groups · 15 illustrations

Illustrations

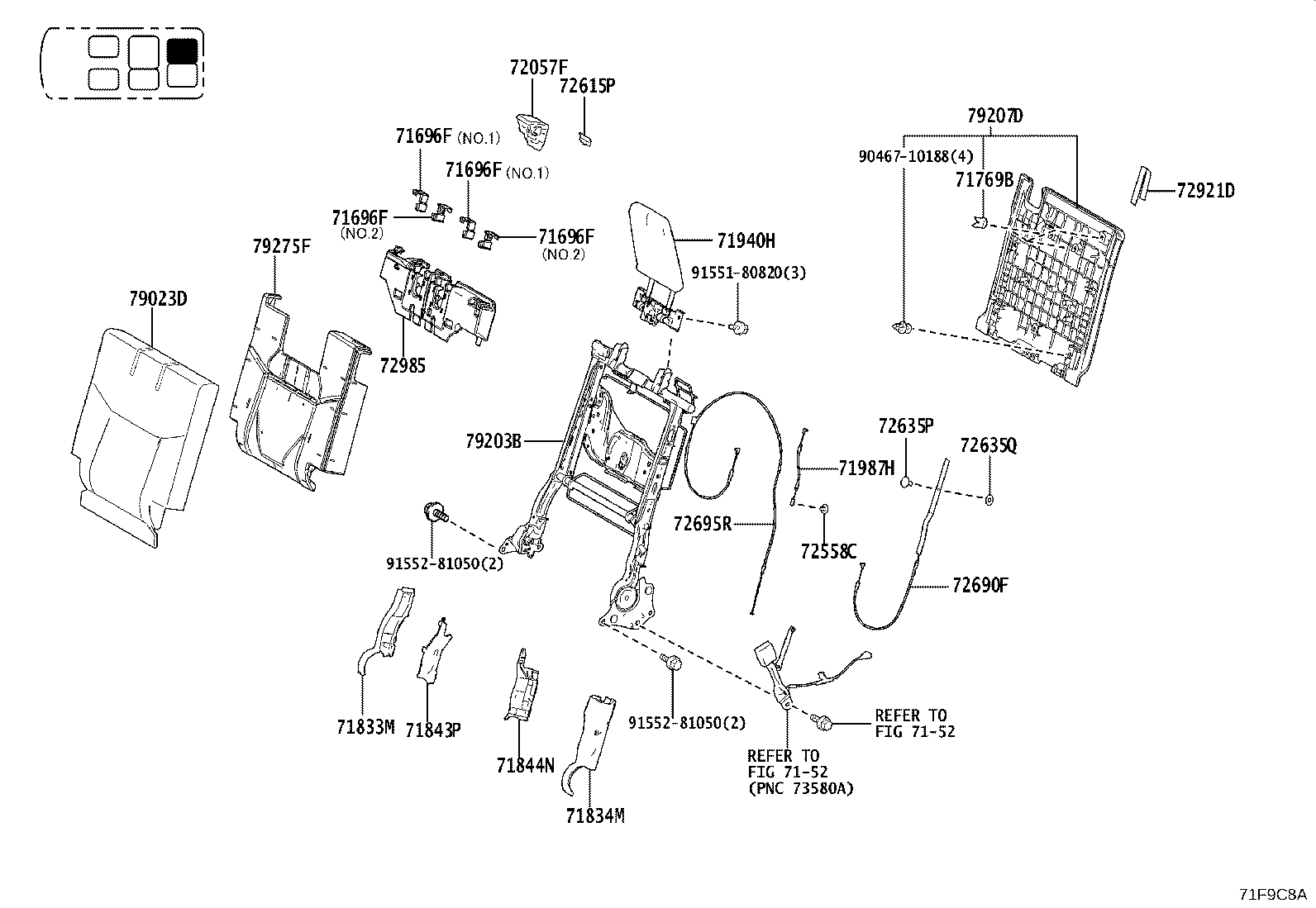

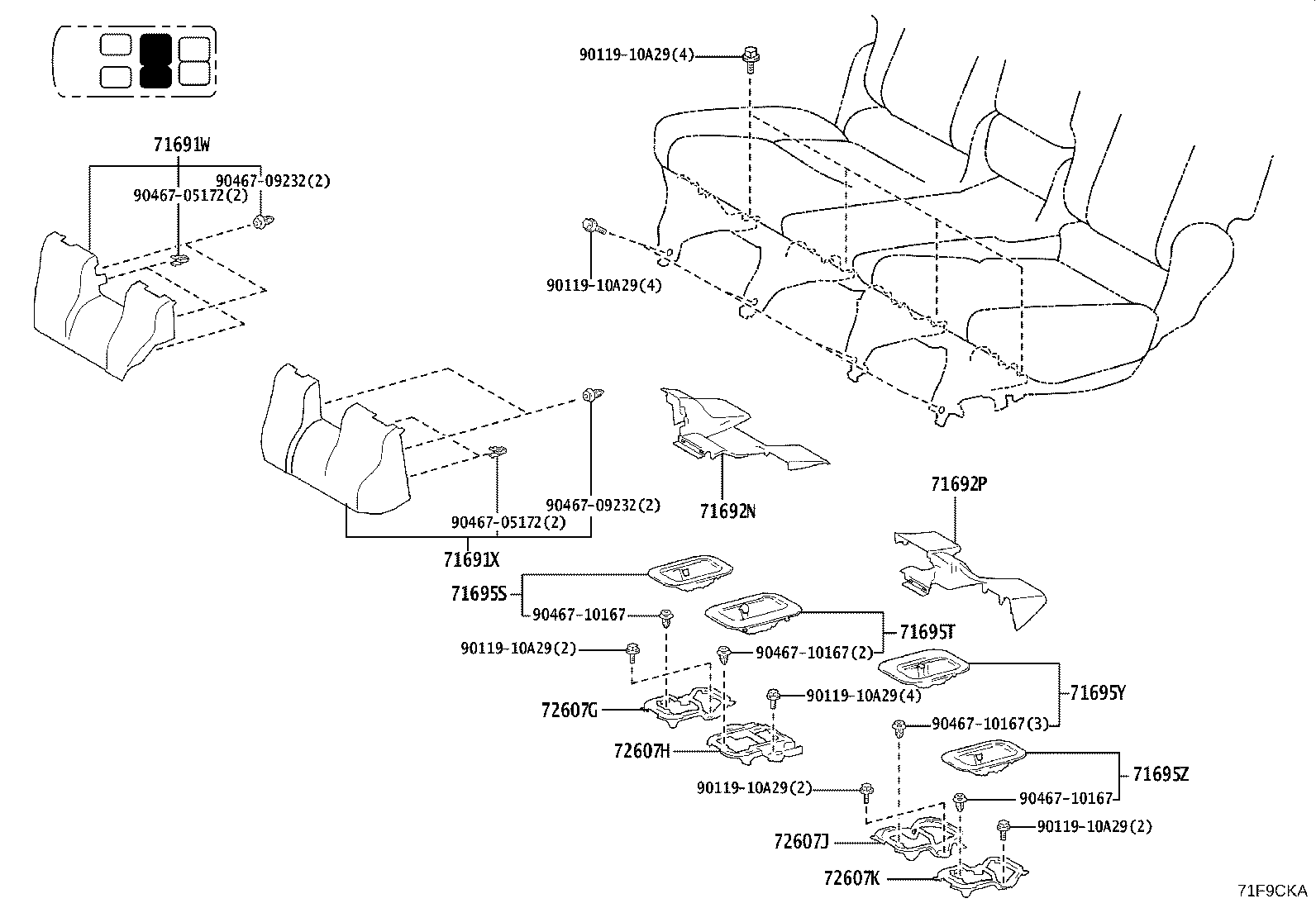

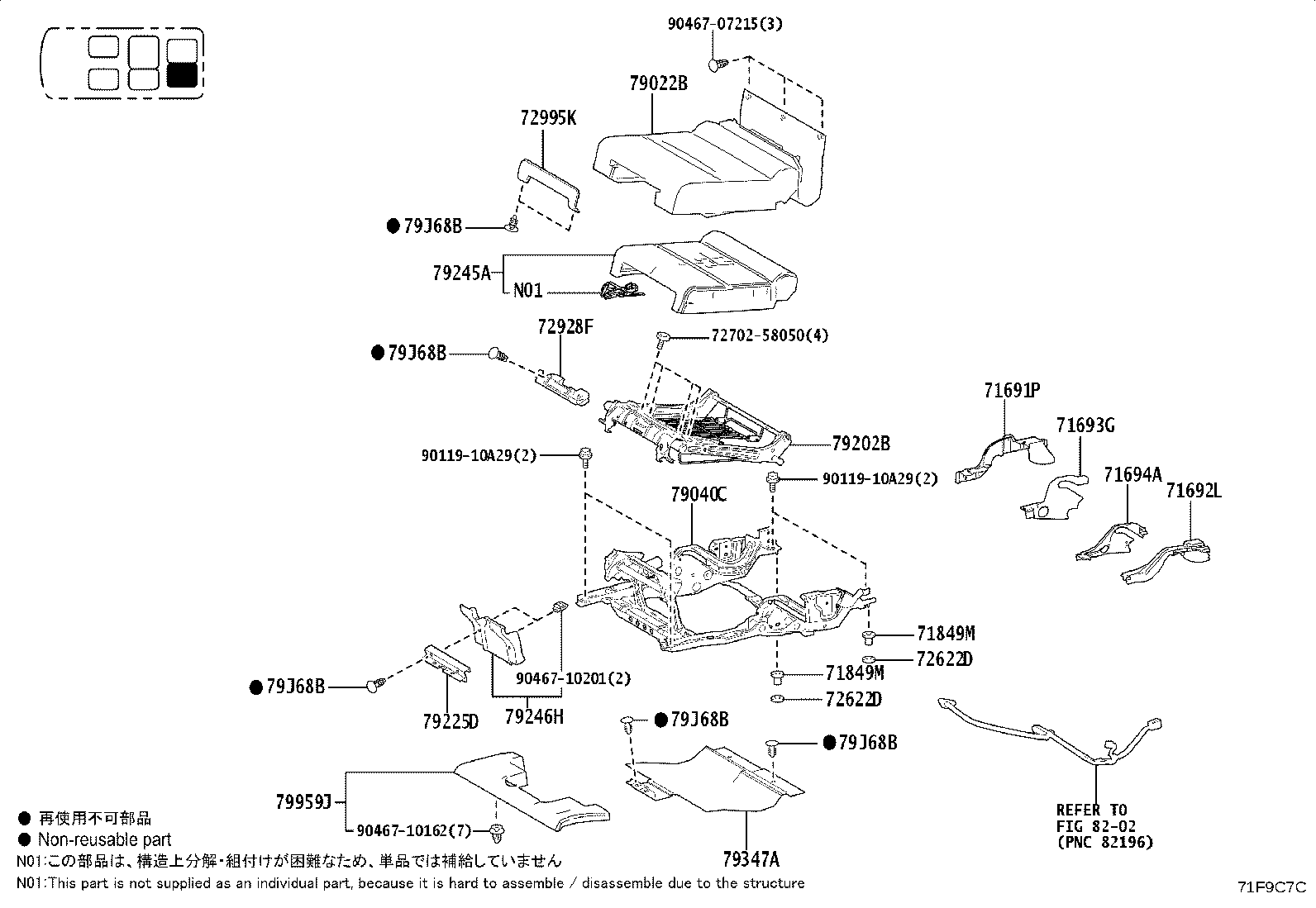

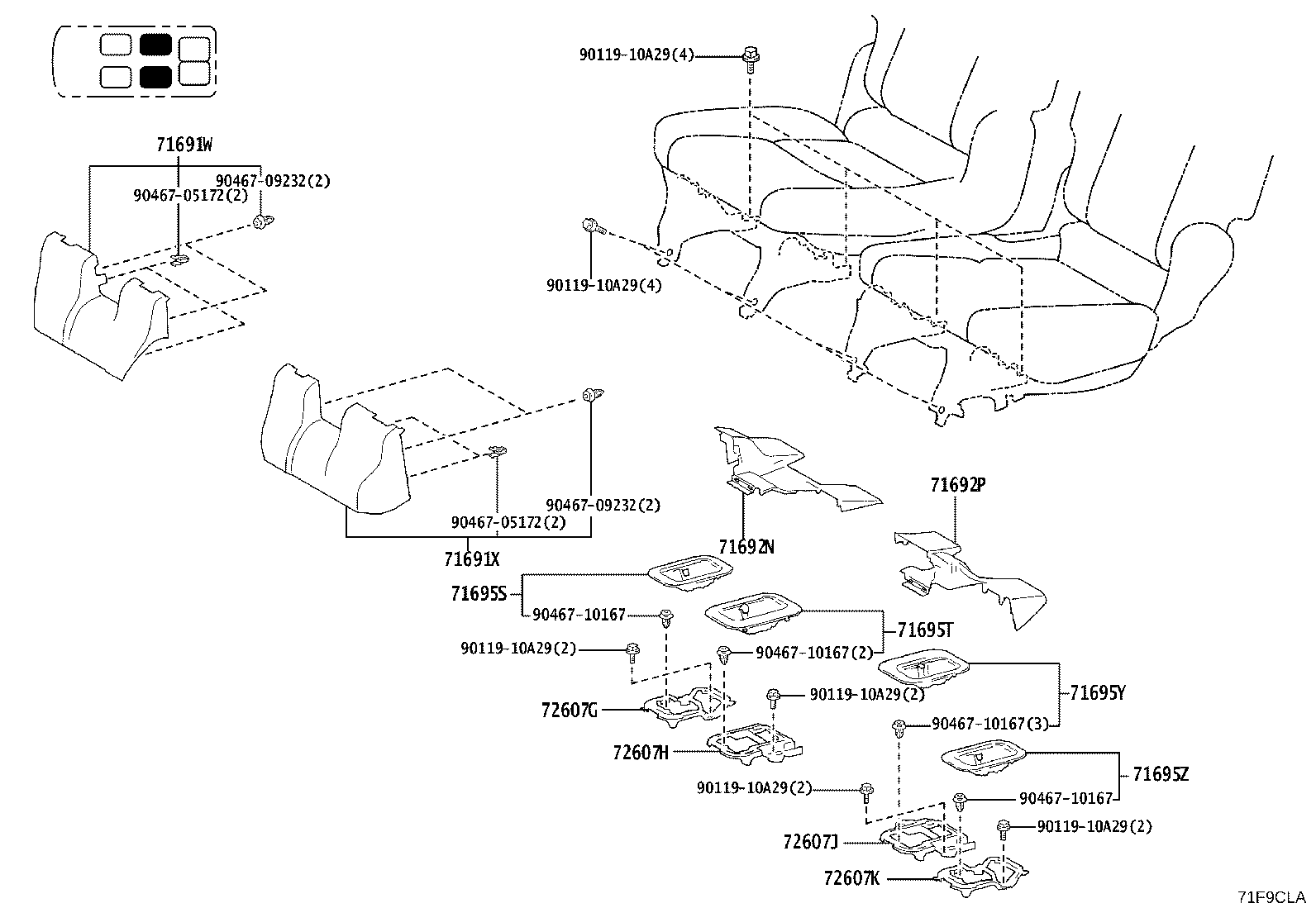

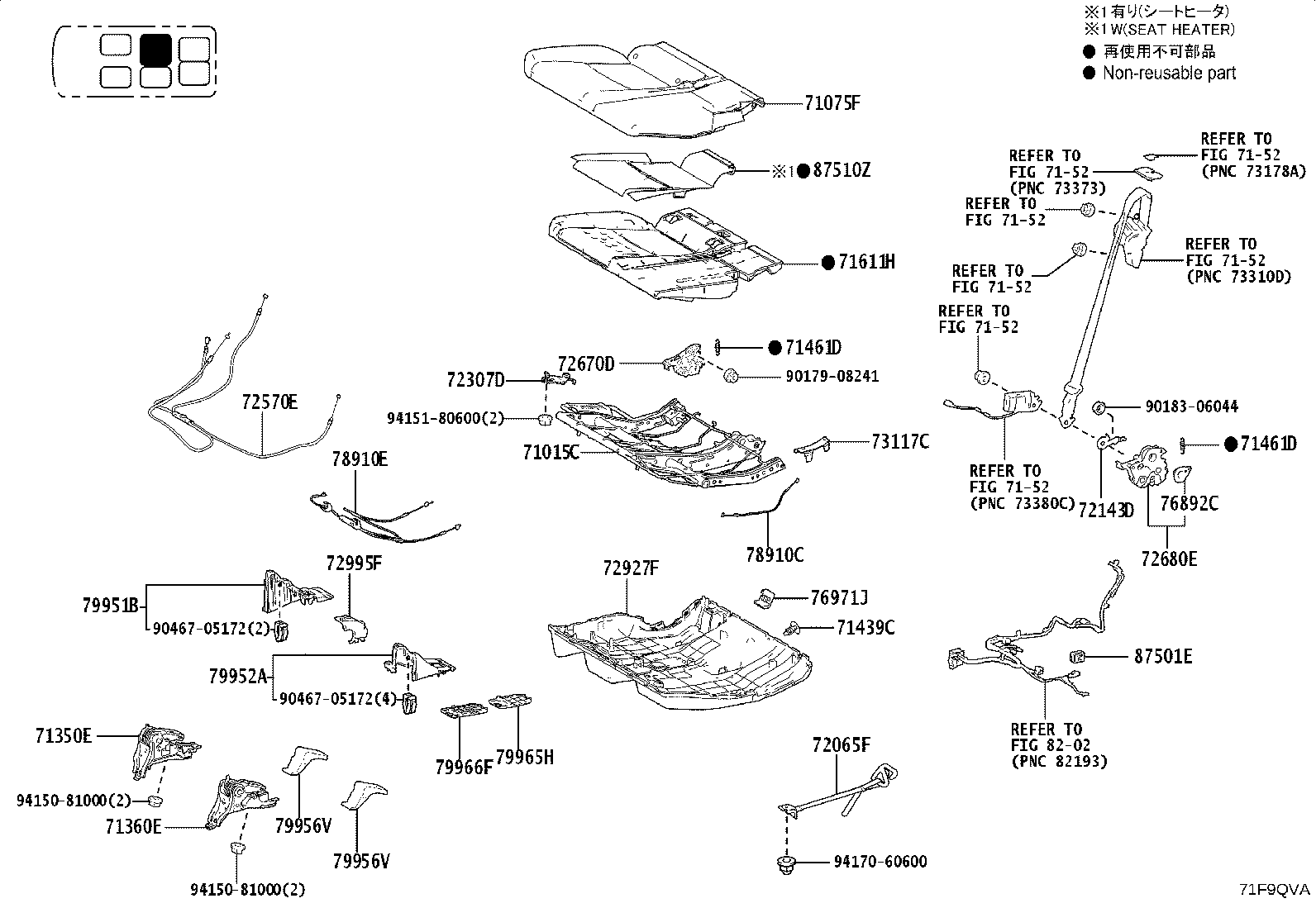

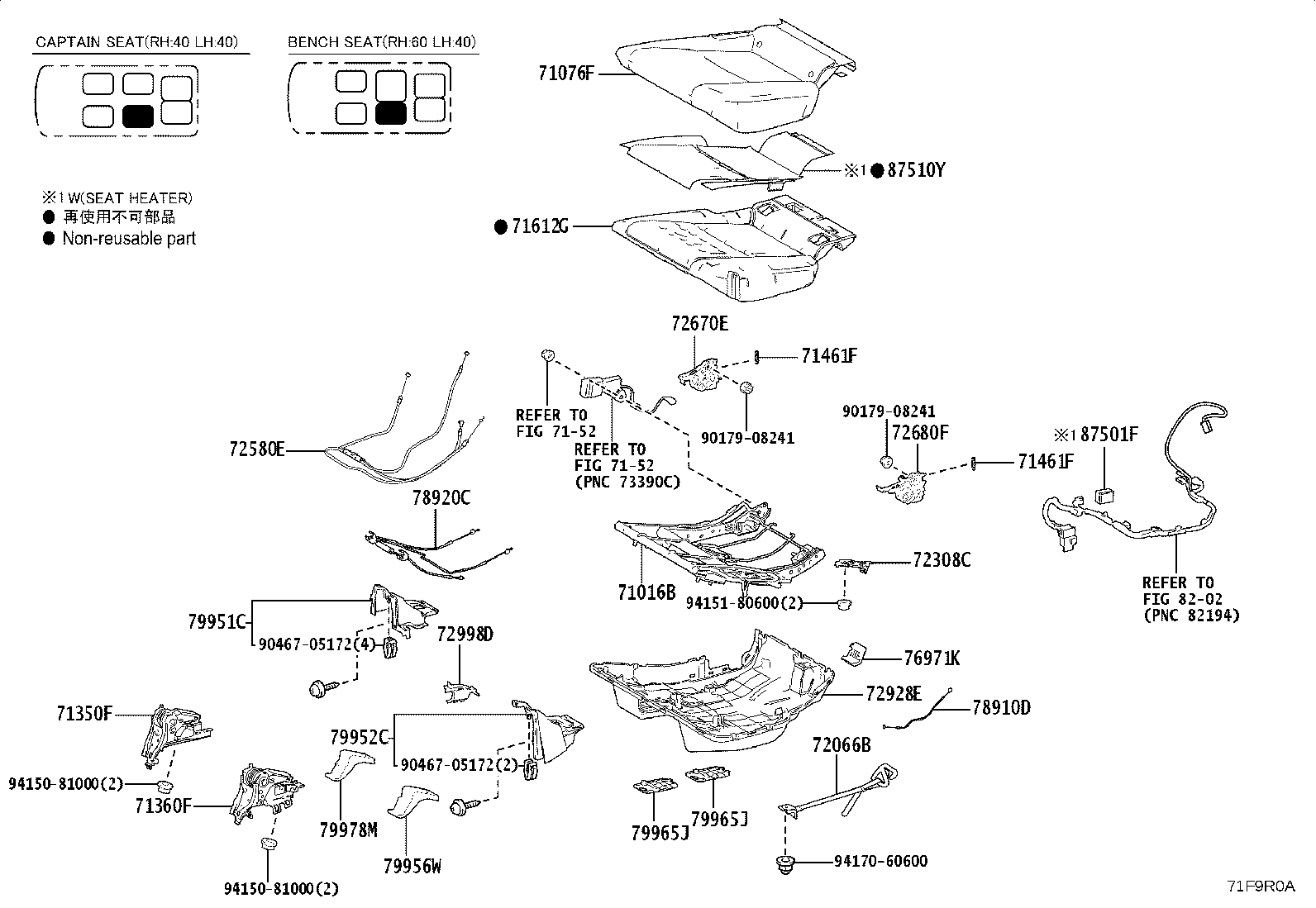

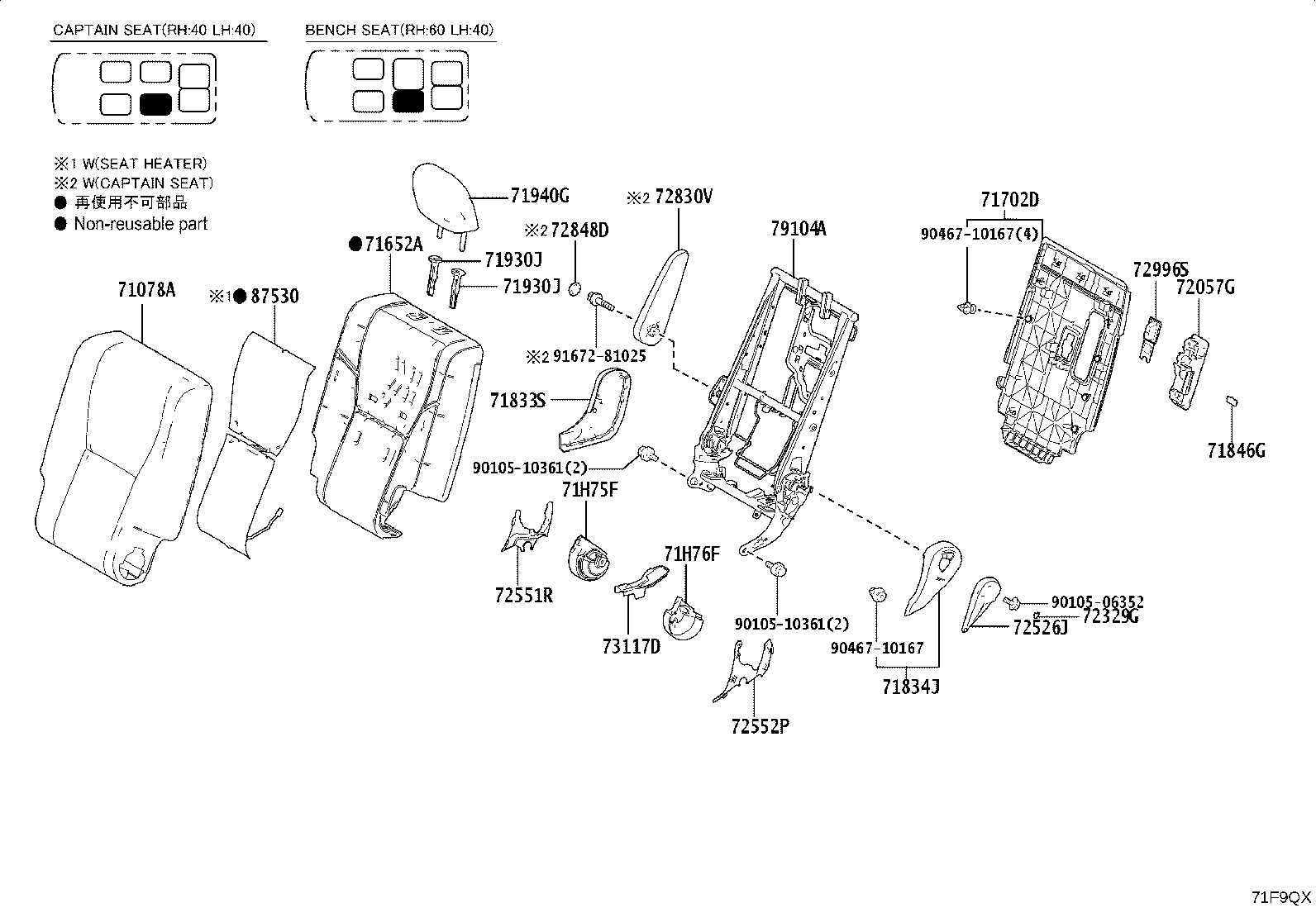

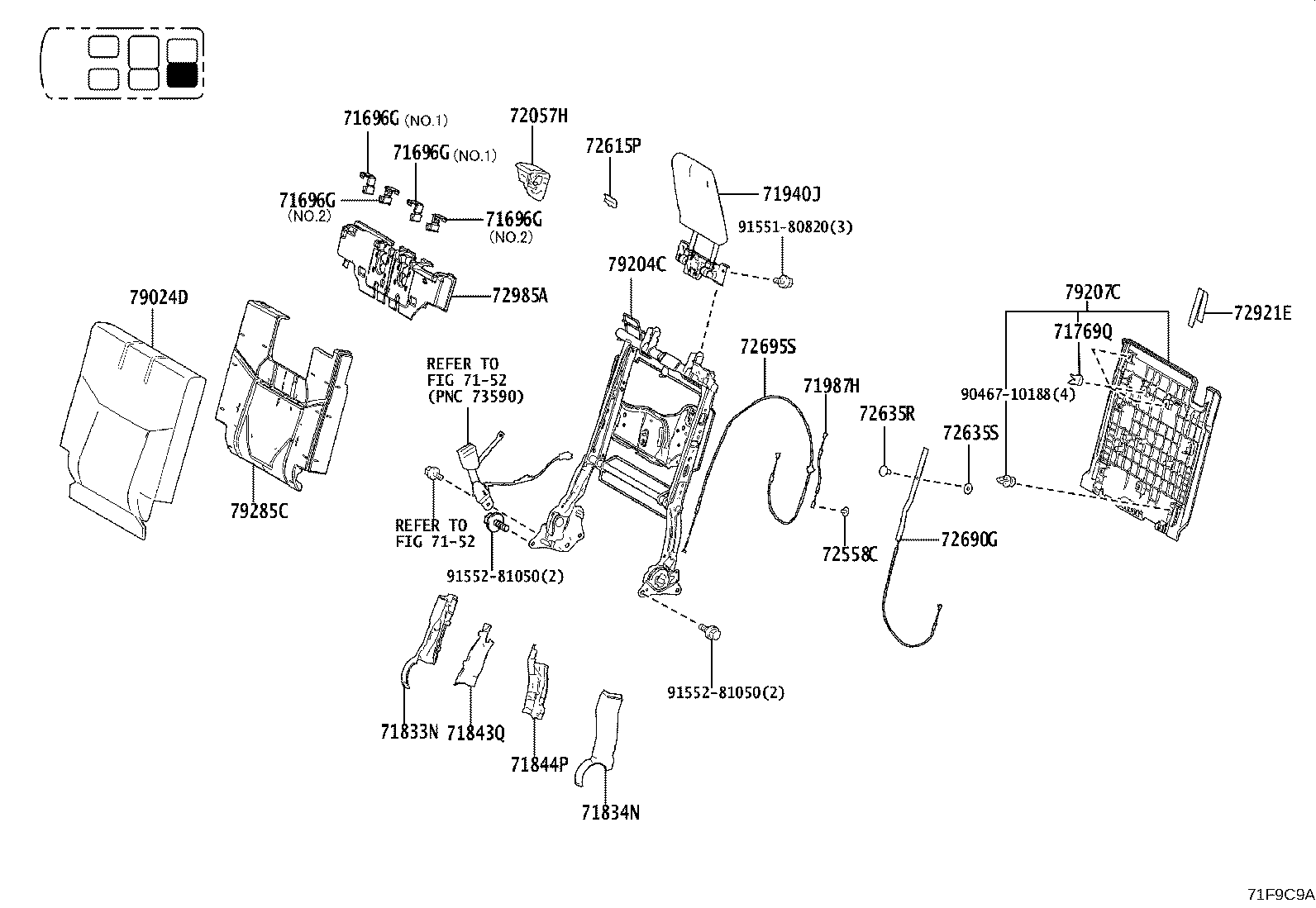

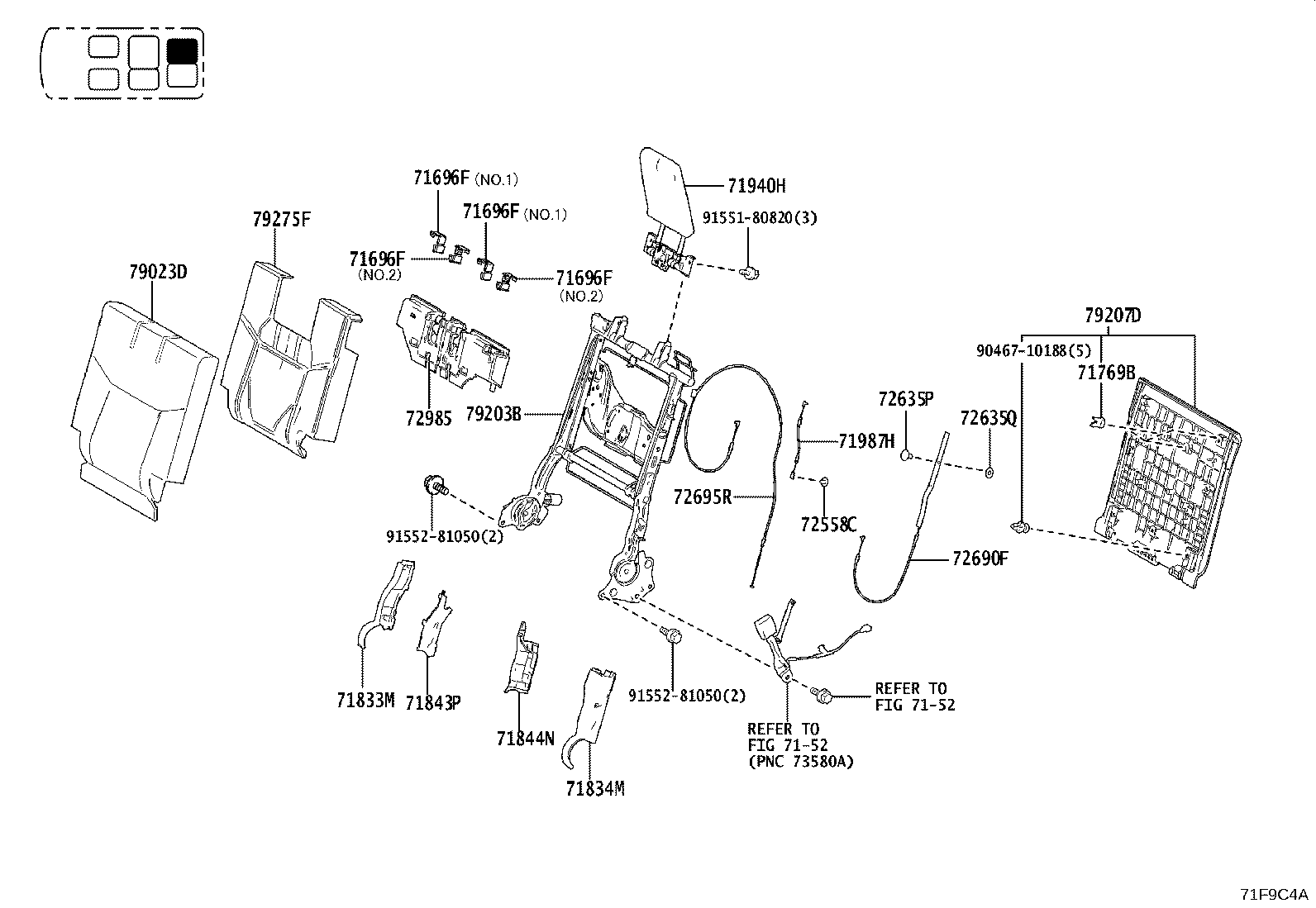

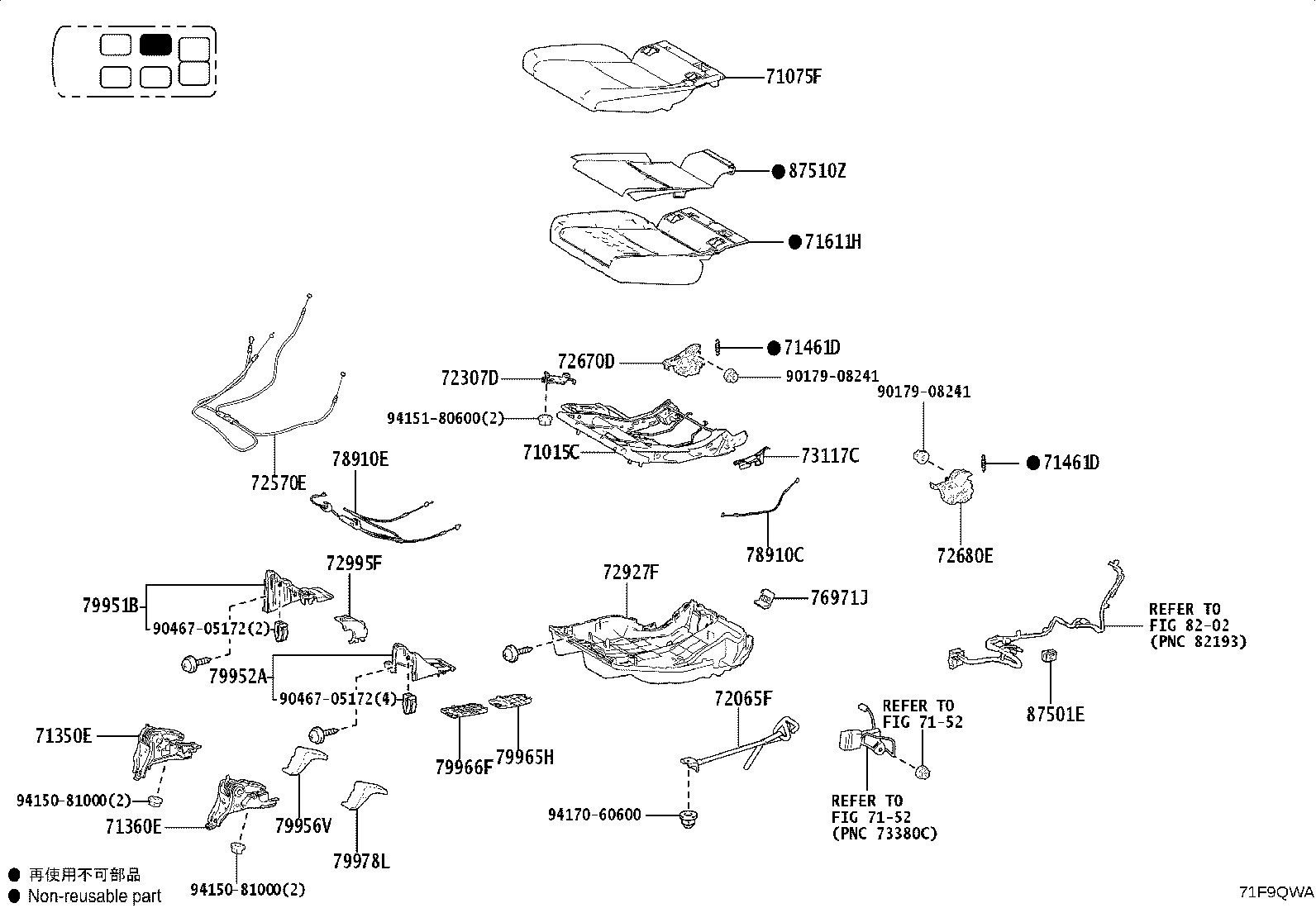

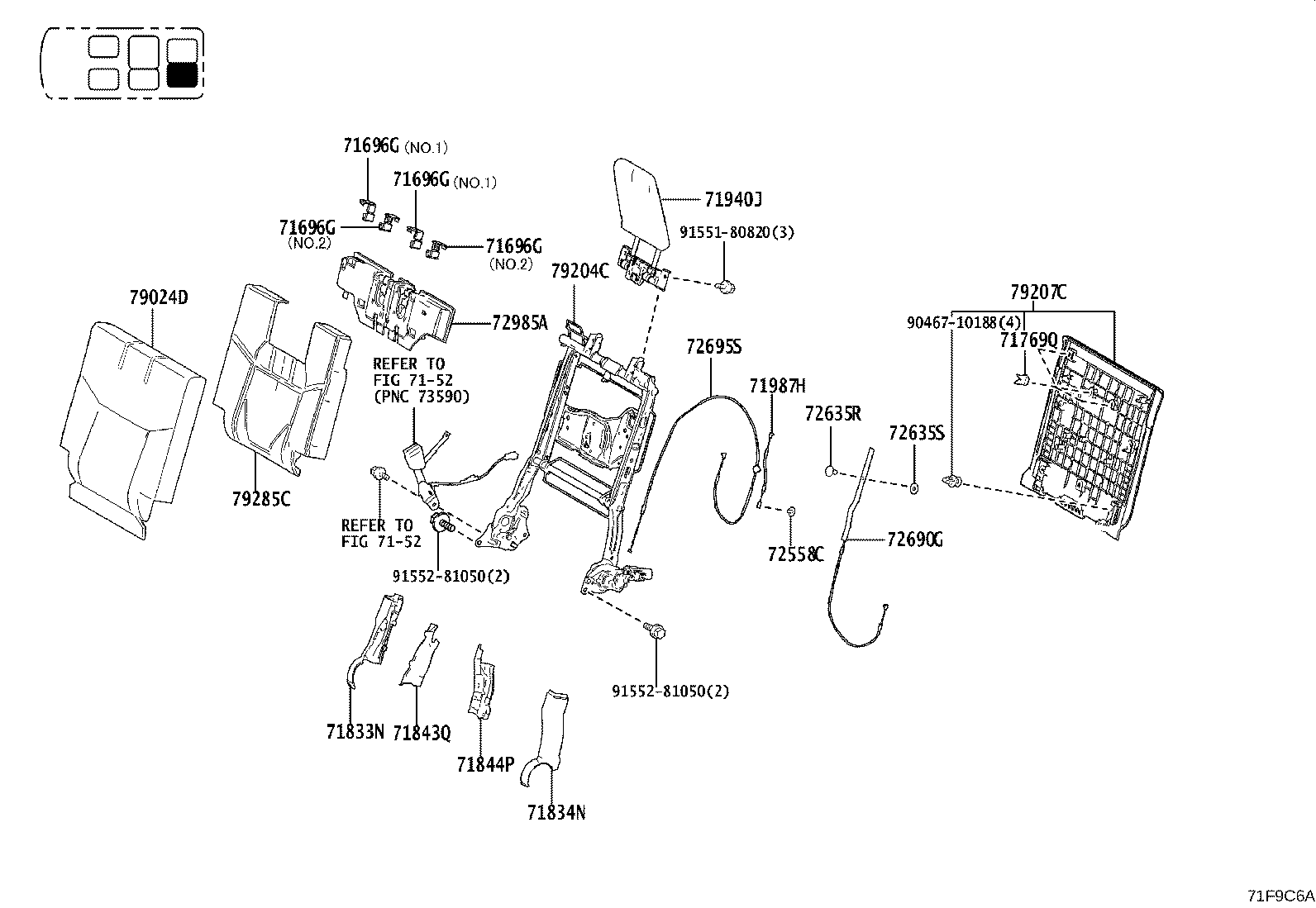

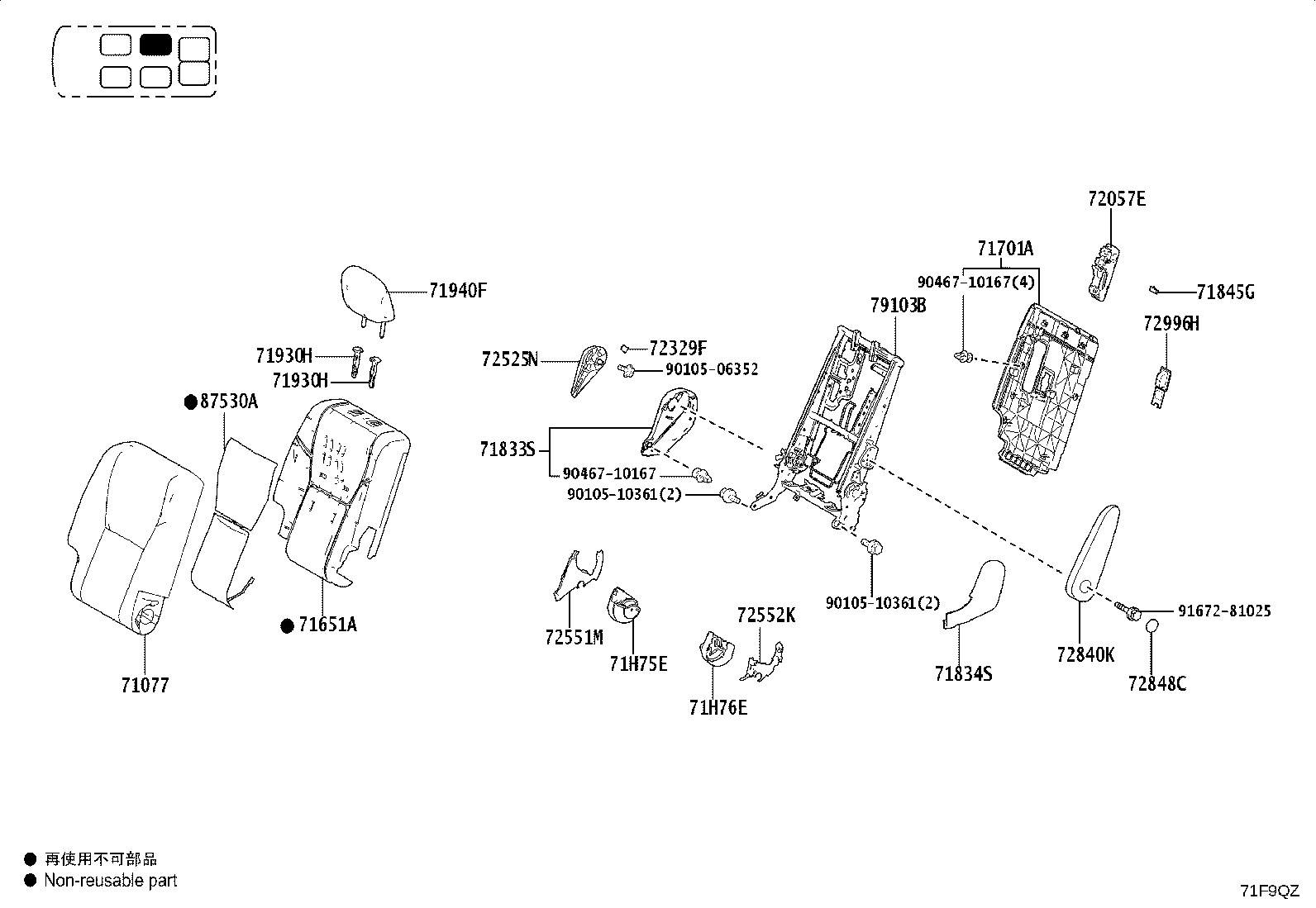

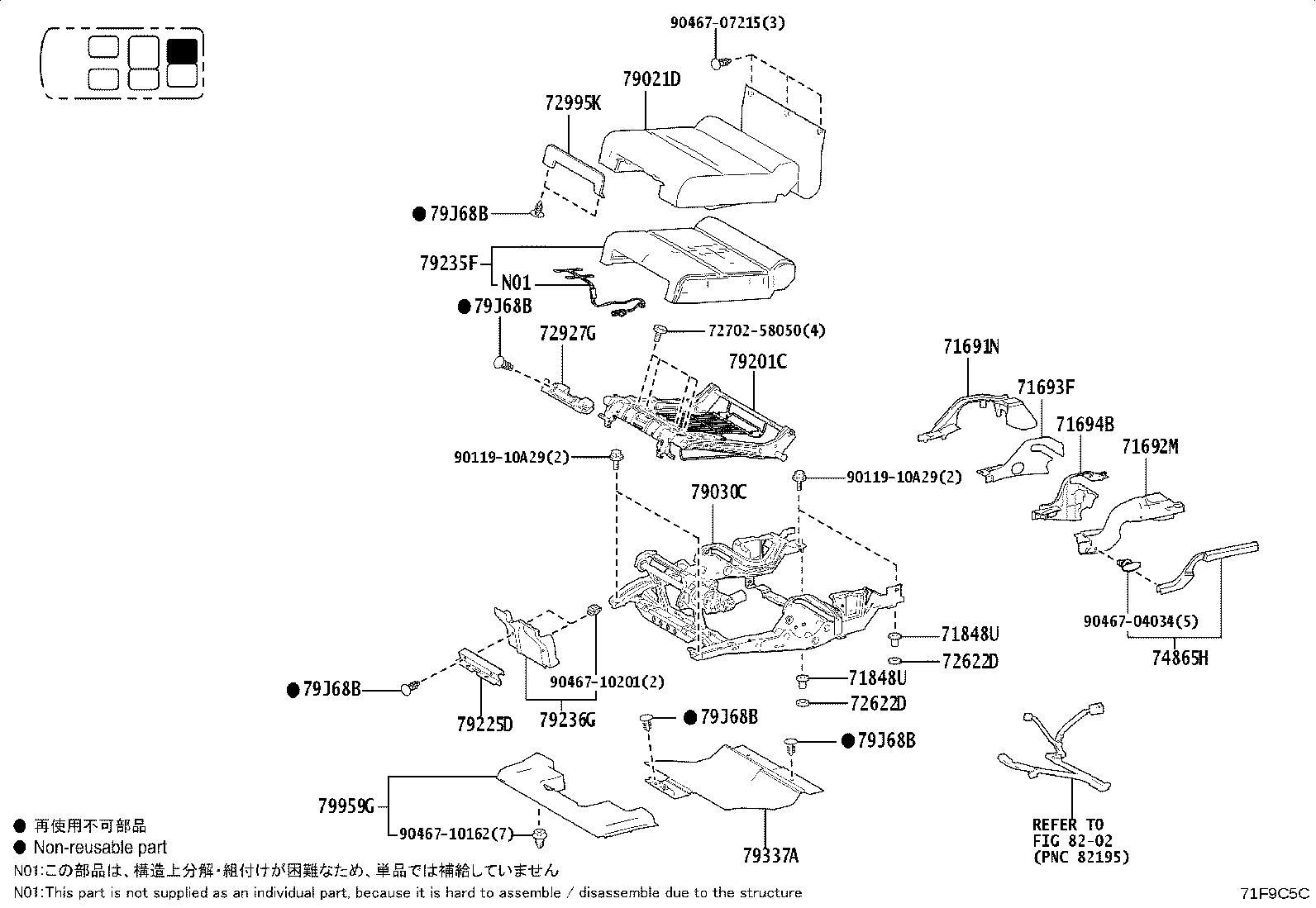

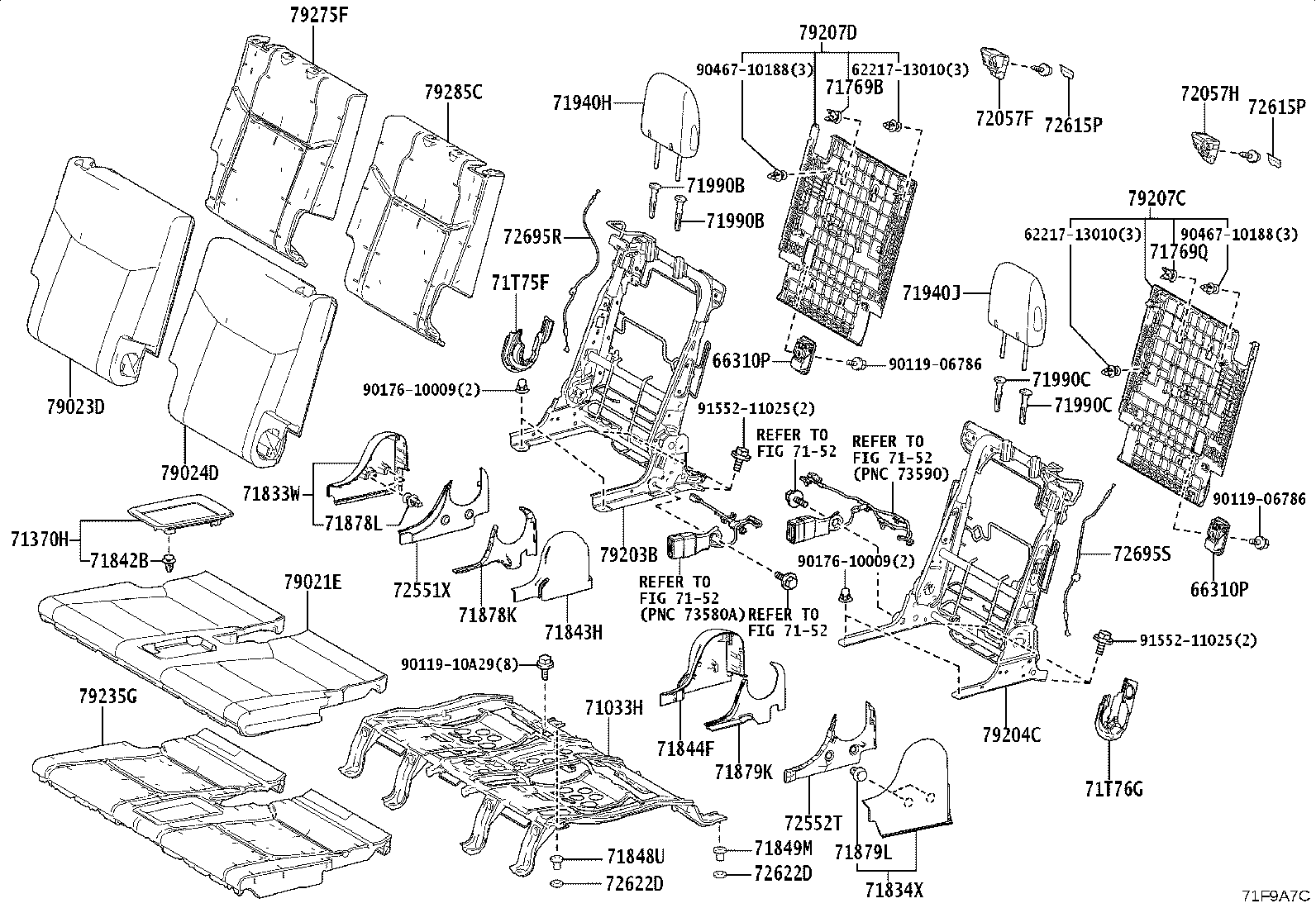

Figure 71F9QY 71F9QY 2024-02 → — Figure 71F9QZ 71F9QZ 2024-03 → — Figure 71F9QVA 71F9QVA 2024-02 → — Figure 71F9QWA 71F9QWA 2024-03 → — Figure 71F9QX 71F9QX 2024-02 → — Figure 71F9R0A 71F9R0A 2024-02 → — Figure 71F9CKA 71F9CKA 2024-02 → — Figure 71F9CLA 71F9CLA 2024-03 → — Figure 71F9C8A 71F9C8A 2024-02 → — Figure 71F9C4A 71F9C4A 2024-02 → — Figure 71F9C5C 71F9C5C 2024-02 → — Figure 71F9C9A 71F9C9A 2024-02 → — Figure 71F9C6A 71F9C6A 2024-02 → — Figure 71F9C7C 71F9C7C 2024-02 → — Figure 71F9A7B 71F9A7B 2024-03 → —

Part groups

PNCDescription
66310P Hook Assy, Rope
71015C Frame Sub-assy, NO.1 Seat Cushion, RH
71016B Frame Sub-assy, NO.1 Seat Cushion, LH
71033H Leg Sub-assy, Rear Seat Cushion
71075F Cover Sub-assy, NO.1 Seat Cushion, RH
71076F Cover Sub-assy, NO.1 Seat Cushion, LH
71077 Cover Sub-assy, Rear NO.1 Seatback, RH
71078A Cover Sub-assy, Rear NO.1 Seatback, LH
71350E Hinge Assy, NO.1 Seat, RH(FOR RH SEAT)
71350F Hinge Assy, NO.1 Seat, RH(FOR LH SEAT)
71360E Hinge Assy, NO.1 Seat, LH(FOR RH SEAT)
71360F Hinge Assy, NO.1 Seat, LH(FOR LH SEAT)
71370H Holder Assy, Rear Seat Cushion
71439C Clip
71461D Spring, NO.1 Seat Cushion, NO.1(FOR RH SEAT)
71461F Spring, NO.1 Seat Cushion, NO.1(FOR LH SEAT)
71485E Cover, Rear Seat Hinge
71486F Cover, Rear Seat Hinge, LH
71611H Pad, Rear NO.1 Seat Cushion, RH
71612G Pad, Rear NO.1 Seat Cushion, LH
71651A Pad, Rear NO.1 Seatback, RH
71652A Pad, Rear NO.1 Seatback, LH
71691N Cover, Rear Seat Cushion Hinge, Upper RH NO.1
71691P Cover, Rear Seat Cushion Hinge, Upper RH NO.2
71691W Cover, Rear Seat Cushion Hinge, NO.1
71691X Cover, Rear Seat Cushion Hinge, NO.2
71692L Cover, Rear Seat Cushion Hinge, Upper LH NO.1
71692M Cover, Rear Seat Cushion Hinge, Upper LH NO.2
71692N Cover, Rear Seat Cushion Hinge, NO.3
71692P Cover, Rear Seat Cushion Hinge, NO.4
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71695S Protector, Rear Seat, NO.1
71695T Protector, Rear Seat, NO.2
71695Y Protector, Rear Seat, NO.3
71695Z Protector, Rear Seat, NO.1 LH
71696F Protector, NO.2 Seatback, RH
71696G Protector, NO.2 Seatback, LH
71701A Board Sub-assy, Rear Seatback, RH
71702D Board Sub-assy, Rear Seatback, LH
71769B Clip, Seatback Board
71769Q Clip, Rear Seatback Board
71833K Cover, NO.1 Seat Reclining, NO.1 RH Outer
71833M Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR RH SEAT)
71833N Cover, Rear NO.2 Seat Reclining, NO.1 RH(FOR LH SEAT)
71833S Cover, Rear Seat Reclining, NO.1 RH
71833W Cover, NO.2 Seat Reclining, NO.2 RH
71834J Cover, NO.1 Seat Reclining, NO.1 LH Outer
71834M Cover, Rear NO.2 Seat Reclining, NO.1 LH(FOR RH SEAT)
71834N Cover, Rear NO.2 Seat Reclining, NO.1 LH(FOR LH SEAT)
71834S Cover, Rear Seat Reclining, NO.1 LH
71834X Cover, Rear Seat Reclining, NO.2 LH
71842B Clip(FOR REAR SEAT)
71843H Cover, NO.2 Seat Reclining, NO.2 RH Inner
71843P Cover, Rear NO.2 Seat Reclining, NO.2 RH(FOR RH SEAT)
71843Q Cover, Rear NO.2 Seat Reclining, NO.2 RH(FOR LH SEAT)
71844F Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844N Cover, Rear NO.2 Seat Reclining, NO.2 LH(FOR RH SEAT)
71844P Cover, Rear NO.2 Seat Reclining, NO.2 LH(FOR LH SEAT)
71845G Cap, Rear Seat Cover, RH
71846G Cap, Rear Seat Cover, LH
71848U Cap, NO.2 Seat Adjuster Cover, RH
71849M Cap, NO.2 Seat Adjuster Cover, LH
71878K Cover, Rear NO.2 Seat Reclining, Inner RH
71878L Clip, Rear NO.2 Seat Reclining Cover, RH
71879K Cover, Rear NO.2 Seat Reclining, Inner LH
71879L Clip, Rear NO.2 Seat Reclining Cover, LH
71930H Support Assy, NO.1 Seat Headrest, RH
71930J Support Assy, NO.1 Seat Headrest, LH
71930S Support Assy, Rear NO.1 Seat Headrest, Center
71940F Headrest Assy, NO.1 Seat, RH
71940G Headrest Assy, NO.1 Seat, LH
71940H Headrest Assy, NO.2 Seat, RH
71940J Headrest Assy, NO.2 Seat, LH
71960G Headrest Assy, Rear NO.1 Seat, Center
71987H Cable, Rear Seat Headrest
71990B Support Assy, Rear NO.2 Seat Headrest, RH
71990C Support Assy, Rear NO.2 Seat Headrest, LH
71H75E Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75F Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H76E Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71T75F Cover, Reclining Adjuster Inside, RH
71T76G Cover, Reclining Adjuster Inside, LH
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057F Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72057G Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72057H Lever Sub-assy, Rear Seat Lock Control, LH NO.2
72065F Belt Sub-assy, Rear Seat Hook, RH
72066B Belt Sub-assy, Rear Seat Hook, LH
72143D Bracket, Rear Seat Track, Lower Rear RH
72307D Link Sub-assy, Reclining Control, RH NO.1
72308C Link Sub-assy, Reclining Control, LH NO.1
72329F Cover, Rear Seat Adjuster Bolt
72329G Cover, Rear Seat Adjuster Bolt, NO.2
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72551M Cover, Reclining Hinge, RH NO.1(FOR RH SEAT)
72551R Cover, Reclining Hinge, RH NO.1(FOR LH SEAT)
72551X Cover, Reclining Hinge, RH
72552K Cover, Reclining Hinge, LH NO.1(FOR RH SEAT)
72552P Cover, Reclining Hinge, LH NO.1(FOR LH SEAT)
72552T Cover, Reclining Hinge, LH
72558C Stopper, Reclining, NO.1
72570E Cable Assy, NO.1 Seat Reclining Adjusting, RH
72580E Cable Assy, Reclining Adjusting, LH
72607G Striker Sub-assy, Rear Seat Cushion Lock, NO.1
72607H Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607J Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72607K Striker Sub-assy, Rear Seat Cushion Lock, NO.4
72615P Cover, Rear Seatback Lock Striker
72622D Bush(FOR REAR NO.2 SEAT LEG)
72635P Hook, Rear Seatback Lock(MALE)
72635Q Hook, Rear Seatback Lock(FEMALE)
72635R Hook, Rear Seatback Lock, NO.2(MALE)
72635S Hook, Rear Seatback Lock, NO.2(FEMALE)
72670D Lock Assy, Rear Seat Cushion, RH
72670E Lock Assy, Rear Seat Cushion, NO.2 RH
72680E Lock Assy, Rear Seat Cushion, LH
72680F Lock Assy, Rear Seat Cushion, NO.2 LH
72690F Lever Assy, NO.2 Seat Cushion Lock Release, RH
72690G Lever Assy, NO.2 Seat Cushion Lock Release, LH
72695R Cable, Rear NO.2 Seat Lock Control, RH
72695S Cable, Rear NO.2 Seat Lock Control, LH
72806E Holder Sub-assy, Rear Seat Center Armrest Cup
72830V Armrest Assy, Rear NO.1 Seat, RH
72830X Armrest Assy, Rear Seat, Center
72840K Armrest Assy, Rear NO.1 Seat, LH
72848C Cap, NO.1 Seat Armrest, NO.1 RH
72848D Cap, NO.1 Seat Armrest, NO.1 LH
72868C Cover, Center Armrest Hinge, RH
72921D Strap, Rear NO.2 Seat, NO.1
72921E Strap, Rear NO.2 Seat, NO.2
72927F Cover, Rear Seat Cushion Under, RH
72927G Cover, Rear NO.2 Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
72928F Cover, Rear NO.2 Seat Cushion Under, LH
72985 Cover, Rear Headrest, RH
72985A Cover, Rear Headrest, LH
72995F Cover, Rear Seat Cushion, RH
72995K Cover, Rear NO.2 Seat Cushion
72996H Cover, Rear Seatback
72996R Cover, Rear NO.1 Seatback, RH
72996S Cover, Rear NO.1 Seatback, LH
72998D Cover, Rear Seat Cushion, LH
73117C Protector, Seat Belt Webbing, RH
73117D Protector, Seat Belt Webbing, LH
74865H Cover, Center Protector
76892C Bush, Rear Seat Lock Assy
76971J Cover, Rear Under, RH
76971K Cover, Rear Under, LH
78910C Cable Assy, Fold Seat Lock Control, NO.1(FOR RH SEAT)
78910D Cable Assy, Fold Seat Lock Control, NO.1(FOR LH SEAT)
78910E Cable Assy, Fold Seat Lock Control, NO.1
78920C Cable Assy, Fold Seat Lock Control, NO.2
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79021E Cover Sub-assy, NO.2 Seat Cushion
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79030C Leg Assy, Rear NO.2 Seat, RH
79040C Leg Assy, Rear NO.2 Seat, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79201C Frame Sub-assy, NO.2 Seat Cushion, RH
79202B Frame Sub-assy, NO.2 Seat Cushion, LH
79203B Frame Sub-assy, NO.2 Seatback, RH
79204C Frame Sub-assy, NO.2 Seatback, LH
79207C Board Sub-assy, NO.2 Seatback, LH
79207D Board Sub-assy, NO.2 Seatback, RH
79225D Carpet, Rear NO.2 Seat Cushion
79235F Pad, NO.2 Seat Cushion, RH
79235G Pad, NO.2 Seat Cushion
79236G Cover, NO.2 Seat Leg, RH
79245A Pad, NO.2 Seat Cushion, LH
79246H Cover, NO.2 Seat Leg, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79337A Carpet, NO.2 Seat Cushion Under, RH
79347A Carpet, NO.2 Seat Cushion Under, LH
79951B Cover, NO.1 Seat Cushion, NO.1
79951C Cover, NO.1 Seat Cushion, NO.3
79952A Cover, NO.1 Seat Cushion, NO.2
79952C Cover, NO.1 Seat Cushion, NO.4
79956V Cover, Rear Seat Leg Side, RH
79956W Cover, Rear Seat Leg Side, LH
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79965H Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79965J Cover, NO.1 Seat Leg Side, NO.2(FOR LH SEAT)
79966F Cover, NO.1 Seat Leg Side, NO.3(FOR RH SEAT)
79978L Cover, Rear Seat Leg Side, NO.2
79978M Cover, Rear Seat Leg Side, NO.3
79J68B Clip
87501E Control Sub-assy, Seat Heater, RH
87501F Control Sub-assy, Seat Heater, LH
87510Y Heater Assy, Rear NO.1 Seat Cushion, LH
87510Z Heater Assy, Rear NO.1 Seat Cushion, RH
87530 Heater Assy, Rear NO.1 Seatback, LH
87530A Heater Assy, Rear NO.1 Seatback, RH
