Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

7 part groups · 3 illustrations

Illustrations

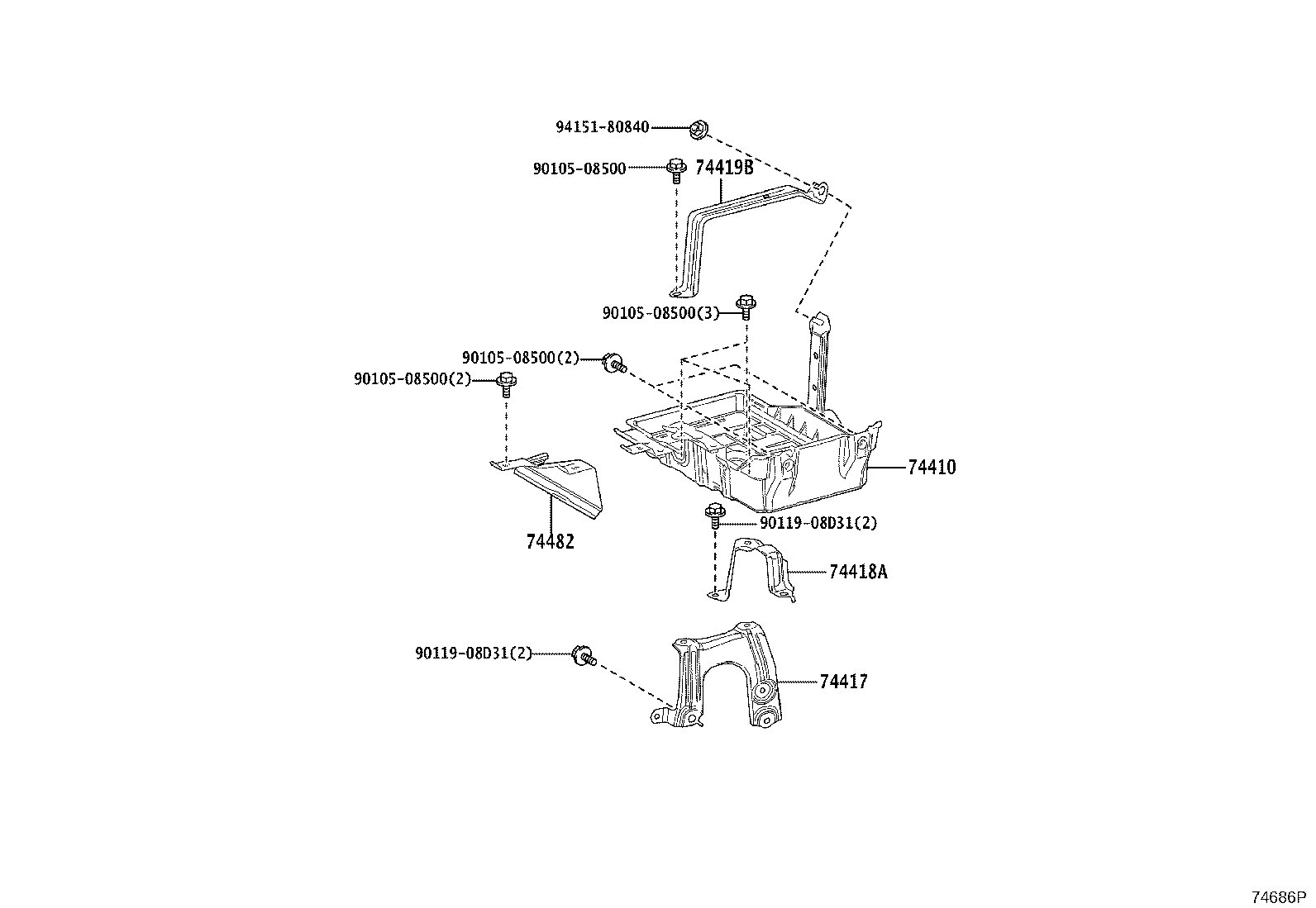

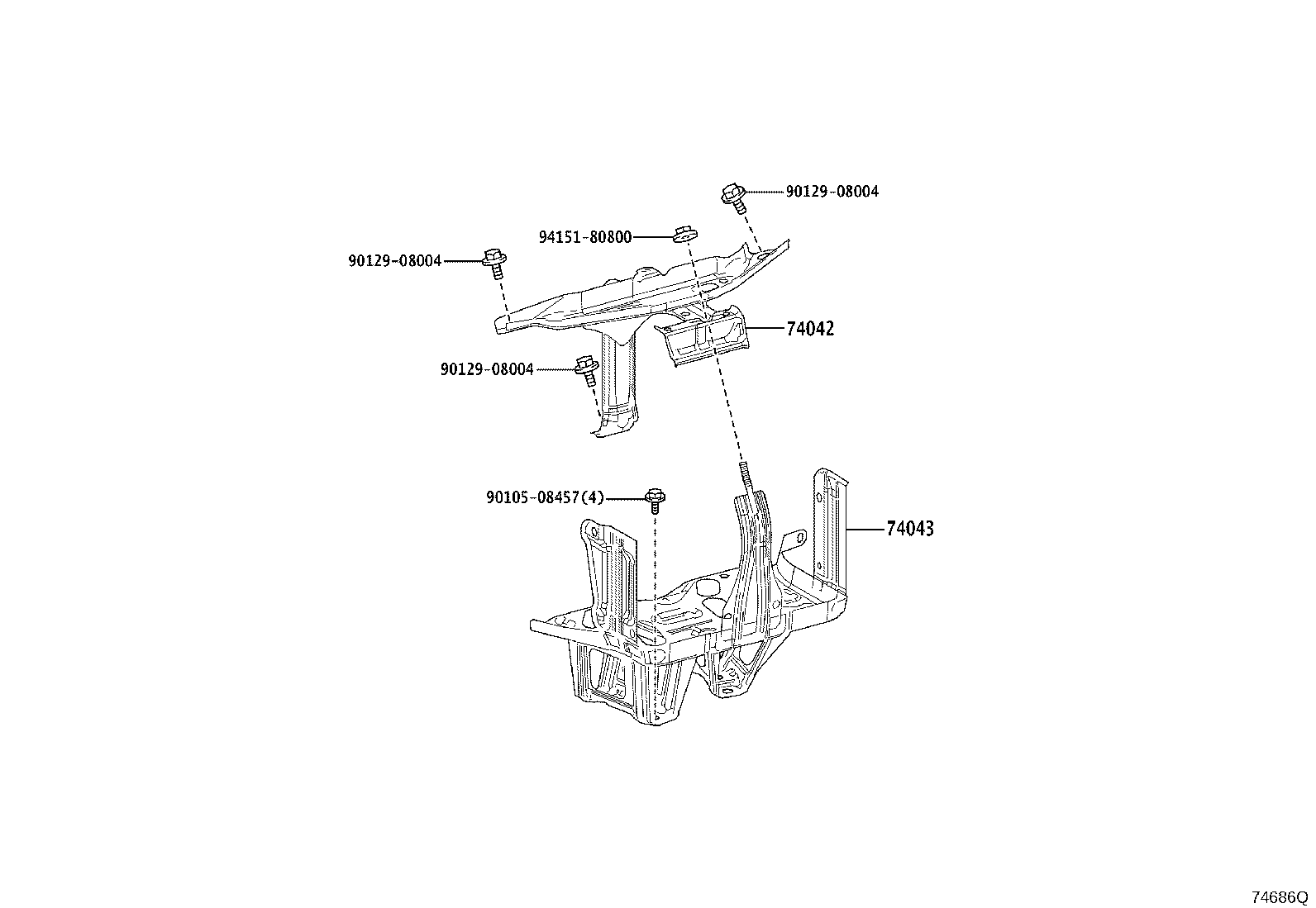

Figure 74686O 74686O 2024-02 → — Figure 74686P 74686P 2024-02 → — Figure 74686Q 74686Q 2024-03 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74043 Carrier Sub-assy, Battery, NO.2
74410 Carrier Assy, Battery
74417 Bracket, Battery Carrier
74418A Bracket, Battery Carrier, NO.4
74419B Bracket, Battery Carrier, NO.2
74482 Clamp, Battery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
