Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

14 part groups · 2 illustrations

Illustrations

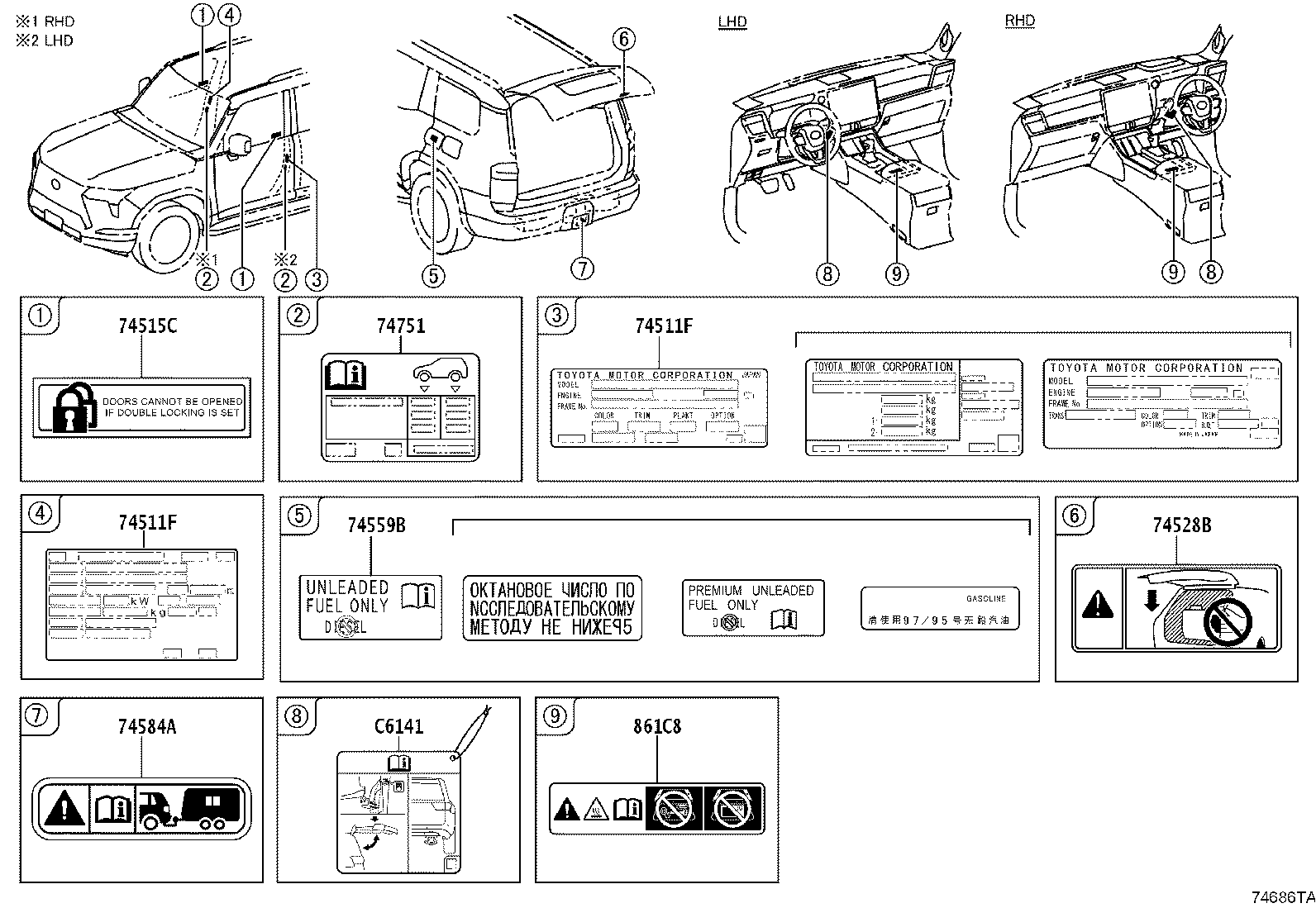

Figure 74686S 74686S 2024-02 → — Figure 74686TA 74686TA 2024-02 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11285F Label, Coolant System Caution
11285J Label, Coolant System Caution, NO.2
11298B Label, Emission Control Information
16793E Label, Cooling Fan Caution
288A2 Label, Battery Location
74511F Label, Name (IDENTIFICATION LASER LABEL)
74515C Label, Theft Warning Information
74528B Label, Back Door Caution
74559B Label, Fuel Information
74584A Label, Towing Caution
74751 Label, Tire Pressure Information
861C8 Label, Mobile Wireless Charger Caution
C6141 Label, Back Door OR Luggage Compartment Door Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
