Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

97 part groups · 7 illustrations

Illustrations

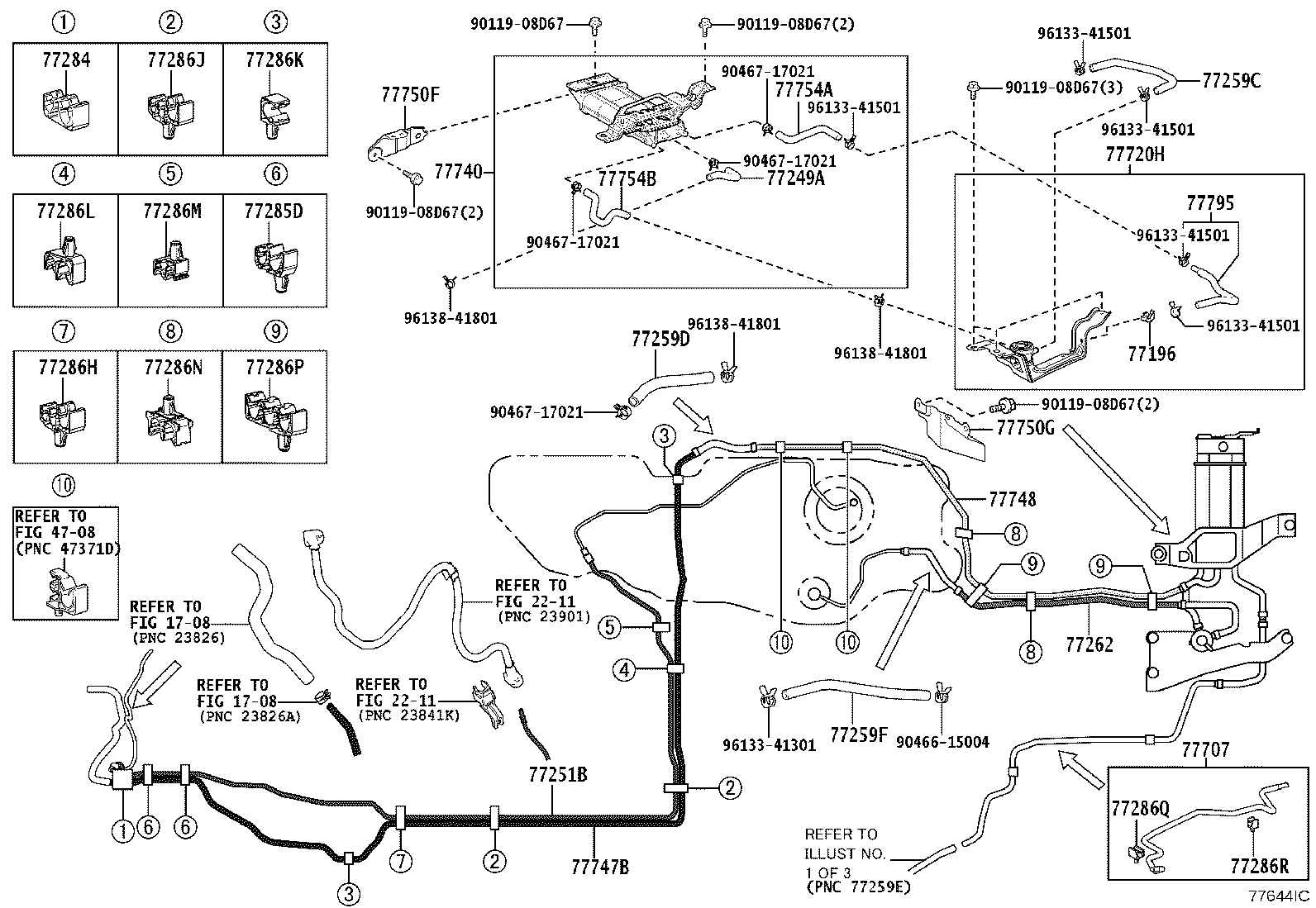

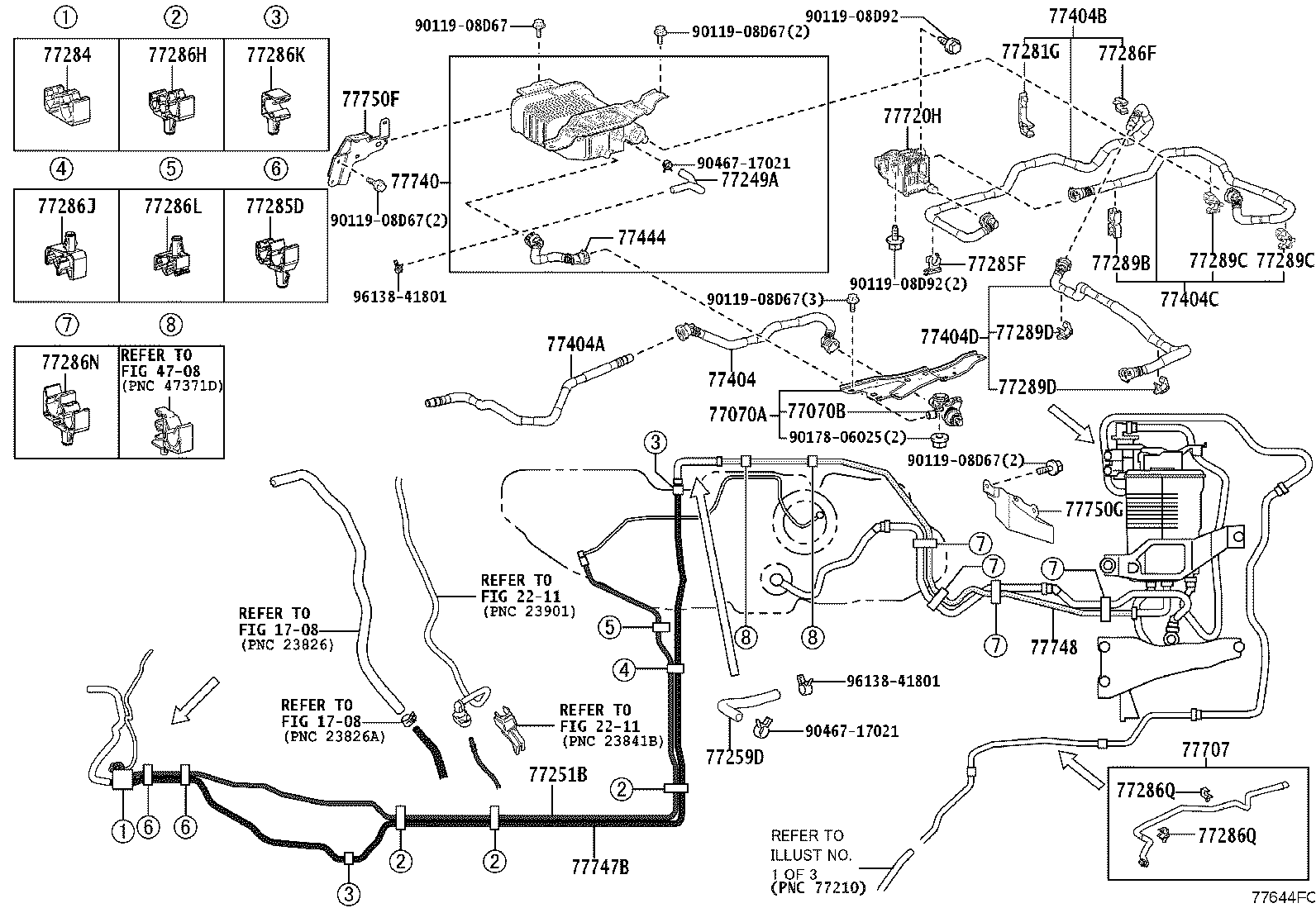

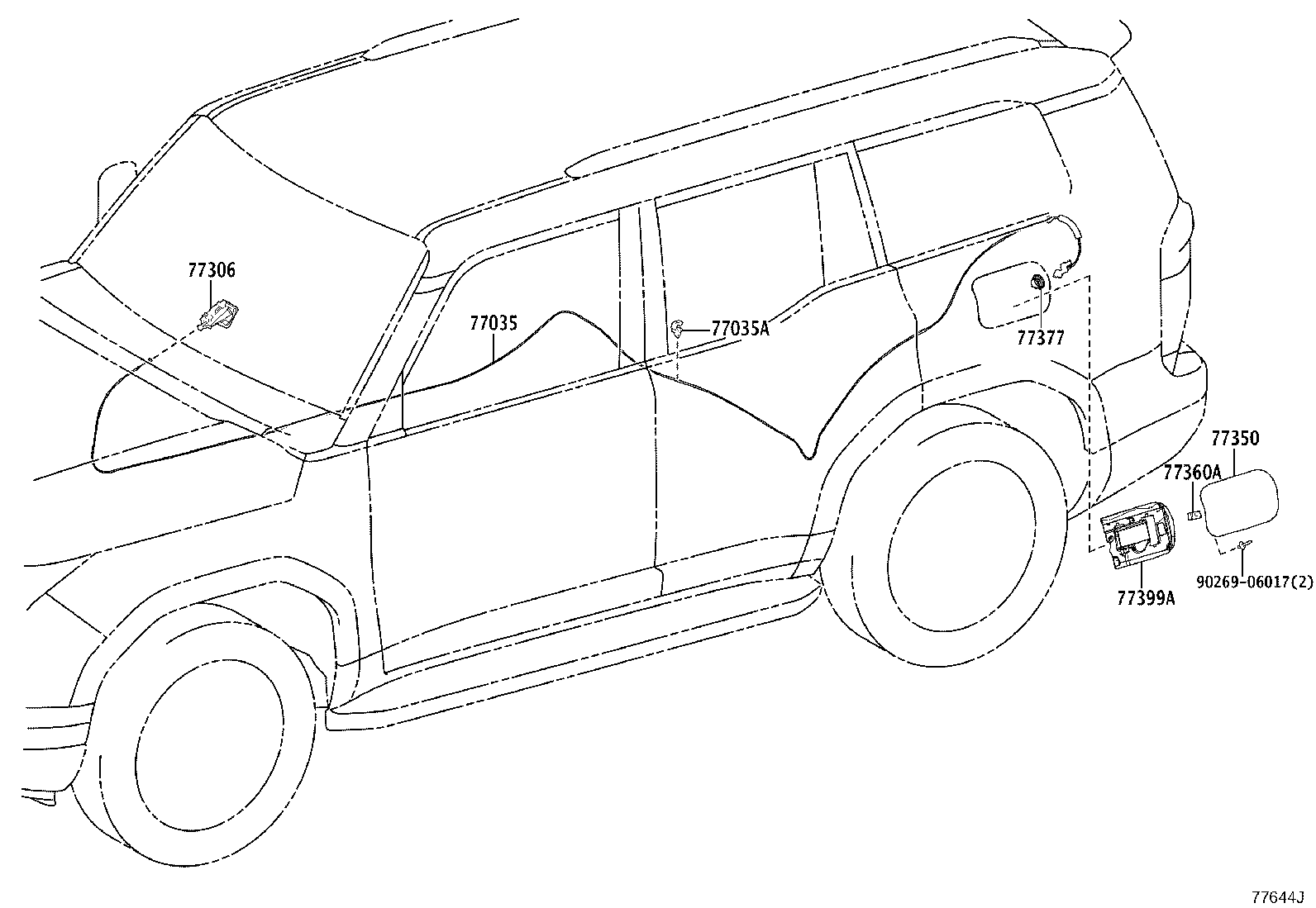

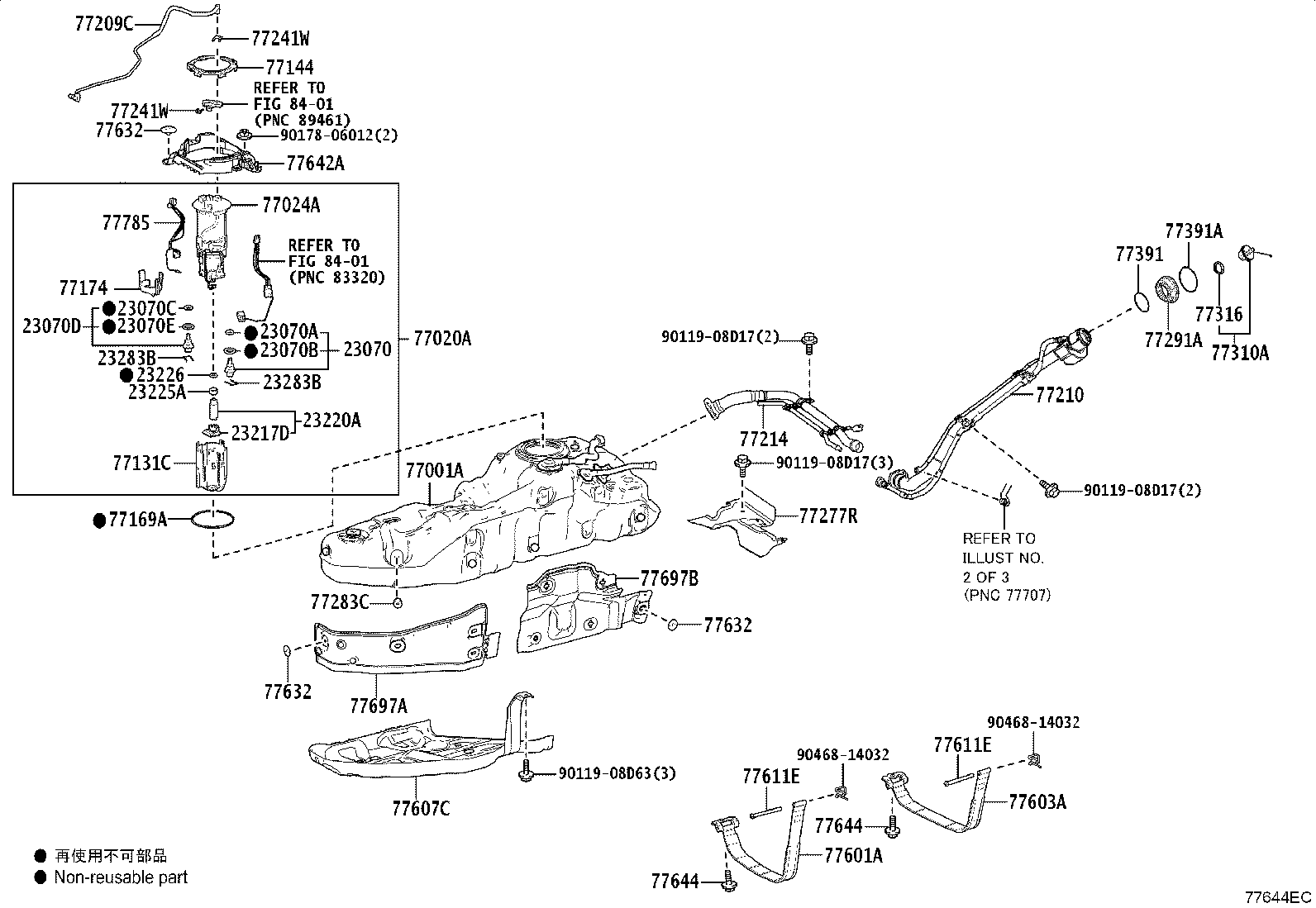

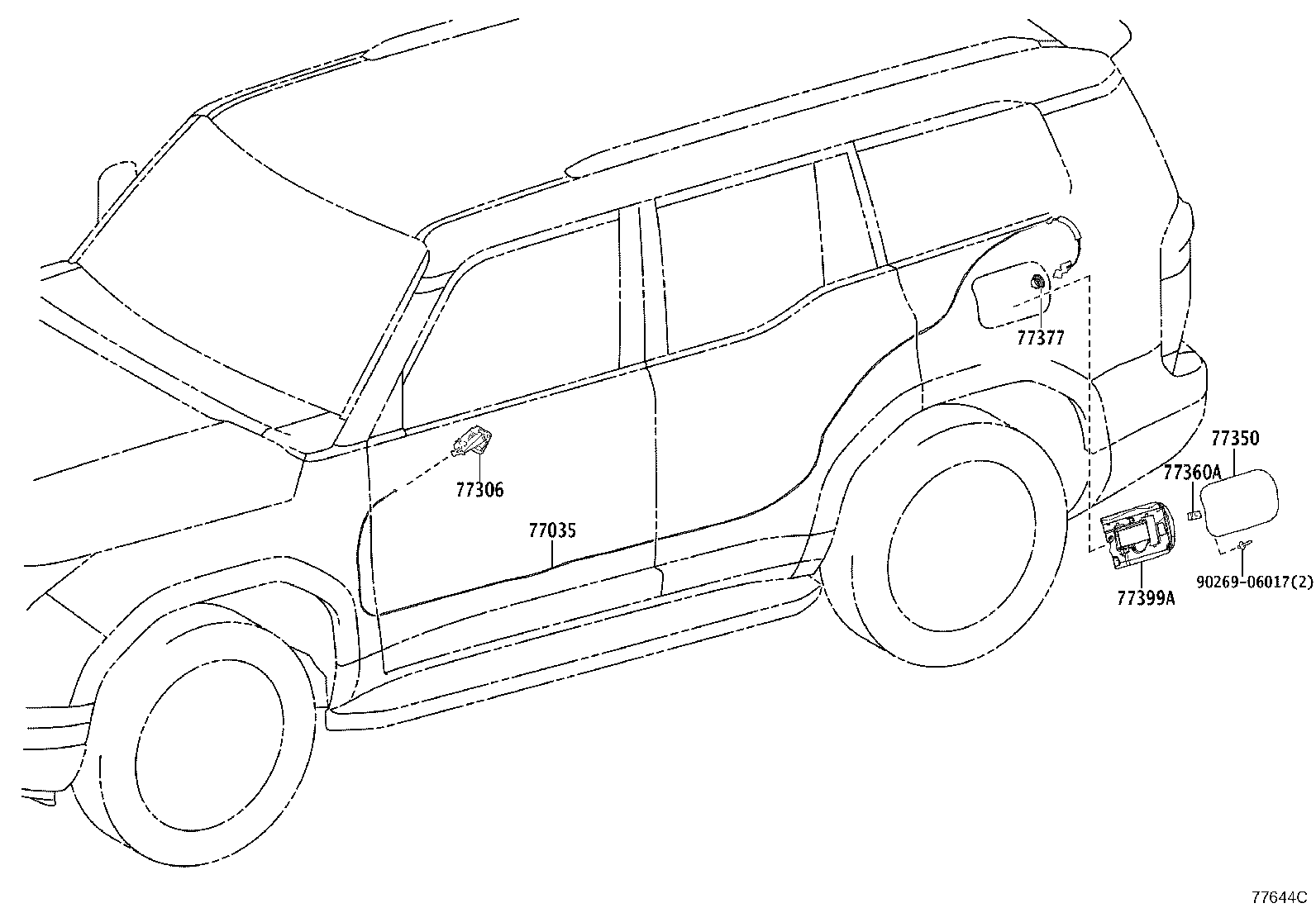

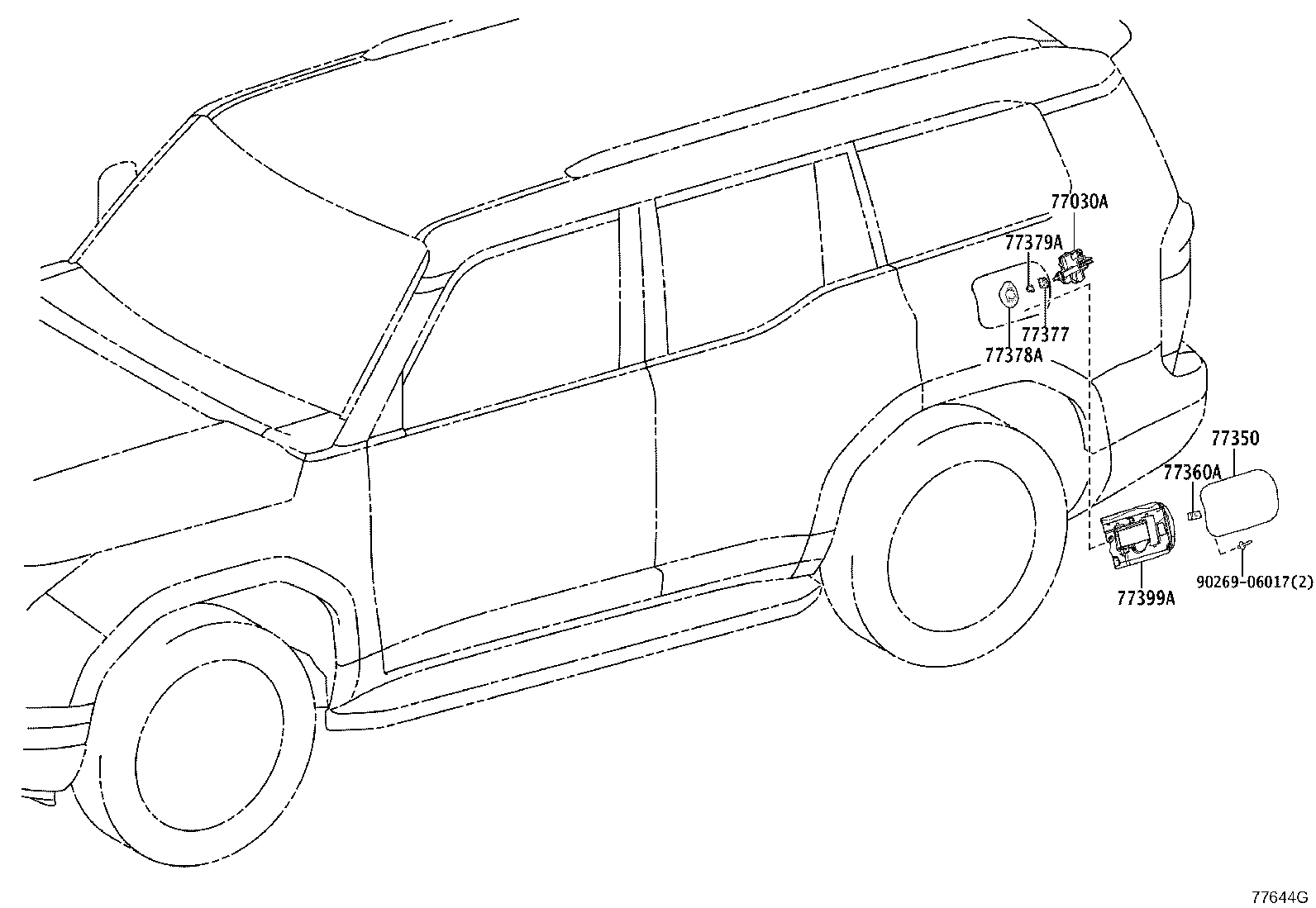

Figure 77644HB 77644HB 2023-12 → — Figure 77644EC 77644EC 2024-02 → — Figure 77644IC 77644IC 2023-12 → — Figure 77644FC 77644FC 2024-02 → — Figure 77644C 77644C 2023-12 → — Figure 77644G 77644G 2024-02 → — Figure 77644J 77644J 2023-12 → —

Part groups

PNCDescription
23070 Valve Assy, Fuel Main
23070A Ring, O, NO.1(FOR FUEL MAIN VALVE)
23070B Ring, O, NO.2(FOR FUEL MAIN VALVE)
23070C Ring, O, NO.3(FOR FUEL MAIN VALVE)
23070D Valve Assy, Fuel Main, NO.2
23070E Ring, O, NO.4(FOR FUEL MAIN VALVE)
23217D Filter, Fuel Pump
23220A Pump Assy, Fuel W/Filter
23225A Spacer, Fuel Pump
23226 Ring, O(FOR FUEL PUMP)
23283B Holder, Fuel Pressure Regulator
77001A Tank Sub-assy, Fuel
77020A Tube Assy, Fuel Suction W/Pump & Gage
77024A Plate Sub-assy, Fuel Suction
77030A Lock Assy, Fuel Lid W/Motor
77035 Cable Sub-assy, Fuel Lid Lock Control
77035A Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77070A Valve Assy, Close Tank
77070B Valve Sub-assy, Close Tank
77131C Sub-tank, Fuel, NO.1
77144 Retainer, Fuel Pump Gauge
77169A Gasket, Fuel Suction Tube Set
77174 Support, Fuel Suction, NO.1
77196 Clamp, Evaporation Vent Tube, NO.1
77209C Tube Sub-assy, Fuel Tank Main
77210 Pipe Assy, Fuel Tank Filler
77213B Hose, Fuel Tank TO Filler Pipe
77213E Hose, Fuel Tank TO Filler Pipe
77214 Pipe, Fuel Tank Filler
77229C Clamp, Breather Tube
77241W Clip, Tube Joint
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77259C Hose, Fuel
77259D Hose, Fuel, NO.1
77259E Hose, Fuel
77259F Hose, Fuel
77259G Clip, Fuel Hose
77262 Tube, Fuel Emission, NO.2
77277R Protector, Fuel Tank Filler Pipe
77281G Clamp, Fuel Hose
77283C Bracket, Fuel Tank Protector
77284 Clamp, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77286F Clamp, Fuel Tube, NO.2
77286H Clamp, Fuel Tube, NO.3
77286J Clamp, Fuel Tube, NO.4
77286K Clamp, Fuel Tube, NO.2
77286L Clamp, Fuel Tube, NO.5
77286M Clamp, Fuel Tube, NO.6
77286N Clamp, Fuel Tube, NO.7
77286P Clamp, Fuel Tube, NO.8
77286Q Clamp, Fuel Tube, NO.9
77286R Clamp, Fuel Tube, NO.10
77289B Clamp, Fuel Tube, NO.3
77289C Clamp, Fuel Tube, NO.4
77289D Clamp, Fuel Tube, NO.5
77291A Shield, Fuel Tank Filler Pipe
77306 Lever Sub-assy, Fuel Lid Lock Open
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77360A Spring Assy, Fuel Filler Opening Lid
77377 Retainer, Fuel Filler Opening Lid Lock
77378A Cover, Fuel Filler Opening Lid Lock
77379A Spacer, Fuel Lid Open Lever
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77399A Cover, Fuel Filler Opening Lid
77404 Hose Sub-assy, Fuel Tank Vent
77404A Hose Sub-assy, Fuel Tank Vent
77404B Hose Sub-assy, Fuel Tank Vent, NO.2
77404C Hose Sub-assy, Fuel Tank Vent, NO.3
77404D Hose Sub-assy, Fuel Tank Vent, NO.4
77444 Hose, Fuel Tank Vent
77601A Band Sub-assy, Fuel Tank, NO.1
77603A Band Sub-assy, Fuel Tank, NO.2
77607C Protector Sub-assy, Fuel Tank, NO.2
77611E Pin, Fuel Tank Band
77631 Bracket, Fuel Tank, NO.1
77632 Bracket, Fuel Tank, NO.2
77642A Protector, Fuel Tank, NO.2
77644 Bolt, Fuel Tank
77697A Insulator, Fuel Tank Heat, NO.2
77697B Insulator, Fuel Tank Heat, NO.3
77707 Tube Sub-assy, Charcoal Canister Outlet
77720H Valve Assy, Fuel Outlet
77740 Canister Assy, Charcoal
77747B Tube, Charcoal Canister, NO.1
77748 Pipe, Charcoal Canister, NO.2
77750F Bracket Assy, Charcoal Canister, NO.1
77750G Bracket Assy, Charcoal Canister, NO.2
77754A Hose, Charcoal Canister Outlet, NO.2
77754B Hose, Charcoal Canister Outlet
77785 Harness, Fuel Pump
77795 Hose, Charcoal Canister Outlet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
