Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

21 part groups · 2 illustrations

Illustrations

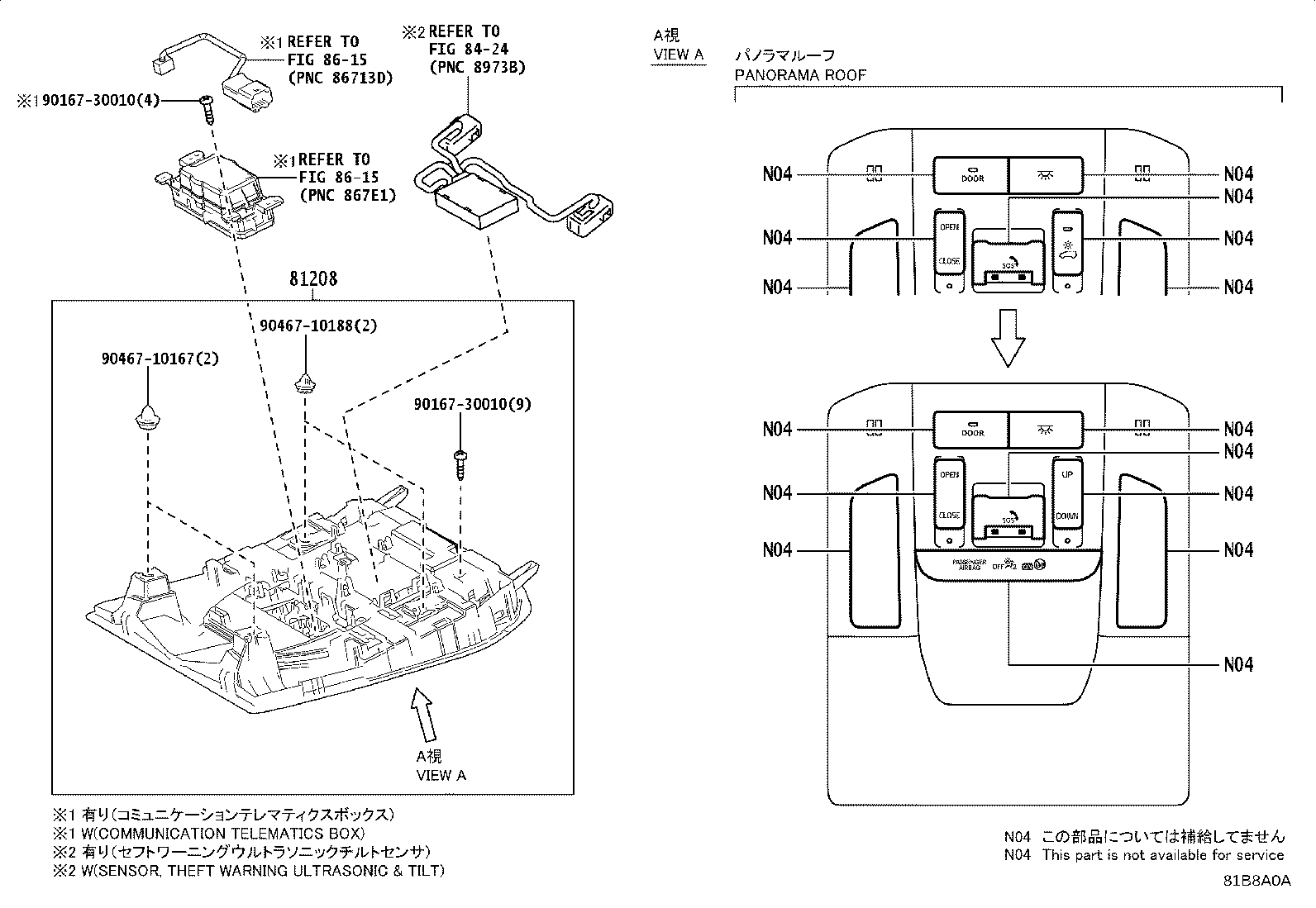

Figure 81B89Z 81B89Z 2024-02 → — Figure 81B8A0A 81B8A0A 2024-02 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080T Lamp Assy, Interior Illumination, NO.2 RH
81080U Lamp Assy, Interior Illumination, NO.2 LH
81208 Lamp Sub-assy, Map
81230 Lamp Assy, Courtesy
81240 Lamp Assy, Room, NO.1
81240D Lamp Assy, Room, NO.2
81260 Lamp Assy, Glove Box
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81380D Lamp Assy, Step
81380H Lamp Assy, Step
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
