Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Fuel Injection System

11 part groups · 2 illustrations

Illustrations

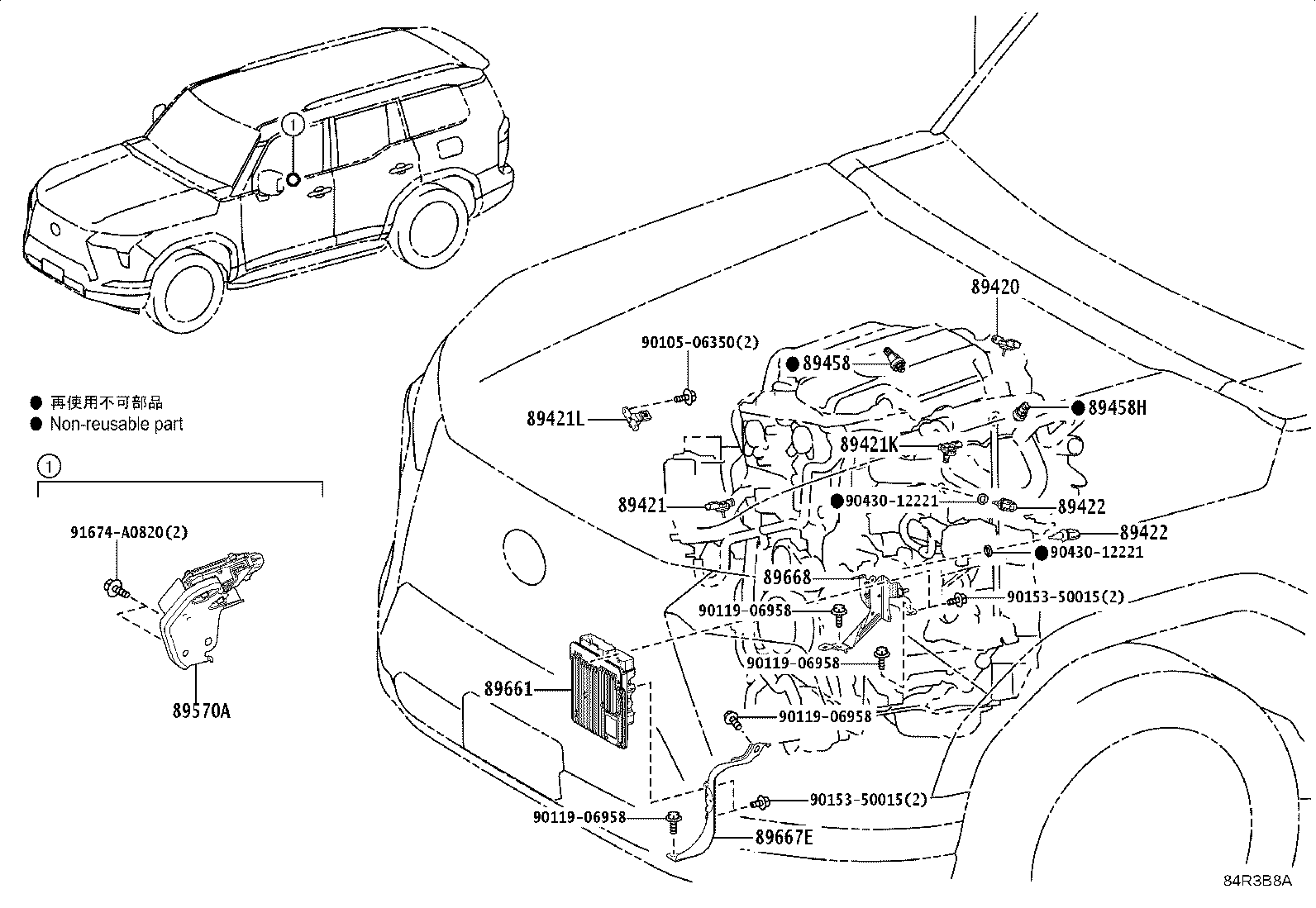

Figure 84R3B7A 84R3B7A 2024-02 → — Figure 84R3B8A 84R3B8A 2024-03 → —

Part groups

PNCDescription
89420 Sensor Assy, Vacuum
89421 Sensor Assy, Vacuum (FOR E.F.I.)
89421K Sensor, Turbo Pressure, NO.1
89421L Sensor, Turbo Pressure, NO.2
89422 Sensor, Water Temperature (FOR E.F.I.)
89458 Sensor, Fuel Pressure
89458H Sensor, Fuel Pressure, NO.2
89570A Computer Assy, Fuel Pump Control
89661 Computer, Engine Control
89667E Bracket, Engine Control Computer, NO.1
89668 Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
