Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

11 part groups · 2 illustrations

Illustrations

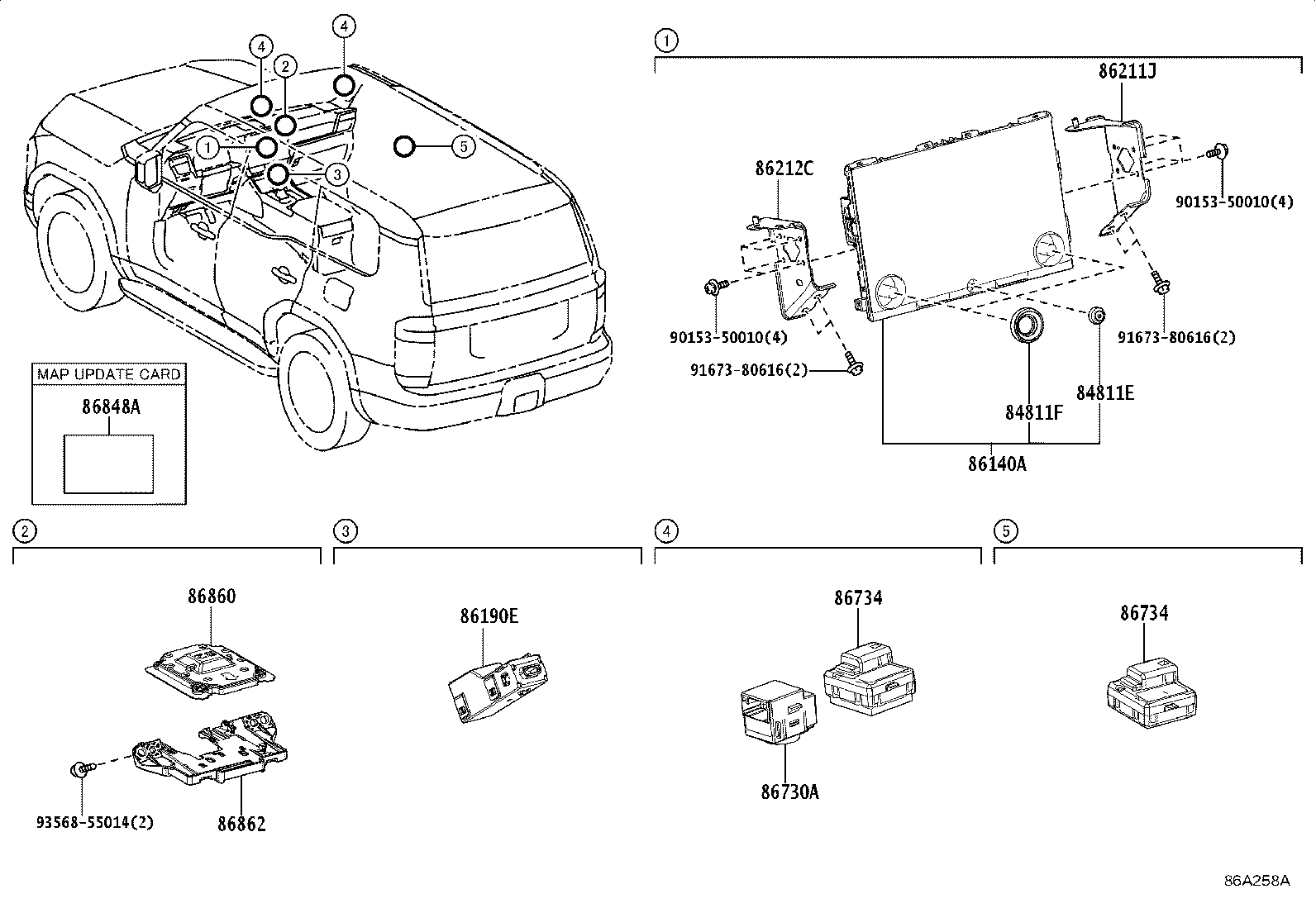

Figure 86A257A 86A257A 2023-12 → — Figure 86A258A 86A258A 2023-12 → —

Part groups

PNCDescription
84811E Knob, Switch
84811F Knob, Switch
86140A Receiver Assy, Radio & Display
86190E Adapter Assy, Stereo Jack
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86730A Microphone Assy, Telephone
86734 Microphone, Active Noise Control
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
