Toyota Lexus GX550/550H

2023-12 → present · chassis TJH252,VJA252 · catalogue 782220 · Europe

Supported model Data version 2024-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

18 part groups · 8 illustrations

Illustrations

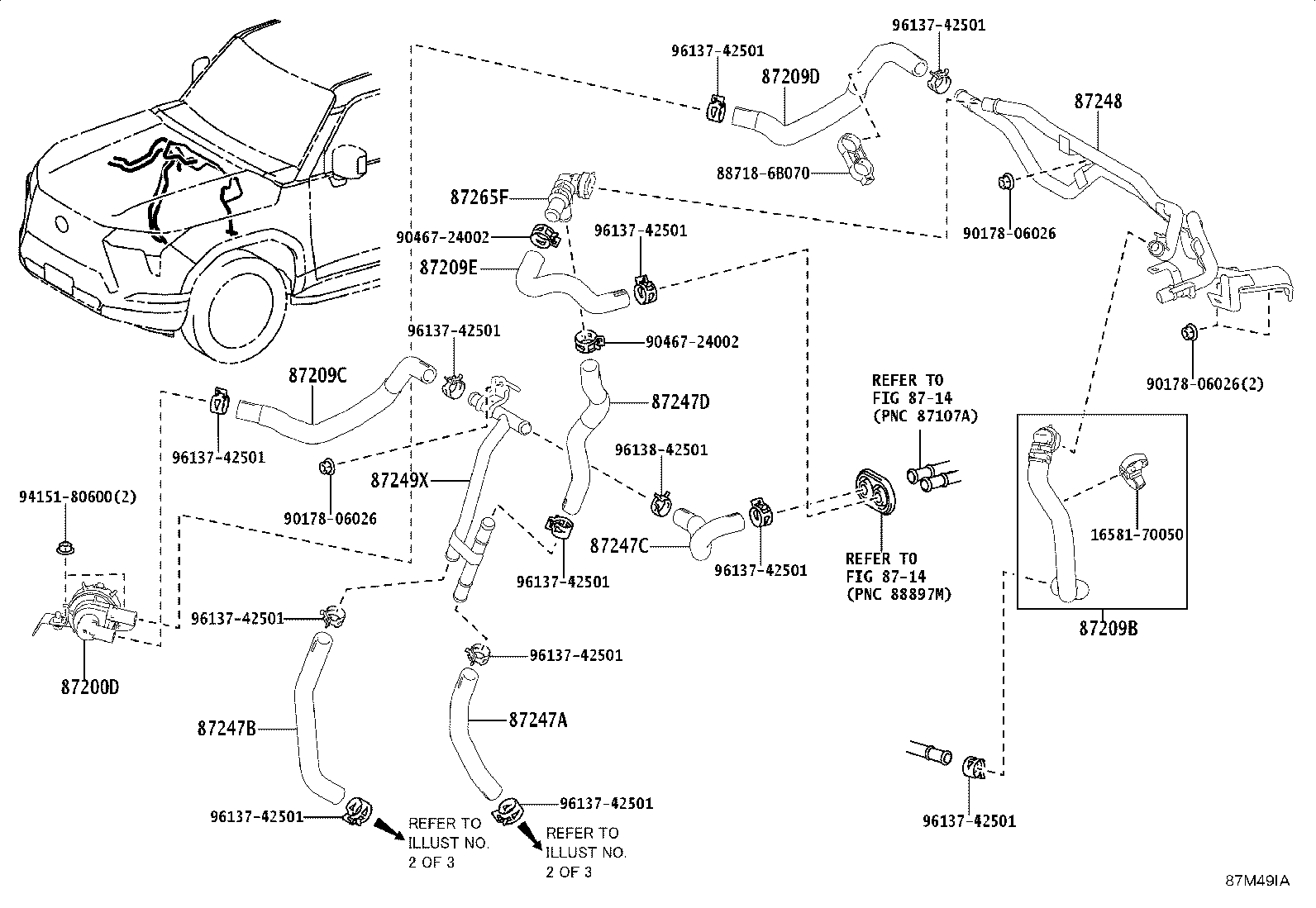

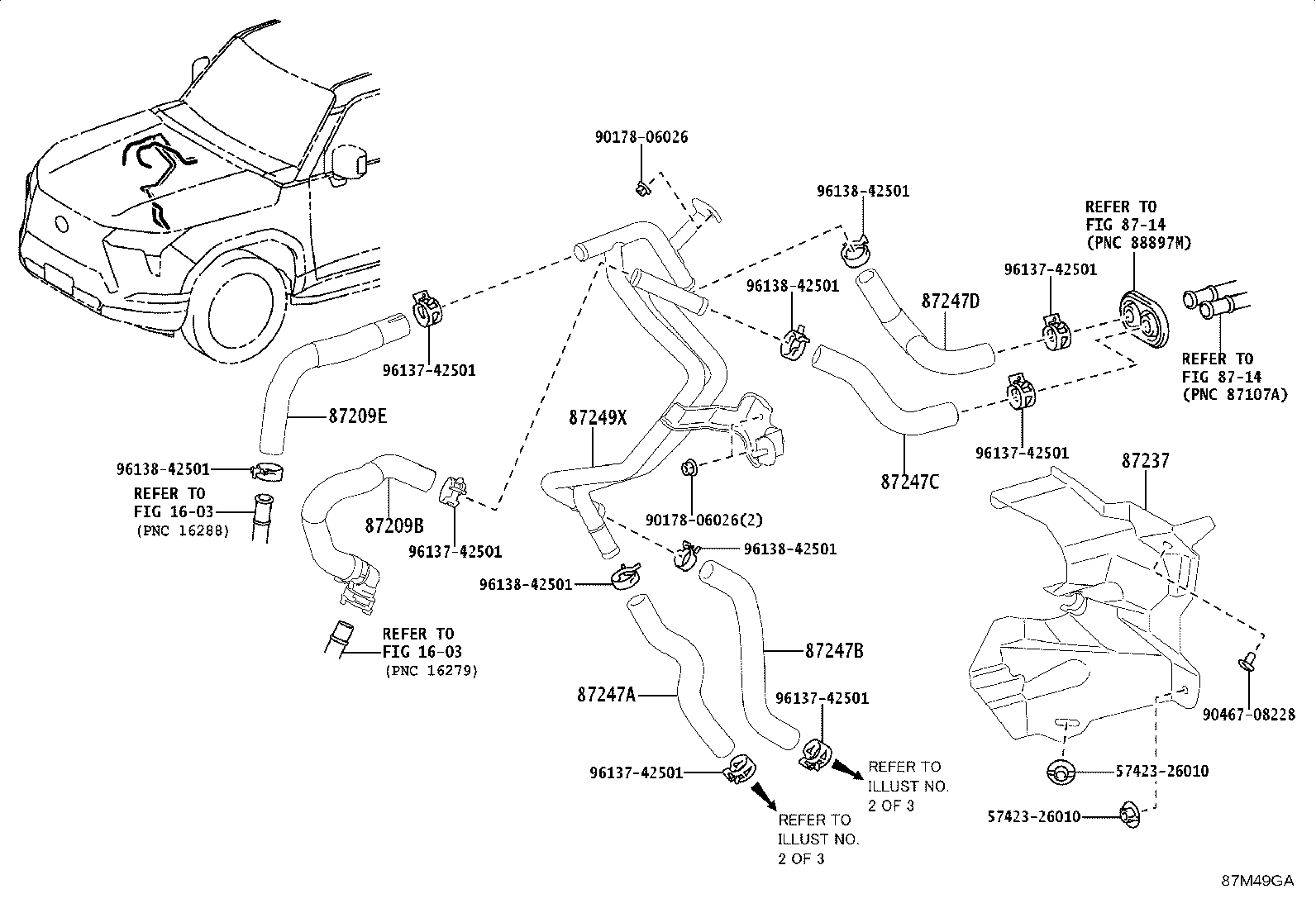

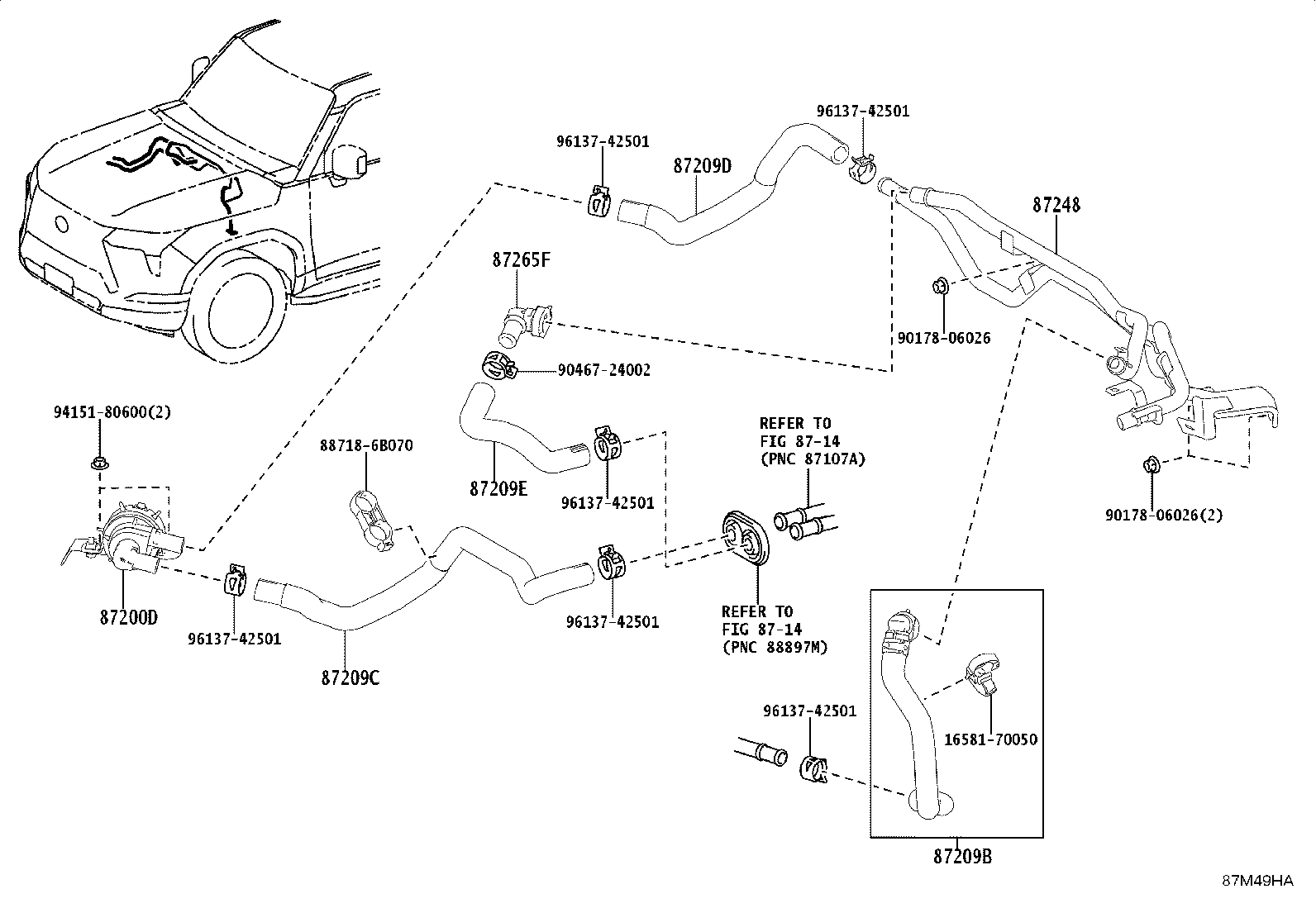

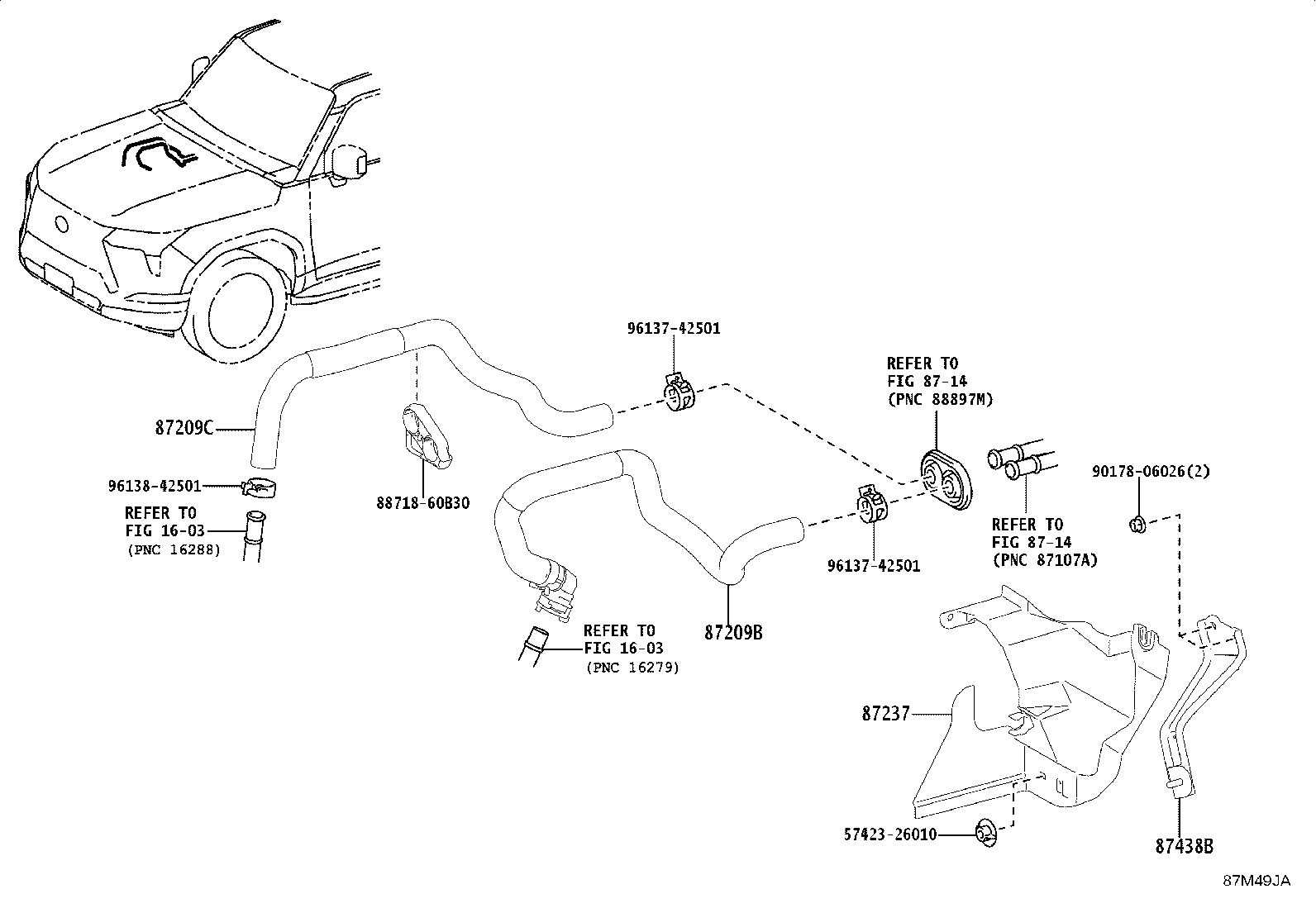

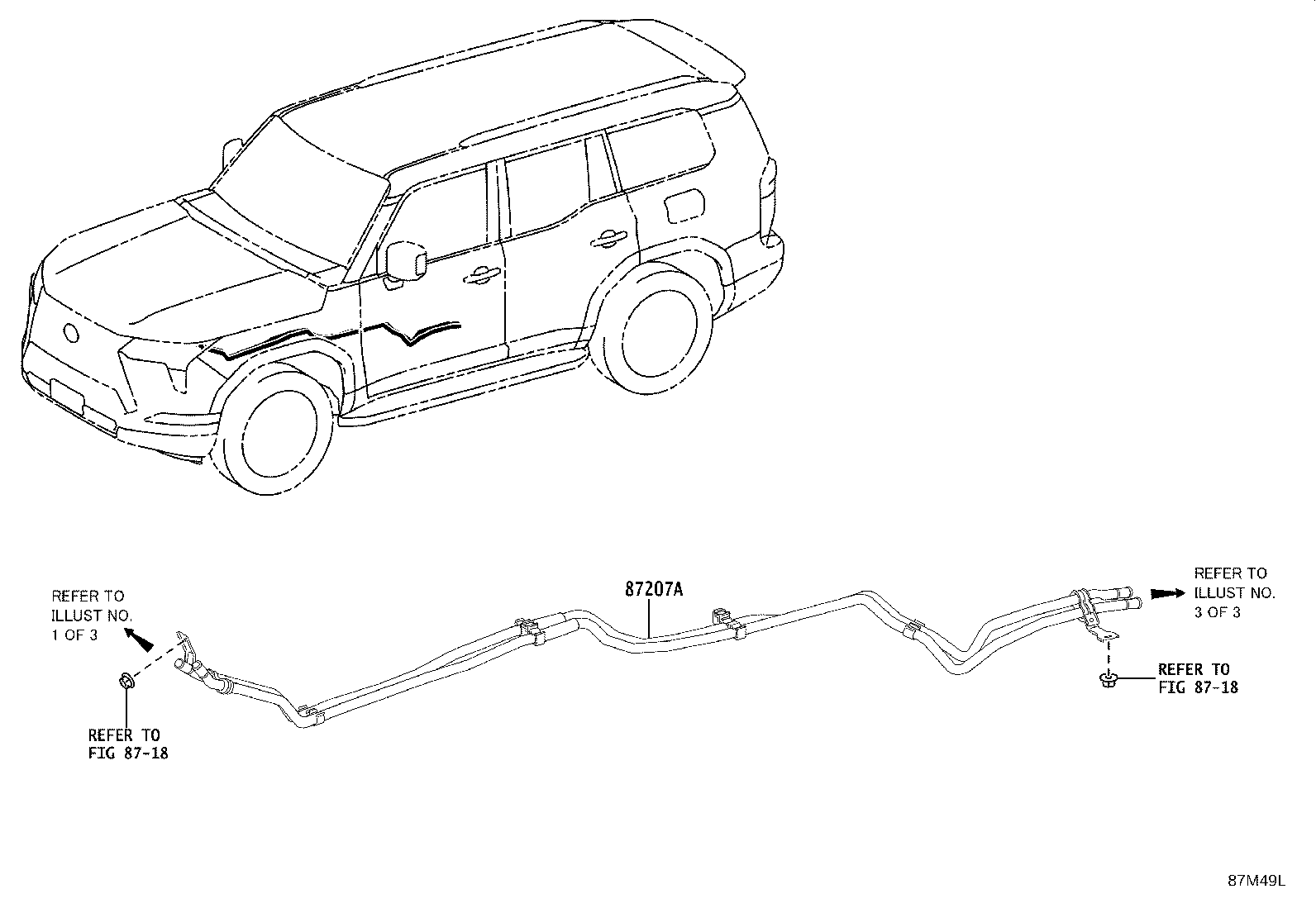

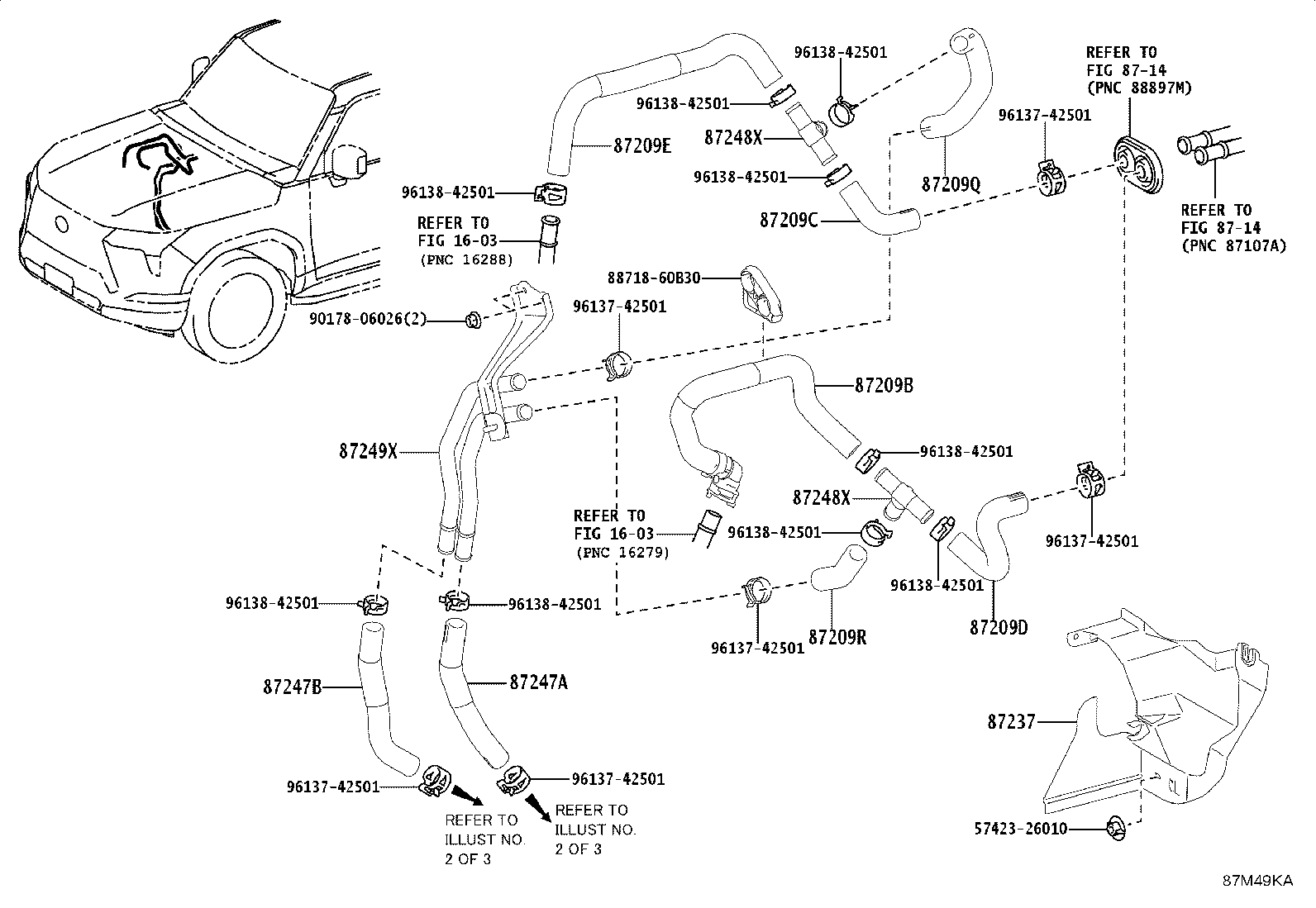

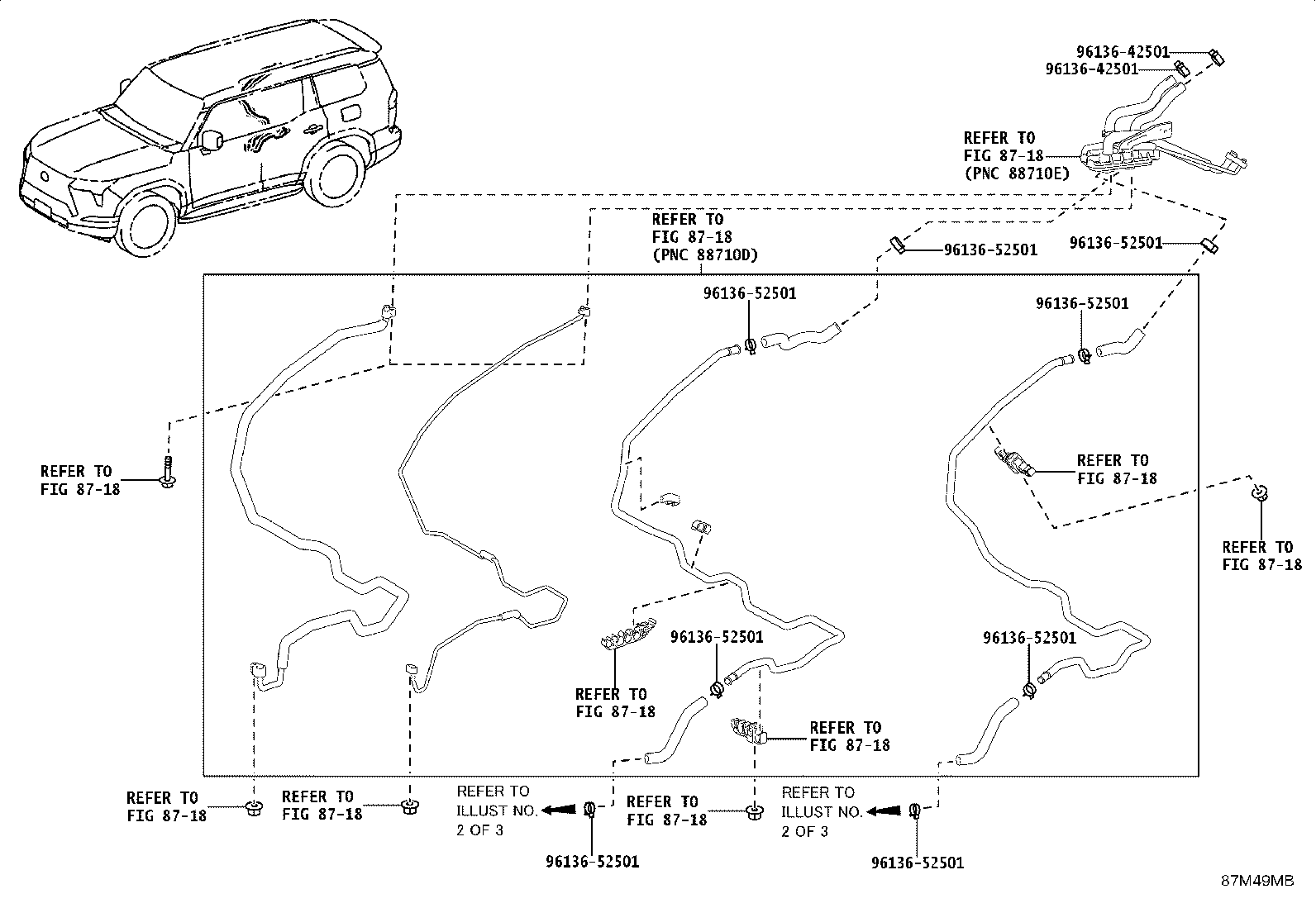

Figure 87M49FA 87M49FA 2023-12 → — Figure 87M49GA 87M49GA 2023-12 → — Figure 87M49HA 87M49HA 2023-12 → — Figure 87M49IA 87M49IA 2023-12 → — Figure 87M49JA 87M49JA 2023-12 → — Figure 87M49KA 87M49KA 2023-12 → — Figure 87M49L 87M49L 2023-12 → — Figure 87M49MB 87M49MB 2023-12 → —

Part groups

PNCDescription
87200D Accessory Assy, Heater
87207A Pipe & Hose Sub-assy, Water A
87209B Hose Sub-assy, Water, B
87209C Hose Sub-assy, Water, C
87209D Hose Sub-assy, Water, D
87209E Hose Sub-assy, Water, E
87209Q Hose Sub-assy, Water, F
87209R Hose Sub-assy, Water, G
87237 Cover, Heater Piping
87247A Hose, Heater Water, A
87247B Hose, Heater Water, B
87247C Hose, Heater Water, C
87247D Hose, Heater Water, D
87248 Pipe Sub-assy, Water
87248X Pipe, Heater Water
87249X Pipe, Water
87265F Connector, Water Hose
87438B Bracket, Heater Pipe, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
