Toyota Lexus GX460
2009-11 → present · chassis URJ150 · catalogue 782510 · Europe
Supported model
Data version 2019-08

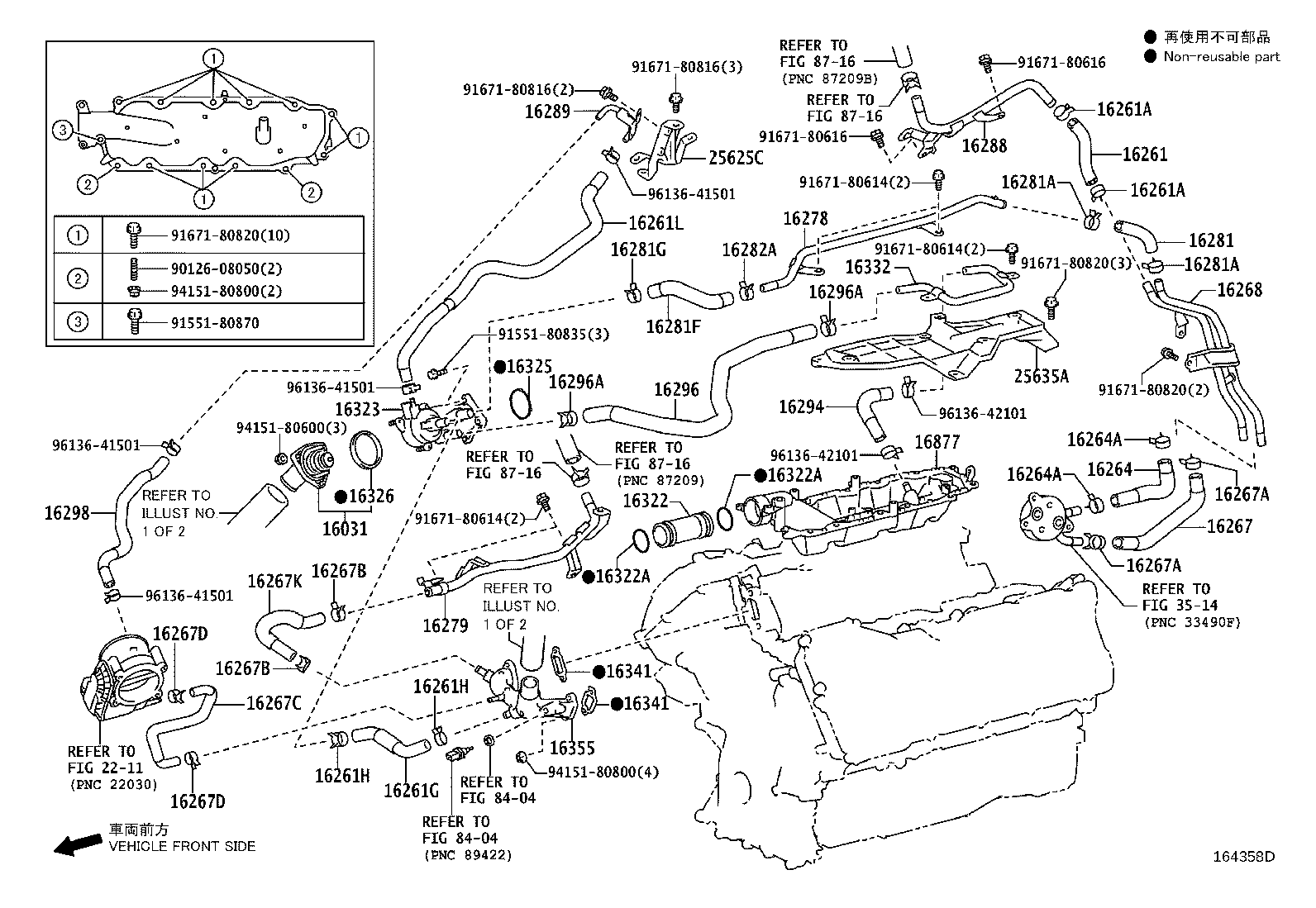

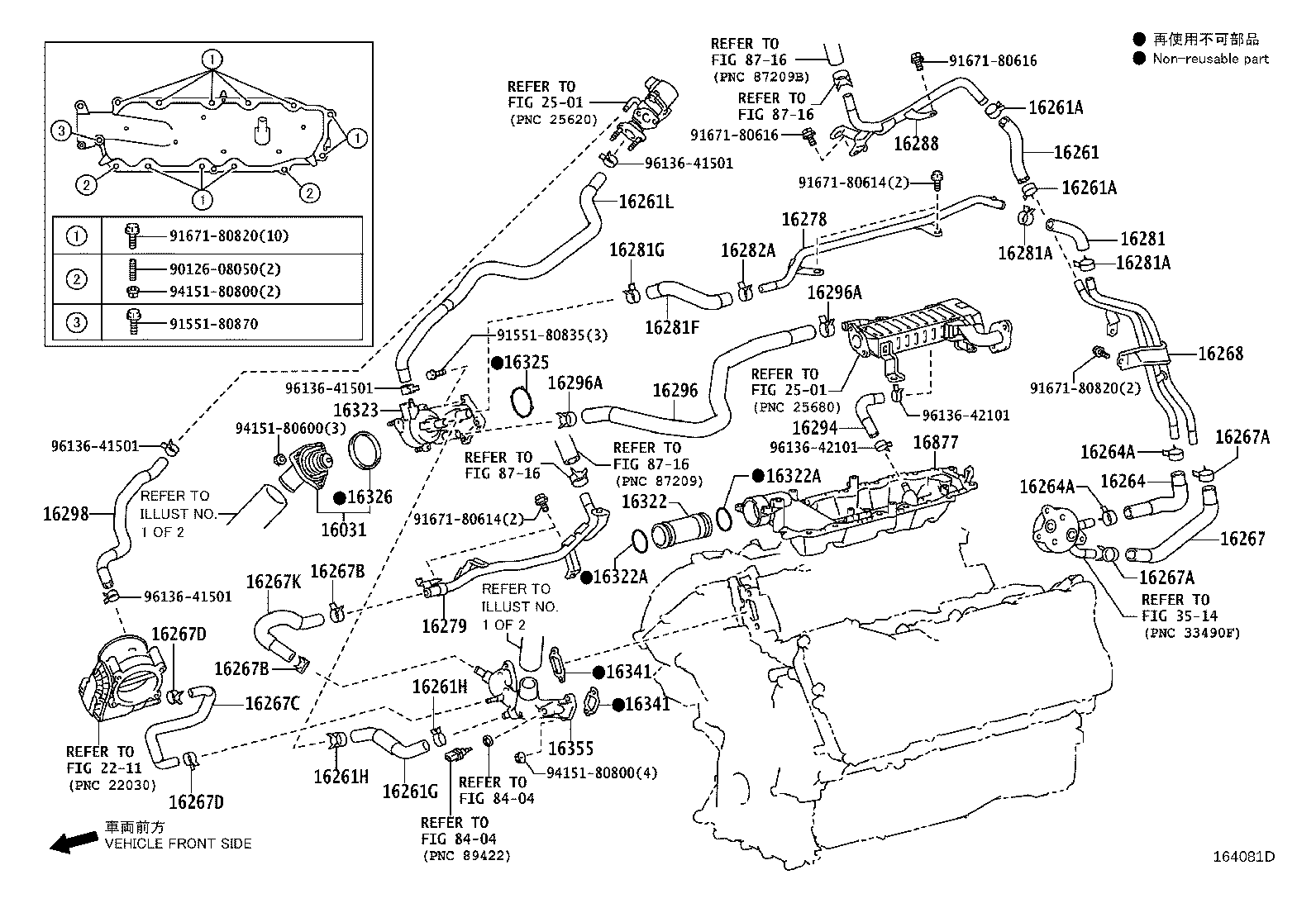

Radiator & Water Outlet
57 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16031 | Water Inlet Sub-assy, W/Thermostat |
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261G | Hose, Water By-pass, NO.1 |
| 16261H | Clip(FOR WATER BY-PASS HOSE NO.1) |
| 16261L | Hose, Water By-pass |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267B | Clip(FOR WATER BY-PASS HOSE) |
| 16267C | Hose, Water By-pass, NO.4 |
| 16267D | Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16267K | Hose, Water By-pass, NO.3 |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16278 | Pipe, Water By-pass, NO.2 |
| 16279 | Pipe, Water By-pass, NO.3 |
| 16281 | Hose, Water By-pass, NO.4 |
| 16281A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16282A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16288 | Pipe, Water By-pass, NO.4 |
| 16289 | Pipe, Water By-pass, NO.5 |
| 16294 | Hose, Water By-pass, NO.11 |
| 16296 | Hose, Water By-pass, NO.8 |
| 16296A | Clip(FOR WATER BY-PASS HOSE NO.8) |
| 16298 | Hose, Water By-pass, NO.12 |
| 16322 | Pipe, Water Inlet |
| 16322A | Ring, O(FOR WATER INLET) |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16332 | Pipe, Water Outlet, NO.1 |
| 16341 | Gasket, Water Outlet |
| 16355 | Joint, Water By-pass, Front |
| 16361 | Fan |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16401 | Cap Sub-assy, Radiator |
| 16470 | Tank Assy, Radiator Reserve |
| 16471 | Cap Sub-assy, Reserve Tank |
| 16533B | Support, Radiator, NO.1 |
| 16534 | Support, Radiator, NO.2 |
| 16547 | Bush, Radiator Support, NO.1 |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16562 | Seal, Radiator TO Support, NO.2 |
| 16567 | Hose(FOR RADIATOR RESERVE TANK) |
| 16571C | Hose, Radiator, NO.1 |
| 16571D | Clip, Radiator Hose, NO.1 |
| 16572D | Hose, Radiator, NO.2 |
| 16572E | Clip, Radiator Hose, NO.2 |
| 16711 | Shroud, Fan |
| 16877 | Cover, Heat Exchanger, NO.1 |
| 25625C | Bracket, Egr Valve |
| 25635A | Bracket, Egr Pipe, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
