Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

20 part groups · 3 illustrations

Illustrations

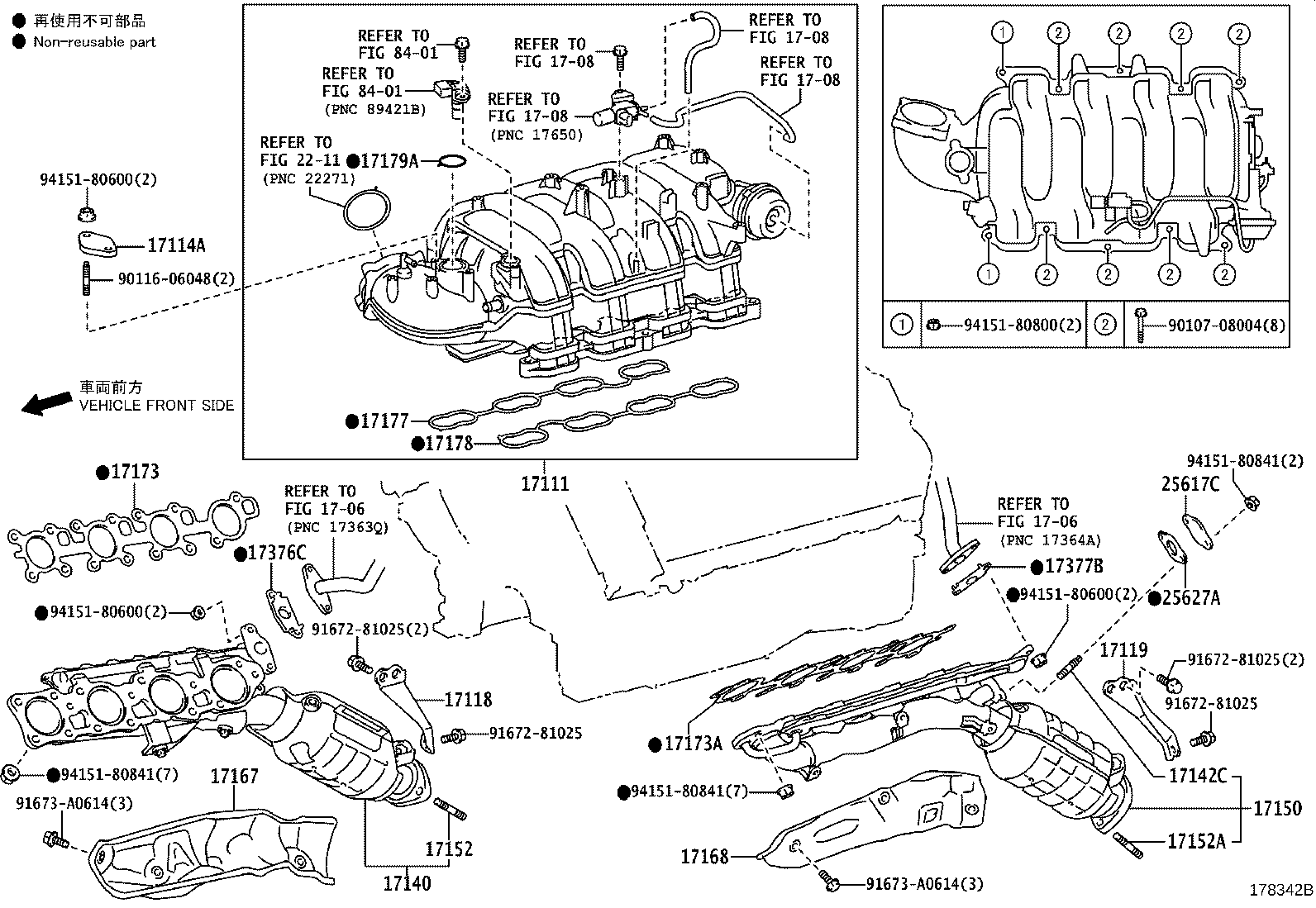

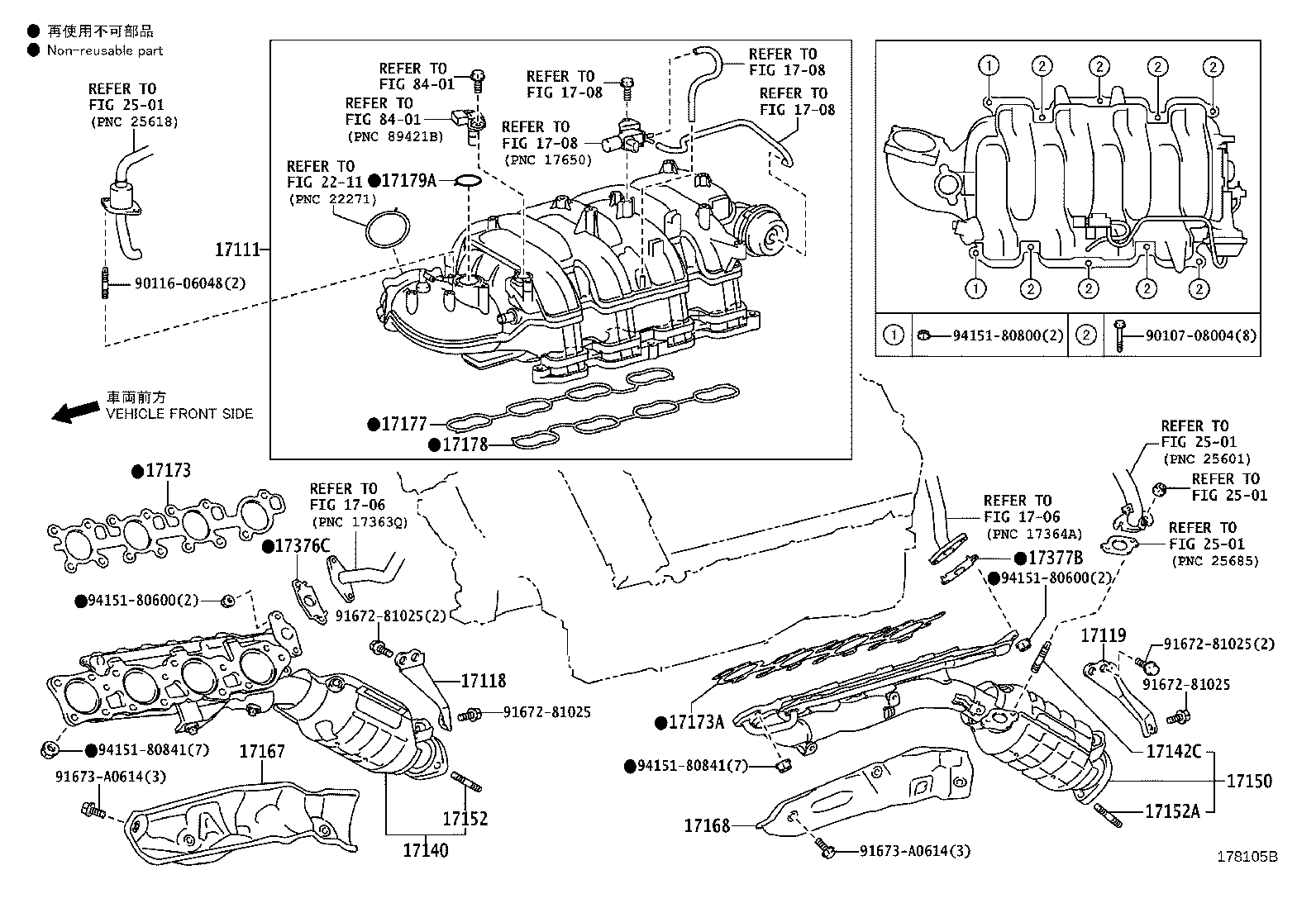

Figure 176645C 176645C 2009-11 → 2015-08 Figure 178105B 178105B 2015-08 → — Figure 178342B 178342B 2014-08 → —

Part groups

PNCDescription
17111 Manifold, Intake
17114A Flange, Intake
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17140 Manifold Assy, Exhaust, RH
17142C Bolt, Stud(FOR EXHAUST MANIFOLD, LH)
17150 Manifold Assy, Exhaust, LH
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17152A Bolt,Stud(FOR MANIFOLD TO EXHAUST PIPE)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17173A Gasket, Exhaust Manifold TO Head, LH
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17179A Gasket, Intake Manifold, NO.2
17376C Gasket, Air Tube
17377B Gasket, Air Tube, NO.2
25617C Plate, Egr Hole Cover
25627A Gasket, Egr Hole Cover Plate, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
