Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

27 part groups · 2 illustrations

Illustrations

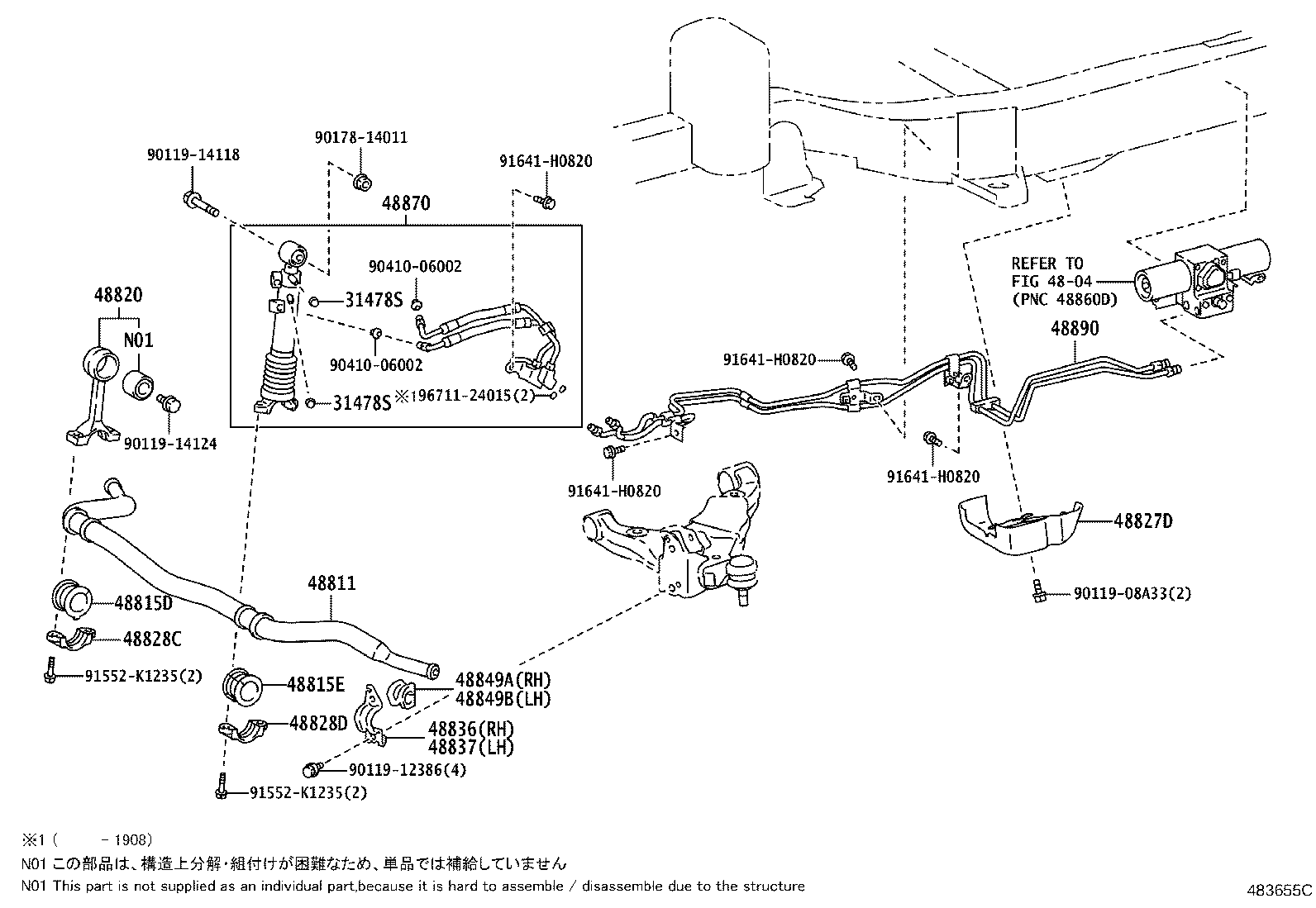

Figure 483099B 483099B 2009-11 → — Figure 483655C 483655C 2009-11 → —

Part groups

PNCDescription
31478S Cap, Bleeder Plug(FOR FRONT SUSPENSION CONTROL)
48131 Spring, Front Coil, RH
48132 Spring, Front Coil, LH
48510 Absorber Assy, Shock, Front RH
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510N Bush(FOR FRONT SHOCK ABSORBER RH)
48520 Absorber Assy, Shock, Front LH
48520C Bush(FOR FRONT SHOCK ABSORBER LH)
48597 Retainer, Shock Absorber Cushion
48603 Support Sub-assy, Front Suspension, RH
48603A Nut(FOR FRONT SUSPENSION SUPPORT)
48603D Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609 Support Sub-assy, Front Suspension, LH
48609E Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48811 Bar, Stabilizer, Front
48815D Bush, Front Stabilizer Bar, RH
48815E Bush, Front Stabilizer Bar, LH
48820 Link Assy, Front Stabilizer
48827D Protector, Front Stabilizer Tube
48828C Bracket, Front Stabilizer, Lower RH
48828D Bracket, Front Stabilizer, Lower LH
48836 Bracket, Front Stabilizer End, RH
48837 Bracket, Front Stabilizer End, LH
48849A Bush, Front Stabilizer Link, RH
48849B Bush, Front Stabilizer Link, LH
48870 Cylinder Assy, Front Stabilizer W/Tube
48890 Tube Assy, Front Stabilizer Control, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
