Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

28 part groups · 6 illustrations

Illustrations

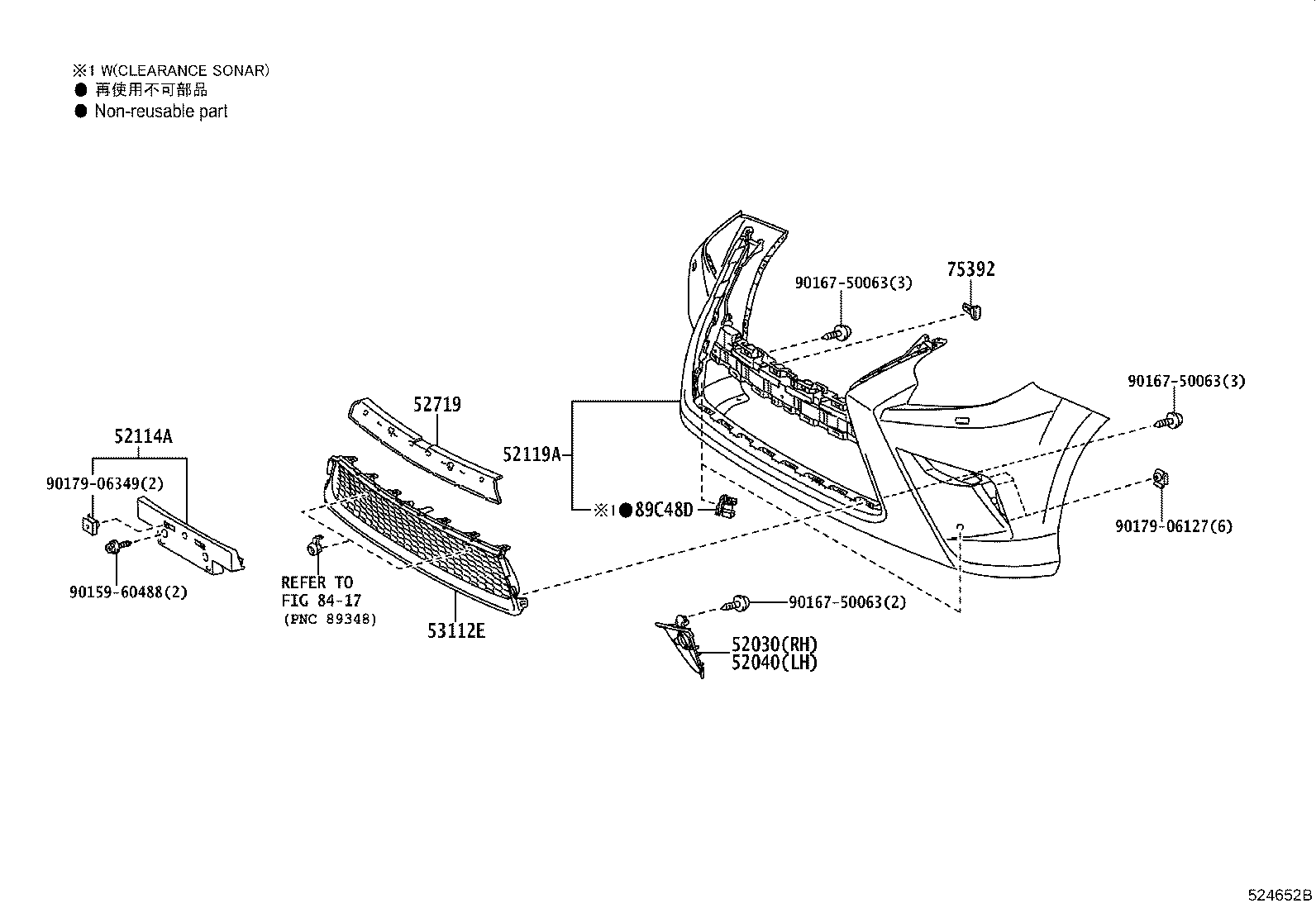

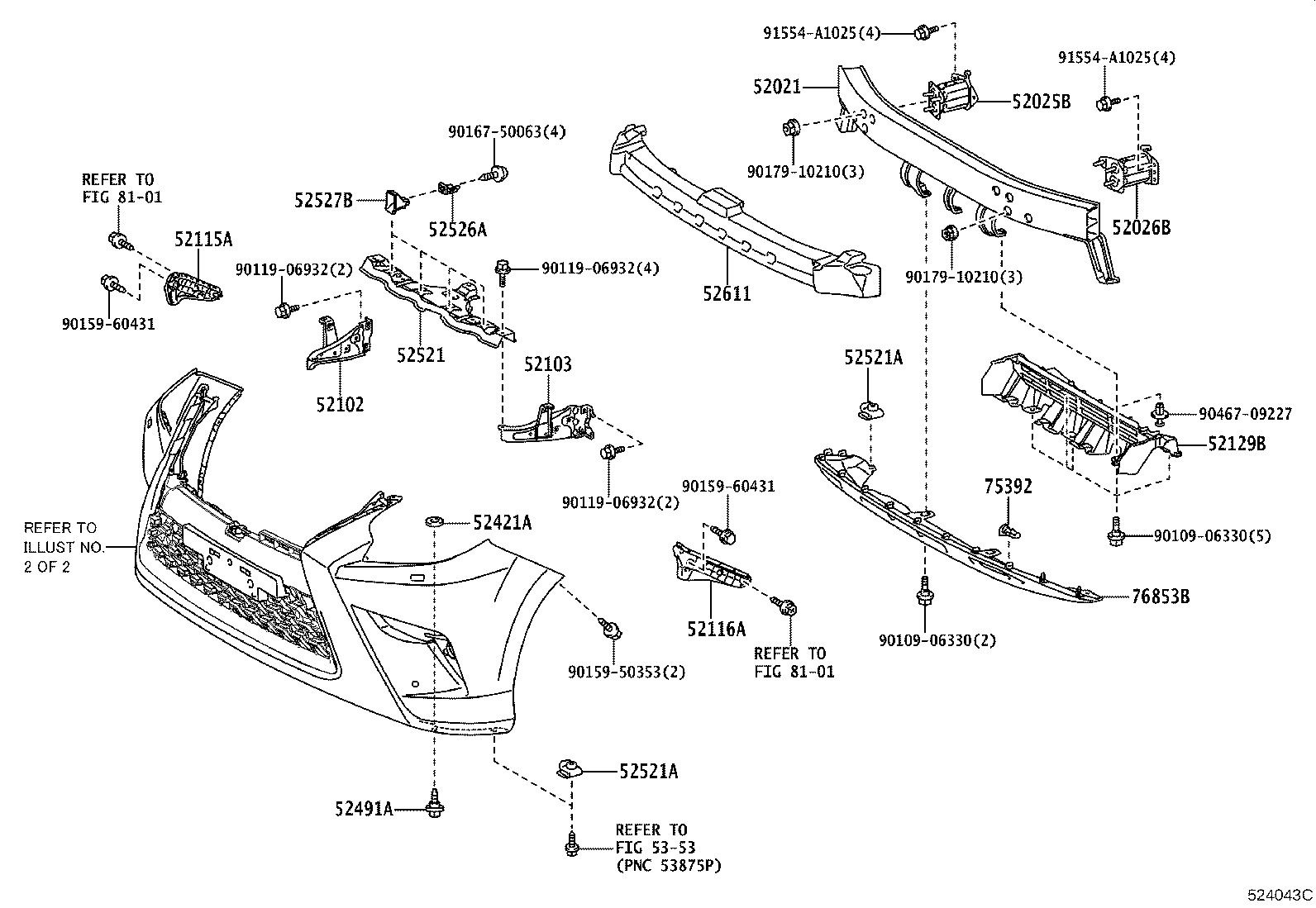

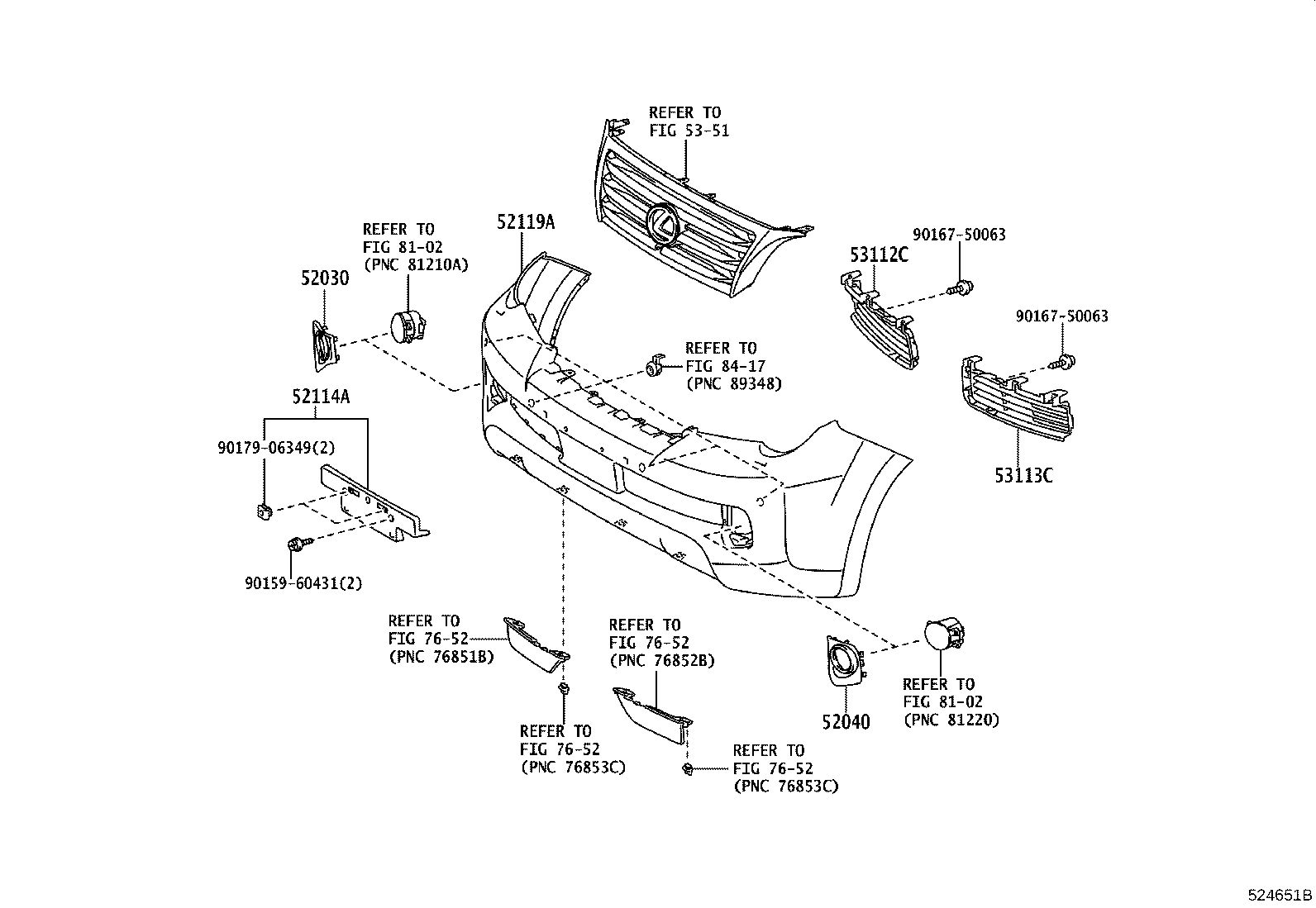

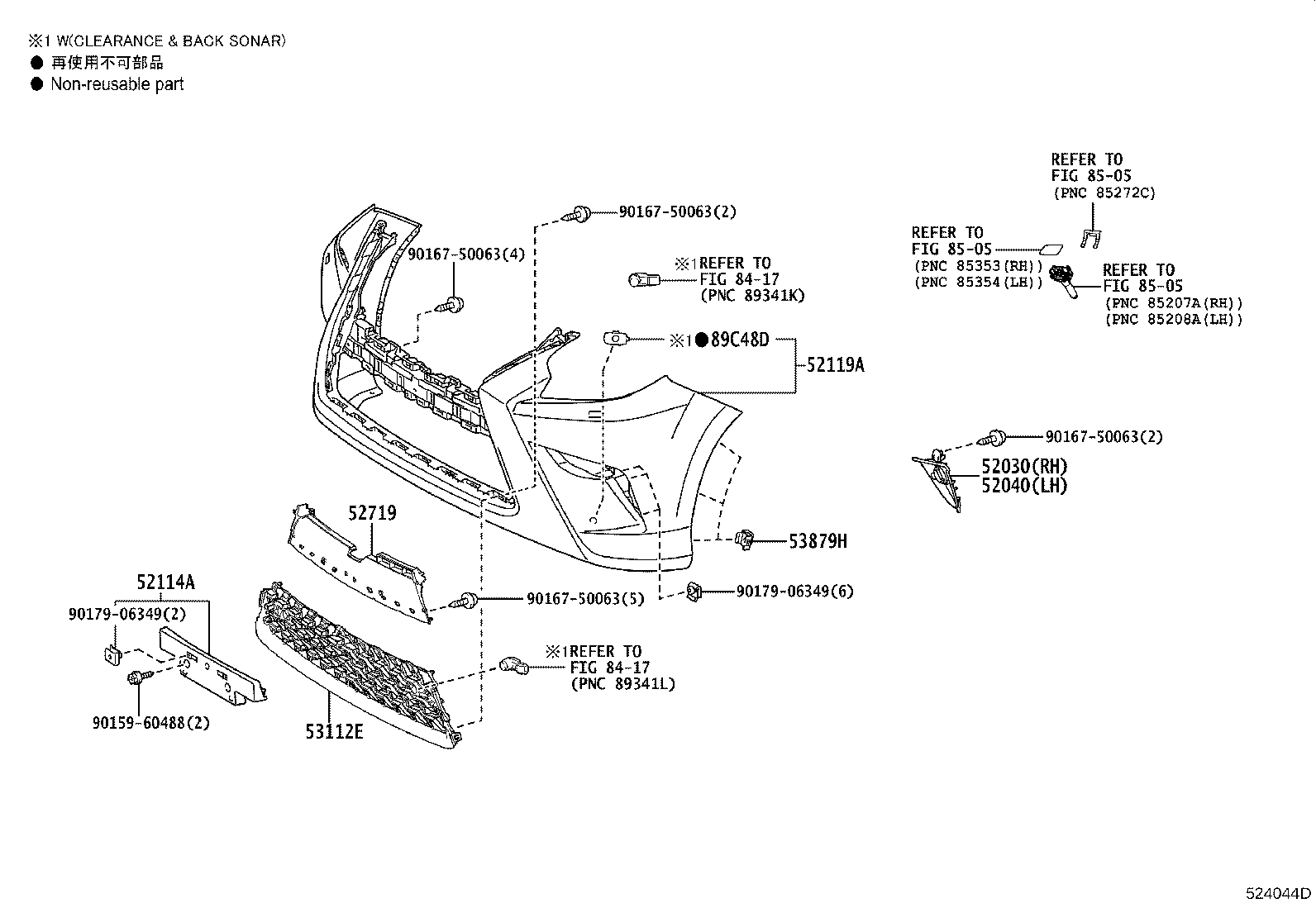

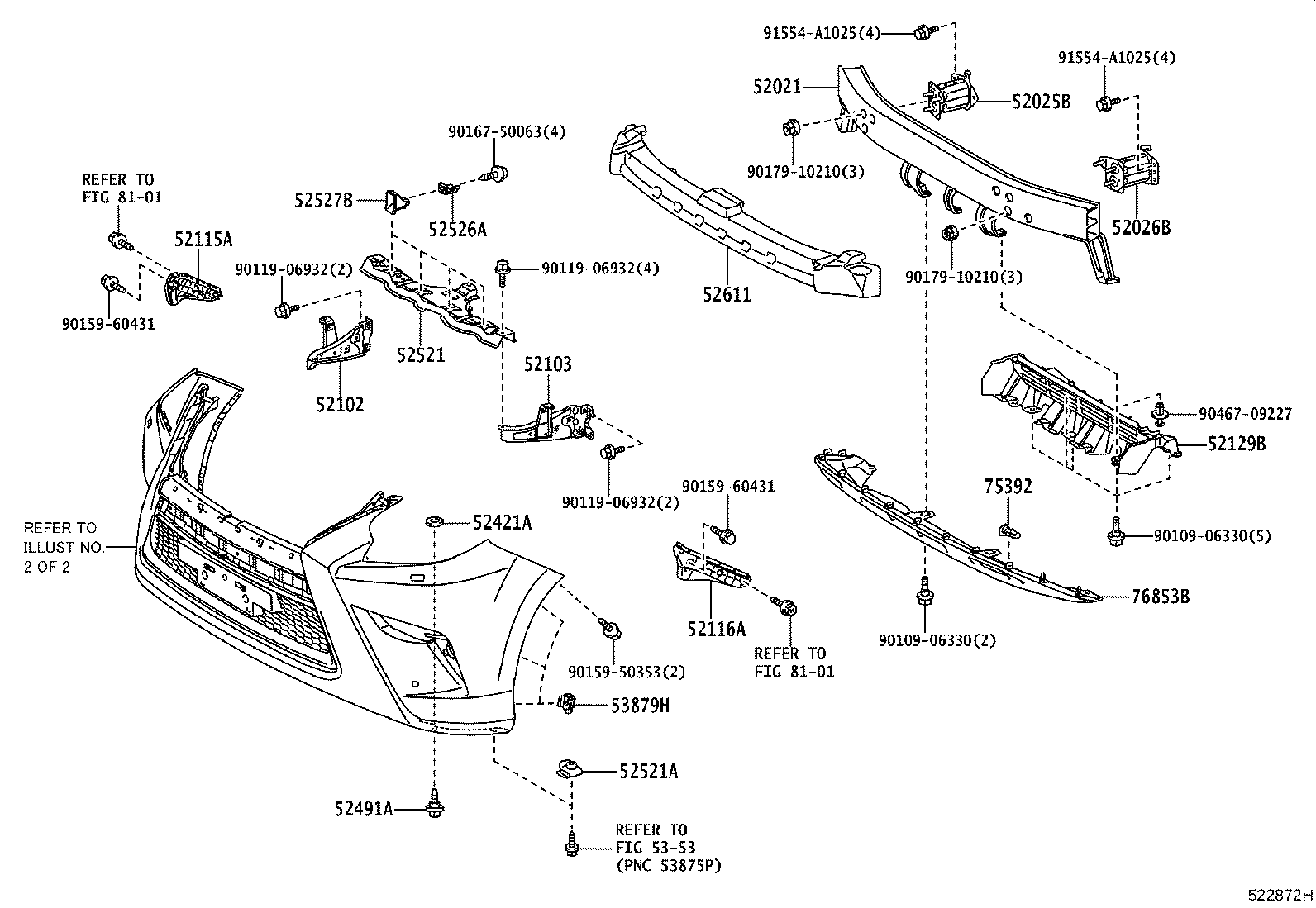

Figure 524650B 524650B 2009-11 → 2013-08 Figure 524651B 524651B 2009-11 → 2013-08 Figure 522872H 522872H 2013-08 → 2019-08 Figure 524652B 524652B 2013-08 → 2019-08 Figure 524043C 524043C 2019-08 → — Figure 524044D 524044D 2019-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52025B Extension Sub-assy, Front Bumper, NO.2 RH
52026B Extension Sub-assy, Front Bumper, NO.2 LH
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52102 Bracket Sub-assy, Front Bumper, RH
52103 Bracket Sub-assy, Front Bumper, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52421A Pad, Front Bumper
52491A Bolt, Bumper Pad
52521 Retainer, Front Bumper, Upper Center
52521A Clip(FOR FRONT BUMPER RETAINER)
52526A Retainer, Front Bumper, Lower NO.1
52527B Retainer, Front Bumper, Lower NO.2
52611 Absorber, Front Bumper Energy
52719 Cover, Front Bumper Moulding
53112C Grille, Radiator, Lower RH
53112E Grille, Radiator, Lower NO.1
53113C Grille, Radiator, Lower LH
53879H Retainer, Front Fender Liner
75392 Retainer, Outside Moulding
76853B Cover, Front Spoiler, Center
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
