Toyota Lexus GX460
2009-11 → present · chassis URJ150 · catalogue 782510 · Europe
Supported model
Data version 2019-08

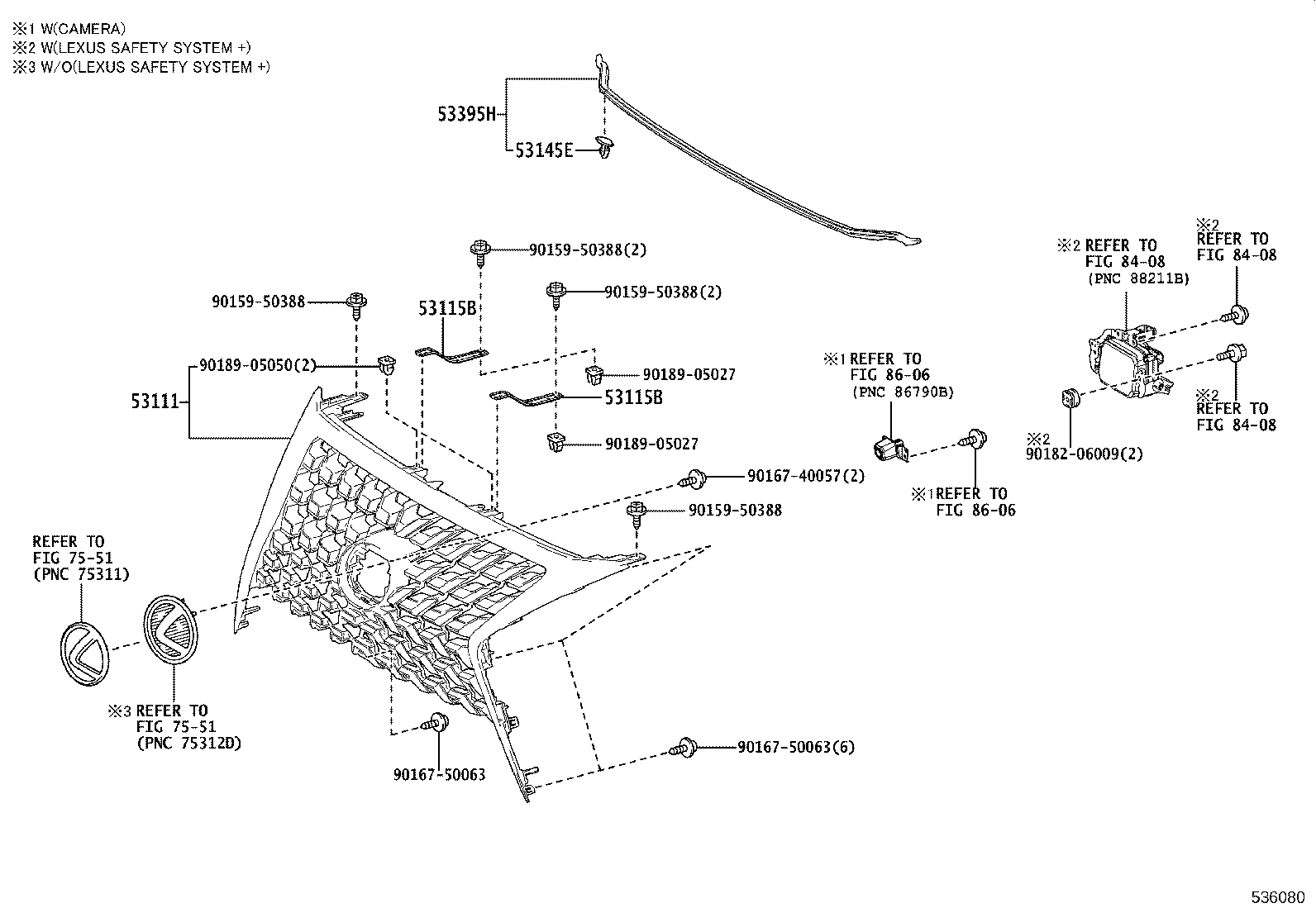

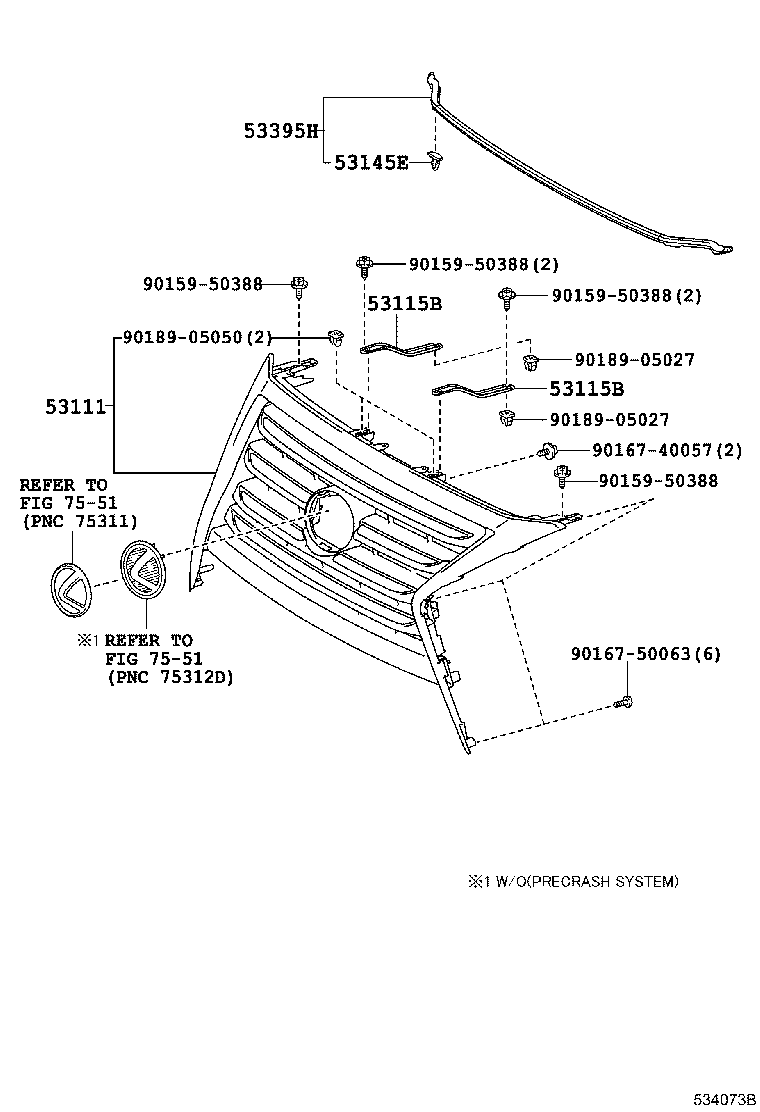

Radiator Grille
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53115A | Bracket, Radiator Grille, RH |
| 53115B | Bracket, Radiator Grille |
| 53116A | Bracket, Radiator Grille, LH |
| 53121A | Moulding, Radiator Grille |
| 53145E | Clip, Radiator Grille Garnish |
| 53395H | Seal, Hood TO Radiator Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
