Hood & Front Fender

19 part groups · 6 illustrations

Illustrations

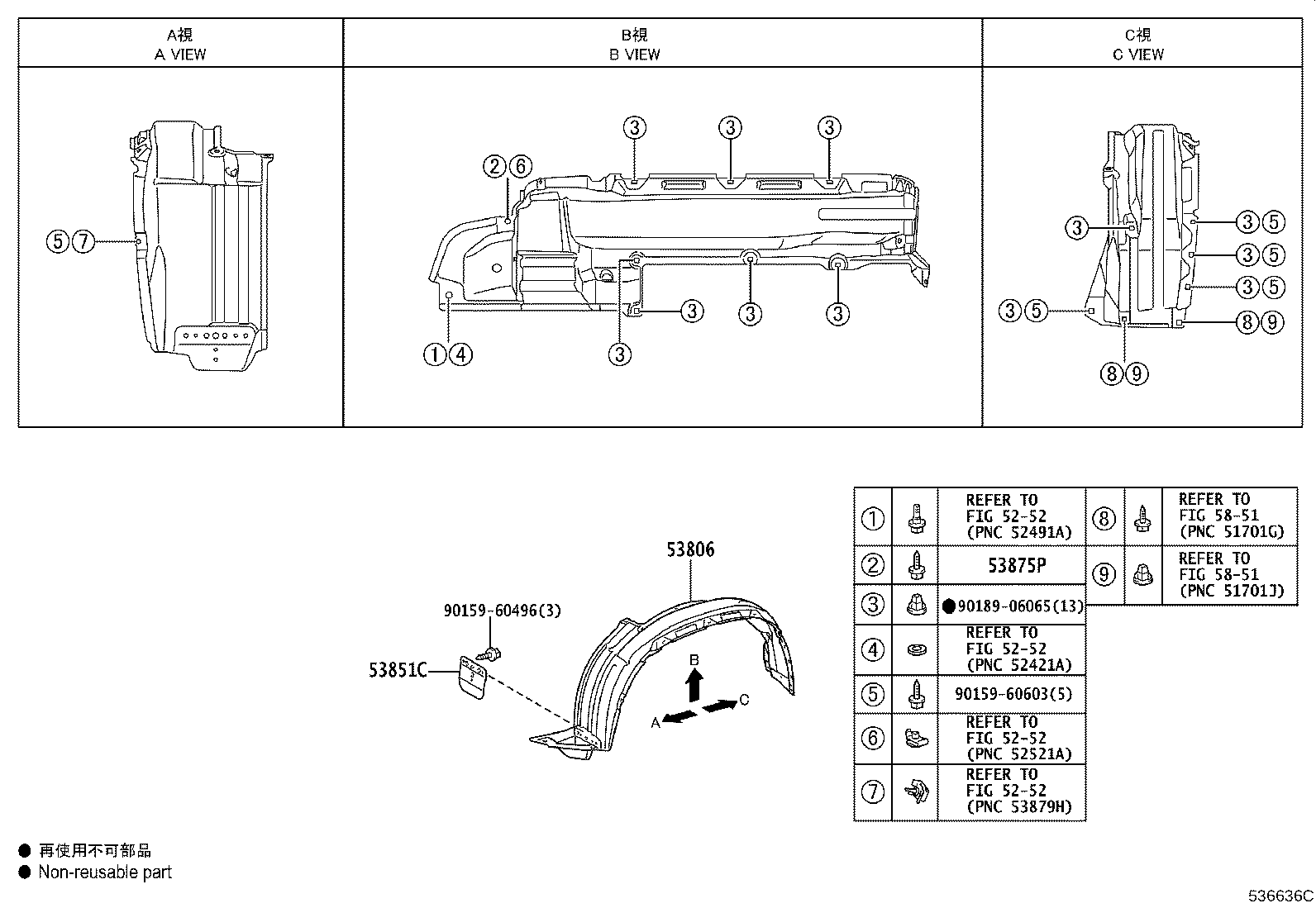

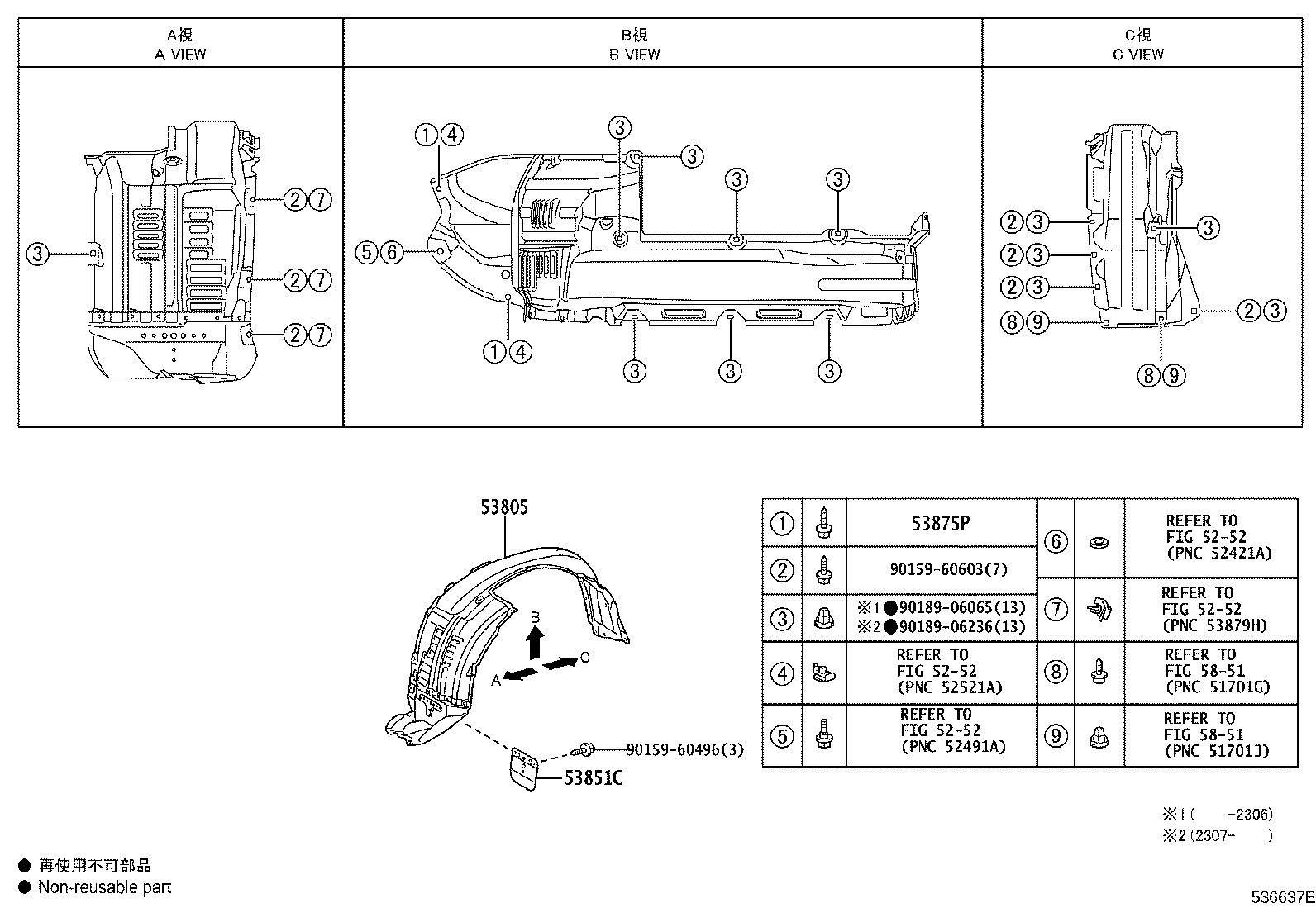

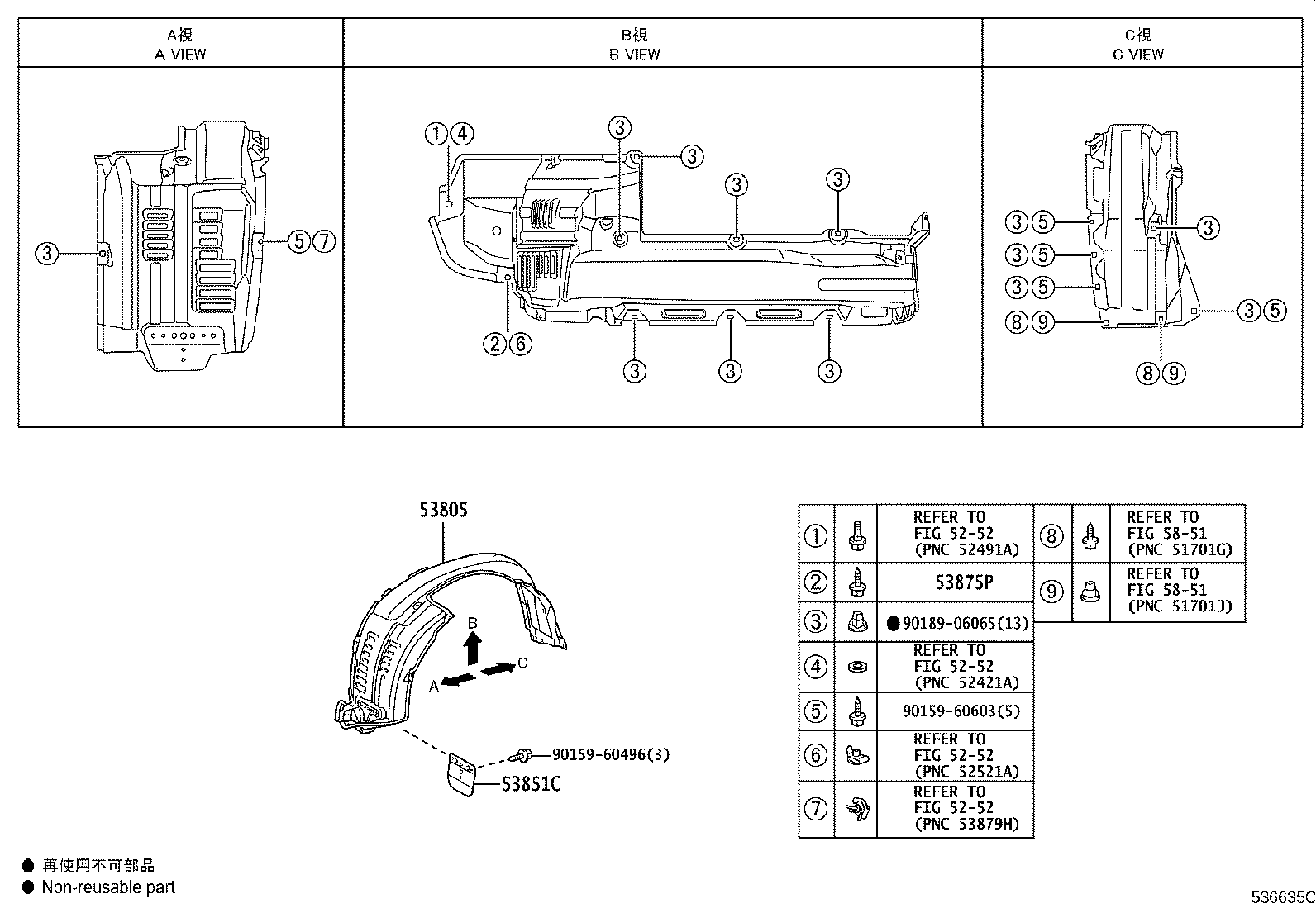

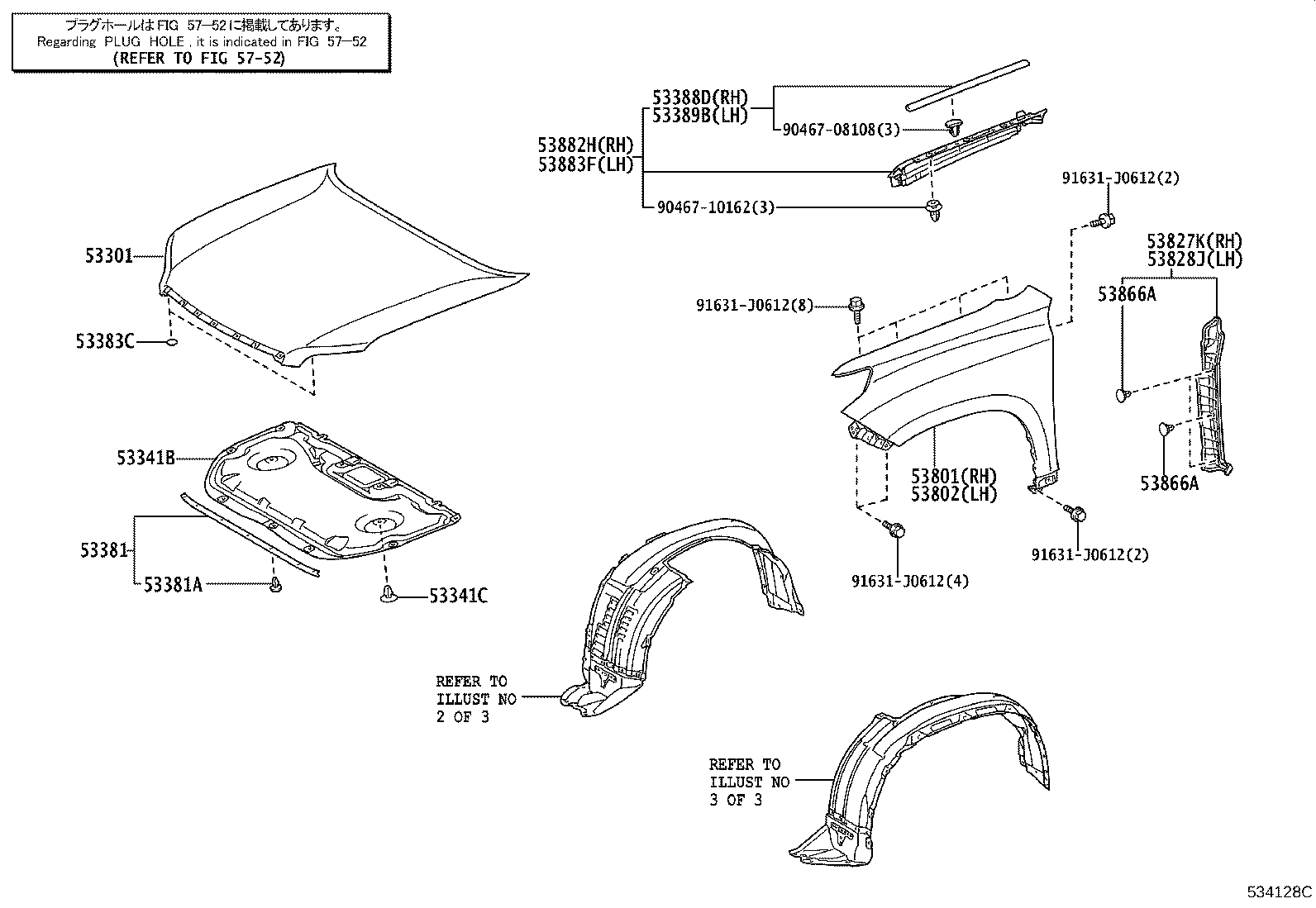

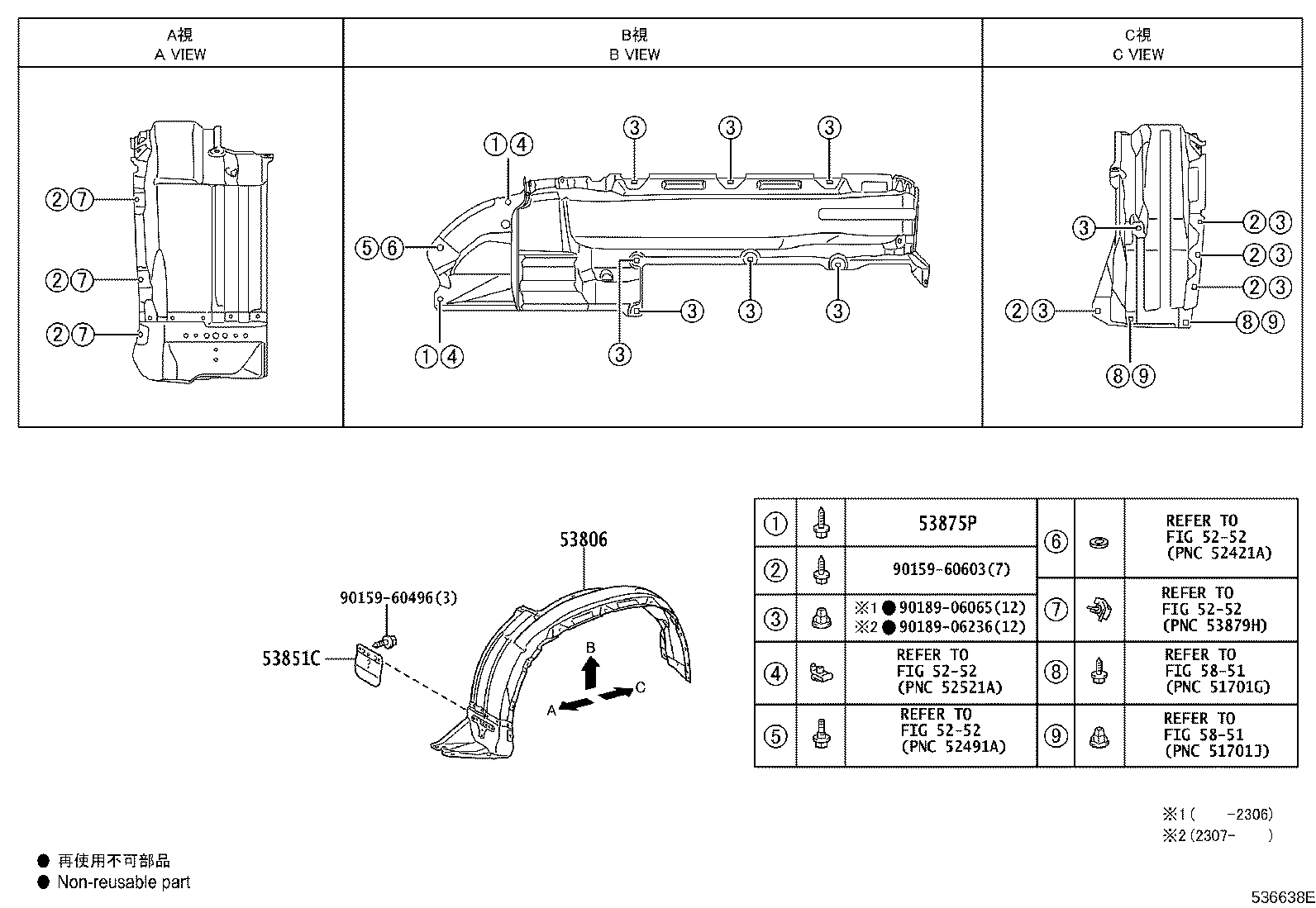

Figure 534055D 534055D 2009-11 → 2013-08 Figure 536635C 536635C 2009-11 → 2013-08 Figure 536636C 536636C 2009-11 → 2013-08 Figure 534128C 534128C 2013-08 → — Figure 536637E 536637E 2013-08 → — Figure 536638E 536638E 2013-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383C Seal, Hood TO Cowl Top
53388D Seal, Hood TO Front Fender, RH
53389B Seal, Hood TO Front Fender, LH
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53827K Protector, Front Fender Side Panel, RH
53828J Protector, Front Fender Side Panel, LH
53851C Pad, Front Wheel Opening Extension, NO.1
53866A Clip(FOR FRONT FENDER TO COWL SIDE SEAL)
53875P Screw, NO.1
53882H Seal, Front Fender Main, RH
53883F Seal, Front Fender Main, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
