Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

9 part groups · 2 illustrations

Illustrations

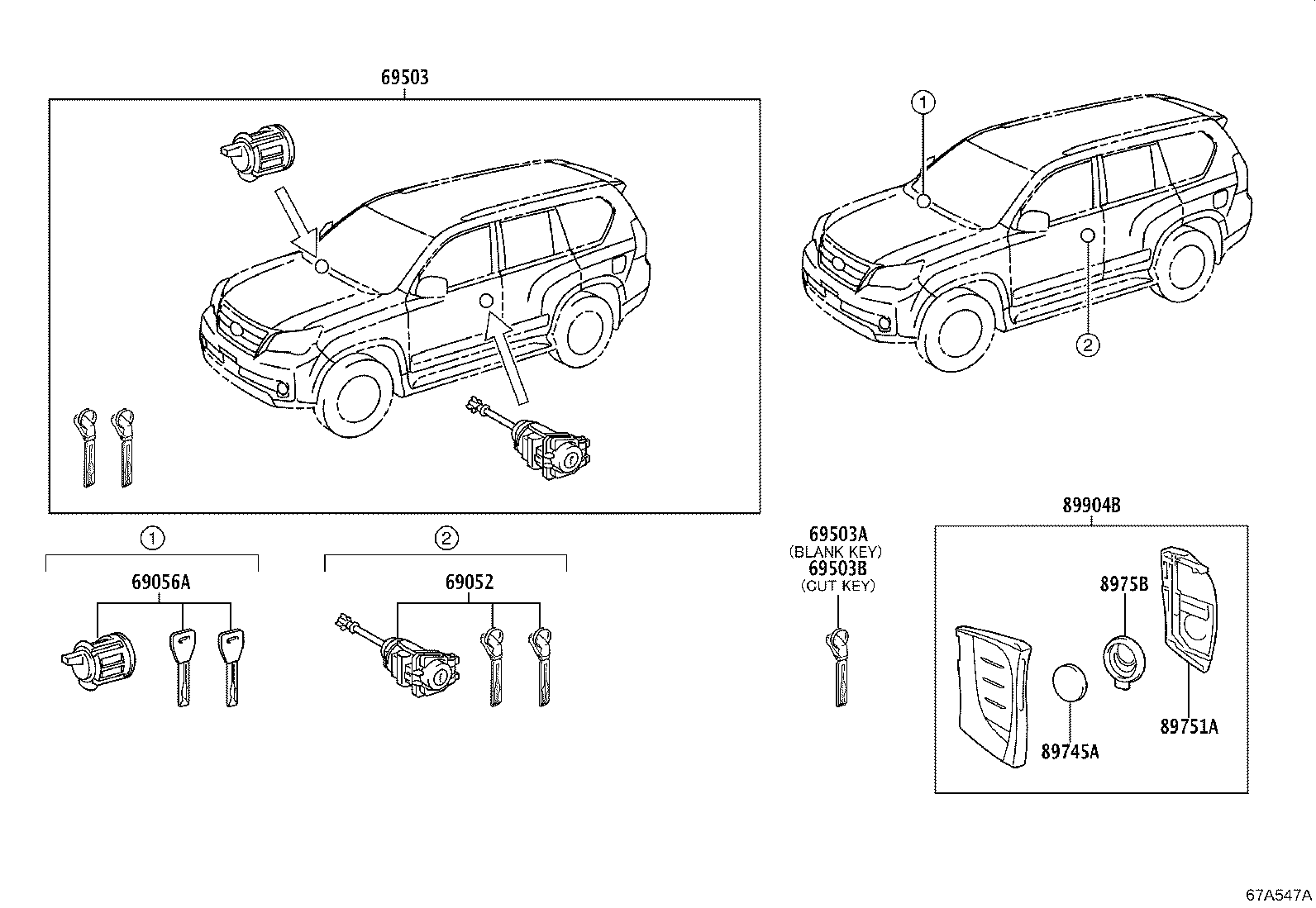

Figure 676376C 676376C 2009-11 → 2019-08 Figure 67A547A 67A547A 2019-08 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69056A Cylinder & Key Set, Glove Compartment Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89745A Battery, Transmitter
89751A Cover, Transmitter Housing
8975B Cover, Transmitter Battery Housing
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
