Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

299 part groups · 20 illustrations

Illustrations

71C629 2009-11 → —

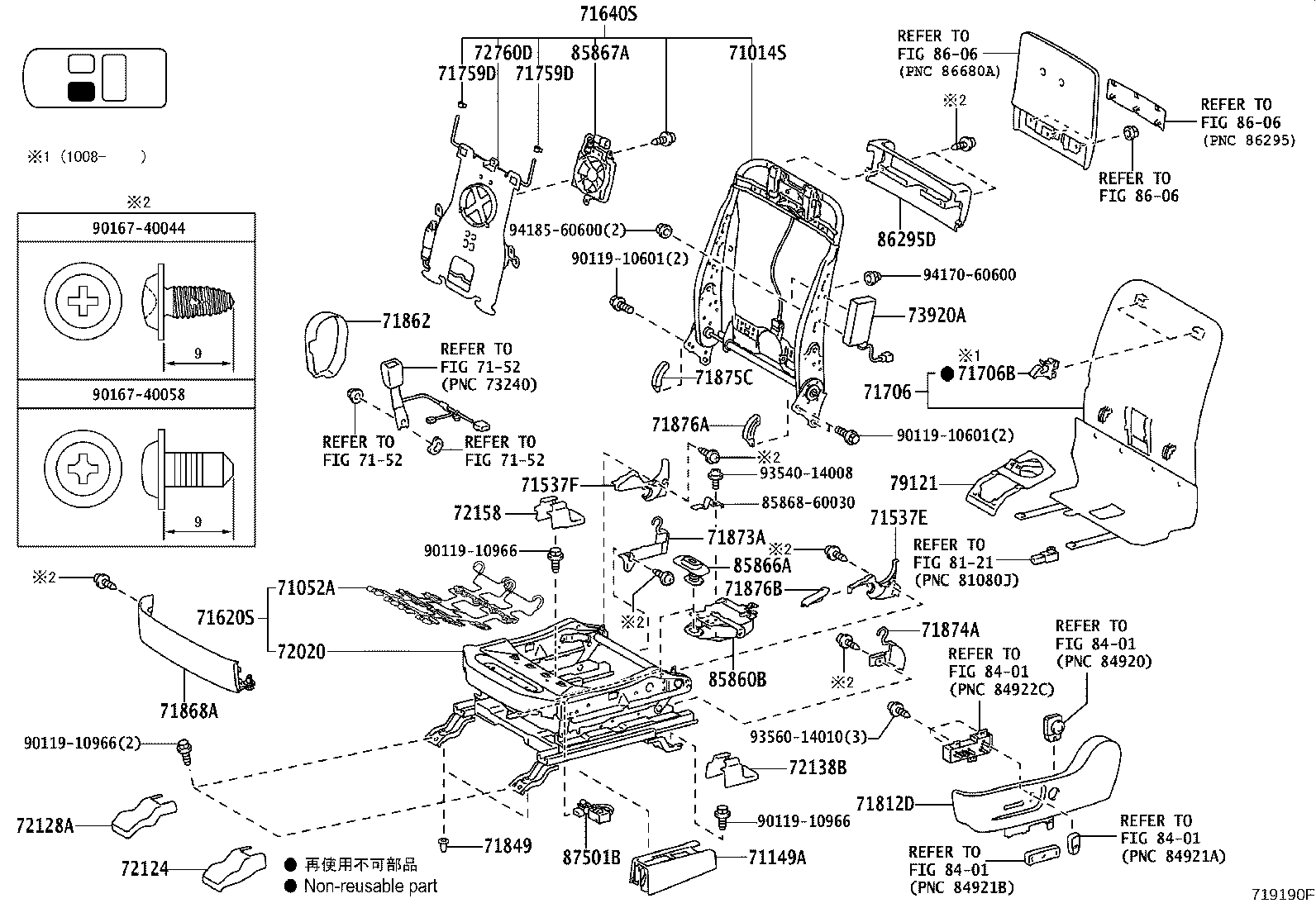

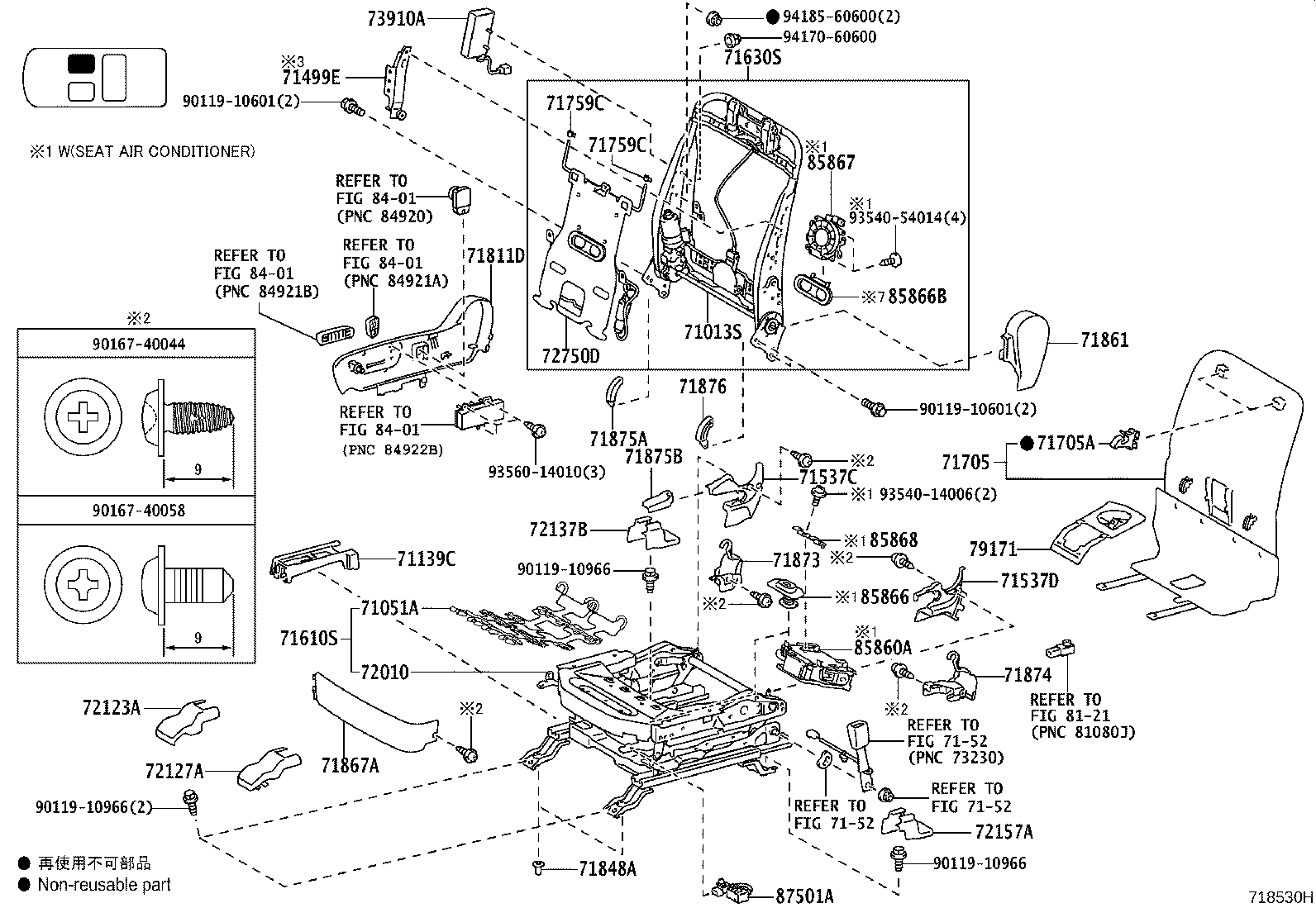

719190F 2009-11 → 2013-08

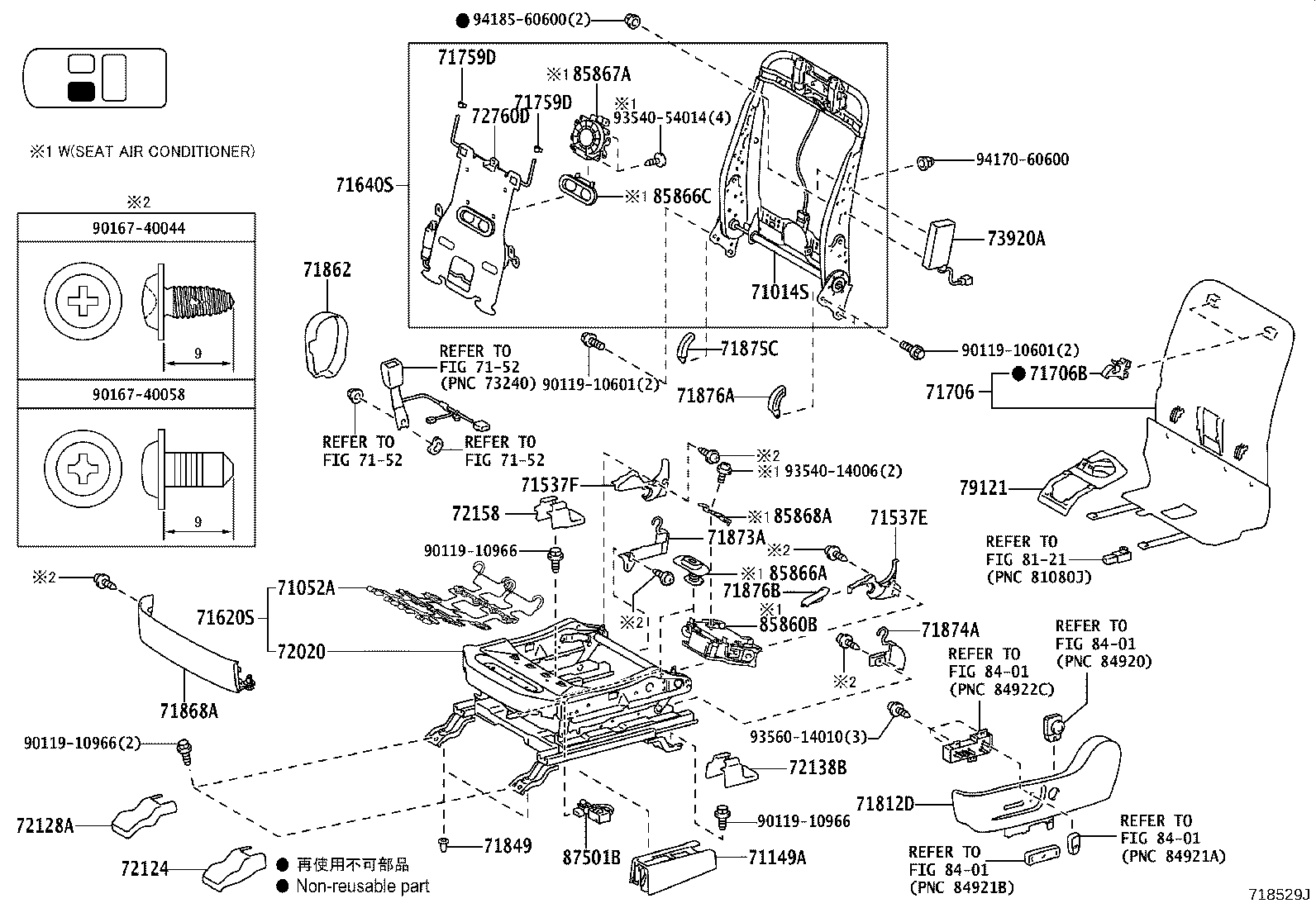

718529J 2013-08 → —

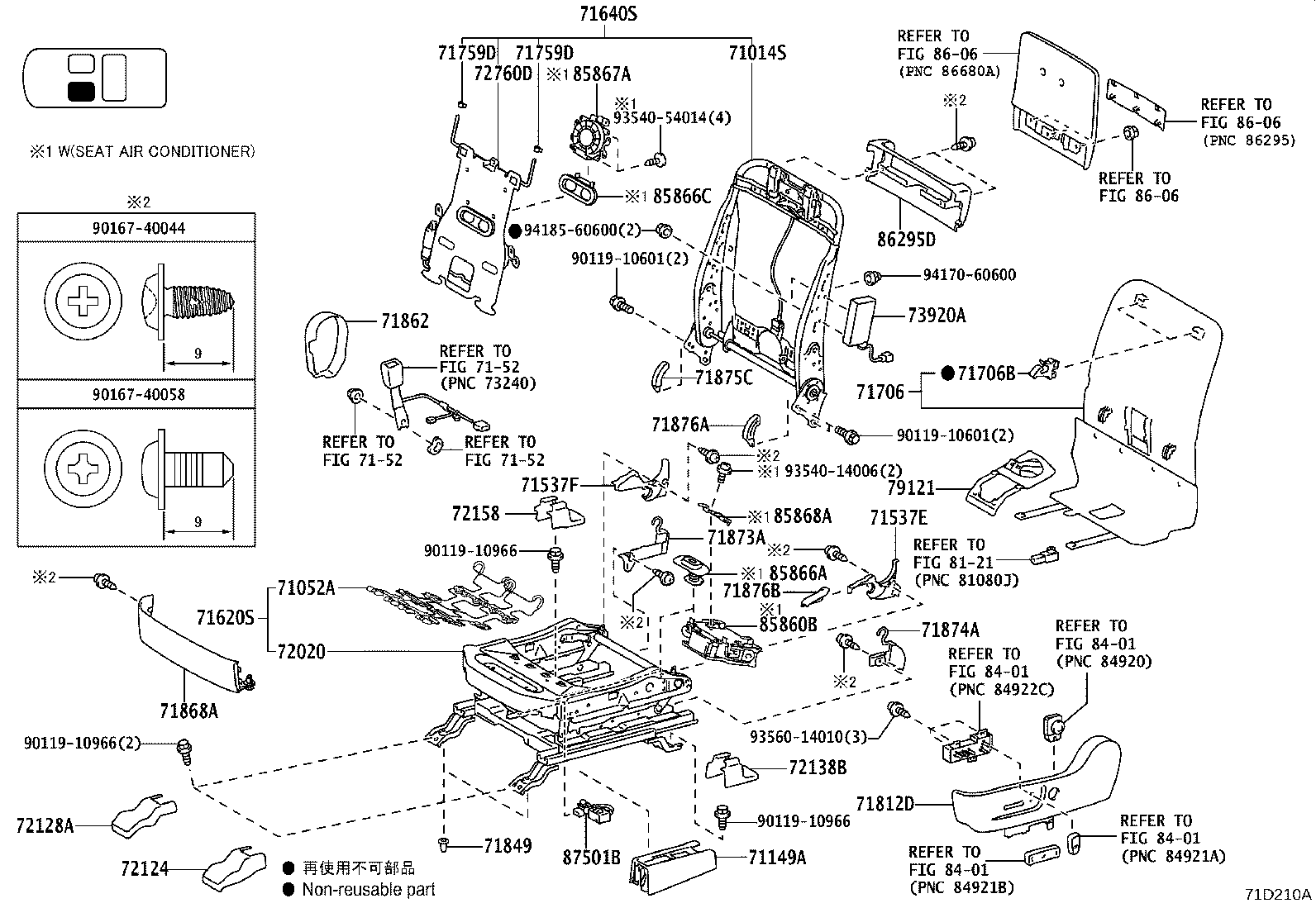

71D210A 2013-08 → —

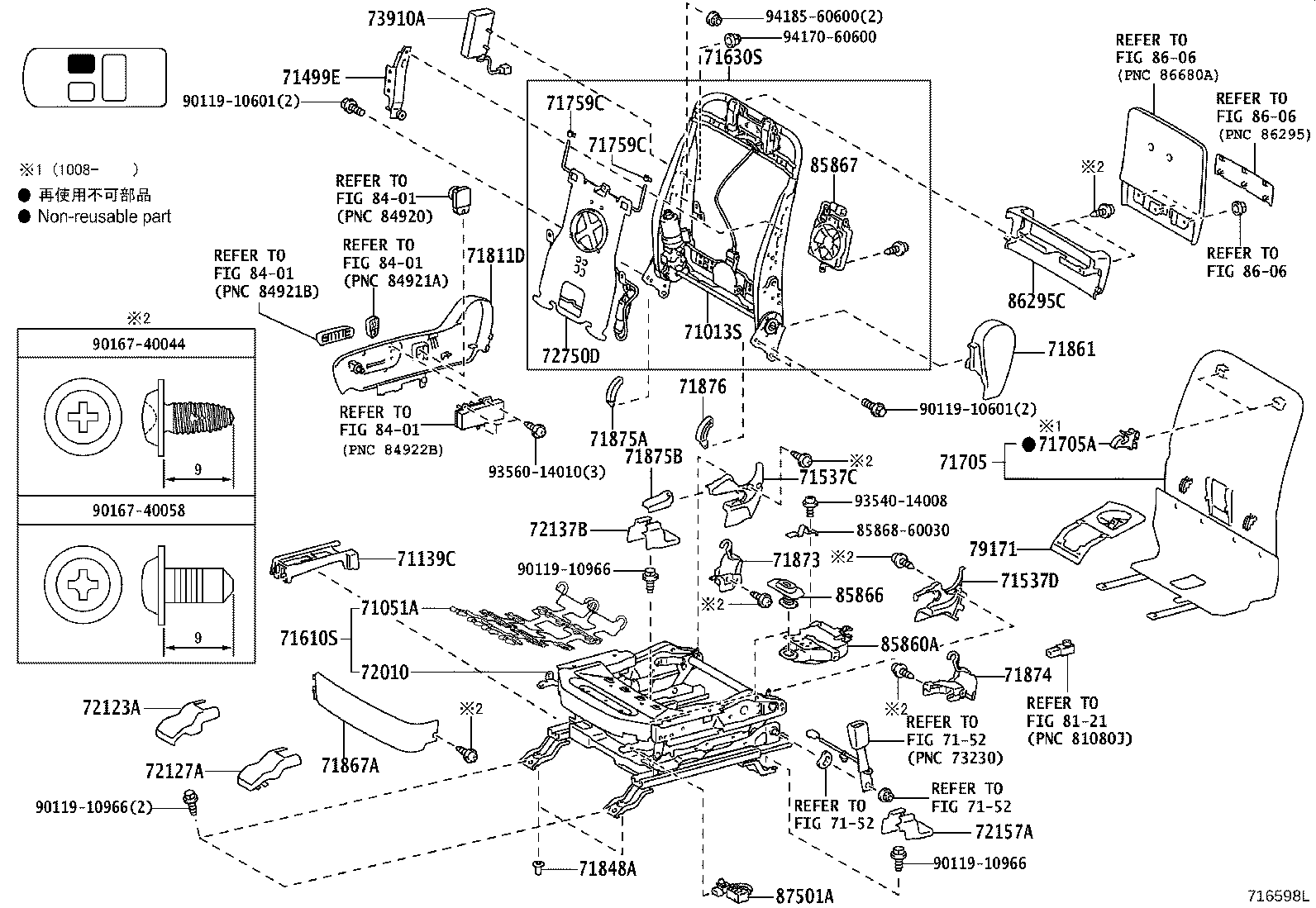

716598L 2009-11 → 2013-08

718530H 2013-08 → —

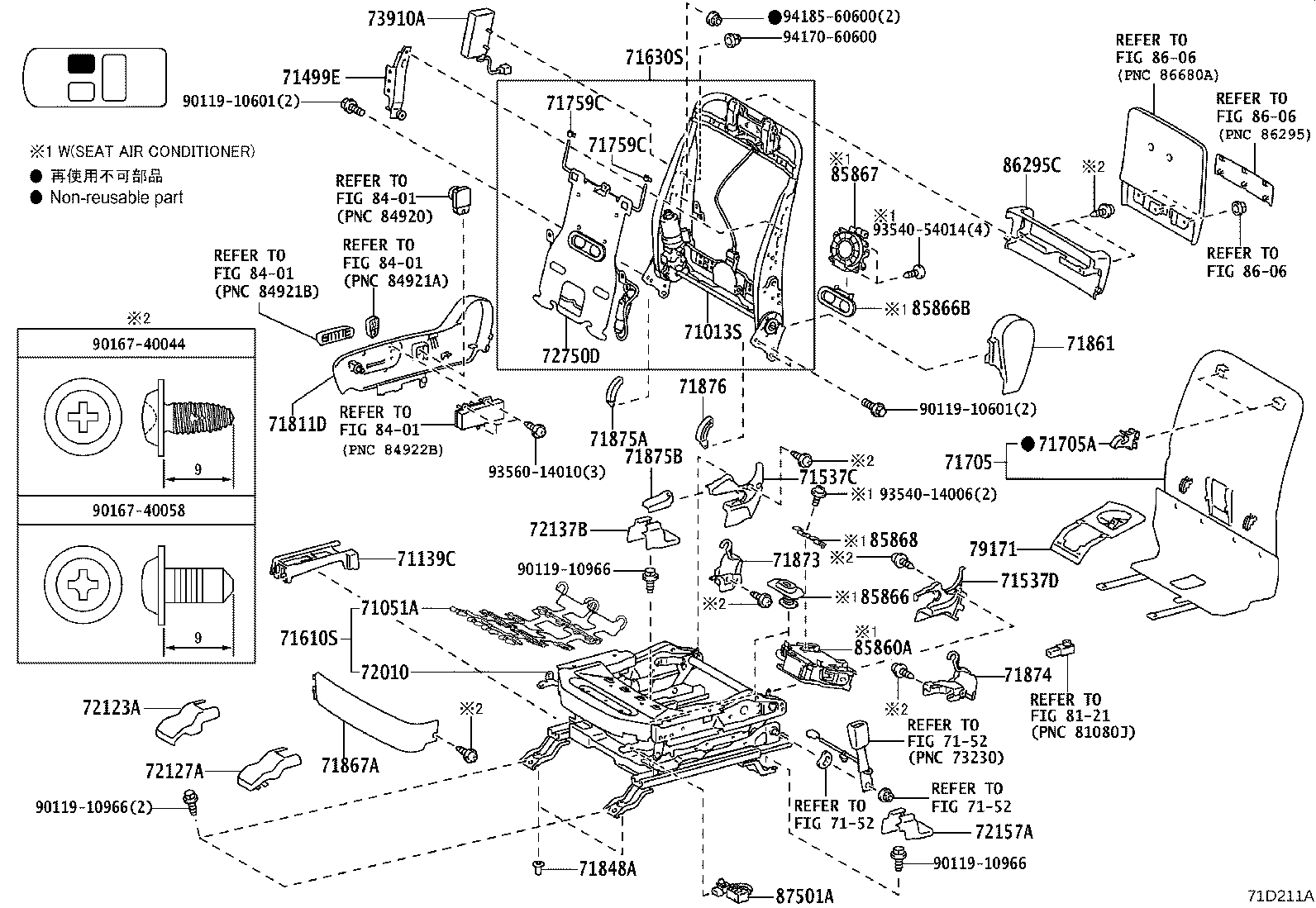

71D211A 2013-08 → —

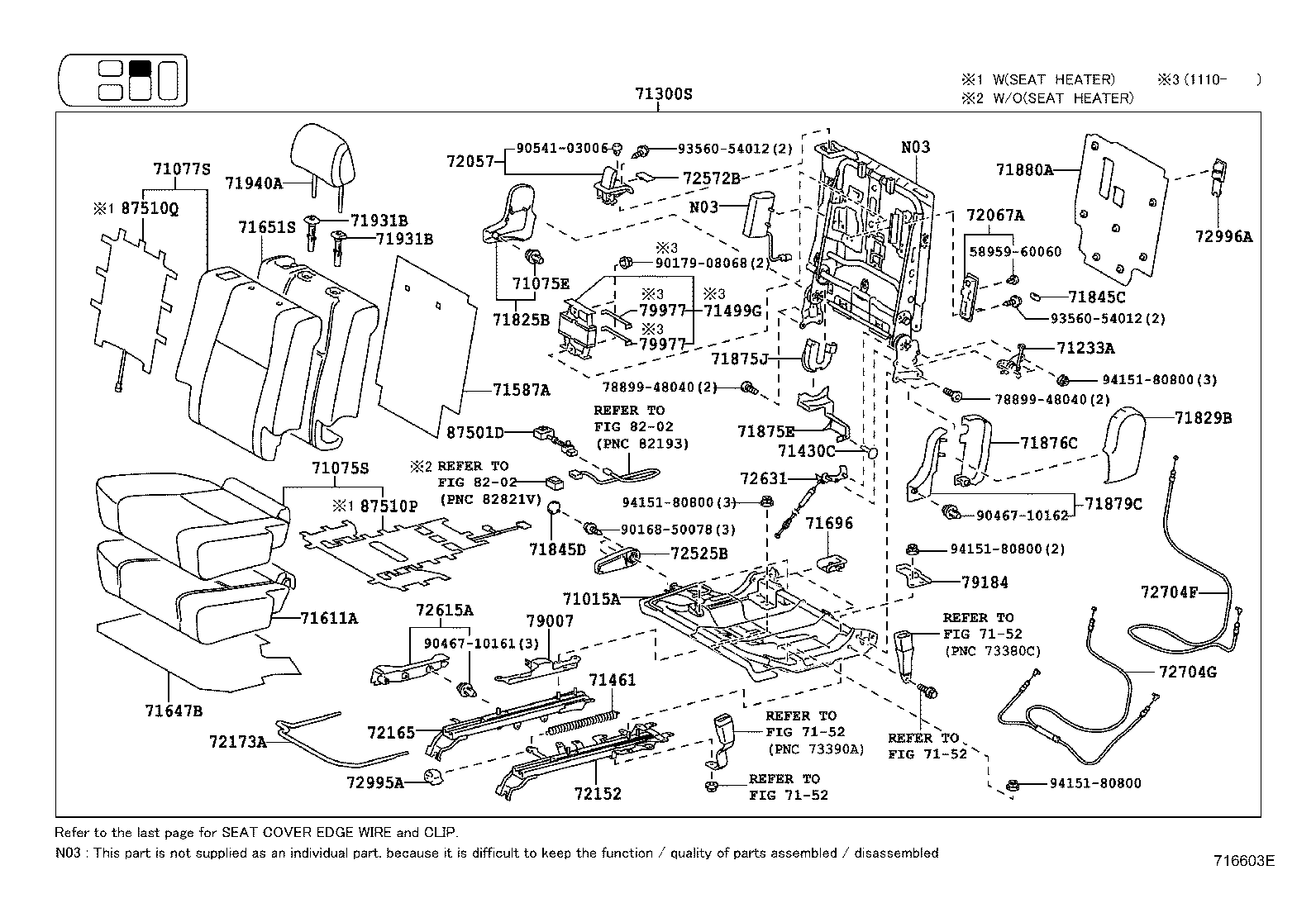

716603E 2009-11 → 2013-08

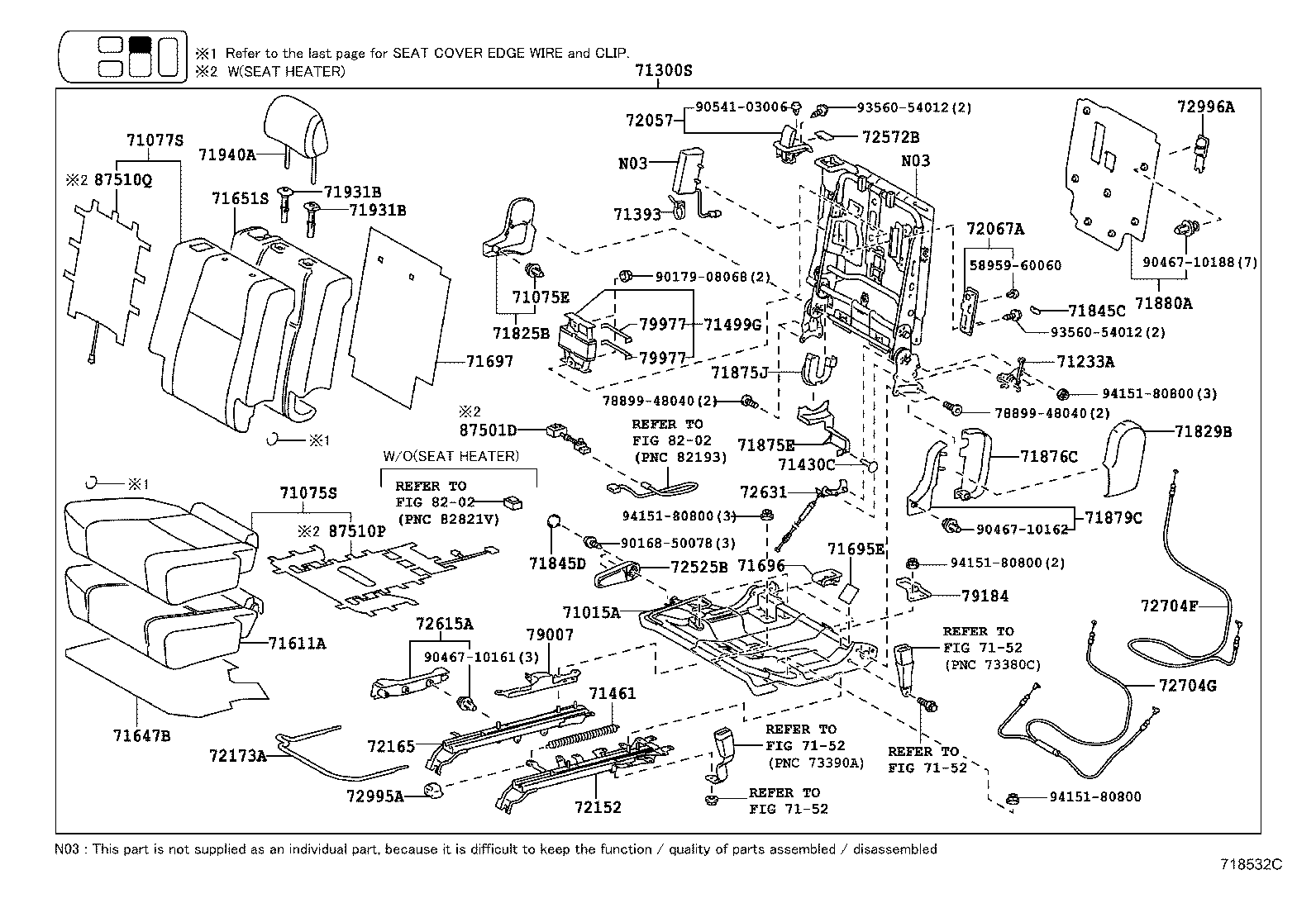

718532C 2013-08 → —

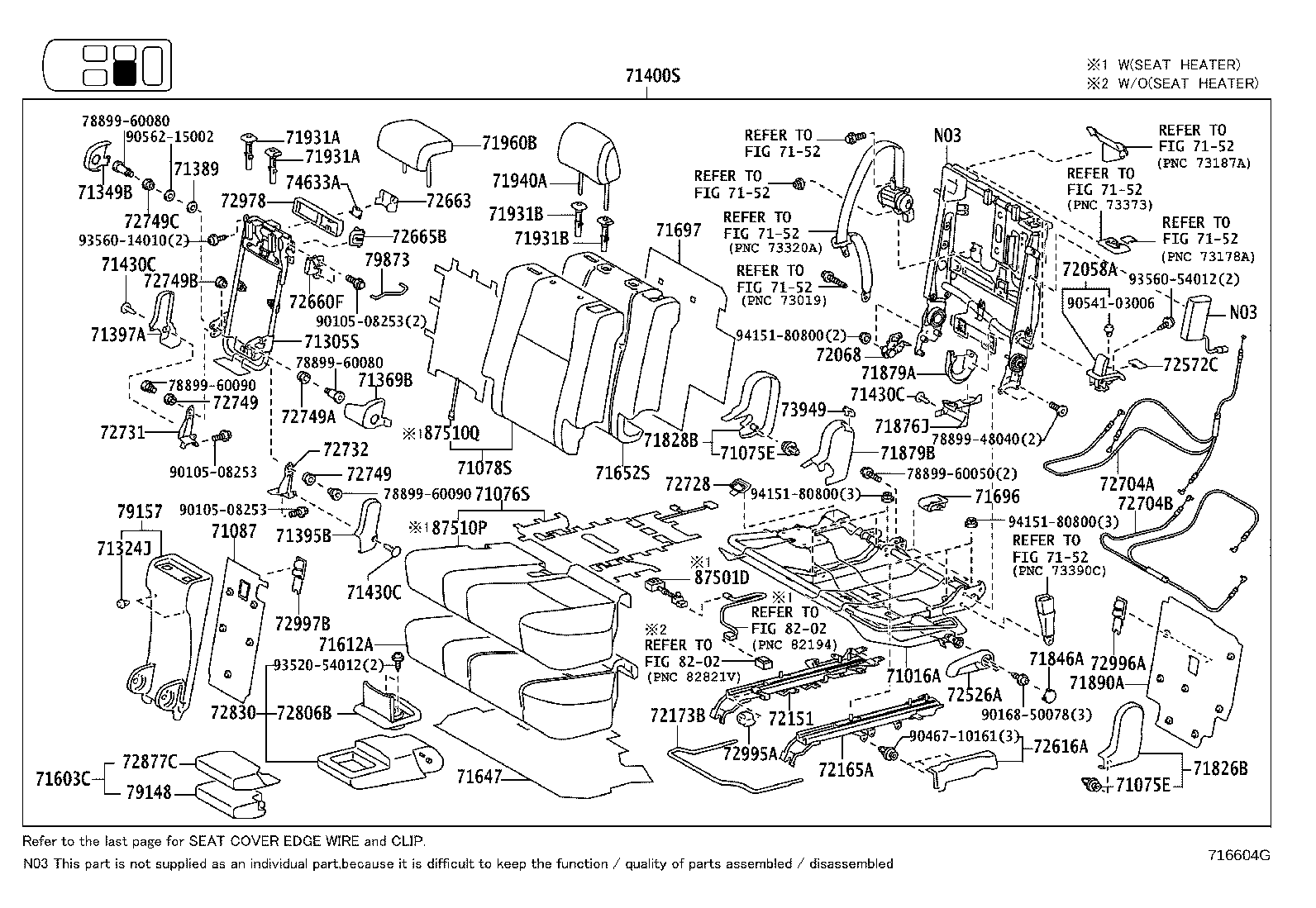

716604G 2009-11 → —

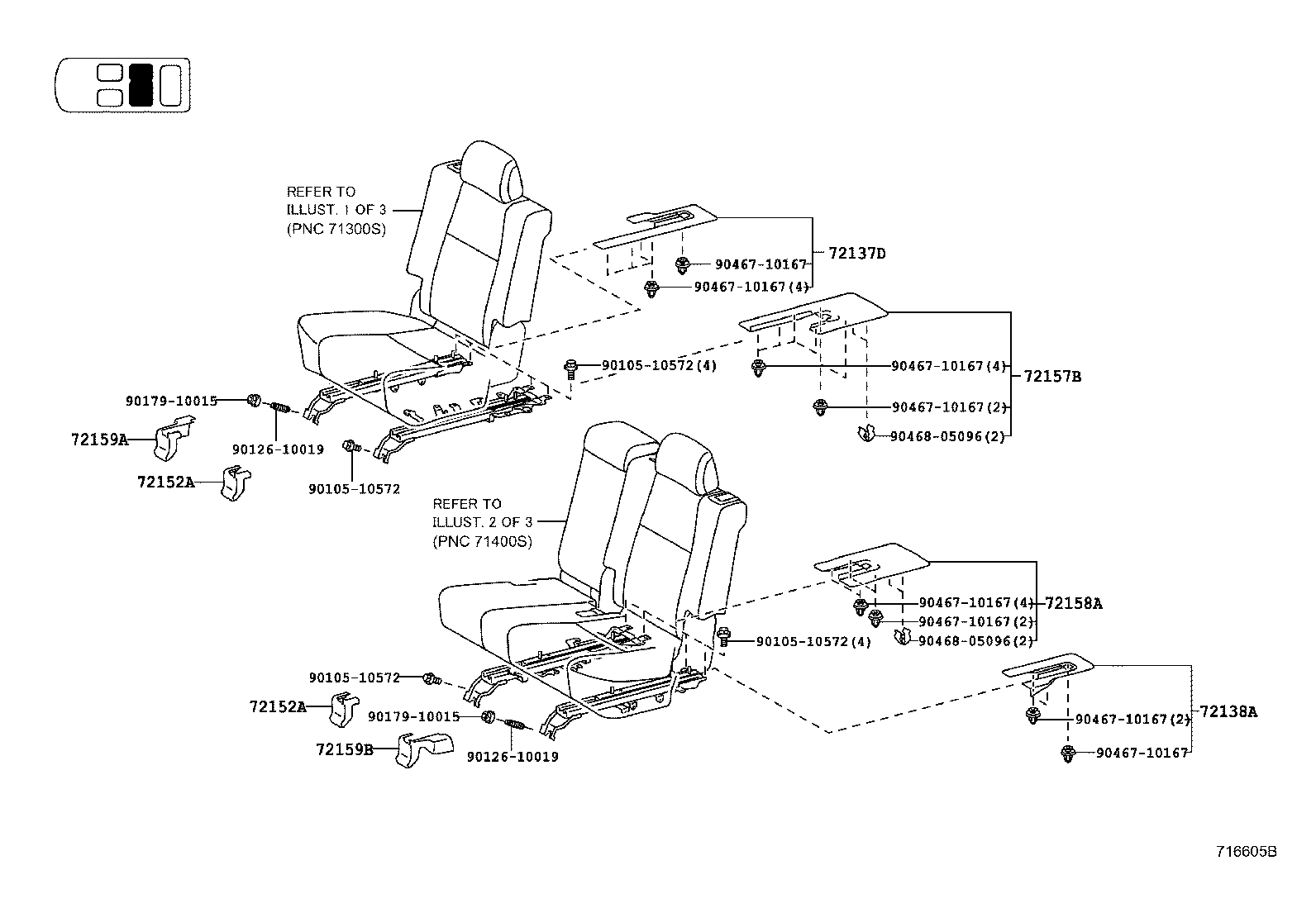

716605B 2009-11 → —

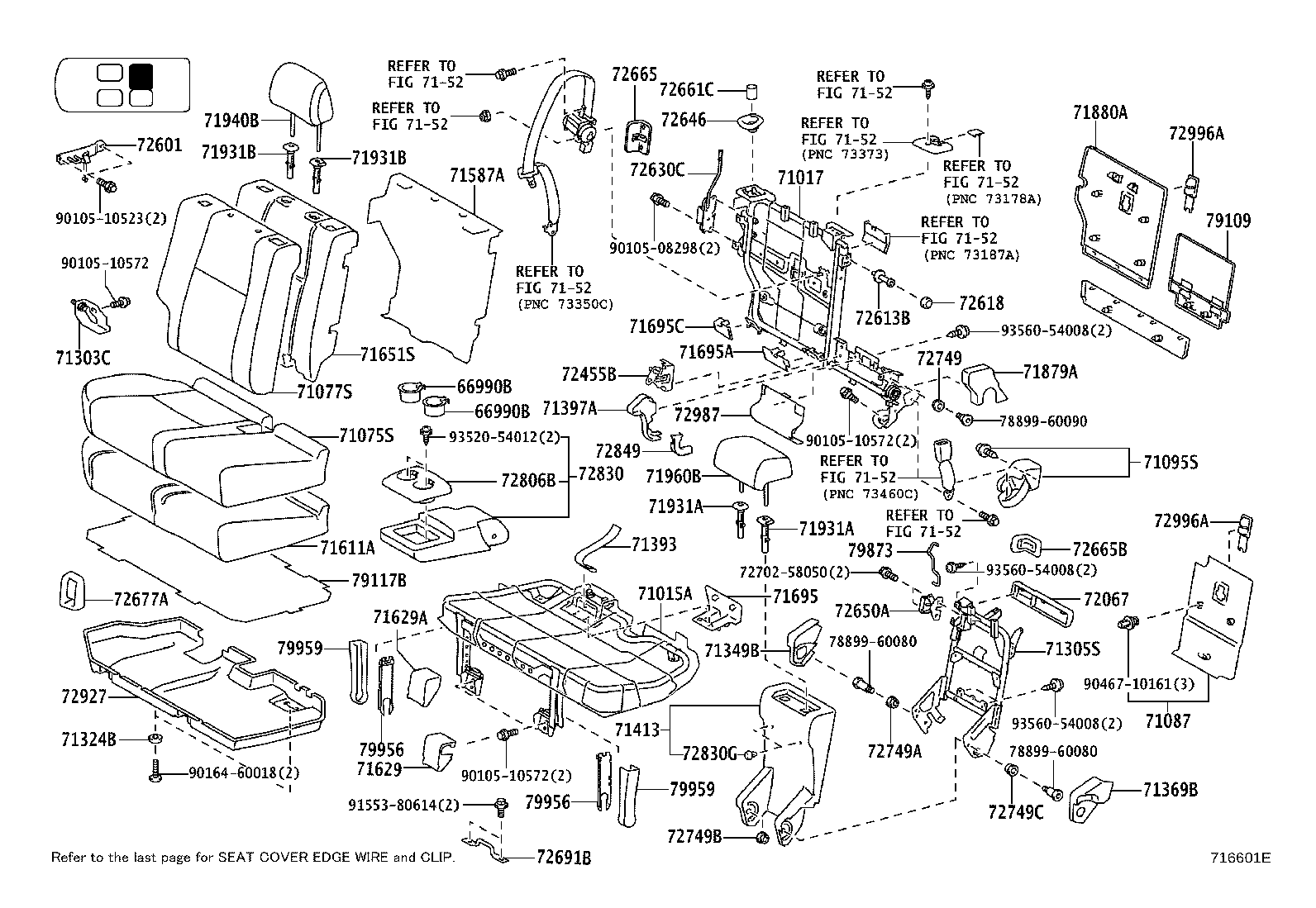

716601F 2011-08 → 2013-08

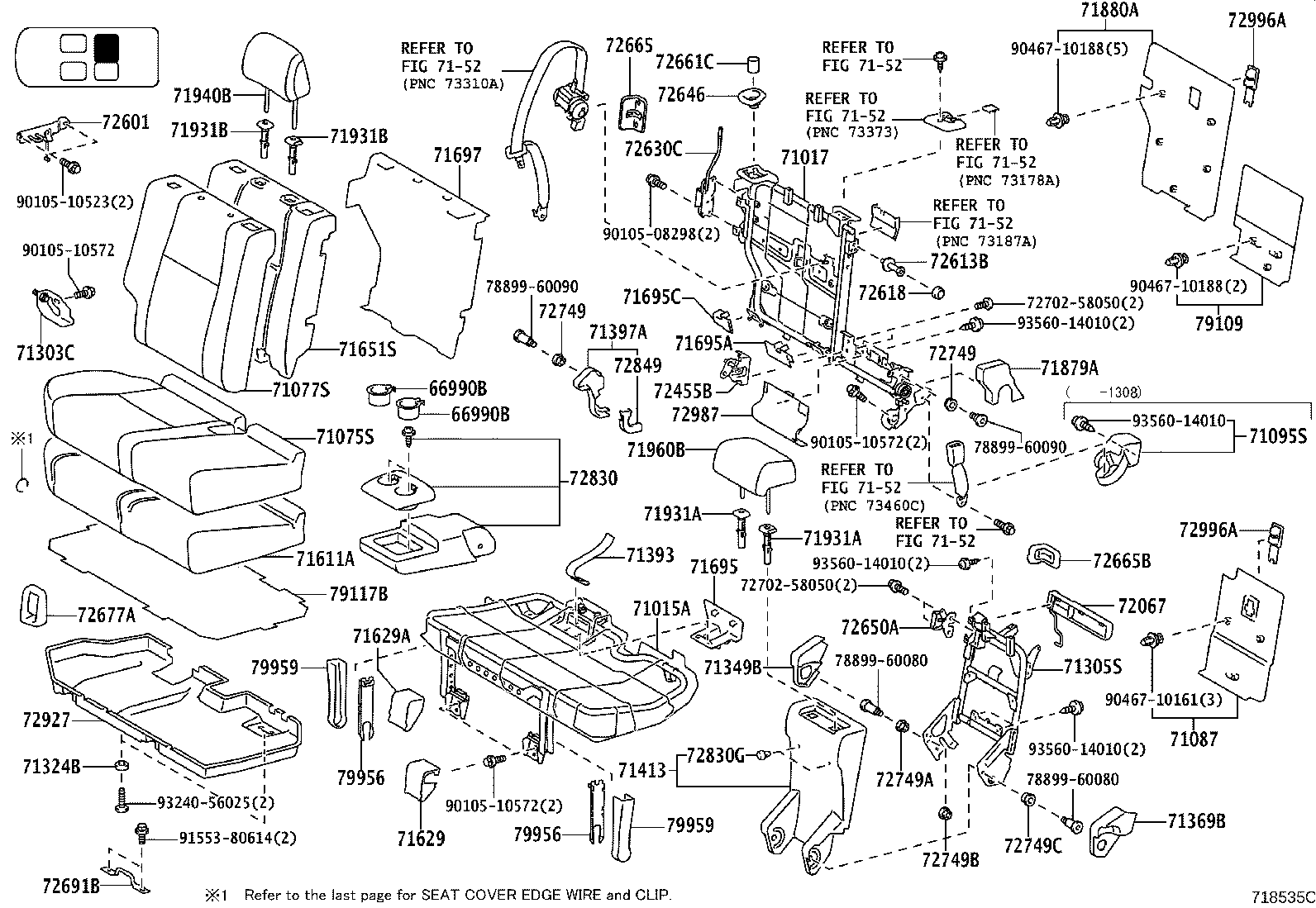

718535C 2013-08 → —

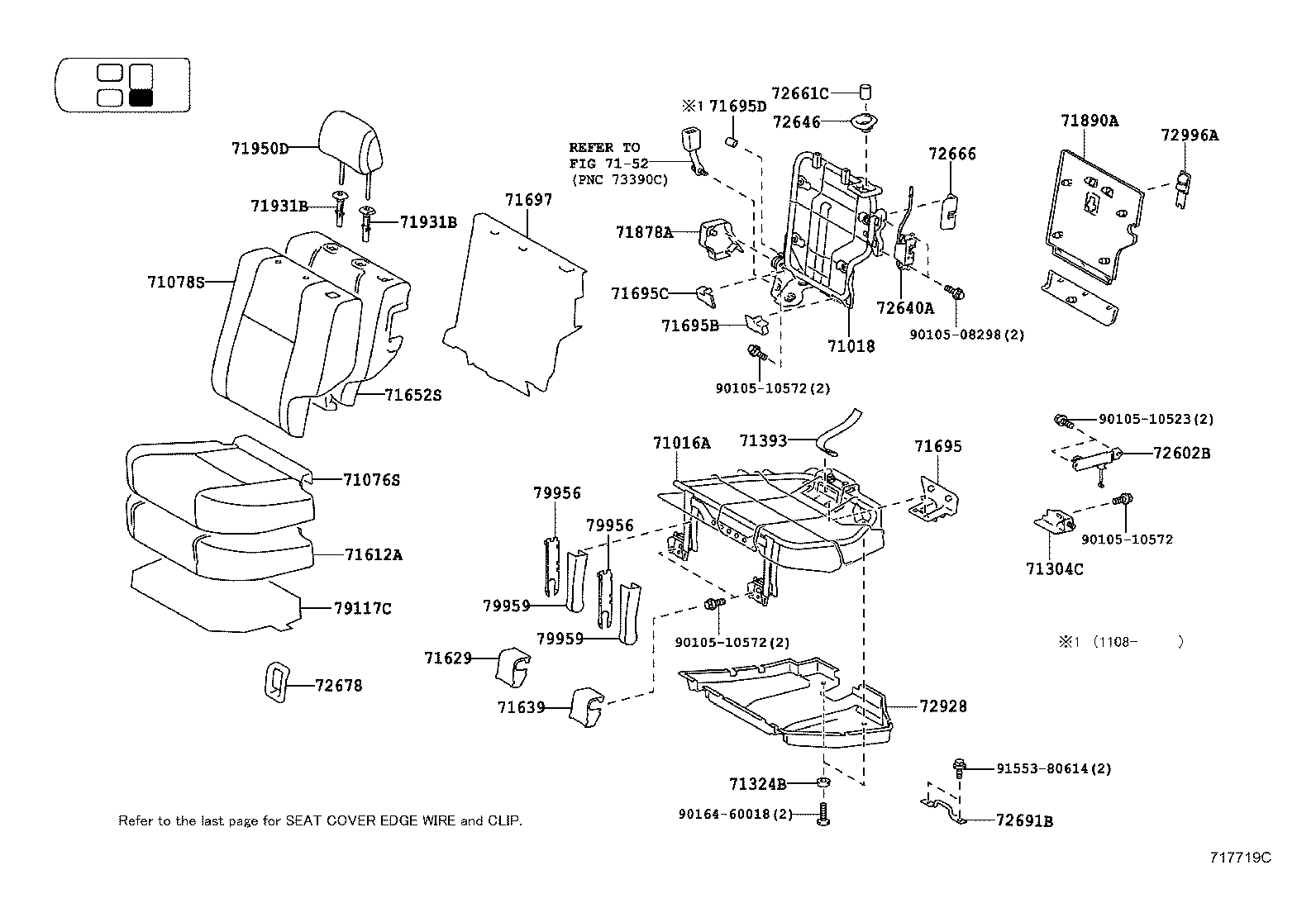

717719C 2011-08 → 2013-08

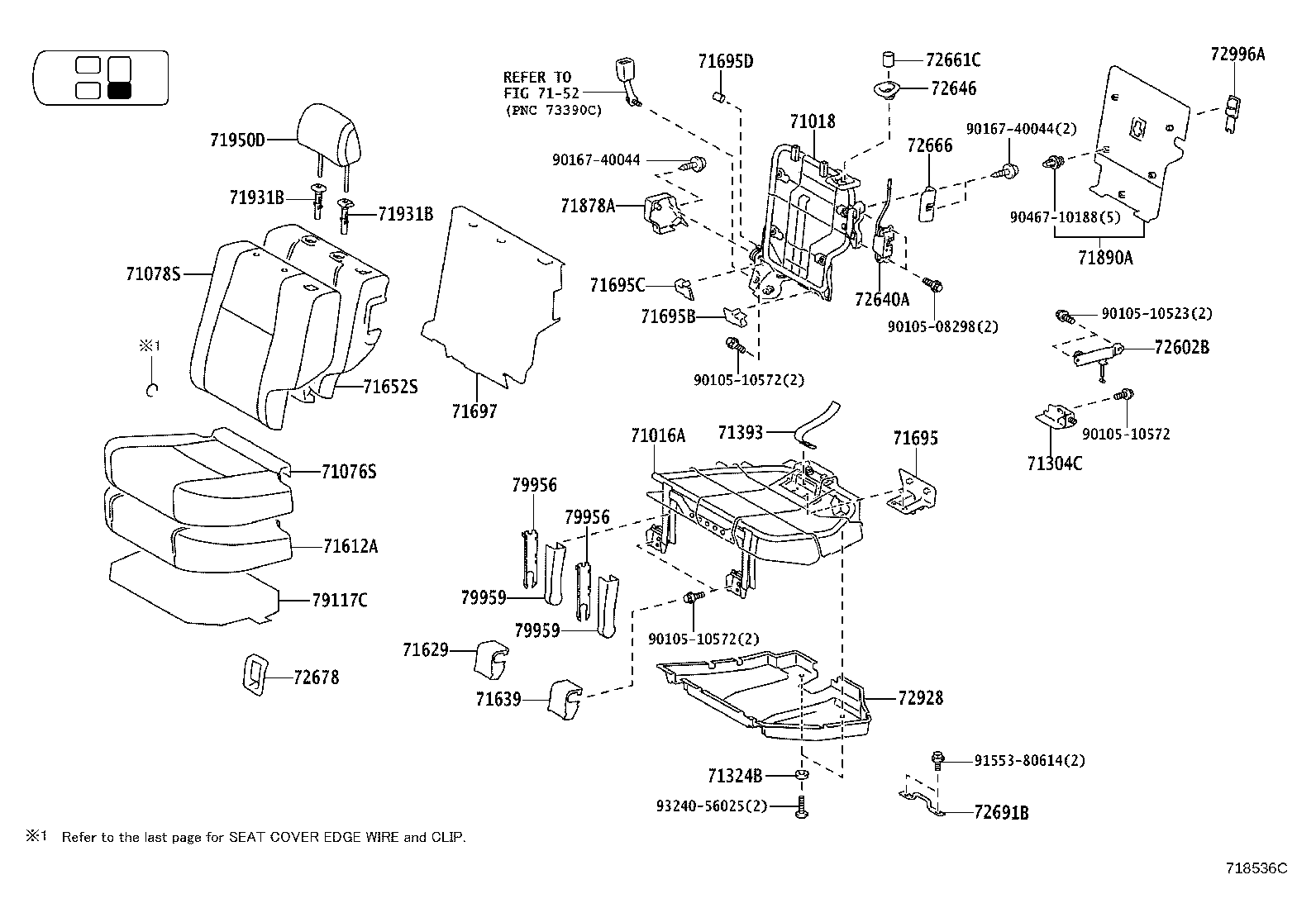

718536C 2013-08 → —

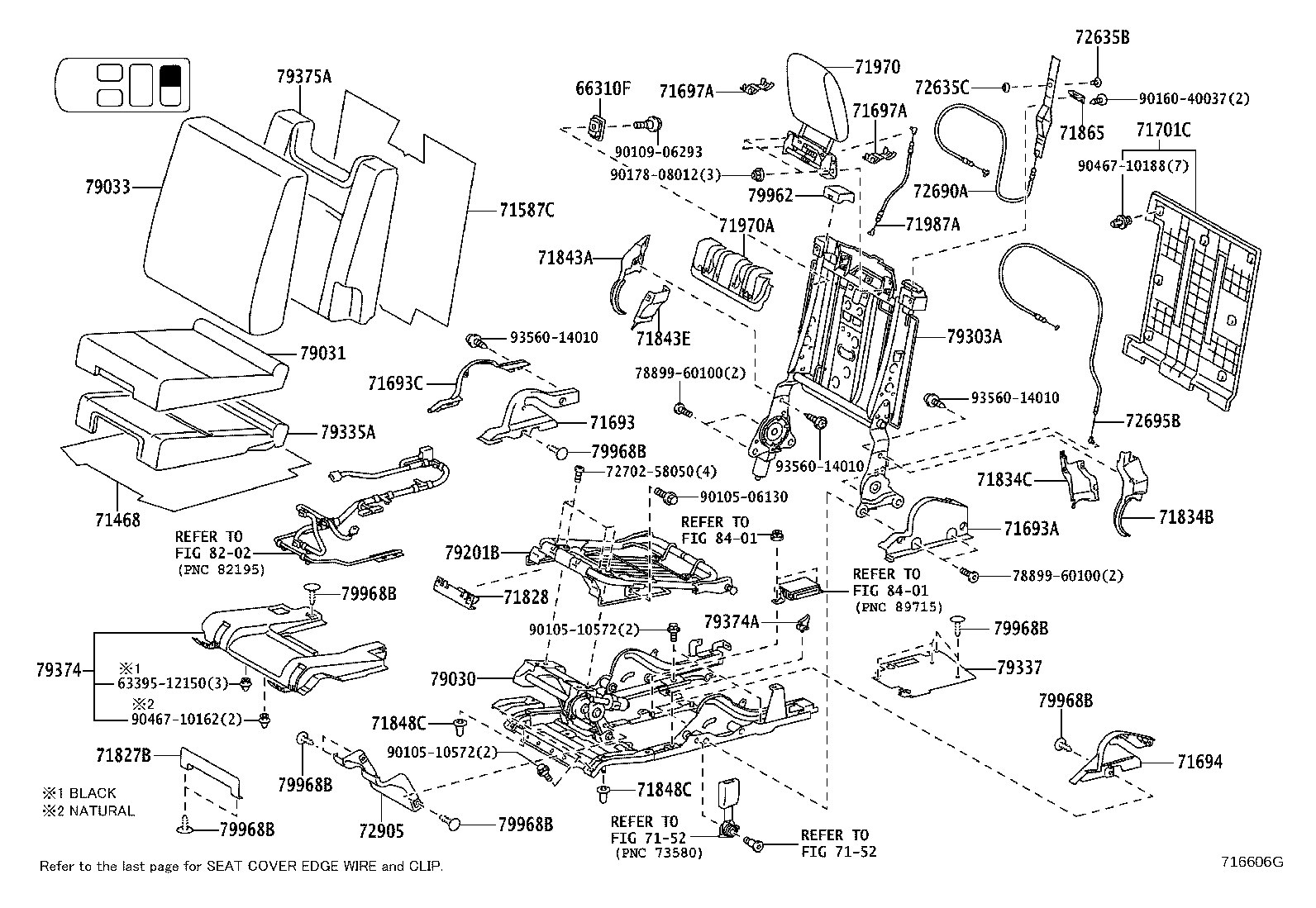

716606G 2009-11 → 2013-08

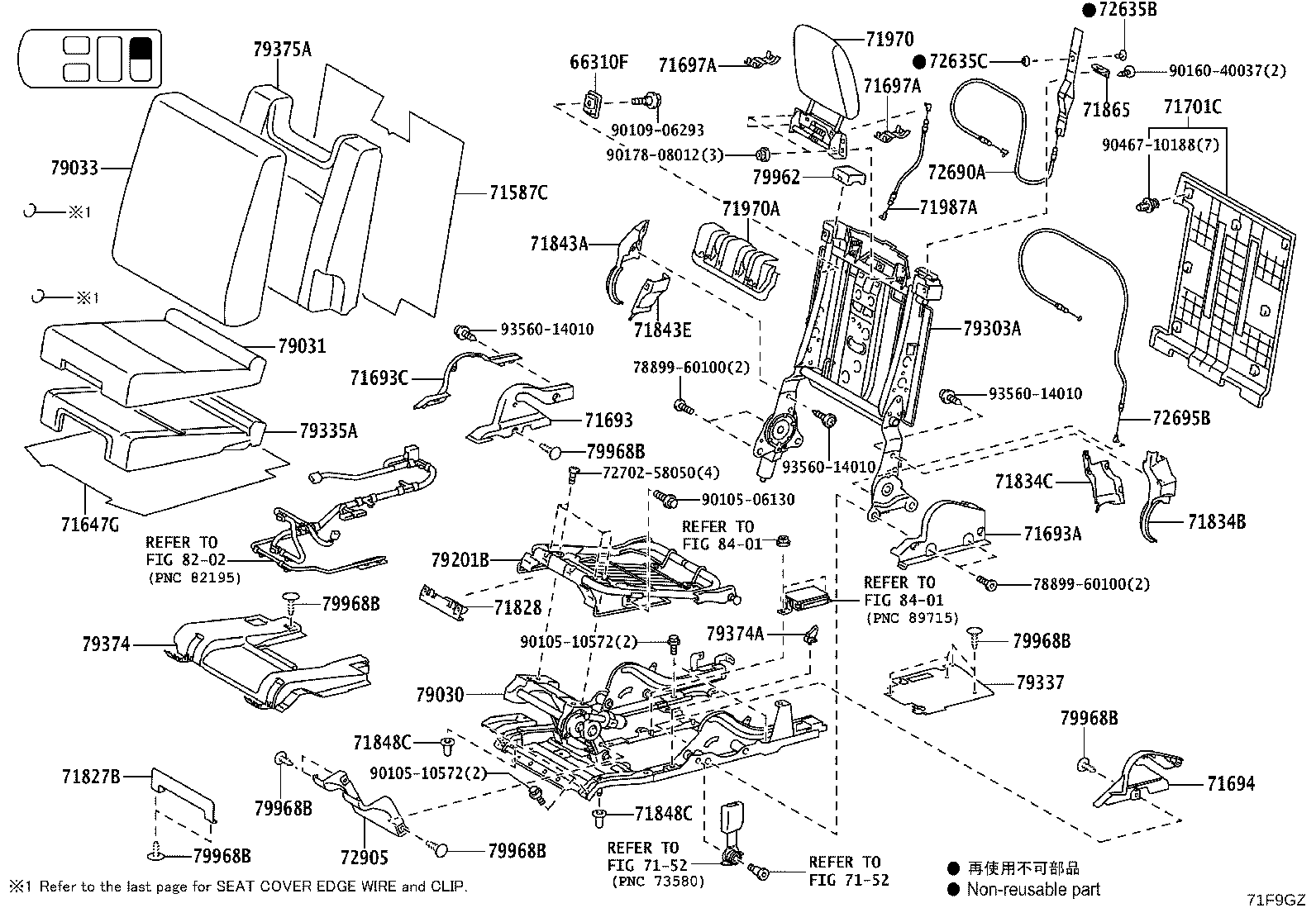

71F9GZ 2013-08 → —

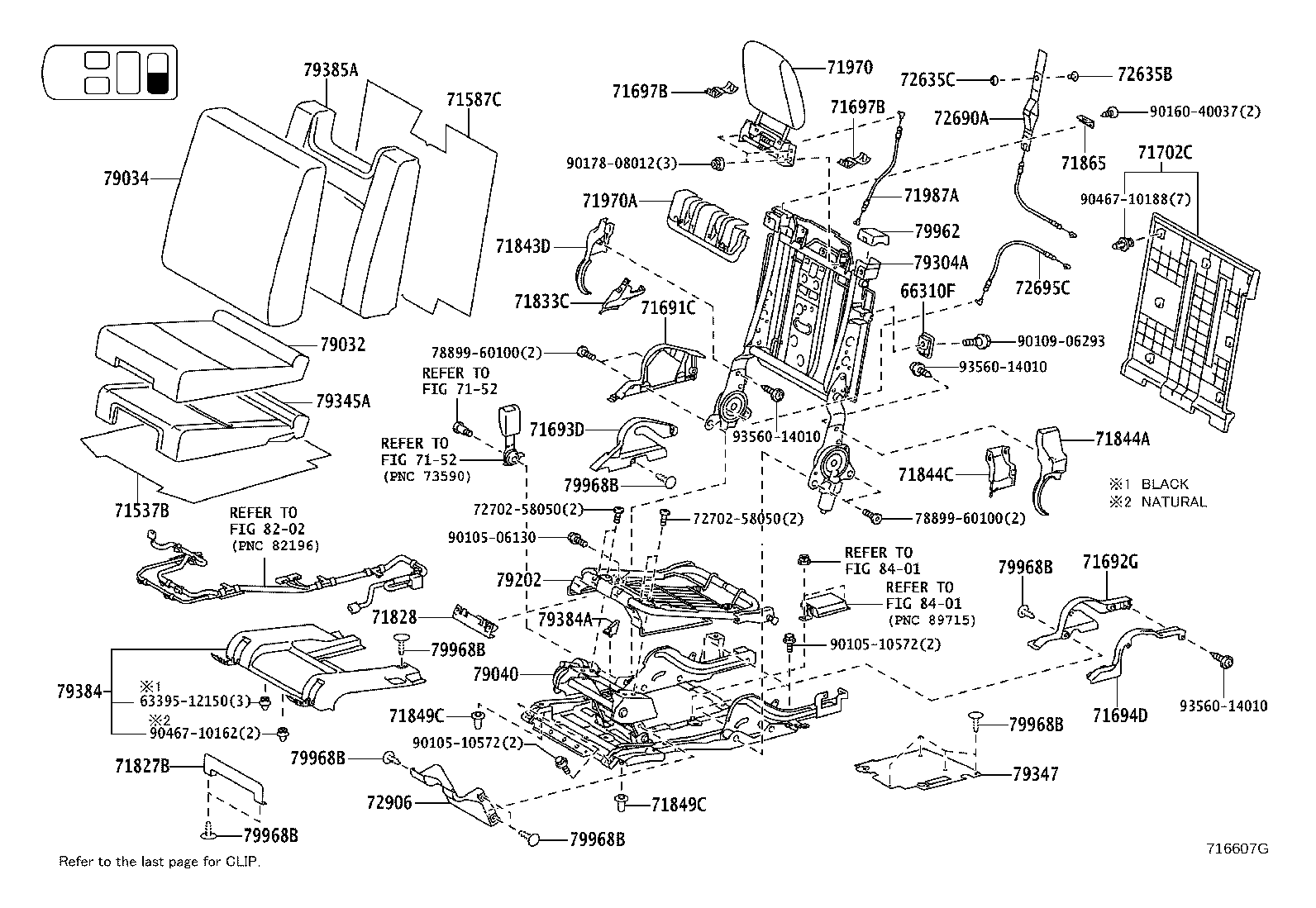

716607G 2009-11 → 2013-08

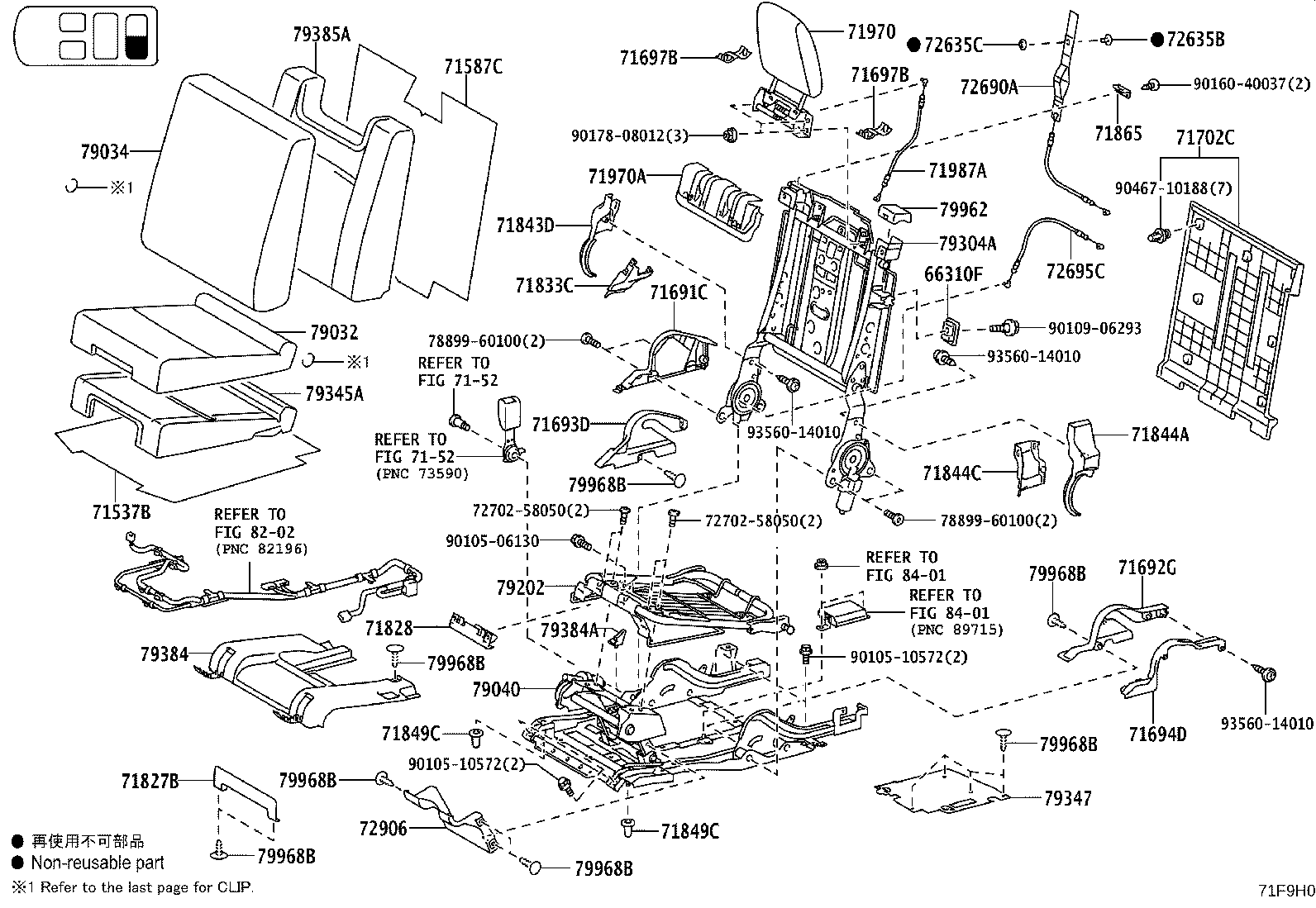

71F9H0 2013-08 → —

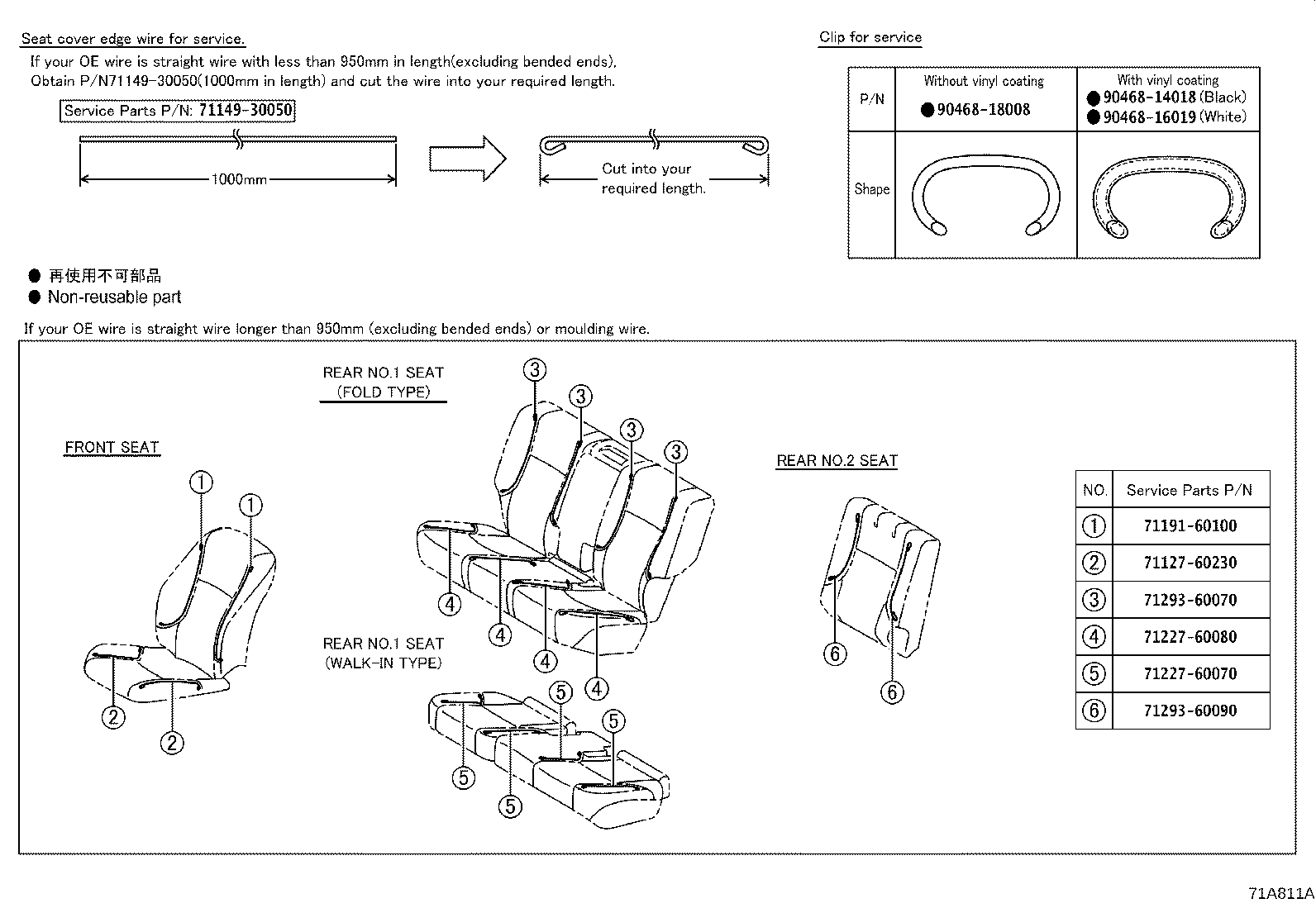

71A811A 2009-11 → —

Part groups

PNC	Description
66310F	Hook Assy, Rope
66990B	Holder Assy, Cup, NO.2 RH
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71015A	Frame Sub-assy, Rear Seat Cushion, RH
71016A	Frame Sub-assy, Rear Seat Cushion, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71051A	Spring Sub-assy, Front Seat Cushion, RH
71052A	Spring Sub-assy, Front Seat Cushion, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075E	Clip(FOR REAR SEAT)
71075S	Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71076S	Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71087	Board Sub-assy, Rear Seatback
71095S	Cover Sub-assy, Center Seatback
71139C	Cover, Front Seat Leg, RH
71149A	Cover, Front Seat Leg, LH
71233A	Plate, Rear Seat Cushion Spring Set Side, RH
71300S	Seat Assy, Rear RH
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305S	Frame Sub-assy, Center Seatback
71324B	Cushion, Rear Seat
71324J	Cushion, Rear Seat
71349B	Cover, Rear Seatback Stay, RH
71369B	Cover, Rear Seatback Stay, LH
71389	Spacer, Center Seat Hinge
71393	Band, Rear Seat Cushion
71395B	Cover, Center Seat Hinge, RH
71397A	Cover, Center Seat Hinge
71400S	Seat Assy, Rear, LH (FOR SEPARATE TYPE)
71413	Plate, NO.1 Rear Seat Side, NO.2
71430C	Clip
71461	Spring, Rear Seat Cushion
71468	Protector, Rear Seat, NO.1 (FOR SEAT CUSHION)
71499E	Damper, Seatback Spring, RH
71499G	Damper, Rear Seatback Spring, RH
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537B	Protector, Rear Seat Cushion
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71537E	Protector, Front Seat Cushion, NO.1
71537F	Protector, Front Seat Cushion, NO.2
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587A	Protector, Rear Seatback Edge
71587C	Protector, Rear Seatback Edge NO.2
71603C	Pad Sub-assy, Rear Seatback W/Cover
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611A	Pad, Rear Seat Cushion, RH
71612A	Pad, Rear Seat Cushion, LH
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71629	Cover, Rear Seat Cushion Hinge
71629A	Cover, Rear Seat Cushion Hinge, RH
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71639	Cover, Rear Seat Cushion Hinge, LH
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71647	Protector, Rear Seat Cushion Edge
71647B	Protector, Rear Seat Cushion Edge
71647G	Protector, Rear Seat Cushion Edge
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71691C	Cover, Rear Seat Lock, Inner RH
71692G	Cover, Rear NO.1 Seat Cushion Hinge, Outer LH
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71693A	Cover, Rear Seat Cushion Hinge, NO.3
71693C	Cover, Rear Seat Cushion Hinge, Outer RH
71693D	Cover, Rear Seat Cushion Hinge, Inner RH
71694	Cover, Rear Seat Cushion Hinge, Lower LH
71694D	Cover, Rear Seat Cushion Hinge, Outer LH
71695	Protector, Rear Seatback
71695A	Protector, Rear Seat, NO.1 RH
71695B	Protector, Rear Seat, NO.1 LH
71695C	Protector, Rear Seat, NO.1
71695D	Protector, Seat
71695E	Protector, Rear Seat, NO.2
71696	Protector, Rear Seat, NO.2
71697	Protector, Rear Seatback Edge
71697A	Protector, Rear Seat, NO.3 RH
71697B	Protector, Rear Seat, NO.3 LH
71701C	Board Sub-assy, Rear Seatback, RH
71702C	Board Sub-assy, Rear Seatback, LH
71705	Board Sub-assy, Front Seatback, RH
71705A	Clip(FOR FRONT SEATBACK BOARD)
71706	Board Sub-assy, Front Seatback, LH
71706B	Clip, Front Seatback Board
71759C	Hook, Front Seatback, NO.1
71759D	Hook, Front Seatback, NO.2
71811D	Shield, Front Seat Cushion, RH
71812D	Shield, Front Seat Cushion, LH
71825B	Moulding, Rear Seat Cushion, RH
71826B	Moulding, Rear Seat Cushion, LH
71827B	Moulding, Rear Seat Cushion, Front
71828	Moulding,Rear Seatback, Center
71828B	Moulding, Rear Seat Cushion, Rear RH
71829B	Moulding, Rear Seat Cushion, Rear LH
71833C	Cover, Rear Seat Reclining, NO.2 RH
71834B	Cover, Rear Seat Reclining, NO.2 LH
71834C	Cover, Rear Seat Reclining, NO.3 LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71843D	Cover, Rear Seat Reclining, NO.2 RH
71843E	Cover, Rear Seat Reclining, RH (FOR RH SEAT)
71844A	Cover, Rear Seat Reclining, NO.2 LH
71844C	Cover, Rear Seat Reclining, NO.2 LH
71845C	Cap, Rear Seat Cover
71845D	Cap, Rear Seat Cover, RH
71846A	Cover, Rear Seat Reclining, Upper LH
71848A	Cap, Seat Adjuster Cover, RH
71848C	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71849C	Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71865	Bezel, Rear Seat Cover, NO.1
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71875J	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876C	Cover, Reclining Adjuster Inside, LH
71876J	Cover, Reclining Adjuster Inside, LH
71878A	Cover, Rear Seat Reclining, Inner RH
71879A	Cover, Rear Seat Reclining, Inner LH
71879B	Cover, Rear Seat Reclining, Inner LH
71879C	Cover, Rear Seat Reclining, Inner LH
71880A	Carpet Assy, Rear Seatback Board, RH
71890A	Carpet Assy, Rear Seatback Board, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71931B	Support Assy, Rear NO.1 Seat Headrest
71940A	Headrest Assy, Rear Seat
71940B	Headrest Assy, Rear Seat, RH
71950D	Headrest Assy, Rear Seat, LH
71960B	Headrest Assy, Rear Seat, Center
71970	Headrest Assy, Rear Seat
71970A	Cover, Rear Seat Headrest
71987A	Cable, Rear Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72057	Lever Sub-assy, Rear Seat Lock Control, RH
72058A	Lever Sub-assy, Rear Seat Lock Control, LH
72067	Lever Sub-assy, Rear Back Lock Control, RH
72067A	Lever, Rear Back Lock Control, Center
72068	Lever Sub-assy, Rear Back Lock Control, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137B	Cover, Seat Track, RH
72137D	Cover, Rear Seat Track, RH
72138A	Cover, Rear Seat Track, LH
72138B	Cover, Seat Track, LH
72151	Rail, Seat Track, Lower RH
72152	Rail, Seat Track, Lower LH
72152A	Cover, Rear Seat Track Bracket, Inner
72157A	Cover, Seat Track Bracket, Inner RH
72157B	Cover, Rear Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72158A	Cover, Rear Seat Track Bracket, Inner LH
72159A	Cover, Rear Seat Track Bracket
72159B	Cover, Rear Seat Track Bracket, Outer
72165	Rail, Rear Outer Seat Track, Lower RH
72165A	Rail, Rear Outer Seat Track, Lower LH
72173A	Handle, Rear Seat Track Adjusting, RH
72173B	Handle, Rear Seat Track Adjusting, LH
72455B	Bracket, Seat Frame Set, RH
72525B	Handle, Reclining Adjuster Release, RH
72526A	Handle, Reclining Adjuster Release, LH
72572B	Cap, Reclining Adjuster Knob, RH
72572C	Cap, Reclining Adjuster Knob, LH
72601	Striker Sub-assy, Rear Seat Lock
72602B	Striker Sub-assy, Rear Seatback Lock, NO.2 LH
72613B	Striker, Rear Seat Lock
72615A	Cover, Rear Seatback Lock Striker, RH
72616A	Cover, Rear Seatback Lock Striker, LH
72618	Protector, Rear Seatback Lock Striker
72630C	Lock Assy, Rear Seatback, RH
72631	Plate, Rear Seatback Lock, RH
72635B	Hook, Rear Seatback Lock(MALE)
72635C	Hook, Rear Seatback Lock(FEMALE)
72640A	Lock Assy, Rear Seatback, LH
72646	Grommet, Rear Seatback Stop Button
72650A	Lock Assy, Rear Seat, RH
72660F	Lock Assy, Rear Seat, LH
72661C	Button, Rear Seatback Lock Release
72663	Lever, Rear Seat Lock Control, NO.1
72665	Cover, Rear Seatback Lock, RH
72665B	Cover, Rear Seatback Lock
72666	Cover, Rear Seatback Lock, LH
72677A	Base, Rear Seatback Lock Control Lever, RH
72678	Base, Rear Seatback Lock Control Lever, LH
72690A	Strap Assy, Rear Seat Lock Release
72691B	Striker, Rear Seat Cushion Lock
72695B	Cable, Rear Seat Lock Control, RH
72695C	Cable, Rear Seat Lock Control, LH
72704A	Cable, Rear Seat Reclining Control
72704B	Cable, Rear Seat Reclining Control, NO.2
72704F	Cable, Rear Seat Reclining Control, NO.3
72704G	Cable, Rear Seat Reclining Control, NO.4
72728	Protector, Rear Seat Reclining, Inner RH
72731	Bracket, Rear Seat Reclining, RH
72732	Bracket, Rear Seat Reclining, LH
72749	Spacer, Rear Seat Reclining
72749A	Spacer, Rear Seat Reclining
72749B	Spacer, Rear Seat Reclining, NO.1
72749C	Spacer, Rear Seat Reclining, NO.2
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
72806B	Holder Sub-assy, Rear Seat Center Armrest Cup
72830	Armrest Assy, Rear Seat, Center
72830G	Cushion
72849	Cap, Seat Armrest, NO.2
72877C	Cover, Seat Armrest
72905	Link Sub-assy, 3RD Seat, RH
72906	Link Sub-assy, 3RD Seat, LH
72927	Cover, Rear Seat Cushion Under, RH
72928	Cover, Rear Seat Cushion Under, LH
72978	Cover, NO.2 Center Seatback
72987	Cover, Rear Seat Center Armrest
72995A	Cover, Rear Seat
72996A	Cover, Rear Seatback
72997B	Cover, Rear Seatback
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
73949	Cap
74633A	Cap, Coat Hook
79007	Frame, Seat Cushion Side, RH Outer NO.1
79030	Leg Assy, NO.3 Seat, RH
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79034	Cover Sub-assy, NO.3 Seatback, LH
79040	Leg Assy, NO.3 Seat, LH
79109	Board Sub-assy, NO.1 Seatback
79117B	Cover, NO.1 Seat Cushion, RH
79117C	Cover, NO.1 Seat Cushion, LH
79121	Bracket, NO.1 Seat Cushion
79148	Pad, NO.1 Seat Cushion, Center
79157	Cover, NO.1 Seatback
79171	Bracket, NO.1 Seat, RH
79184	Plate, NO.1 Seat Leg
79201B	Frame Sub-assy, NO.2 Seat Cushion, RH
79202	Frame Sub-assy, NO.2 Seat Cushion, LH
79303A	Frame Sub-assy, NO.3 Seatback, RH
79304A	Frame Sub-assy, NO.3 Seatback, LH
79335A	Pad, NO.3 Seat Cushion, RH
79337	Carpet, NO.2 Seat Cushion Under, RH
79345A	Pad, NO.3 Seat Cushion, LH
79347	Carpet, NO.2 Seat Cushion Under, LH
79374	Cover, NO.3 Seat Leg, Rear RH
79374A	Cover, NO.3 Seat Leg, Rear RH
79375A	Pad, NO.3 Seatback, RH
79384	Cover, NO.3 Seat Leg, Rear LH
79384A	Cover, NO.3 Seat Leg, Rear LH
79385A	Pad, NO.3 Seatback, LH
79873	Wire, Fold Seatback
79956	Cover, Rear Seat Leg Bracket
79959	Cover, RR Seat Leg
79962	Cover, NO.2 Seatback
79968B	Clip
79977	Felt, Seatback
85860A	Blower Assy, Seat Cushion Climate Control, RH
85860B	Blower Assy, Seat Cushion Climate Control, LH
85866	Duct, Seat Cushion Climate Control, RH
85866A	Duct, Seat Cushion Climate Control, LH
85866B	Duct, Seatback Climate Control, RH
85866C	Duct, Seatback Climate Control, LH
85867	Blower, Seatback Climate Control, RH
85867A	Blower, Seatback Climate Control, LH
85868	Bracket, Seat Cushion Climate Control, RH
85868A	Bracket, Seat Cushion Climate Control, LH
86295C	Base, Television, NO.1
86295D	Base, Television, NO.2
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87501D	Control Sub-assy, Seat Heater
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH
87510P	Heater Assy, Seat
87510Q	Heater Assy, Seat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
