Toyota Lexus GX460
2009-11 → present · chassis URJ150 · catalogue 782510 · Europe
Supported model
Data version 2019-08

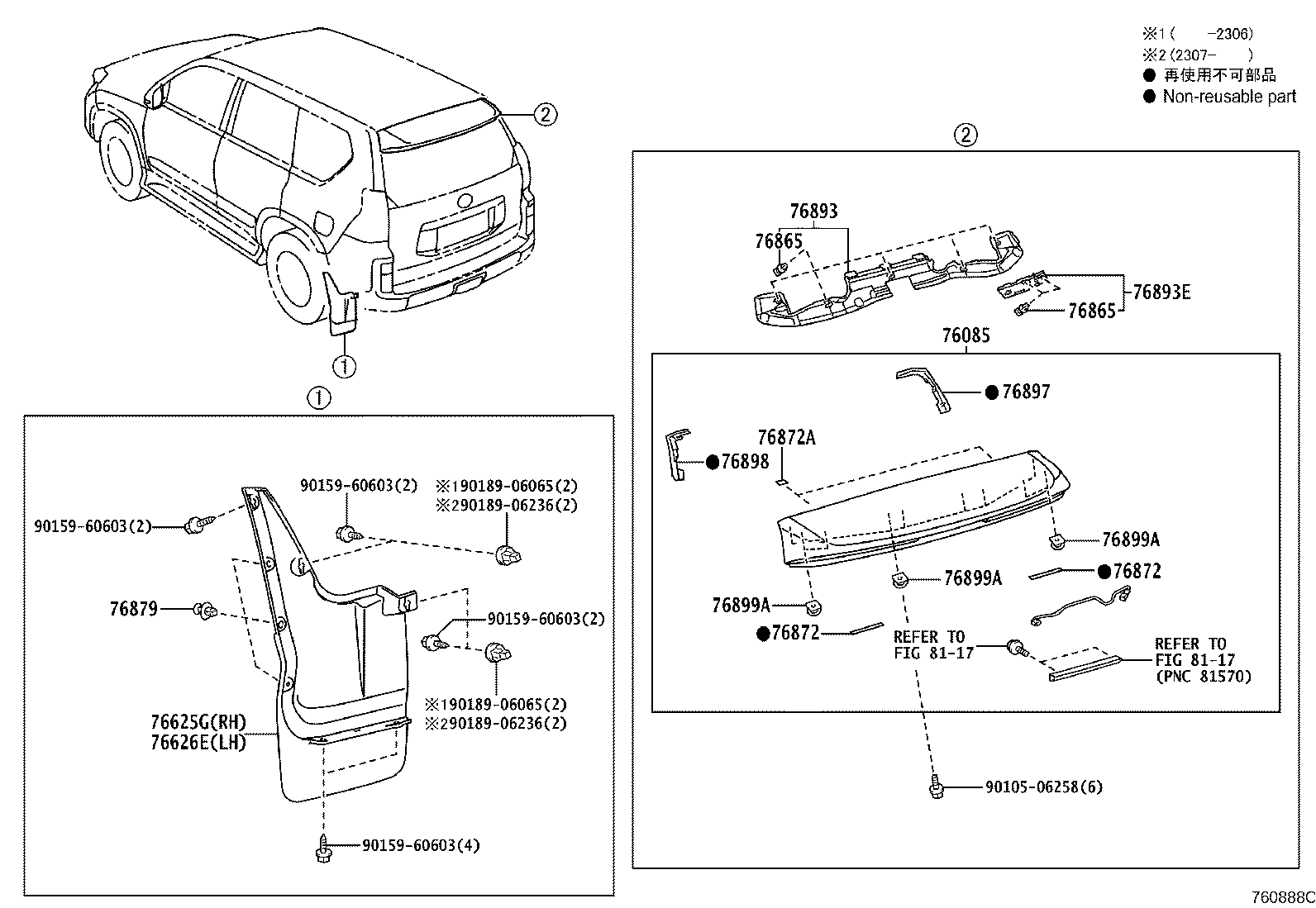

Spoiler & Side Mudguard
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52581E | Protector, Rear Bumper, RH |
| 52582C | Protector, Rear Bumper, LH |
| 76085 | Spoiler Sub-assy, Rear |
| 76625G | Mudguard, Quarter Panel, Rear RH |
| 76626E | Mudguard, Quarter Panel, Rear LH |
| 76647E | Support, Rear Body Mudguard, NO.1 RH |
| 76648C | Support, Rear Body Mudguard, LH |
| 76851B | Spoiler, Front, RH |
| 76852B | Spoiler, Front, LH |
| 76853C | Retainer, Front Spoiler, NO.1 |
| 76865 | Retainer, Rear Spoiler, NO.1 |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76879 | Clip, Rear Spoiler, NO.1 |
| 76893 | Cover, Rear Spoiler, NO.1 |
| 76893E | Cover, Rear Spoiler, RH |
| 76897 | Protector, Rear Spoiler, Side RH |
| 76898 | Protector, Rear Spoiler, Side LH |
| 76899A | Nut, Rear Spoiler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
