Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

32 part groups · 3 illustrations

Illustrations

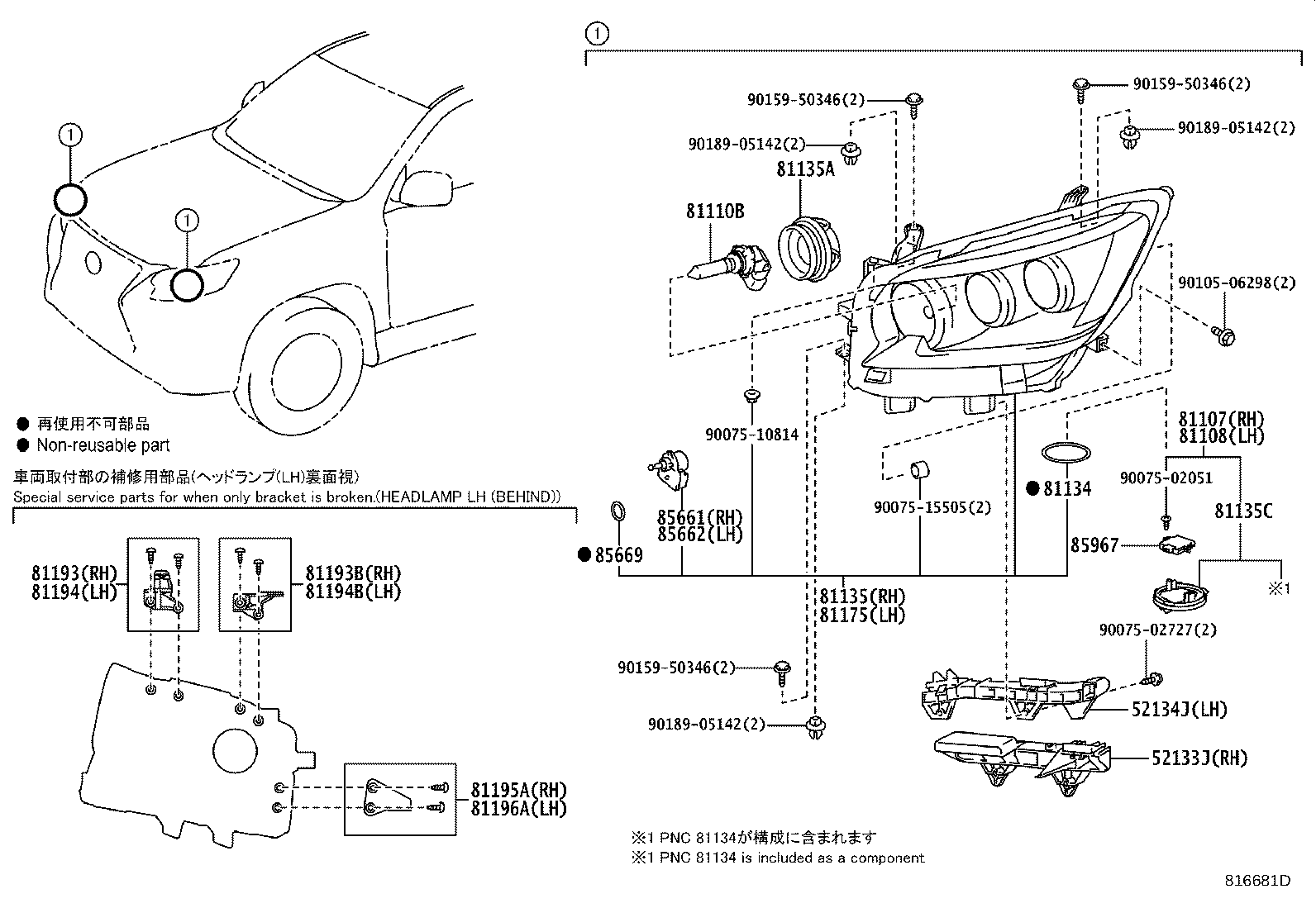

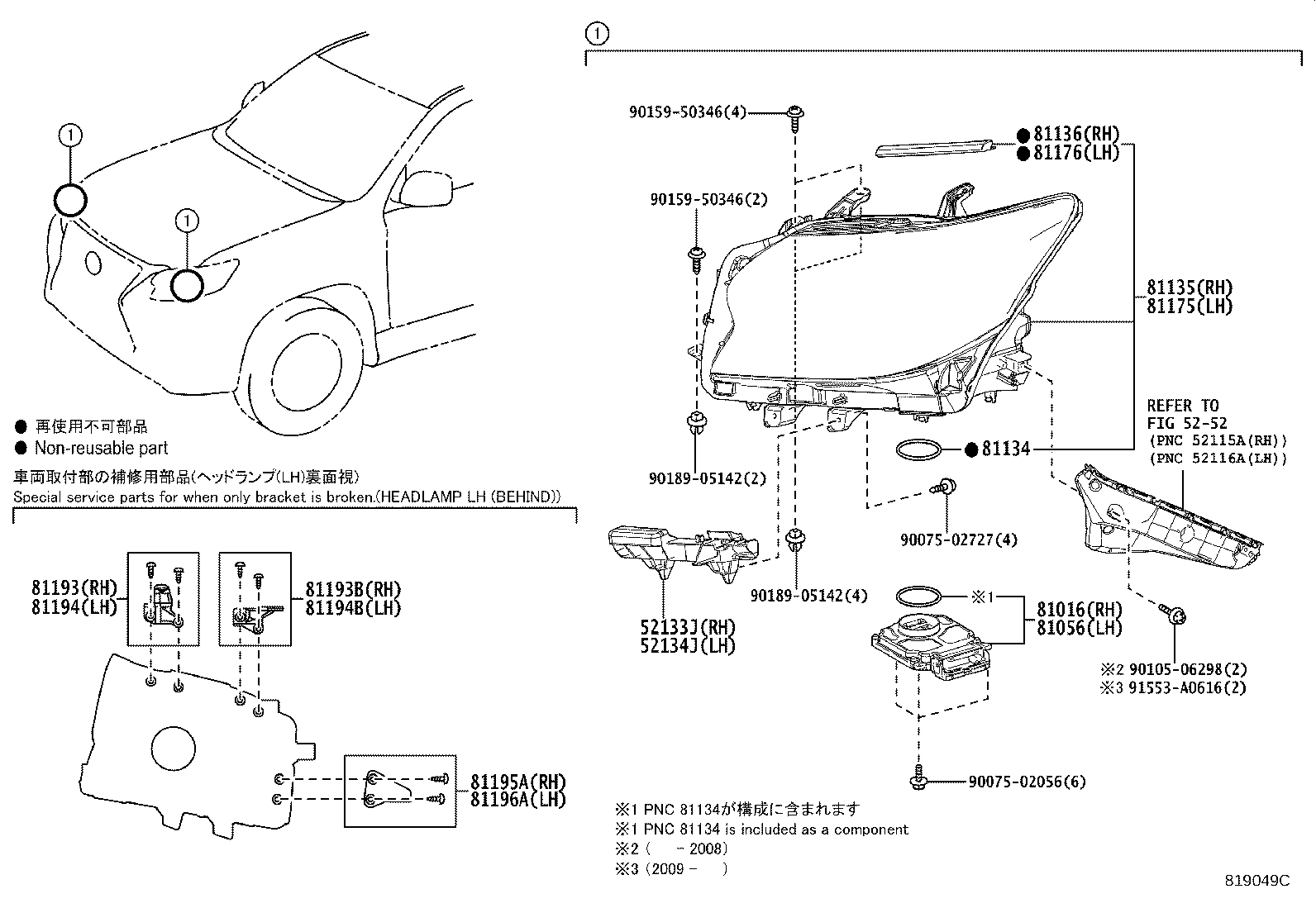

Figure 815271F 815271F 2009-11 → 2013-08 Figure 816681D 816681D 2013-08 → 2019-08 Figure 819049C 819049C 2019-08 → —

Part groups

PNCDescription
52133J Reinforcement, Front Bumper Bar, RH
52134J Reinforcement, Front Bumper Bar, LH
53271A Bracket, Headlamp Mounting
81016 Computer Sub-assy, Headlamp, RH NO.1
81056 Computer Sub-assy, Headlamp, LH NO.1
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81129A Reflector, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135A Cap, Locking
81135C Cover, Headlamp Back, NO.1
81136 Protector, Headlamp, NO.1 RH
81169 Reflector, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81176 Protector, Headlamp, NO.1 LH
81193 Retainer, Headlamp Protector, Upper RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85669 Packing, Headlamp Leveling Motor Base
85967 Computer, Light Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
