Fog Lamp

9 part groups · 2 illustrations

Illustrations

Figure 815249A

815249A 2009-11 → 2013-08

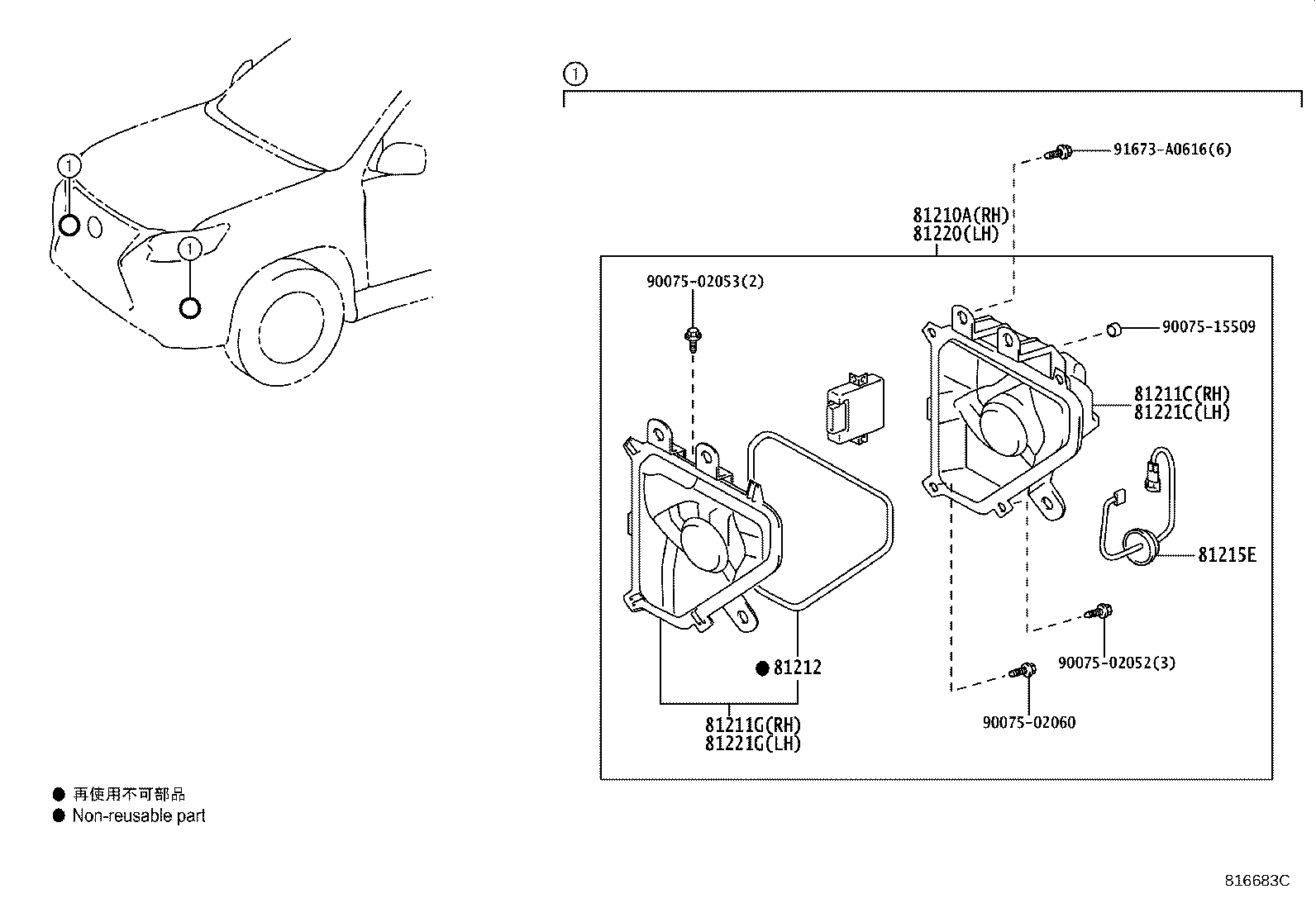

Figure 816683C

816683C 2013-08 → —

Part groups

PNC	Description
81210A	Lamp Assy, Fog, RH
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81211G	Lens, Fog Lamp, RH
81212	Gasket, Fog Lamp Lens
81215E	Cord, Fog Lamp
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH
81221G	Lens, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
