Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

24 part groups · 2 illustrations

Illustrations

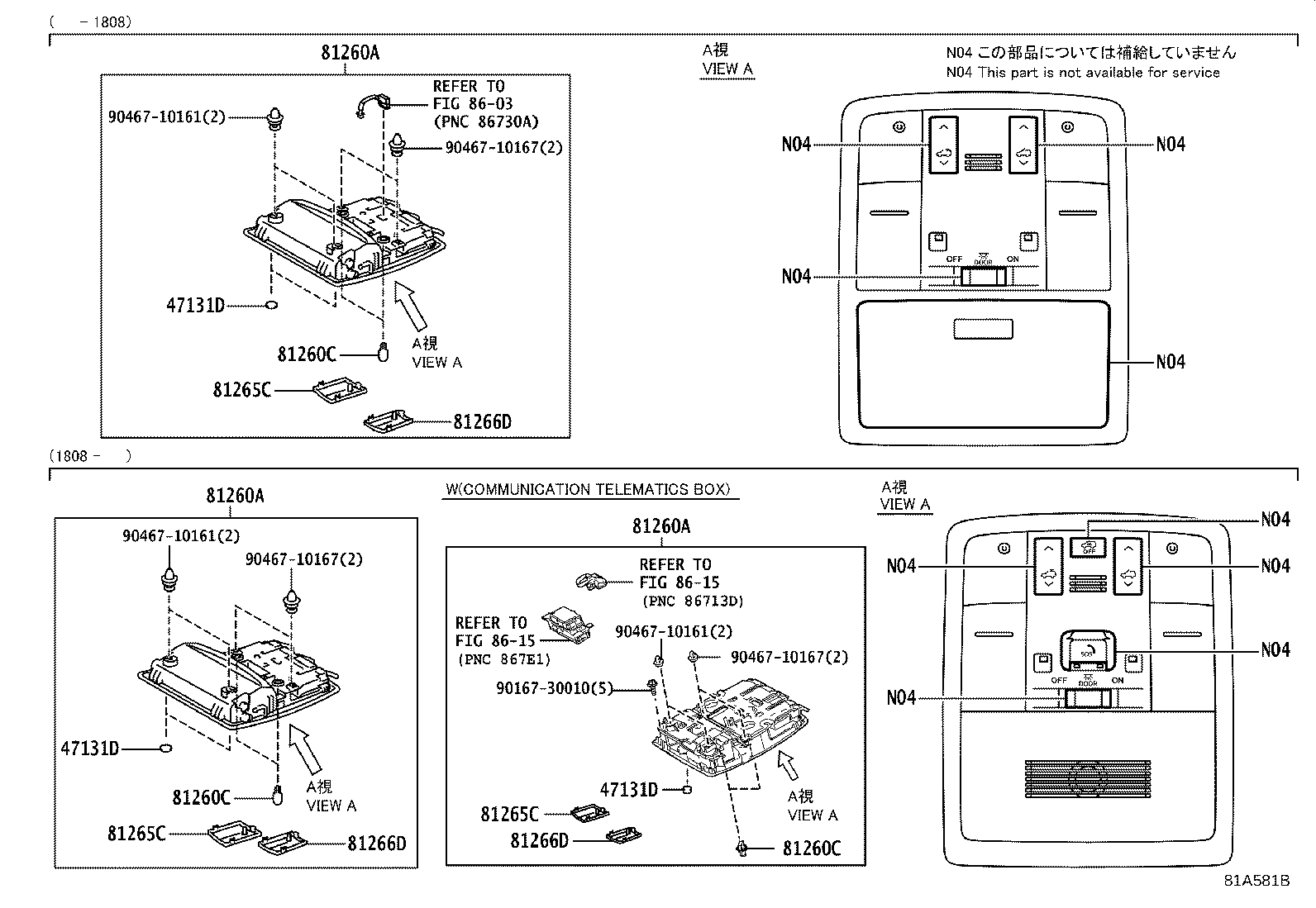

Figure 81A580 81A580 2009-11 → — Figure 81A581B 81A581B 2009-11 → —

Part groups

PNCDescription
47131D Cushion
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080J Lamp Assy, Interior Illumination, NO.1
81080K Lamp Assy, Console Box Illumination
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81230 Lamp Assy, Courtesy
81230A Lamp Assy, Courtesy, NO.2
81230B Bulb(FOR COURTESY LAMP)
81230C Bulb(FOR COURTESY LAMP NO.2)
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81249 Switch, Room Lamp
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81380D Lamp Assy, Step
81380E Bulb (FOR STEP LAMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
