Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

106 part groups · 17 illustrations

Illustrations

826915L 2009-11 → —

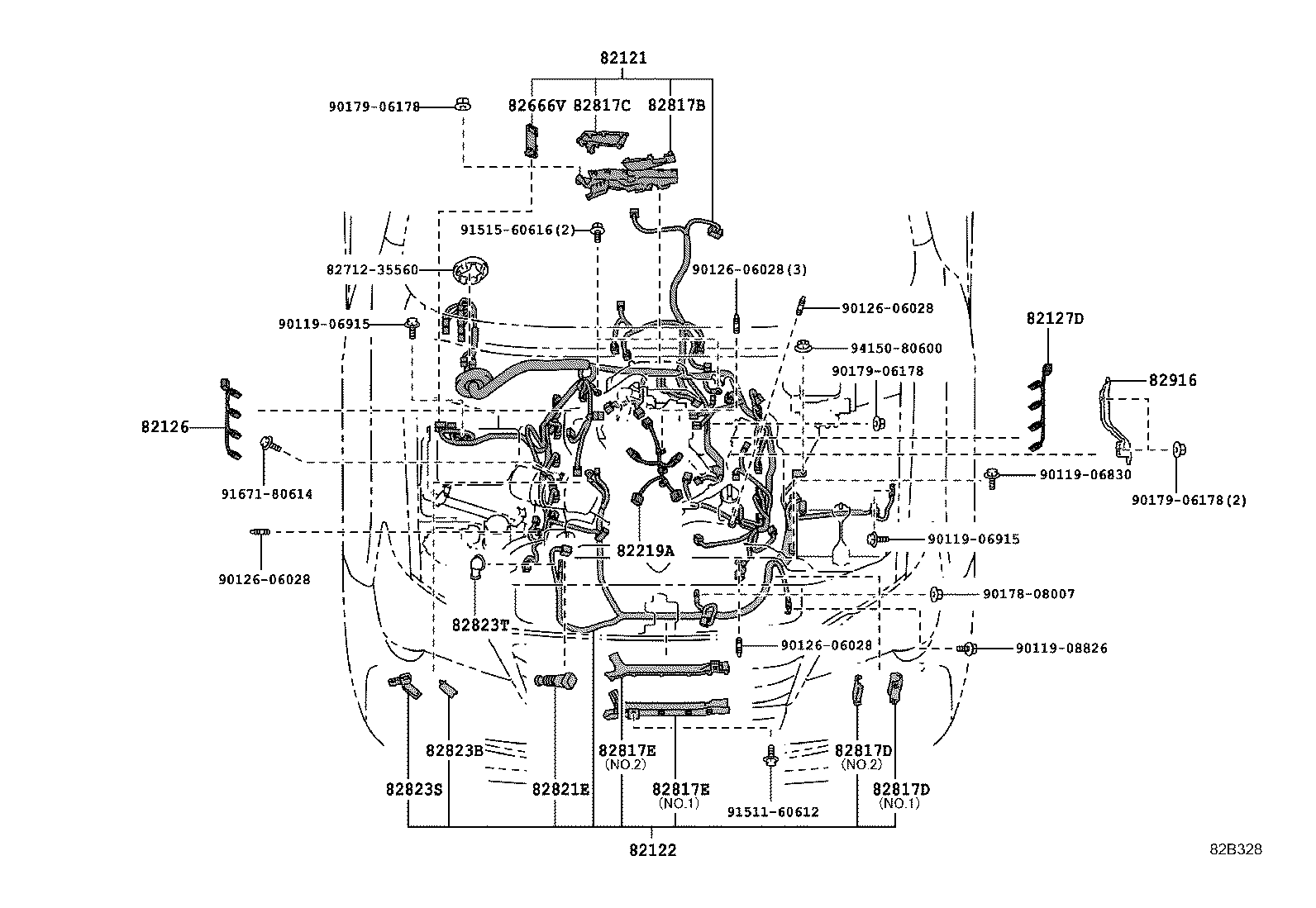

82B328 2009-11 → 2013-08

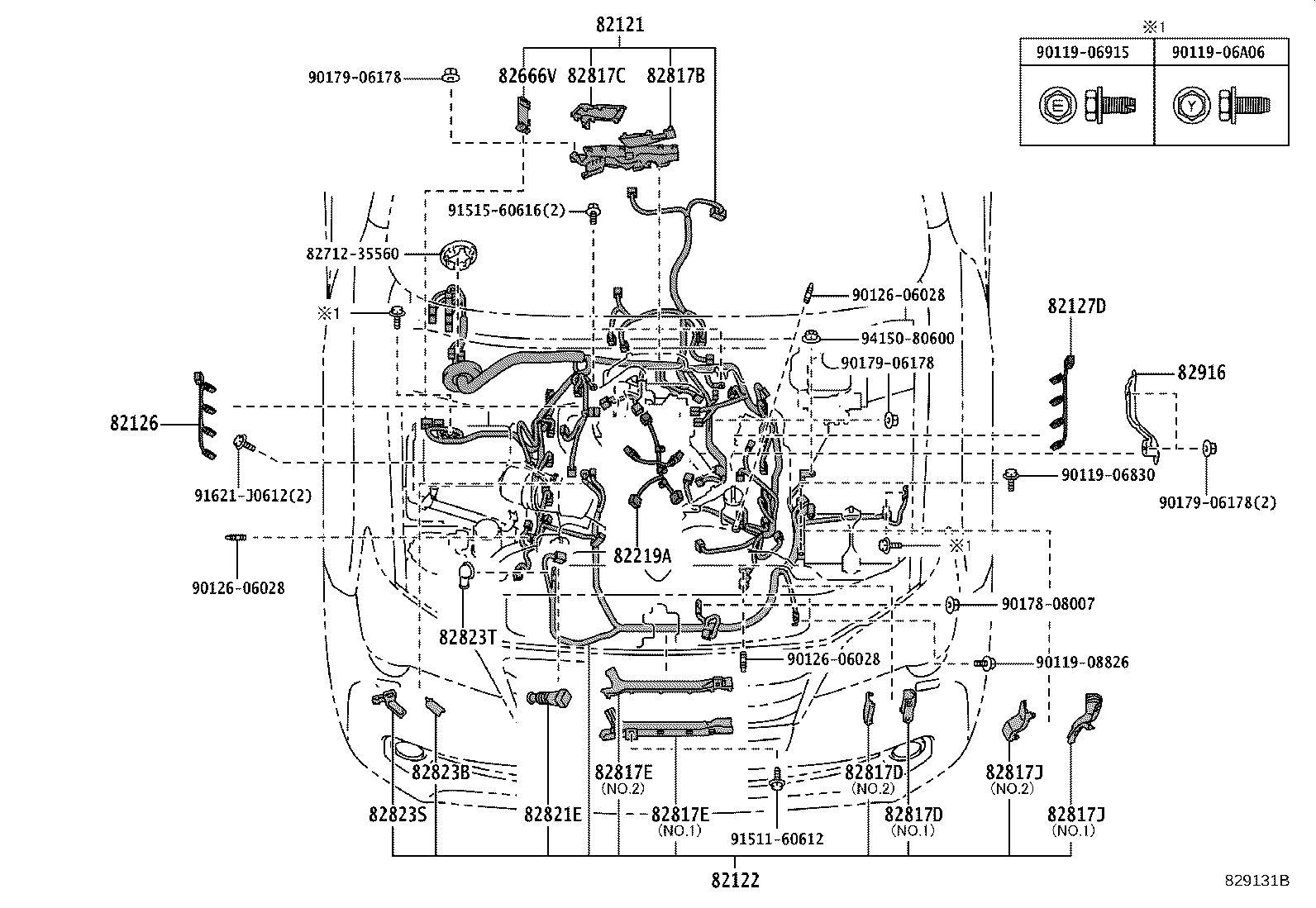

829131B 2013-08 → —

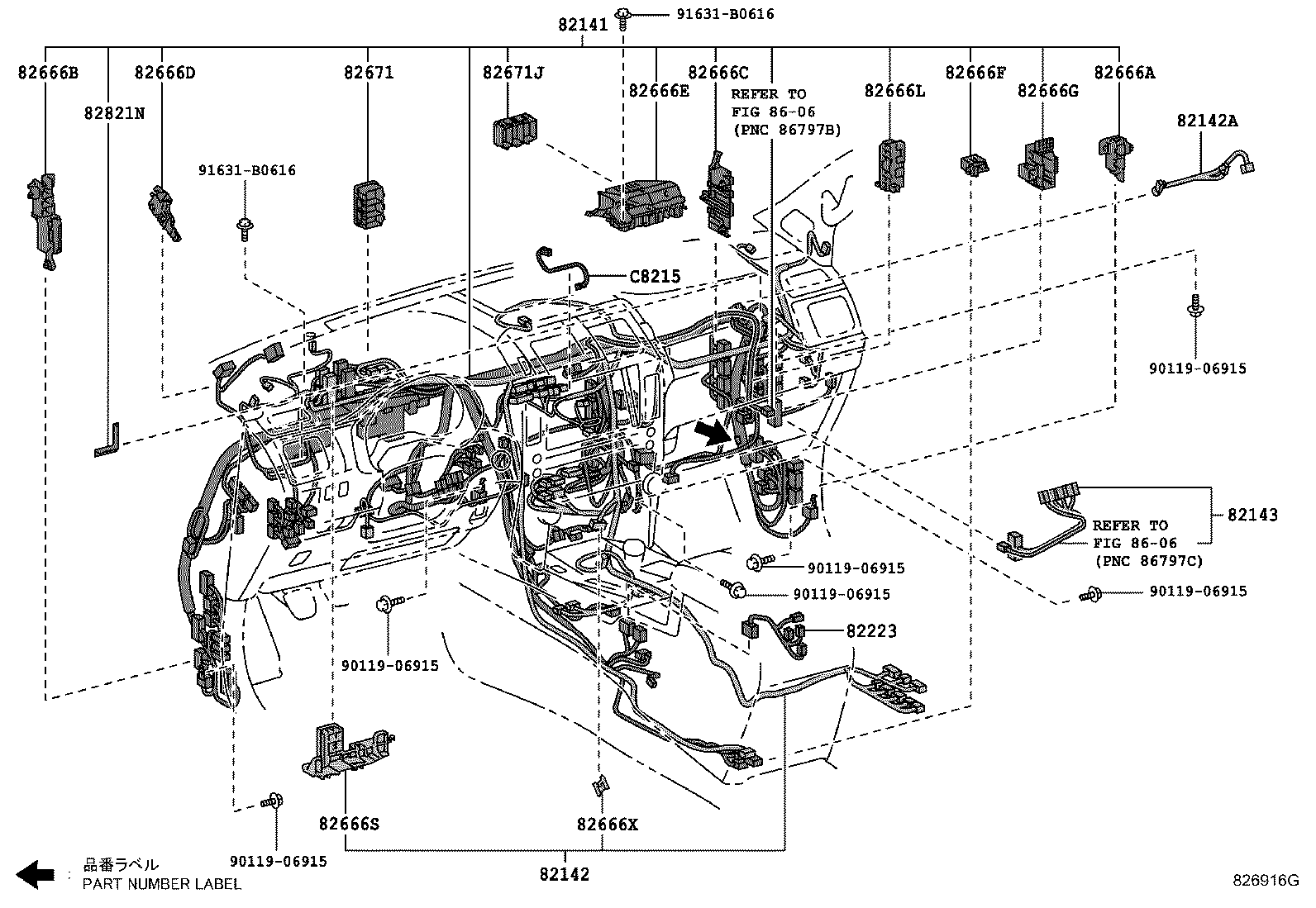

826916G 2009-11 → 2013-08

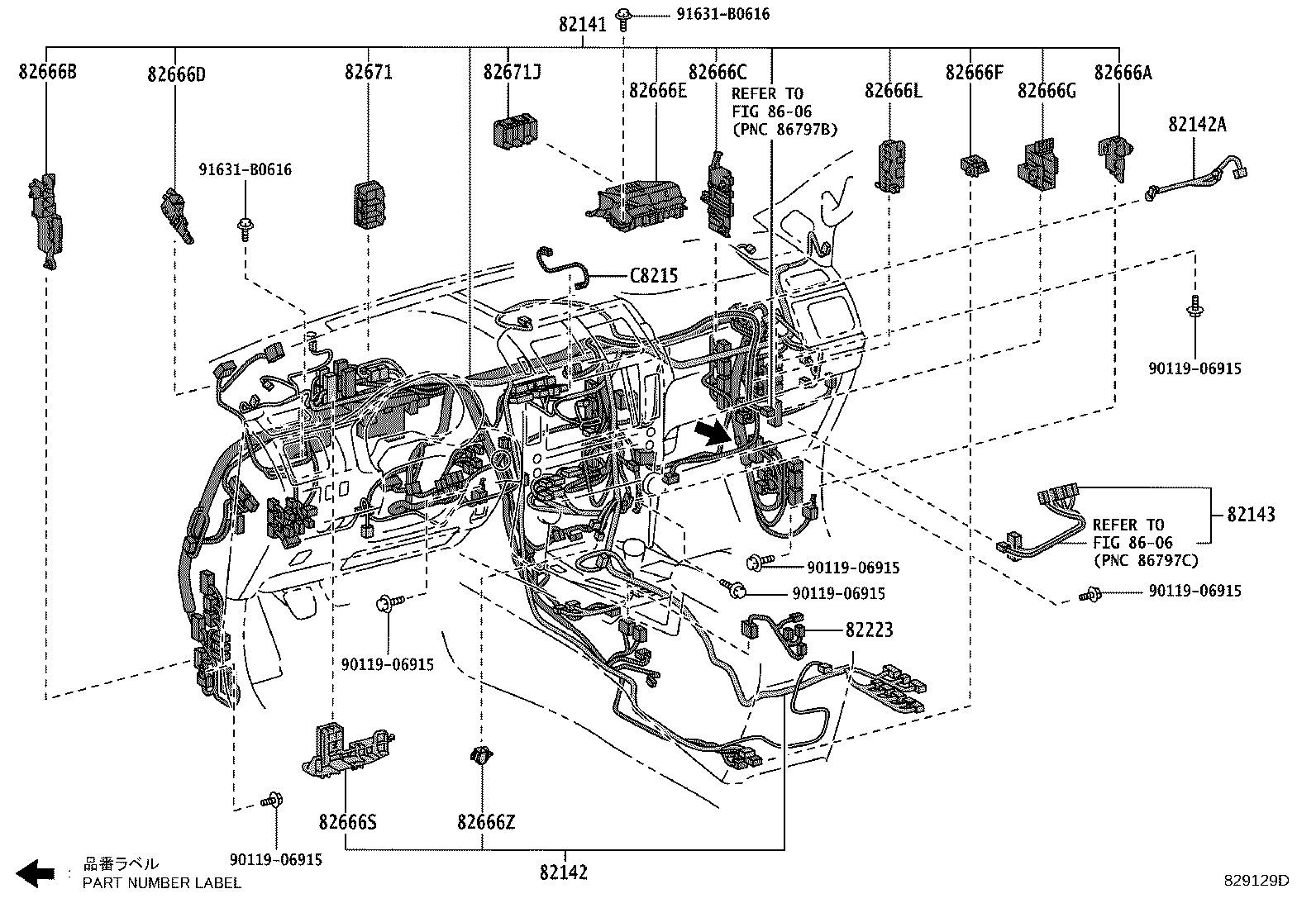

829129D 2013-08 → 2019-08

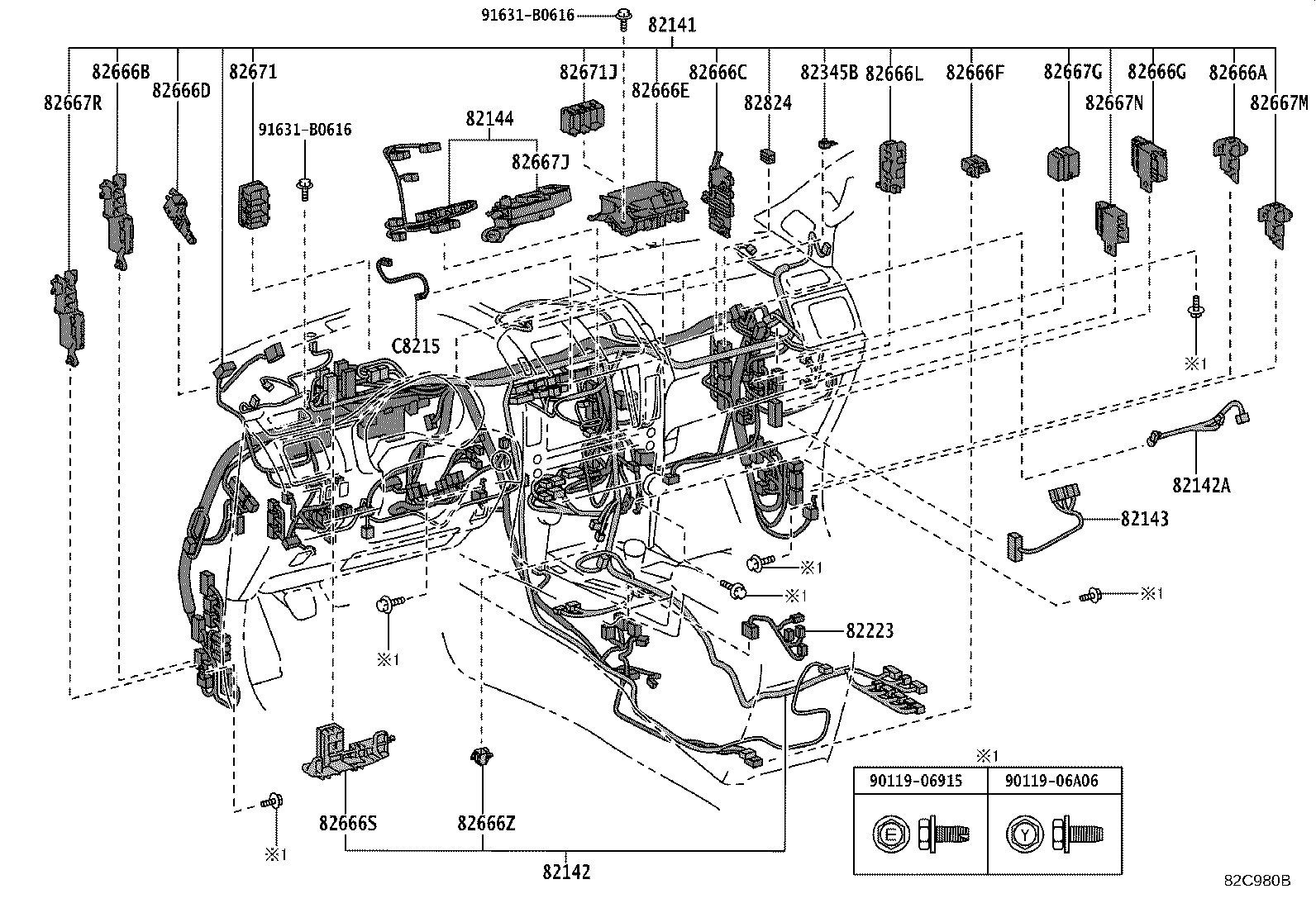

82C980B 2019-08 → —

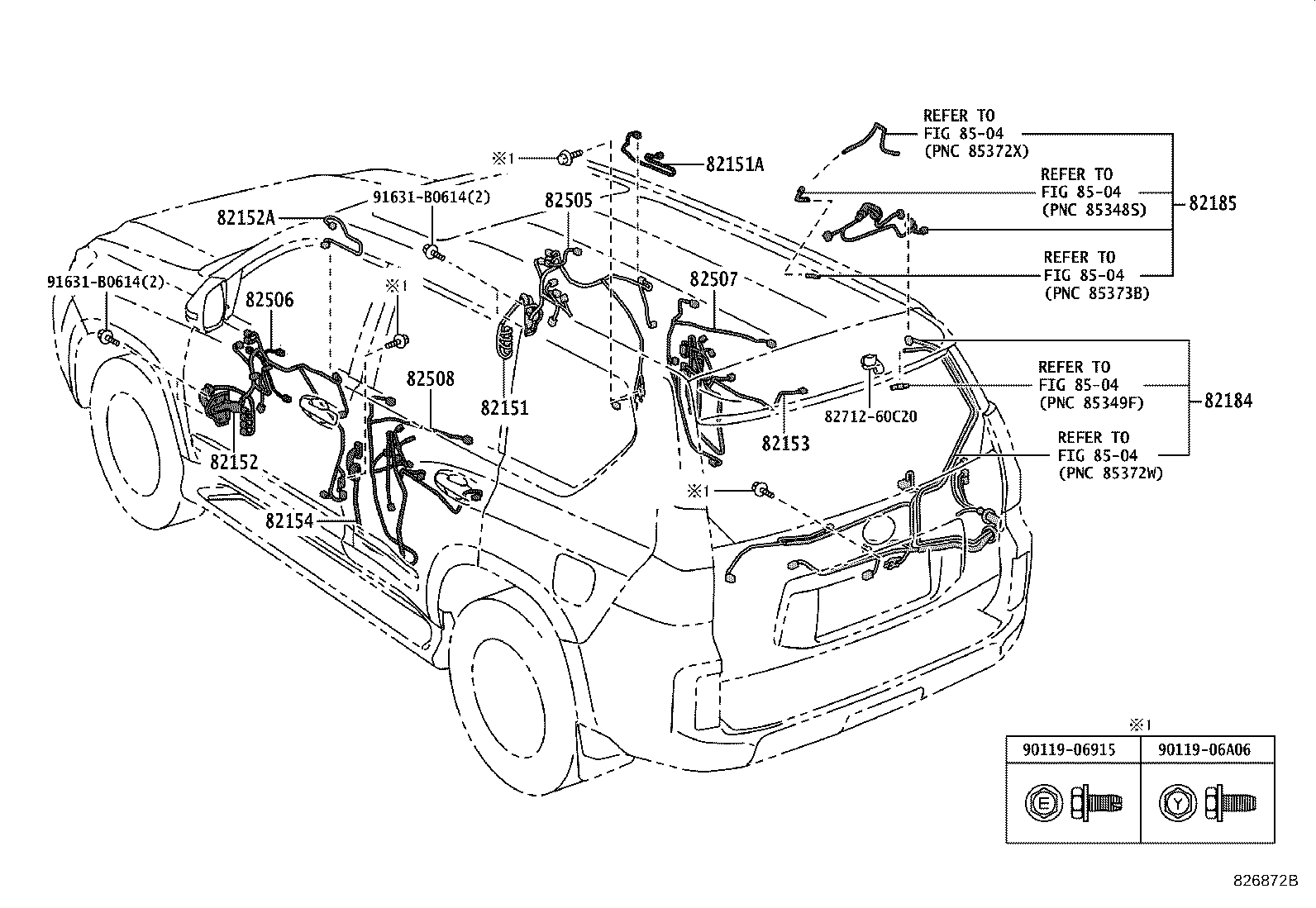

826872B 2009-11 → —

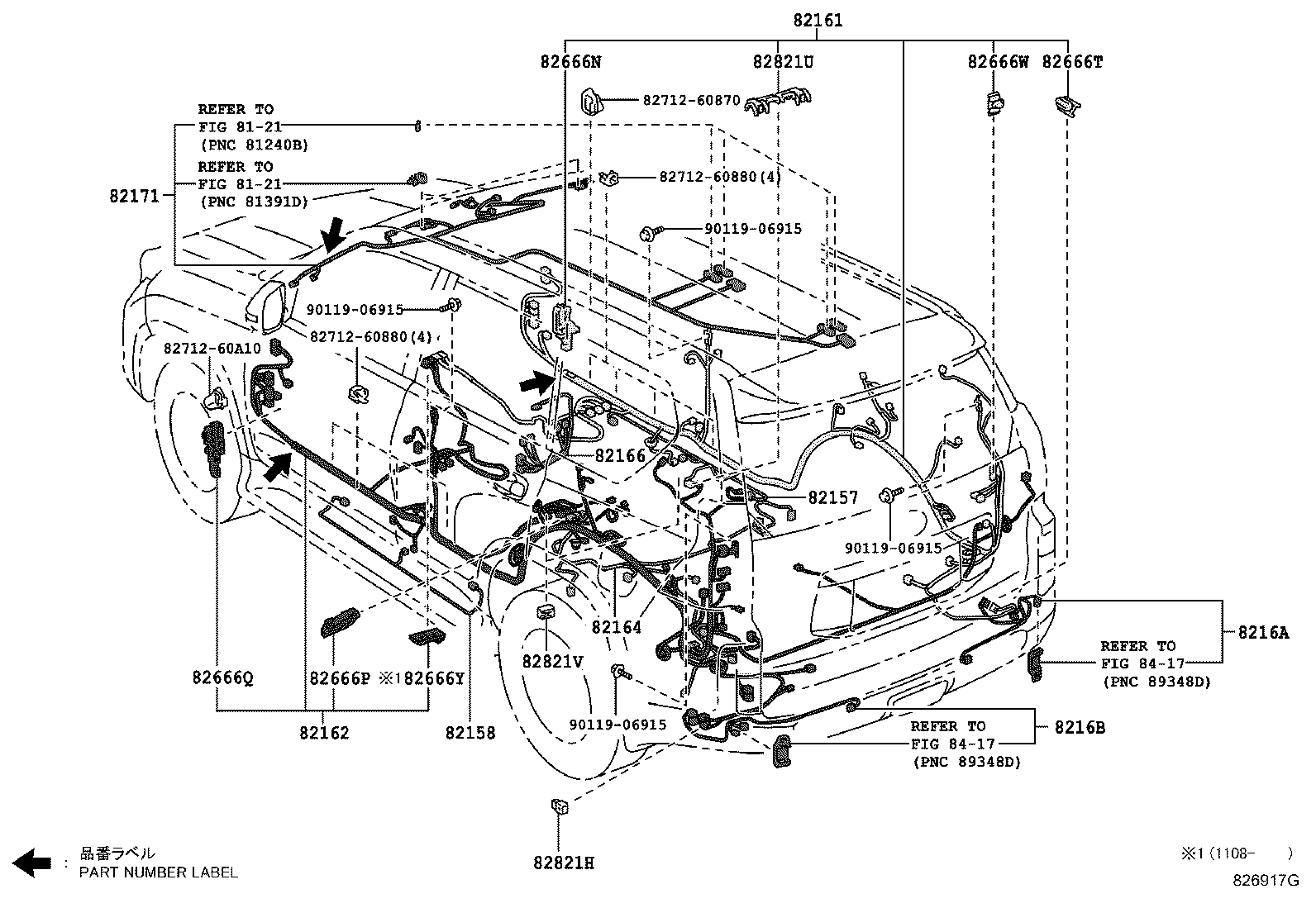

826917G 2009-11 → 2013-08

Part groups

PNC	Description
82046A	Wire Sub-assy, Body Ground, NO.1

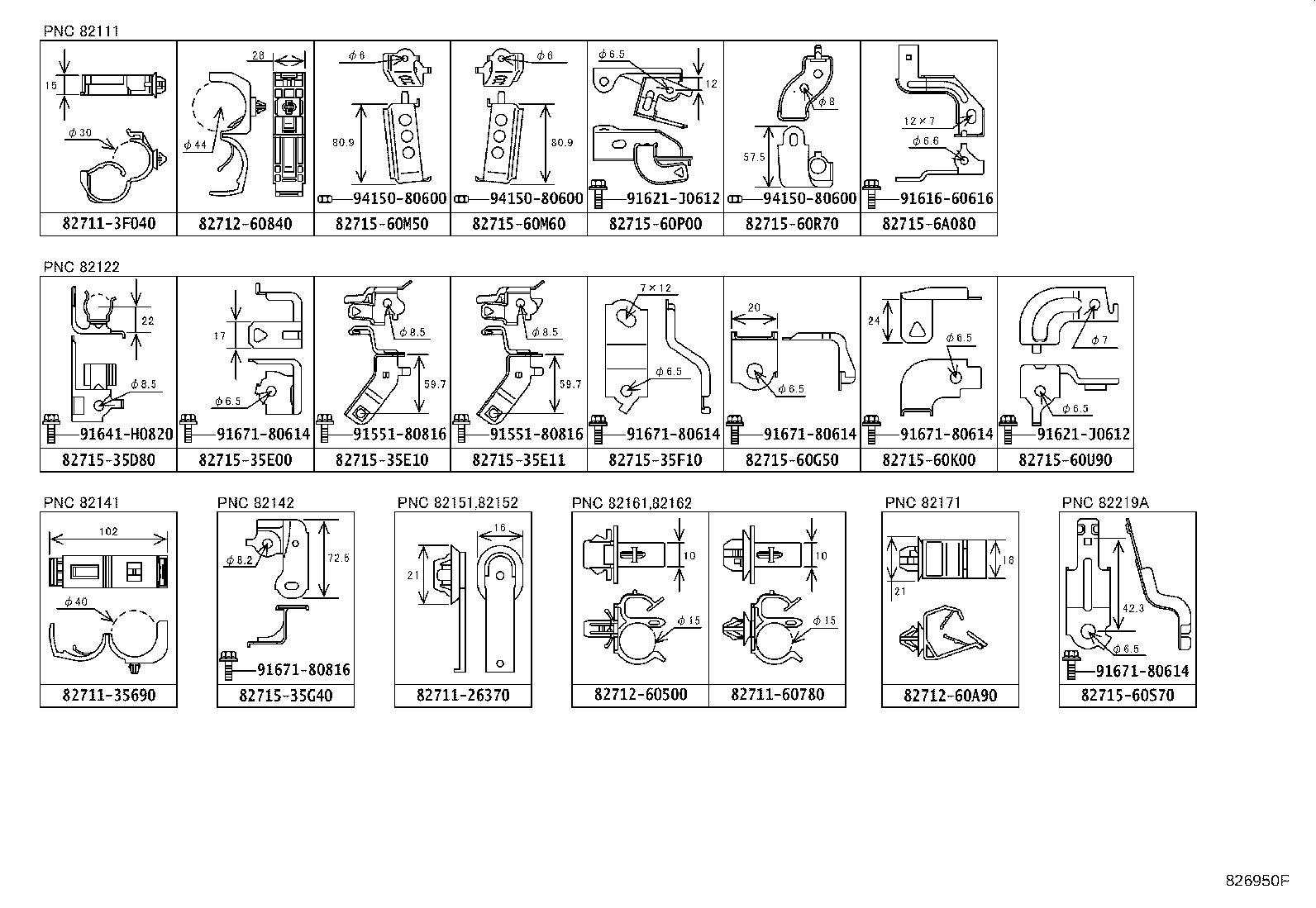

82111	Wire, Engine Room Main
82112	Wire, Engine Room, NO.2

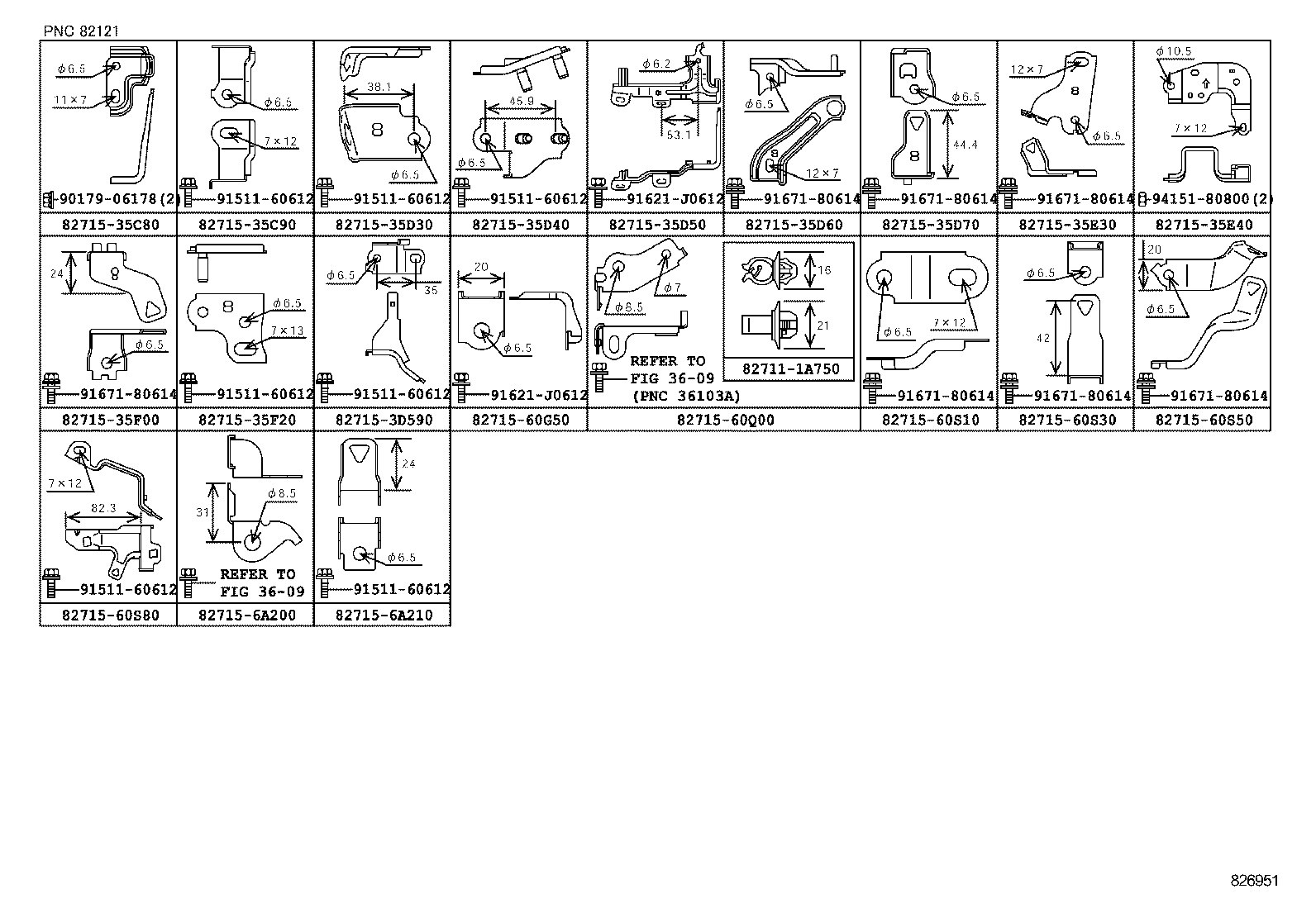

82121	Wire, Engine
82122	Wire, Engine, NO.2
82126	Wire, Engine
82127D	Wire, Engine, NO.7
82141	Wire, Instrument Panel
82142	Wire, Instrument Panel, NO.2
82142A	Wire, Instrument Panel, NO.2
82143	Wire, Instrument Panel, NO.3
82144	Wire, Instrument Panel, NO.4
82151	Wire, Front Door, RH
82151A	Wire, Front Door, NO.2, RH
82152	Wire, Front Door, LH
82152A	Wire, Front Door, NO.2, LH
82153	Wire, Rear Door, NO.1
82154	Wire, Rear Door, NO.2
82157	Wire, Step Panel, RH
82158	Wire, Step Panel, LH

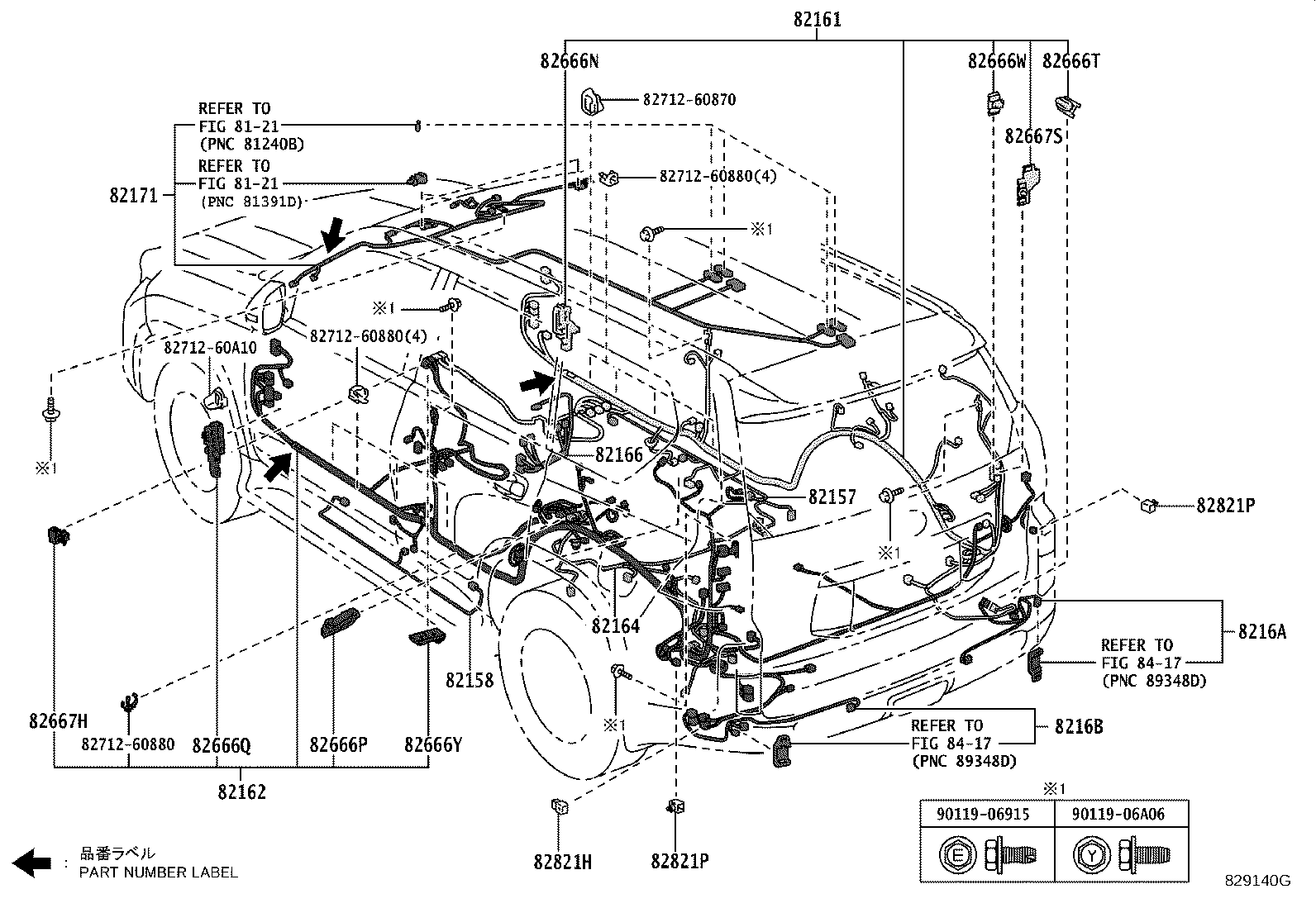

82161	Wire, Floor
82162	Wire, Floor, NO.2
82164	Wire, Frame
82166	Wire, Console Box
8216A	Wire, Floor NO.7
8216B	Wire, Floor NO.8
82171	Wire, Roof, NO.1
82184	Wire, Back Door, NO.1
82185	Wire, Back Door, NO.2

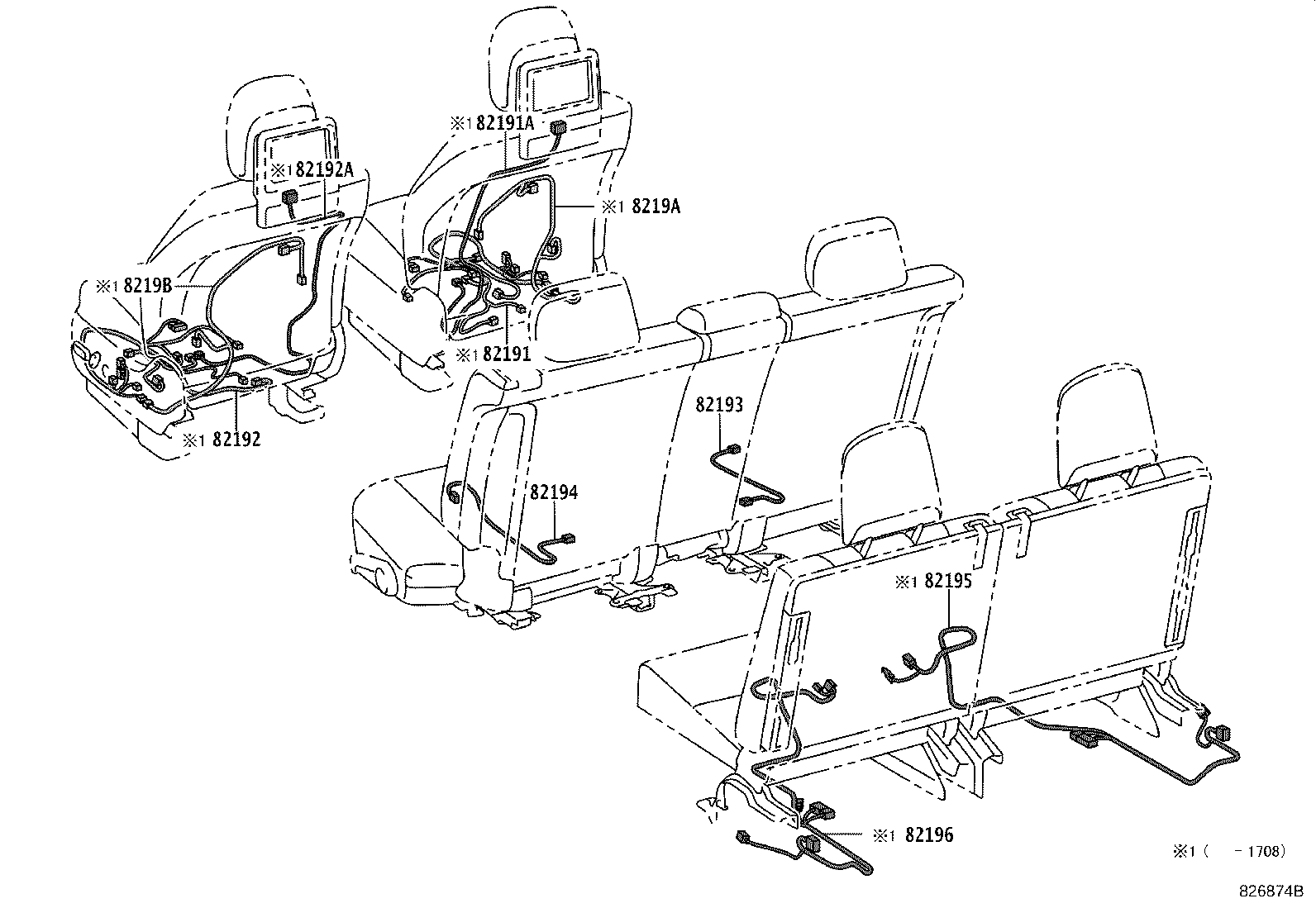

82191	Wire, Front Seat, RH
82191A	Wire, Front Seat, RH
82192	Wire, Front Seat, LH
82192A	Wire, Rear Seat, LH
82193	Wire, Rear Seat, RH
82194	Wire, Rear Seat, LH
82195	Wire, Rear Seat, RH NO.2
82196	Wire, Rear Seat, LH NO.2
8219A	Wire, Front Seat, RH NO.2
8219B	Wire, Front Seat, LH NO.2
82219A	Wire, Sensor
82223	Wire, Switch
82345	Diode
82345A	Diode
82345B	Diode
82505	Wiring Sub-assy, Front Door, RH
82506	Wiring Sub-assy, Front Door, LH
82507	Wiring Sub-assy, Rear Door, RH
82508	Wiring Sub-assy, Rear Door, LH
82666A	Holder, Connector NO.2
82666B	Holder, Connector NO.3
82666C	Holder, Connector NO.4
82666D	Holder, Connector NO.5
82666E	Holder, Connector NO.6
82666F	Holder, Connector NO.7
82666G	Holder, Connector NO.8
82666L	Holder, Connector NO.9
82666N	Holder, Connector NO.10
82666P	Holder, Connector NO.11
82666Q	Holder, Connector NO.12
82666S	Holder, Connector NO.13
82666T	Holder, Connector NO.14
82666V	Holder, Connector NO.15
82666W	Holder, Connector NO.16
82666X	Holder, Connector NO.17
82666Y	Holder, Connector NO.18
82666Z	Holder, Connector NO.19
82667E	Holder, Connector, NO.20
82667G	Holder, Connector, NO.22
82667H	Holder, Connector, NO.23
82667J	Holder, Connector, NO.24
82667K	Holder, Connector, NO.25
82667L	Holder, Connector, NO.26
82667M	Holder, Connector, NO.27
82667N	Holder, Connector, NO.28
82667R	Holder, Connector, NO.29
82667S	Holder, Connector, NO.30
82671	Block, Junction
82671J	Block, Junction, NO.2
82712A	Support, Wiring Harness
82712B	Support, Wiring Harness
82712C	Support, Wiring Harness, NO.1
82817	Protector, Wiring Harness, NO.1
82817A	Protector, Wiring Harness, NO.2
82817B	Protector, Wiring Harness, NO.3
82817C	Protector, Wiring Harness, NO.4
82817D	Protector, Wiring Harness, NO.5
82817E	Protector, Wiring Harness, NO.6
82817J	Protector, Wiring Harness, NO.9
82821A	Cover, Connector
82821E	Cover, Connector
82821H	Cover, Connector
82821M	Cover, Connector
82821N	Cover, Connector
82821P	Cover, Connector
82821U	Cover, Connector
82821V	Cover, Connector
82821W	Cover, Connector
82821Y	Cover, Connector
82823B	Cap, Terminal, NO.3
82823S	Cap, Starter Terminal
82823T	Cap, Alternator Terminal

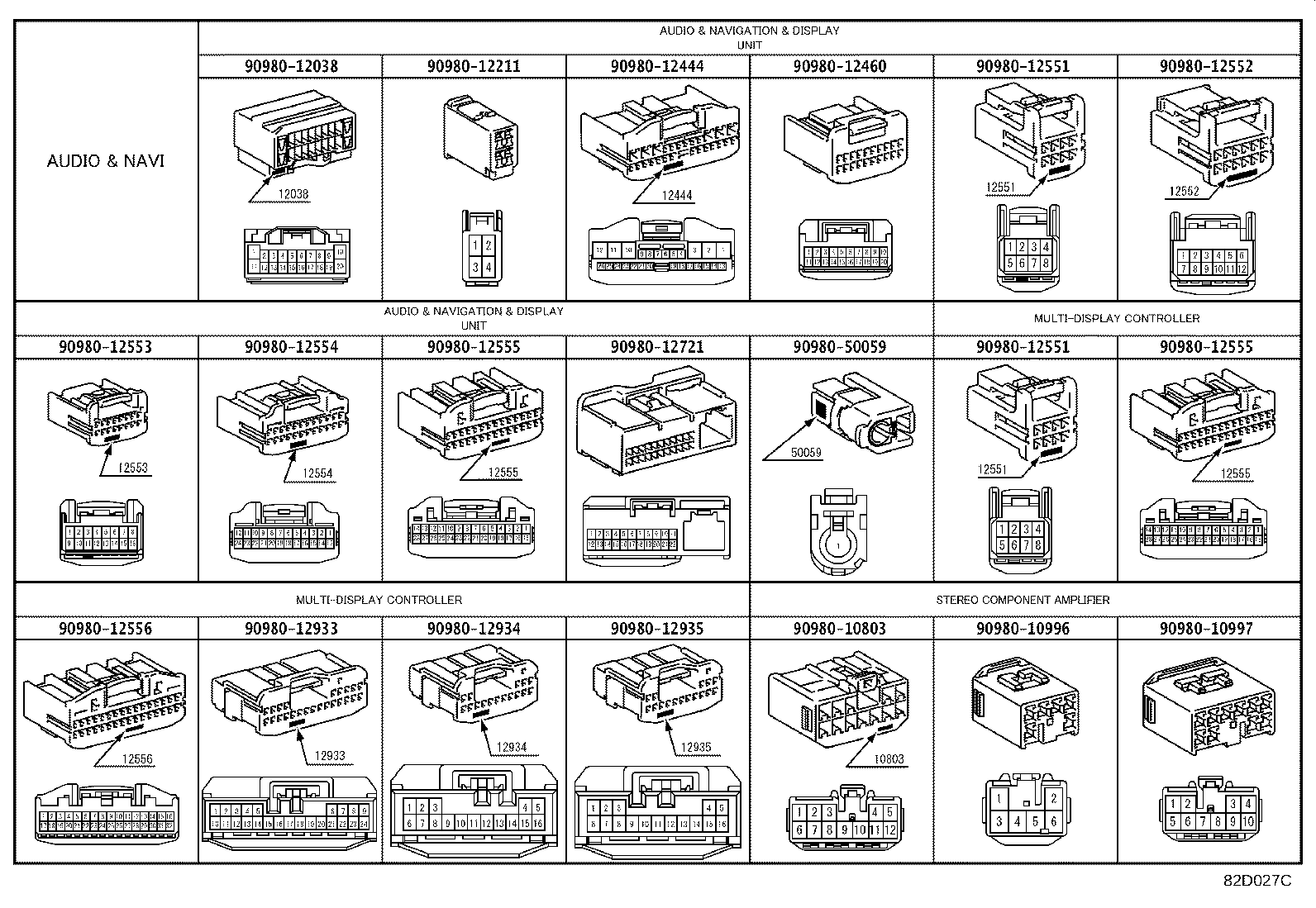

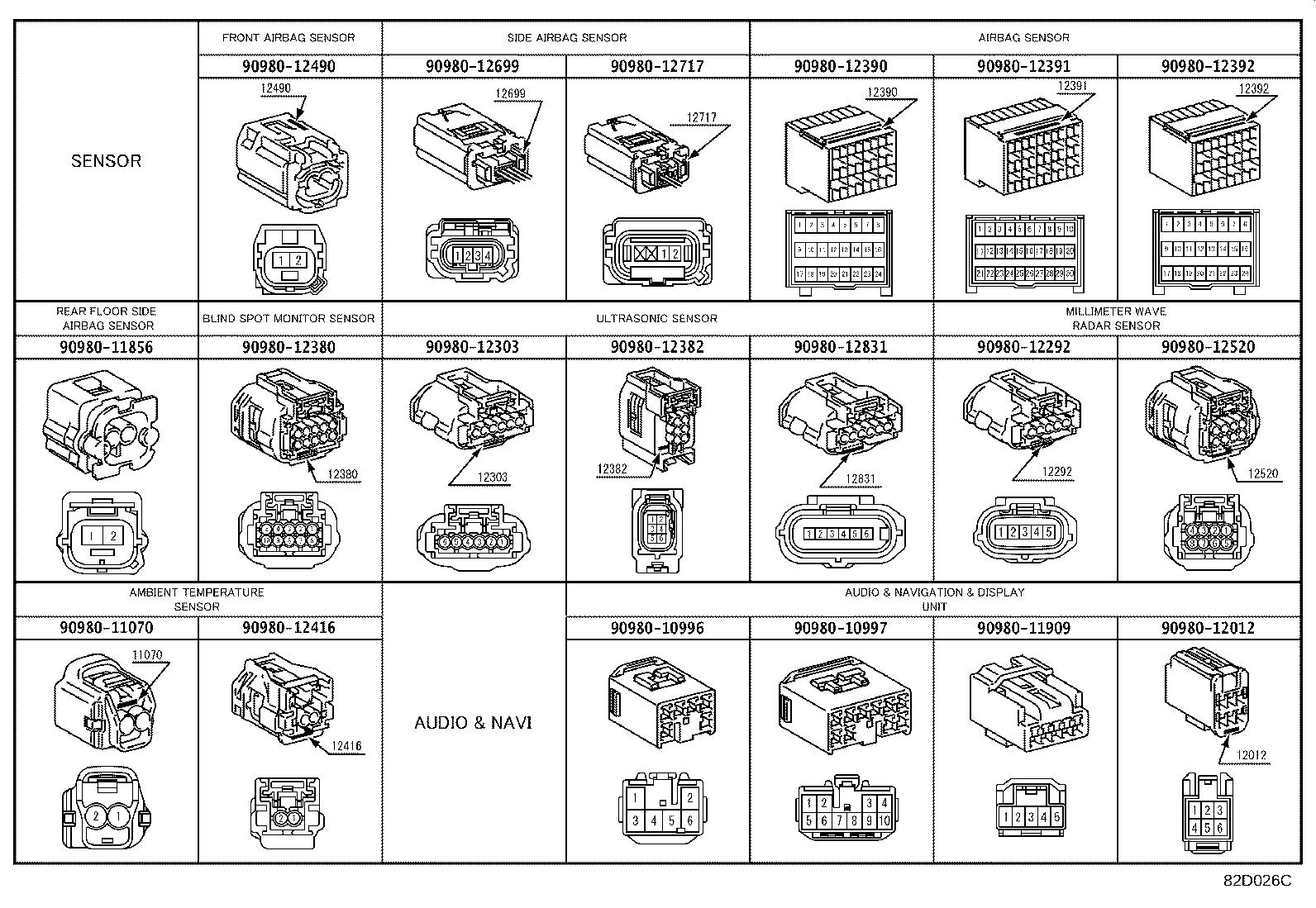

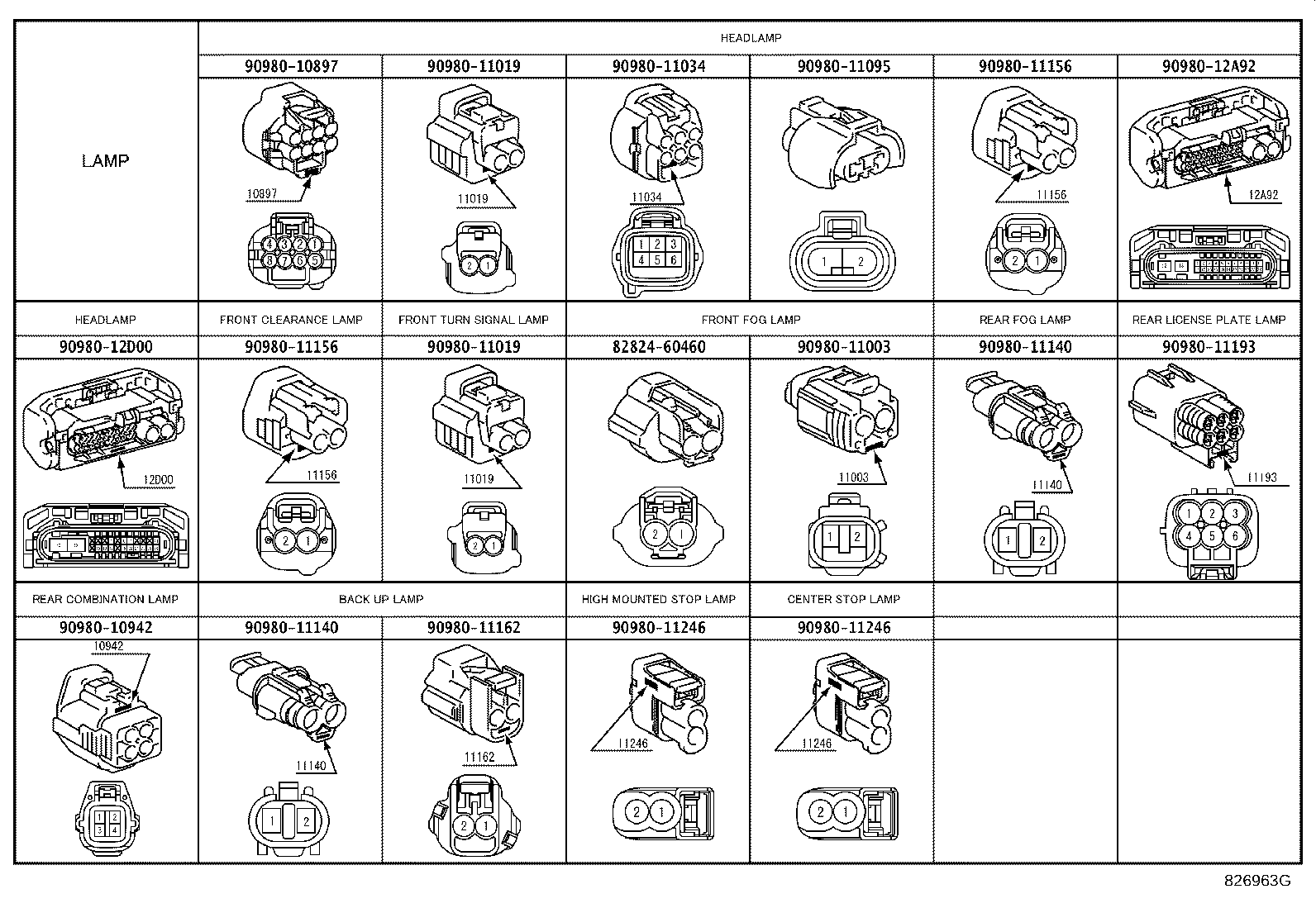

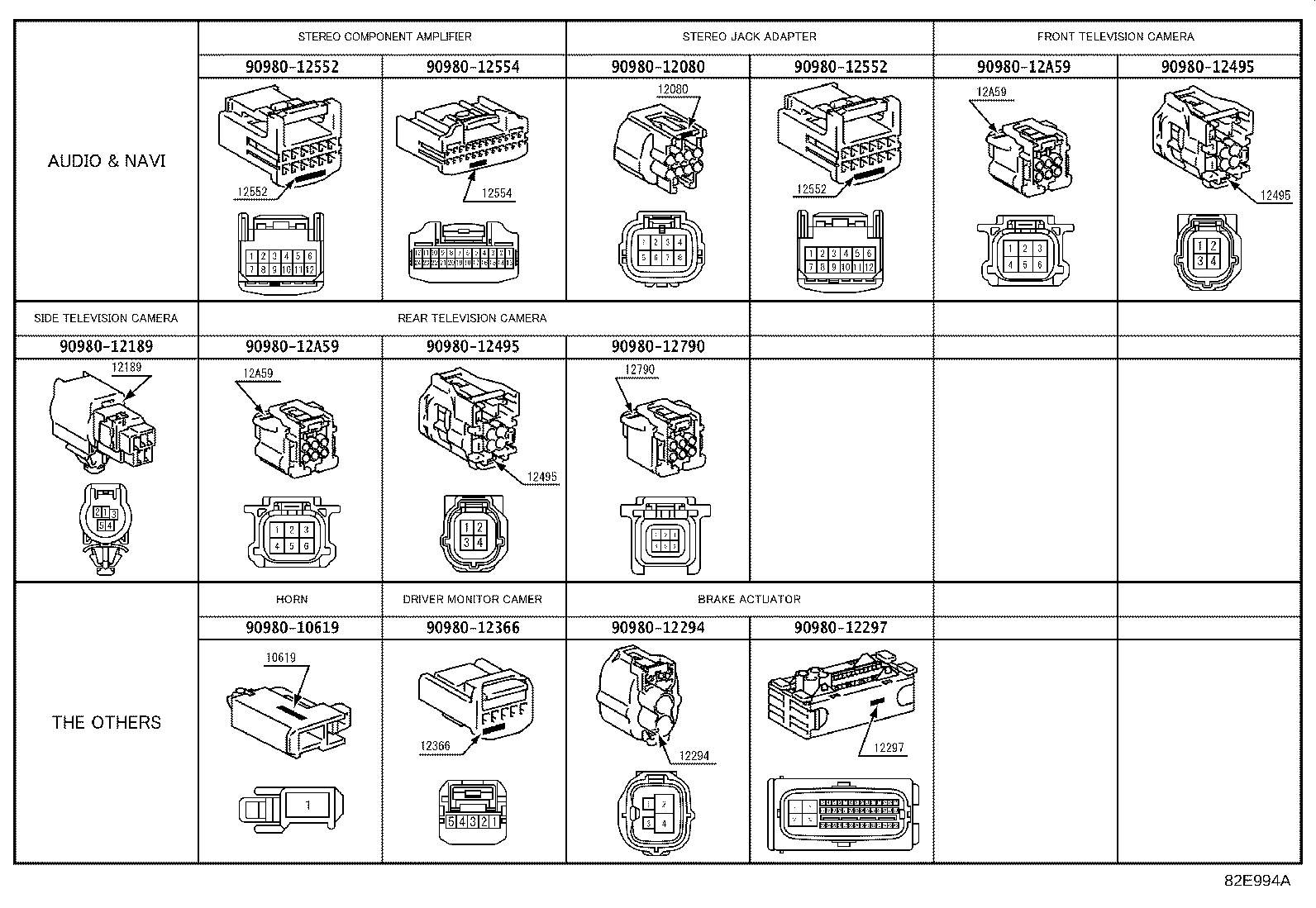

82824	Connector, Wiring Harness
82824A	Connector, Wiring Harness
82916	Insulator, Wiring Harness Heat, NO.2
86011G	Condenser
C8215	Wire, Hazard Switch

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
