Toyota Lexus GX460
2009-11 → present · chassis URJ150 · catalogue 782510 · Europe
Supported model
Data version 2019-08
Switch & Relay & Computer
143 part groups · 22 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |

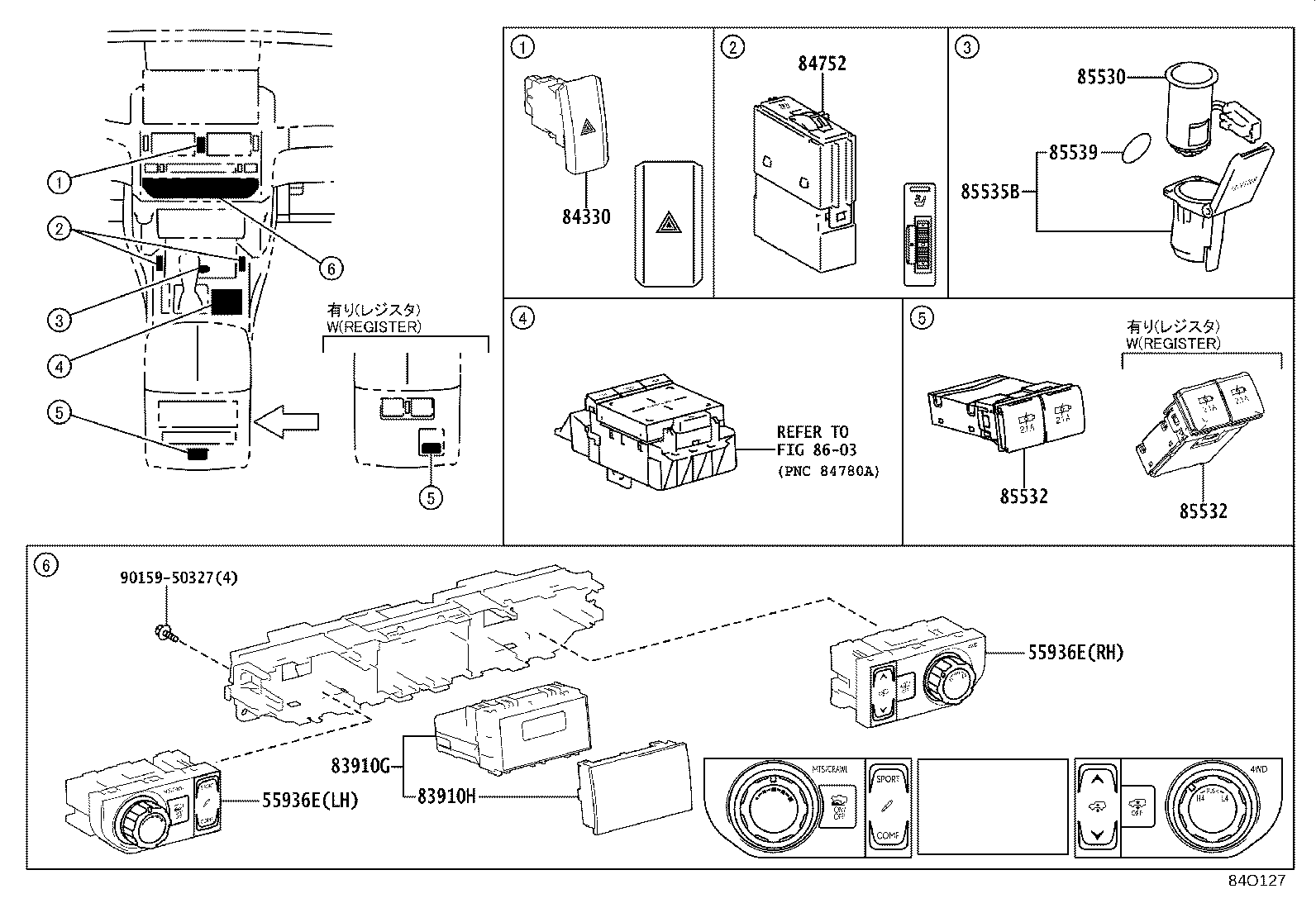

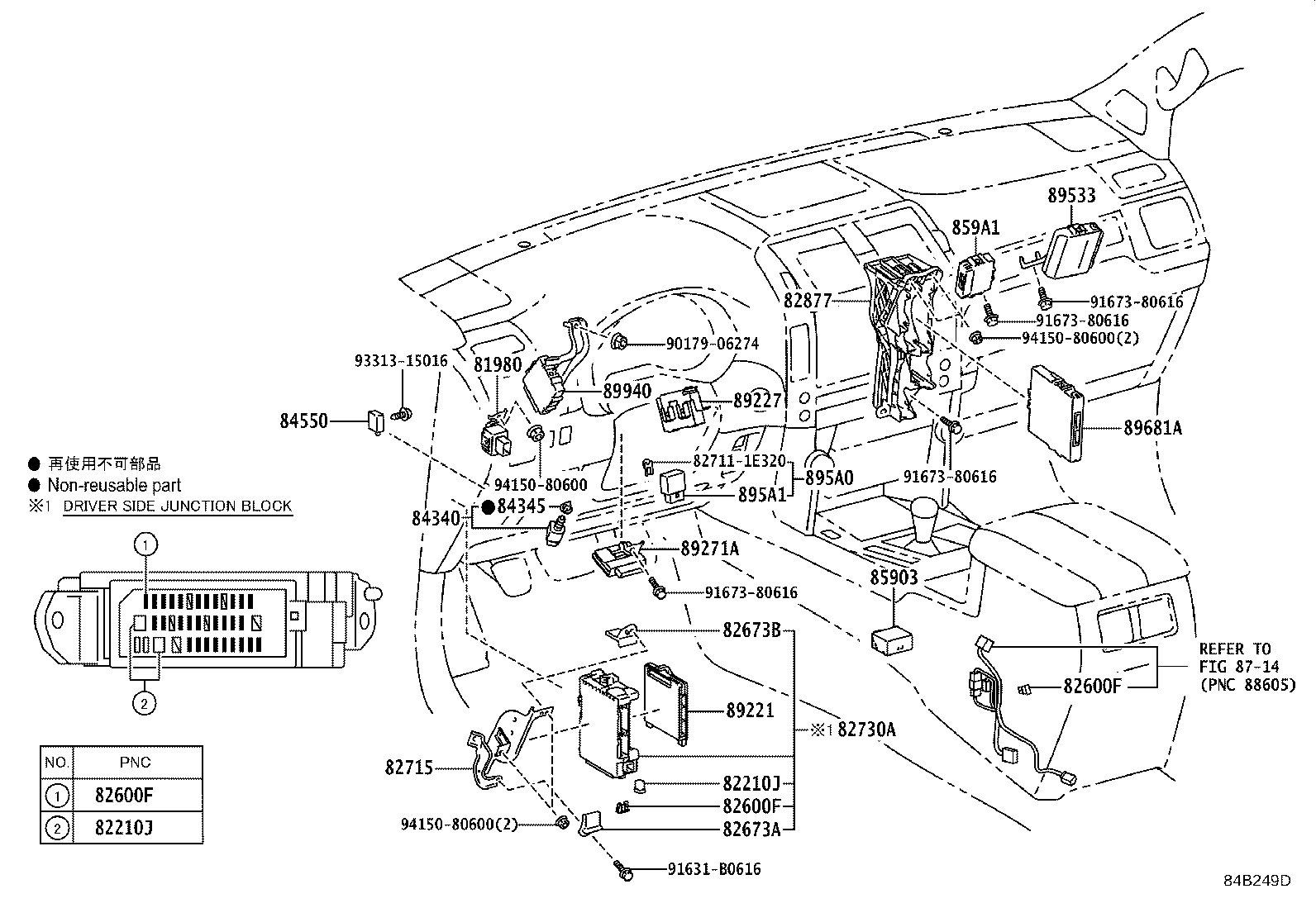

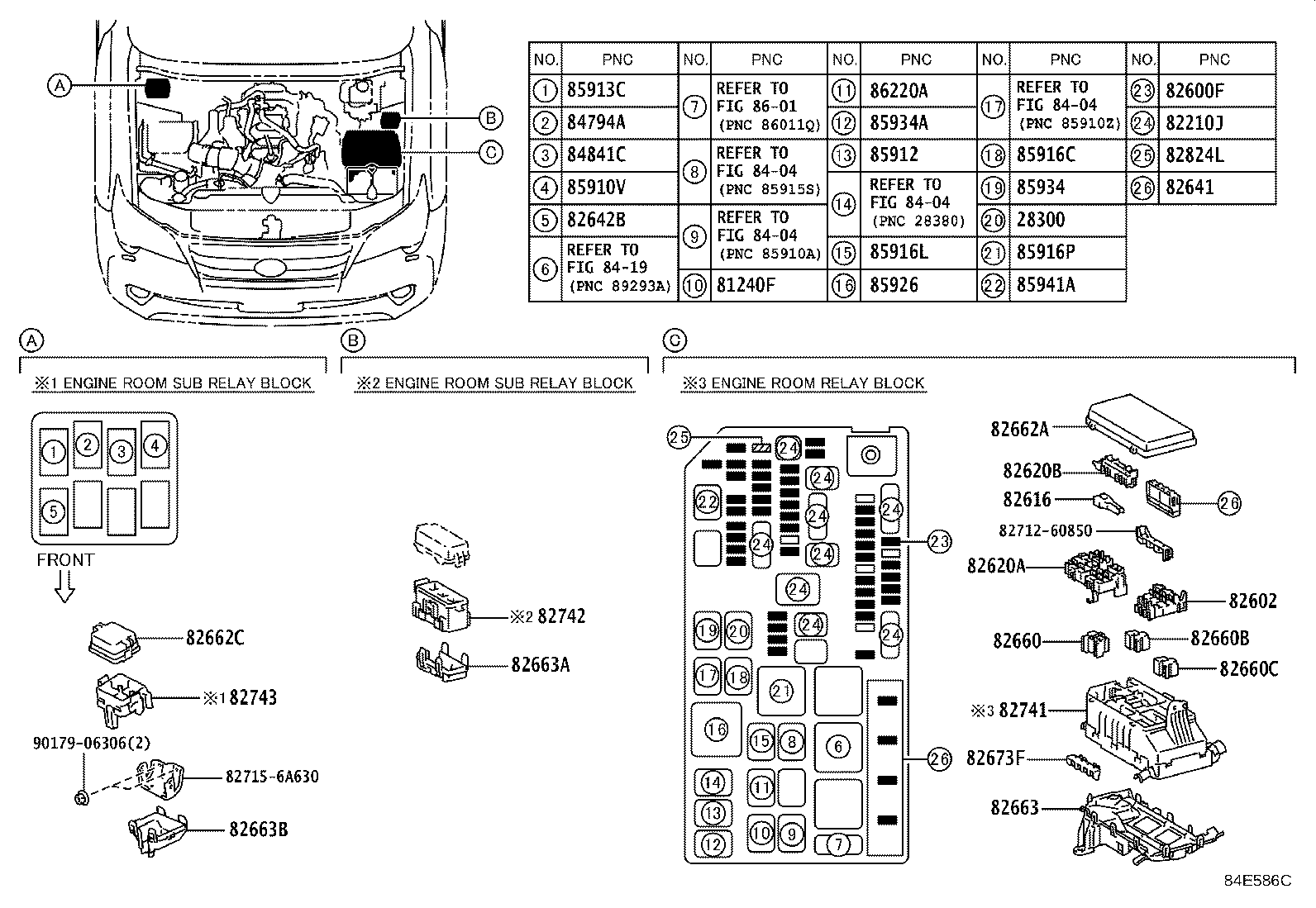

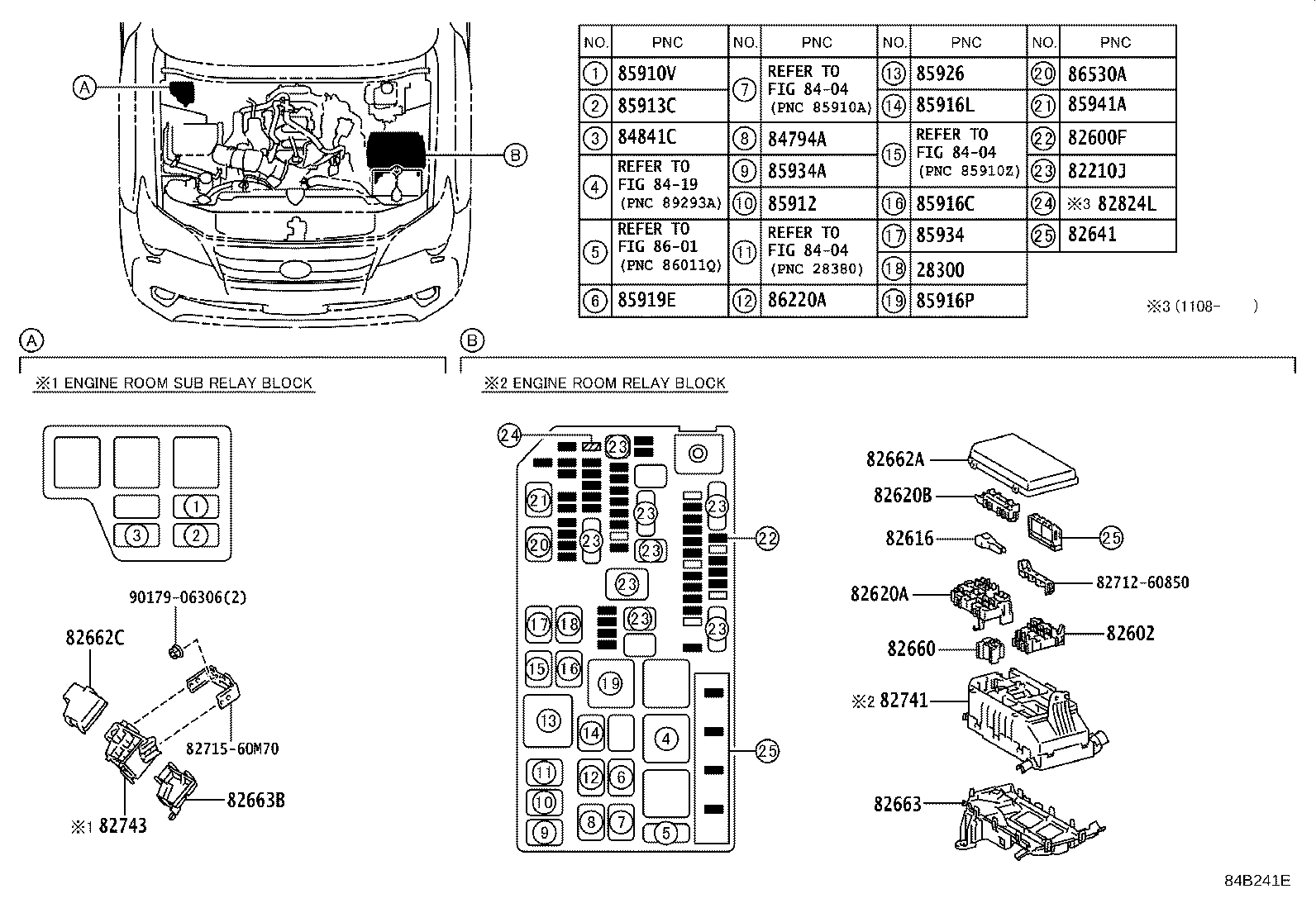

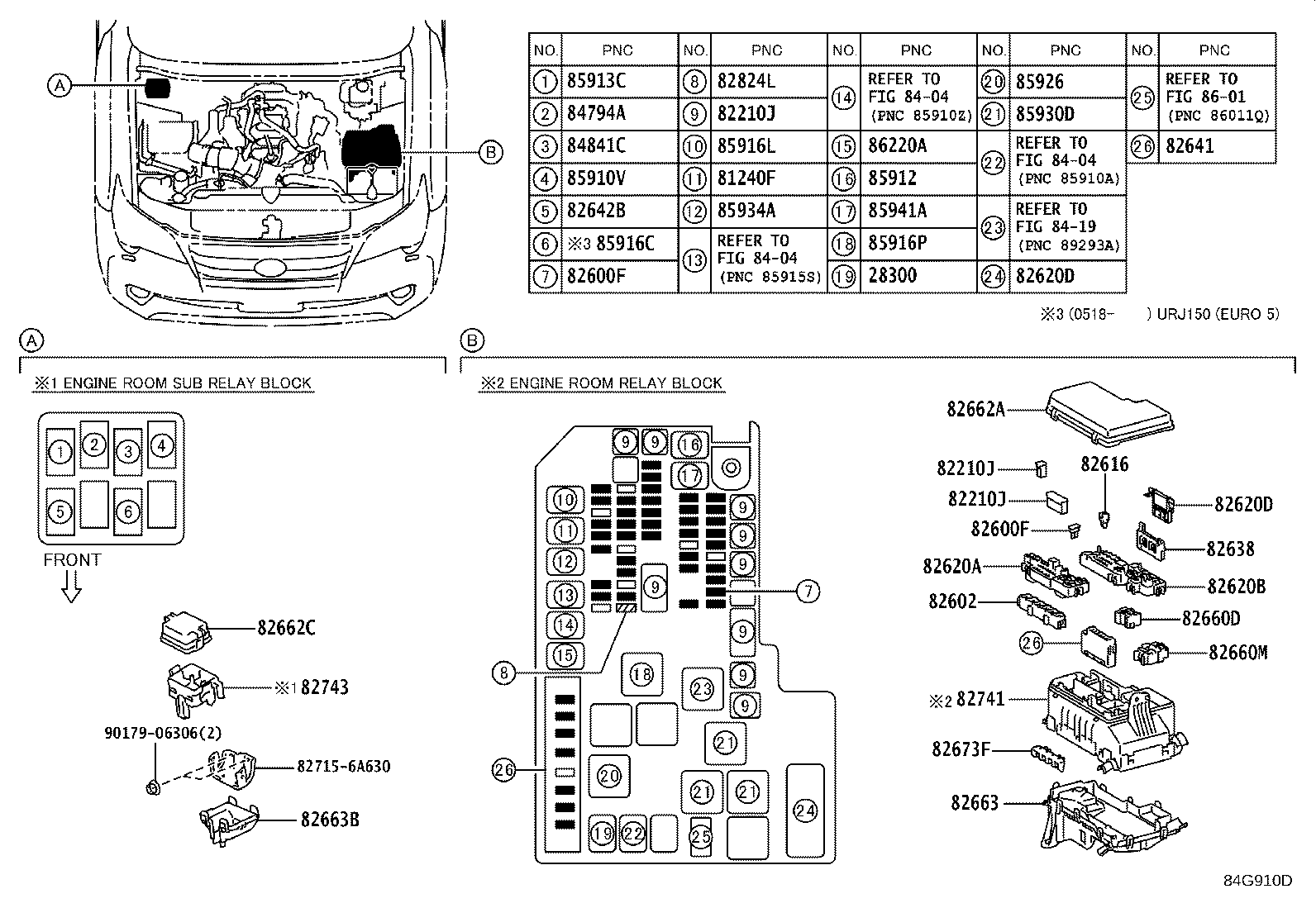

| 55936E | Switch, Center Cluster Module |
| 81240F | Relay, Dome Lamp |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82602 | Block Sub-assy, Relay |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82620D | Block Assy, Fusible Link |
| 82620E | Block Assy, Fusible Link |
| 82638 | Retainer, Relay Block |
| 82641 | Relay, Integration NO.1 |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82660 | Block Assy, Relay, Engine Room |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660M | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82672F | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673F | Bracket, Junction Block |
| 82715 | Bracket,Wiring Harness Clamp |

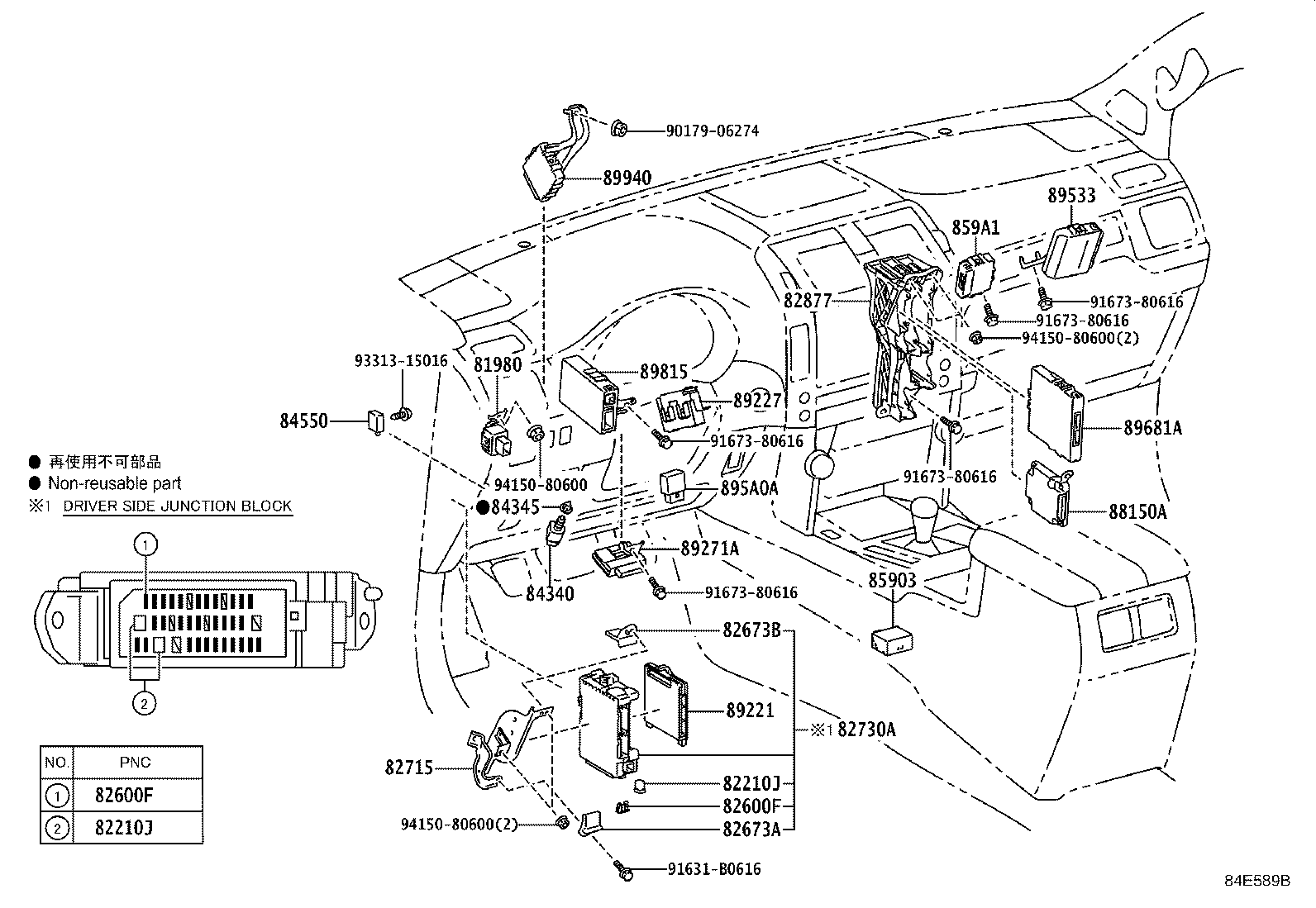

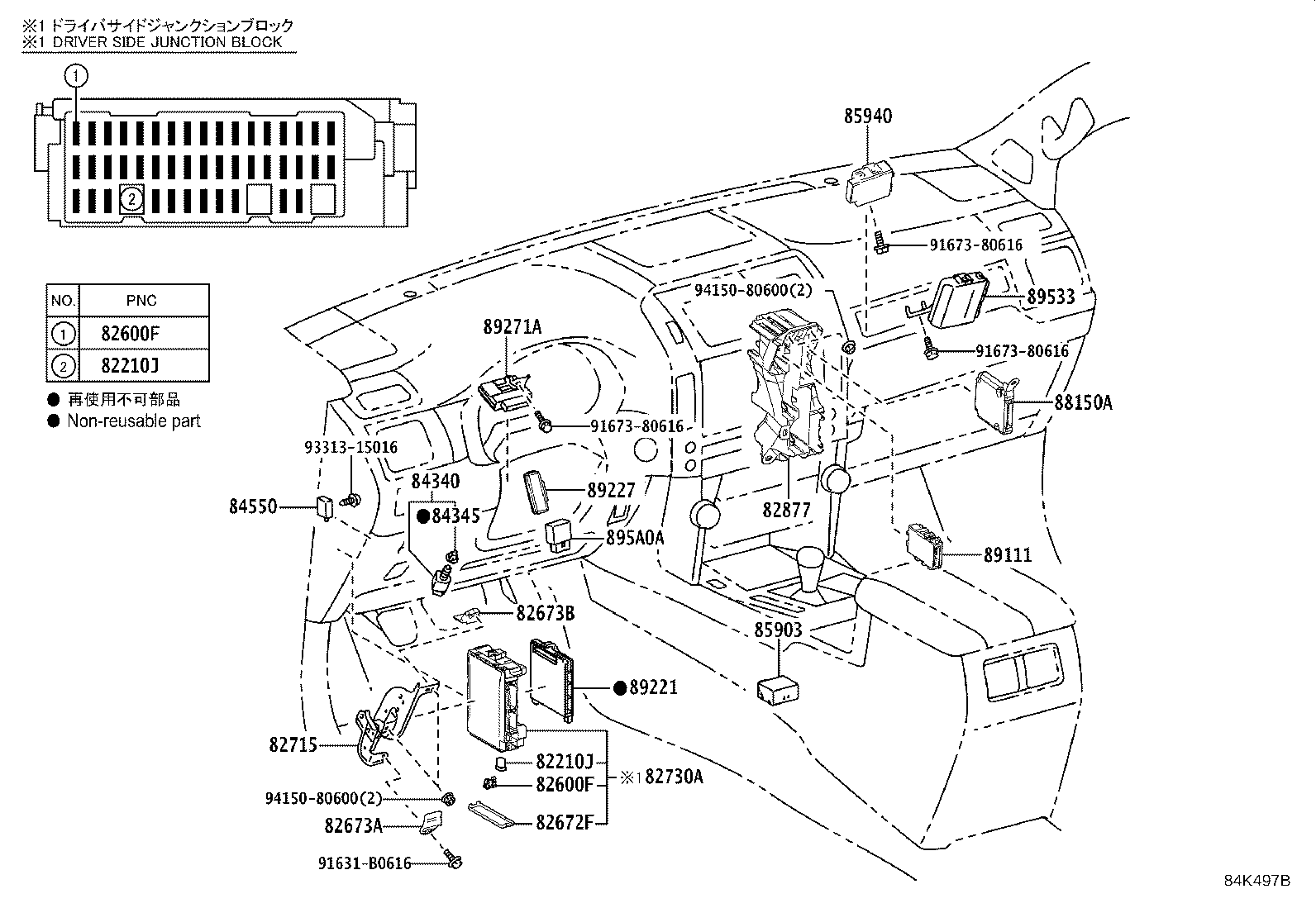

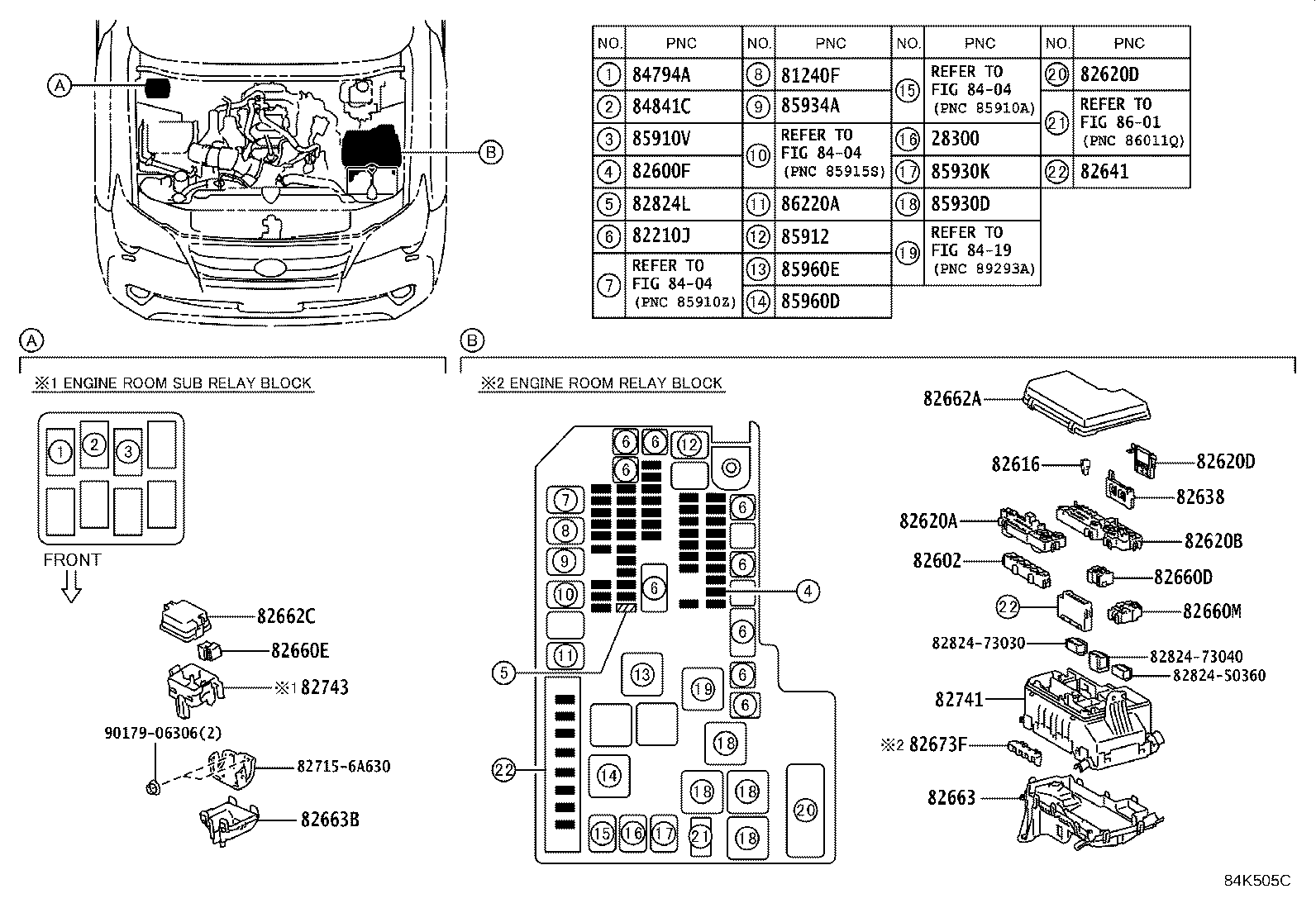

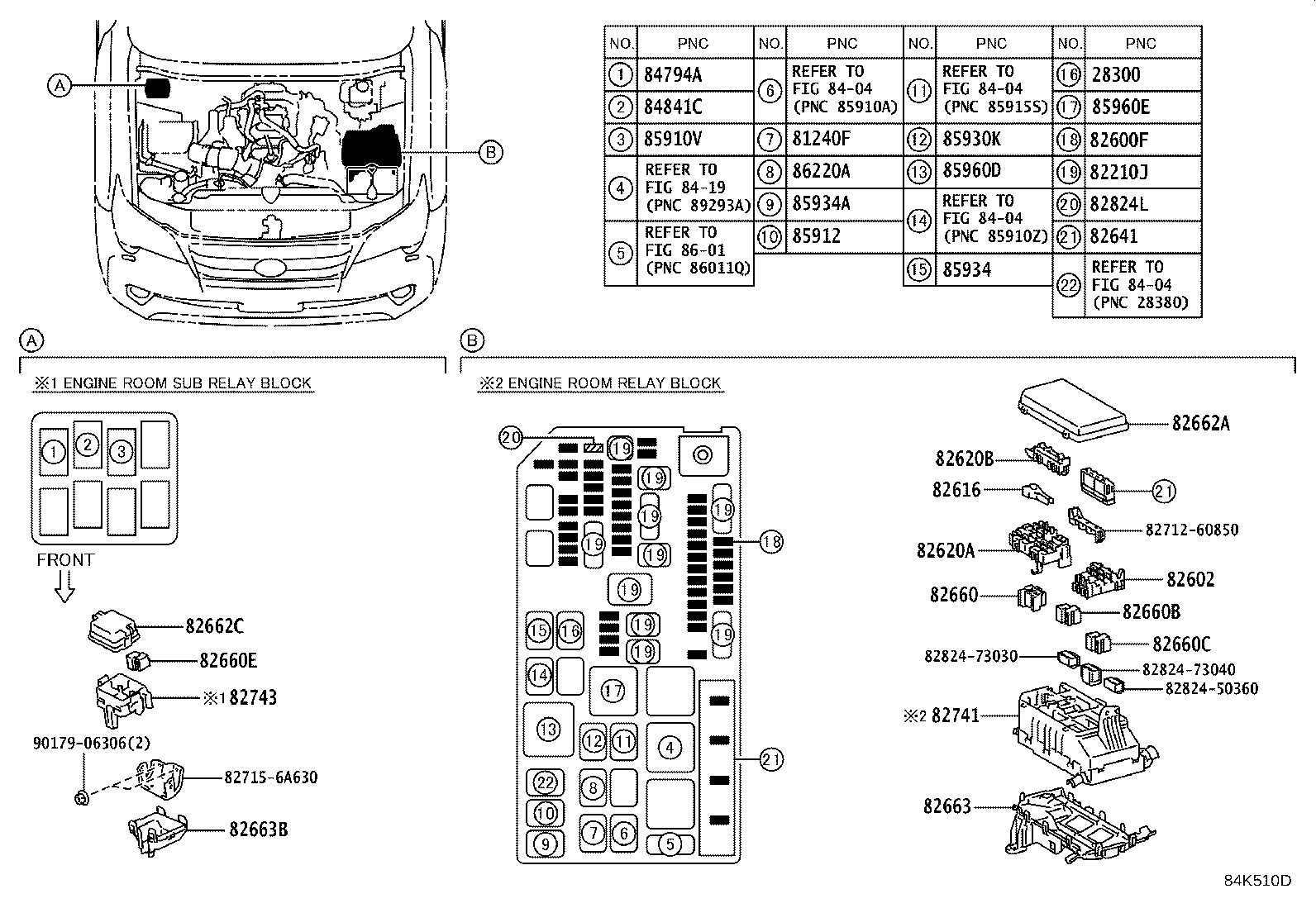

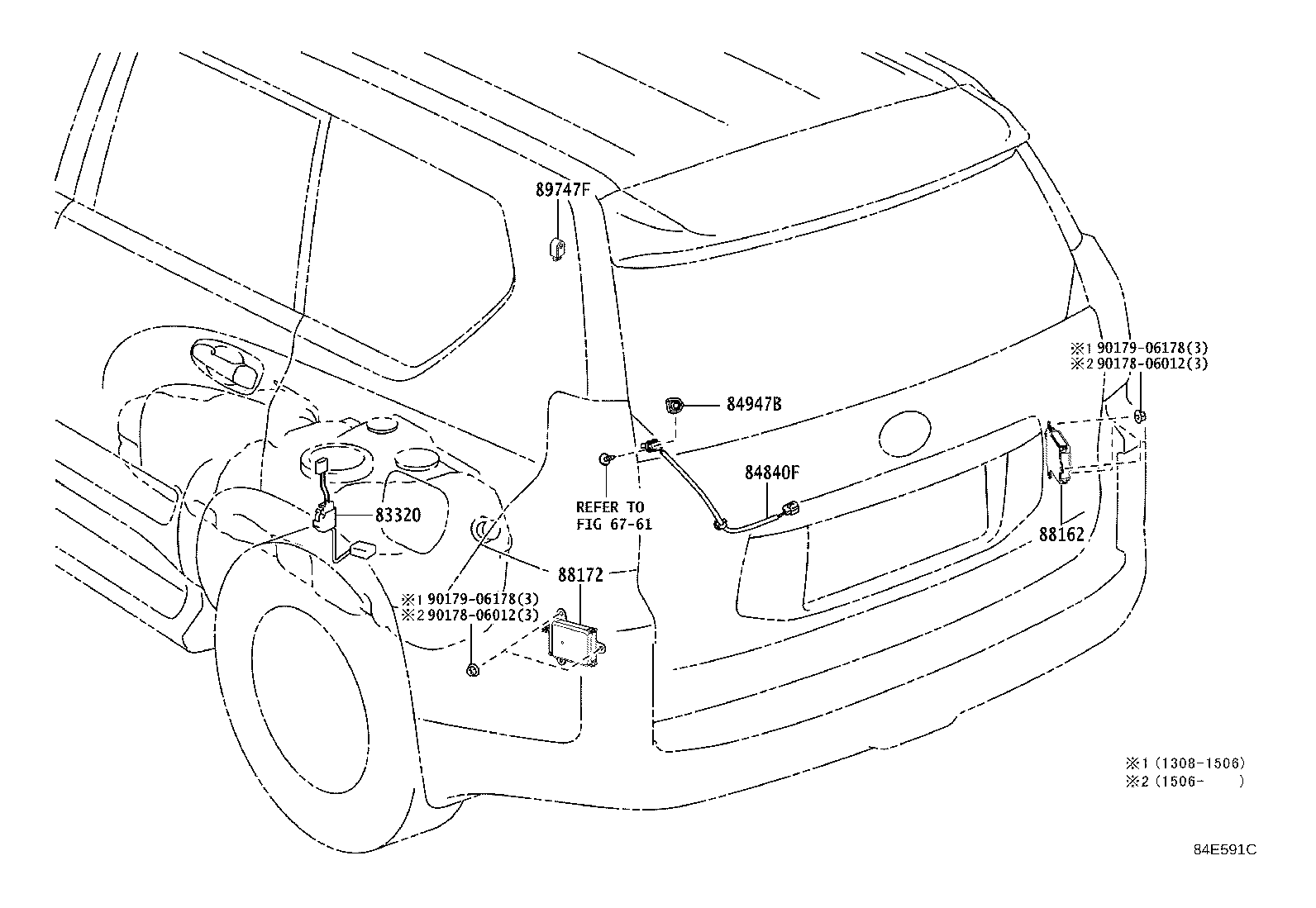

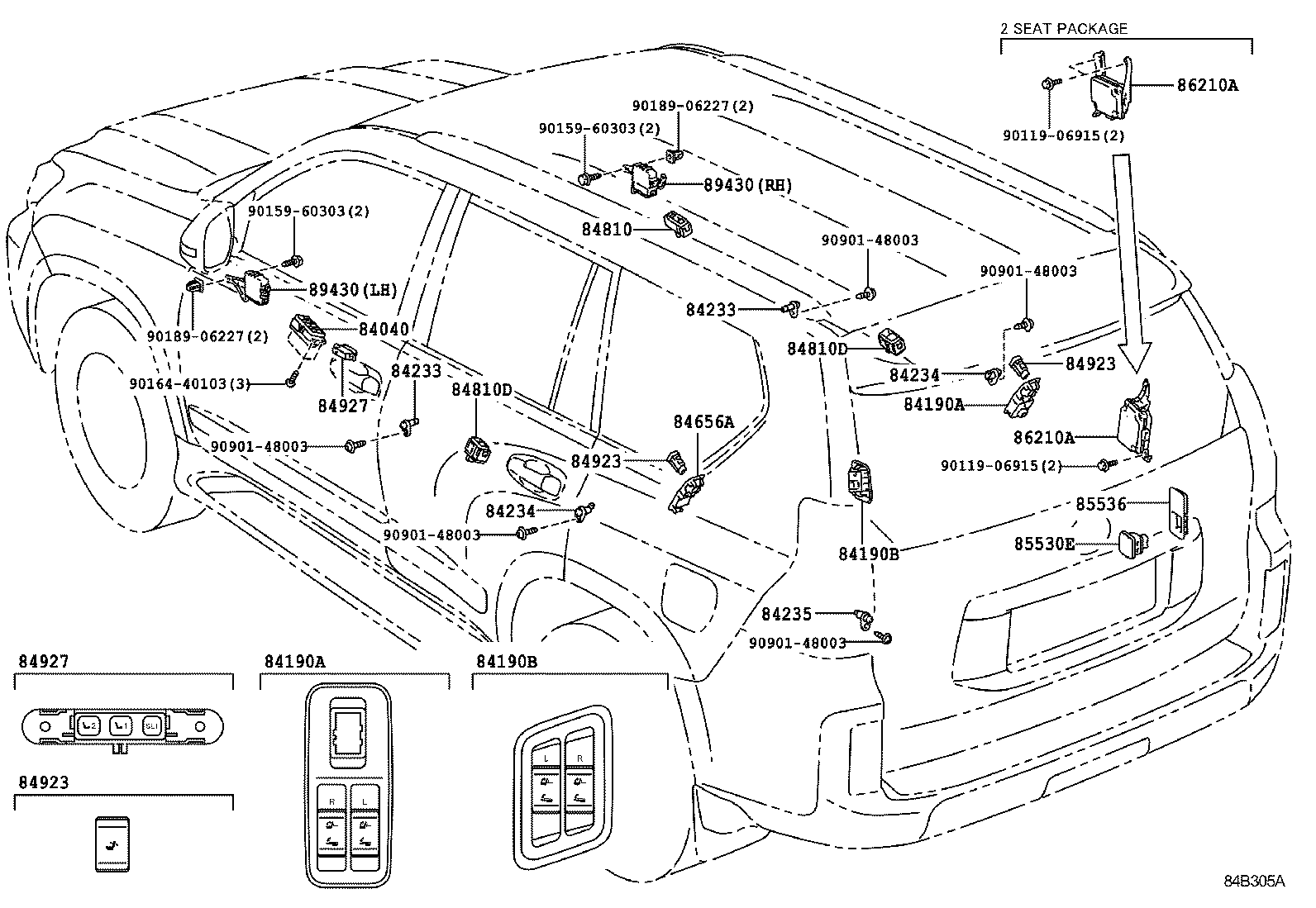

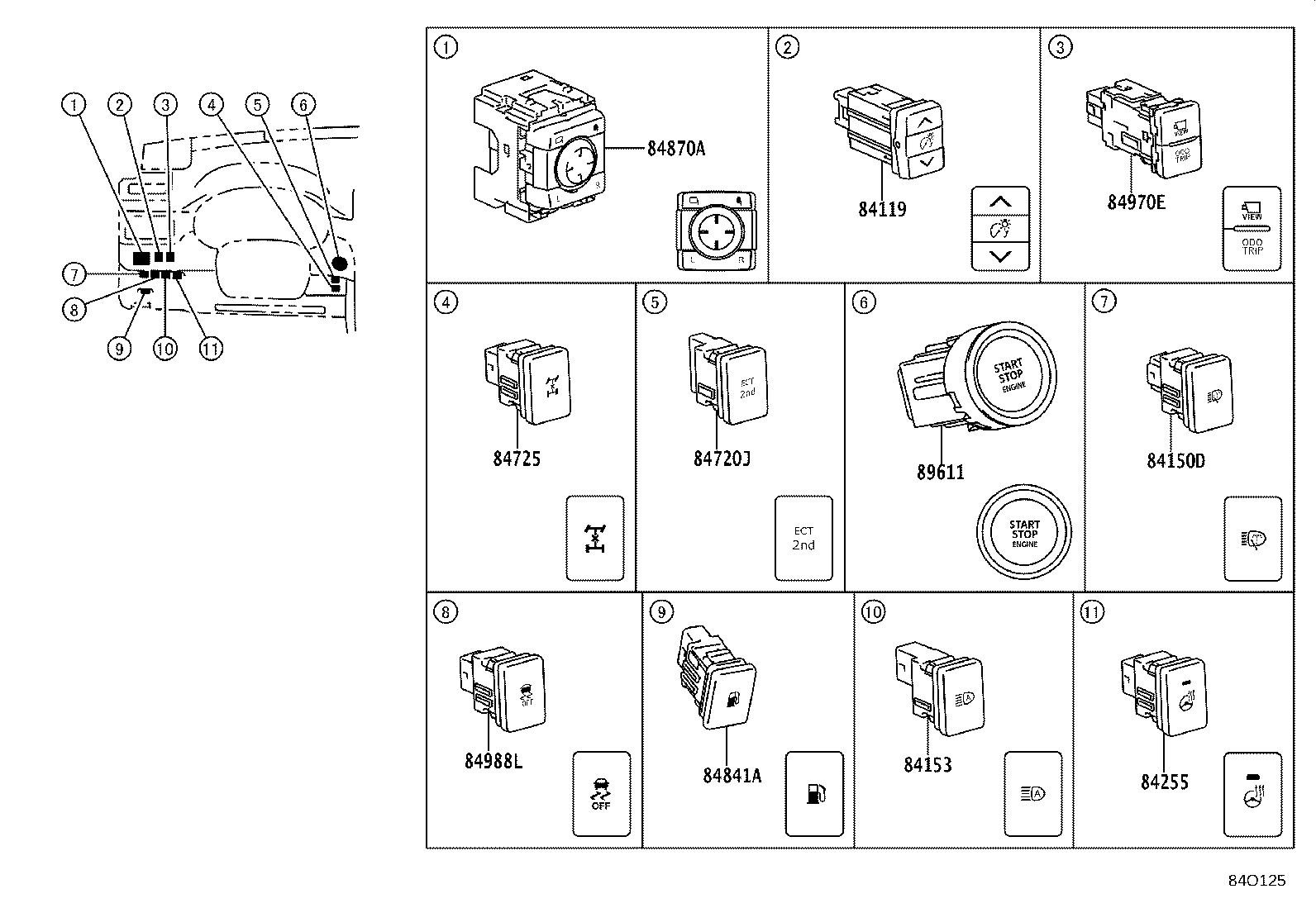

| 82730A | Block Assy, Driver Side Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82824L | Pin, Short |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 83910H | Lens, Clock |
| 84040 | Master Switch Assy,Multiplex Network |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84153 | Switch, Auto High Beam |
| 84190A | Switch Assy, Fold Seat, NO.1 |
| 84190B | Switch Assy, Fold Seat, NO.2 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84235 | Switch Assy, Courtesy Lamp(FOR BACK DOOR) |

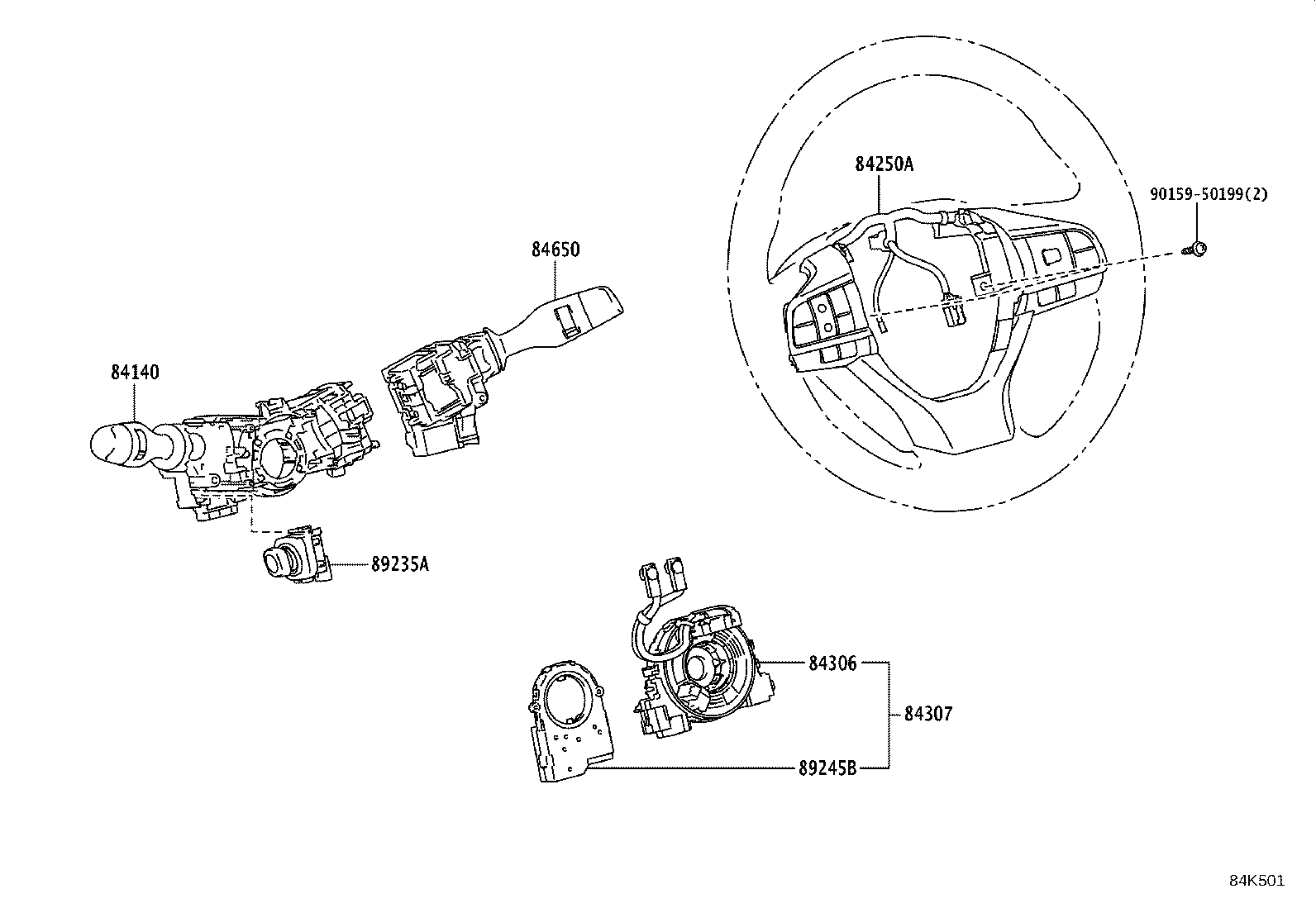

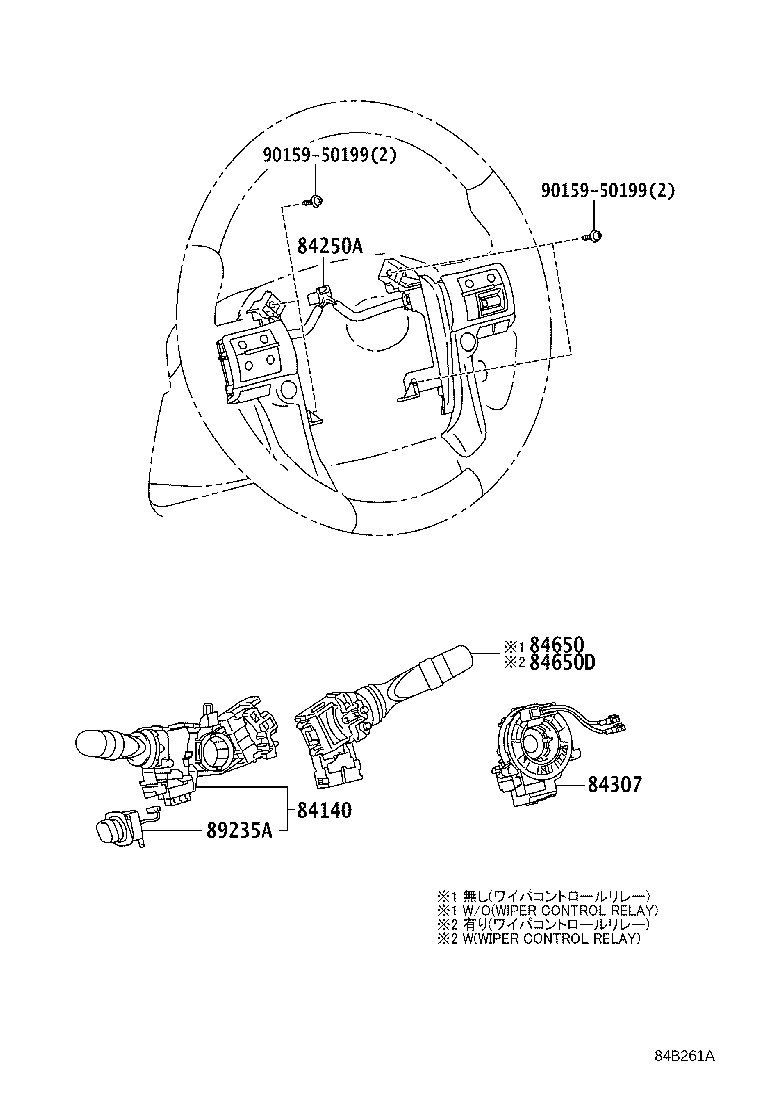

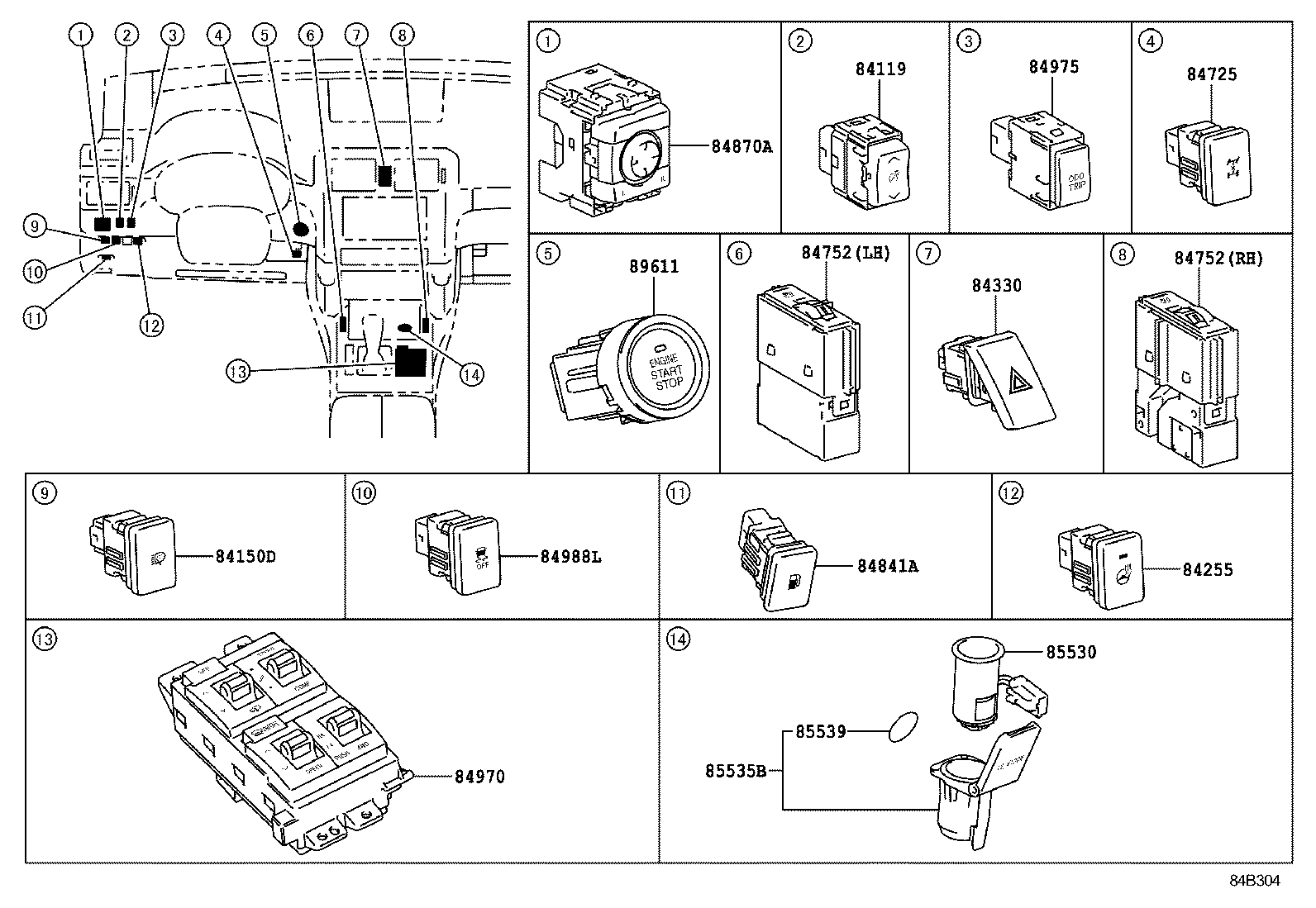

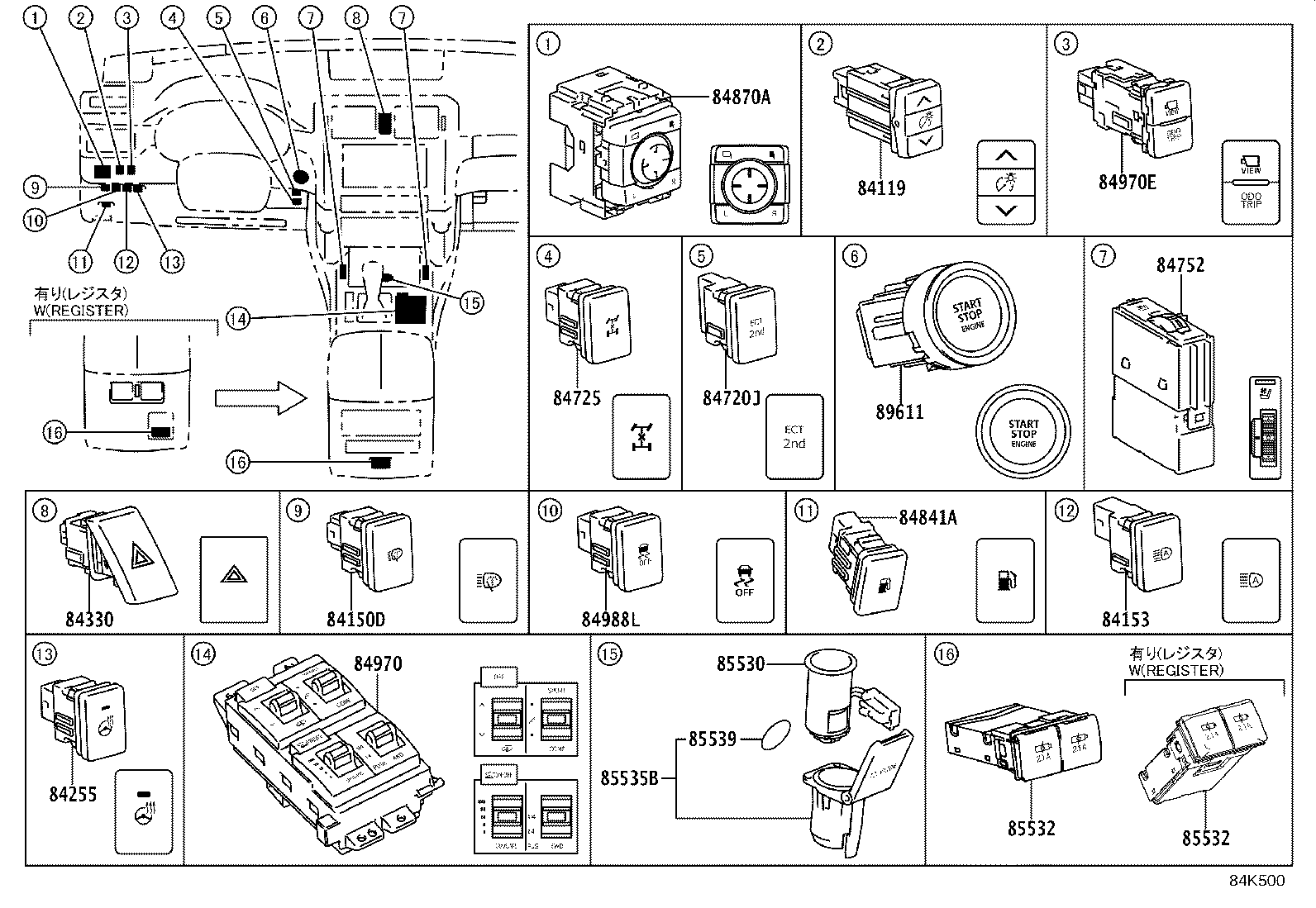

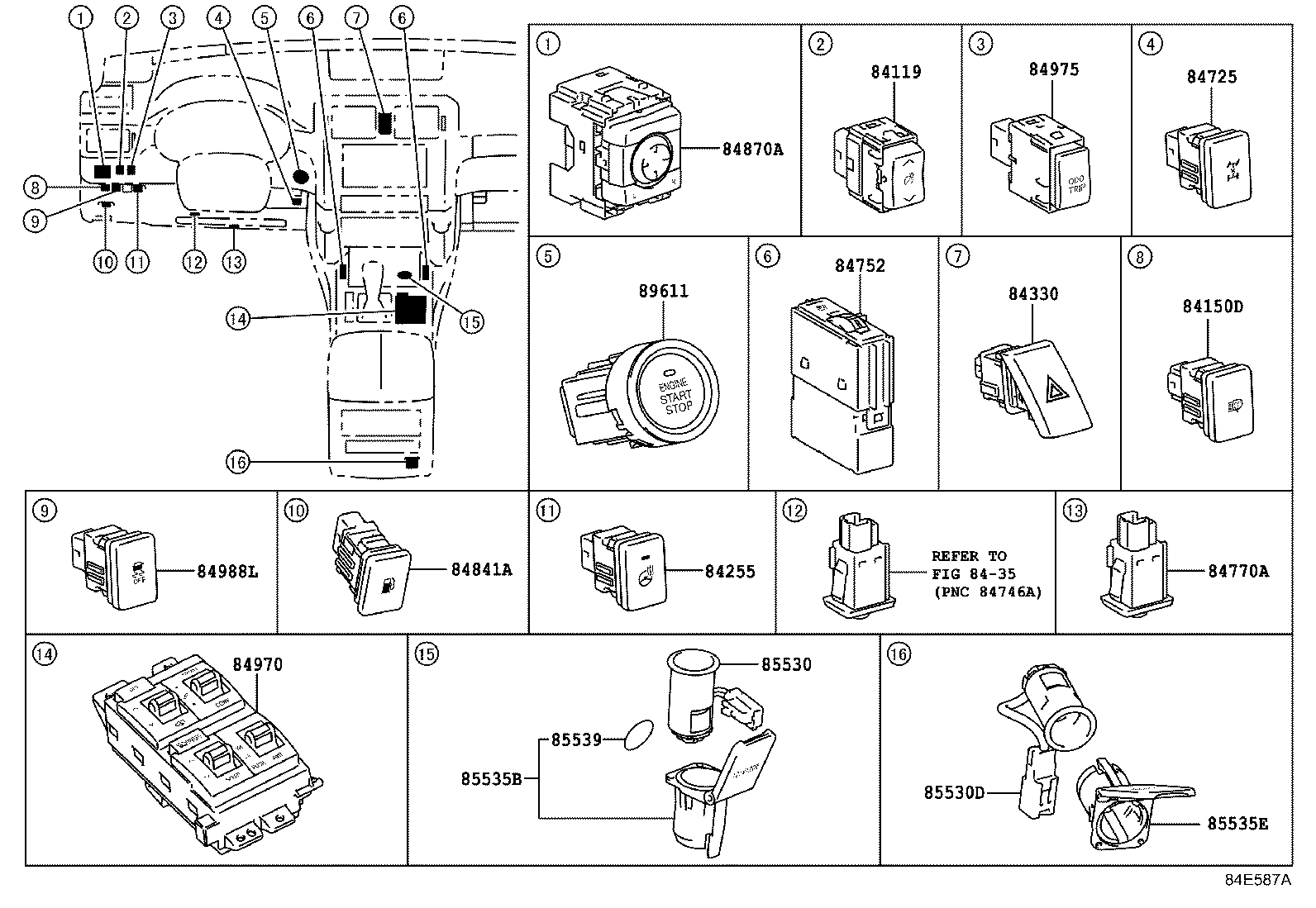

| 84250A | Switch Assy, Steering Pad |
| 84255 | Switch, Steering Heater |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84720J | Switch Assy, Pattern Select |
| 84725 | Switch, Center Differential Lock |
| 84752 | Switch, Refreshing Seat |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794A | Relay, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840F | Switch Assy, Glass Hatch Opener |
| 84841A | Switch, Fuel Lid Opener |
| 84841C | Relay, Fuel Lid Opener |
| 84870A | Switch Assy, Outer Mirror |

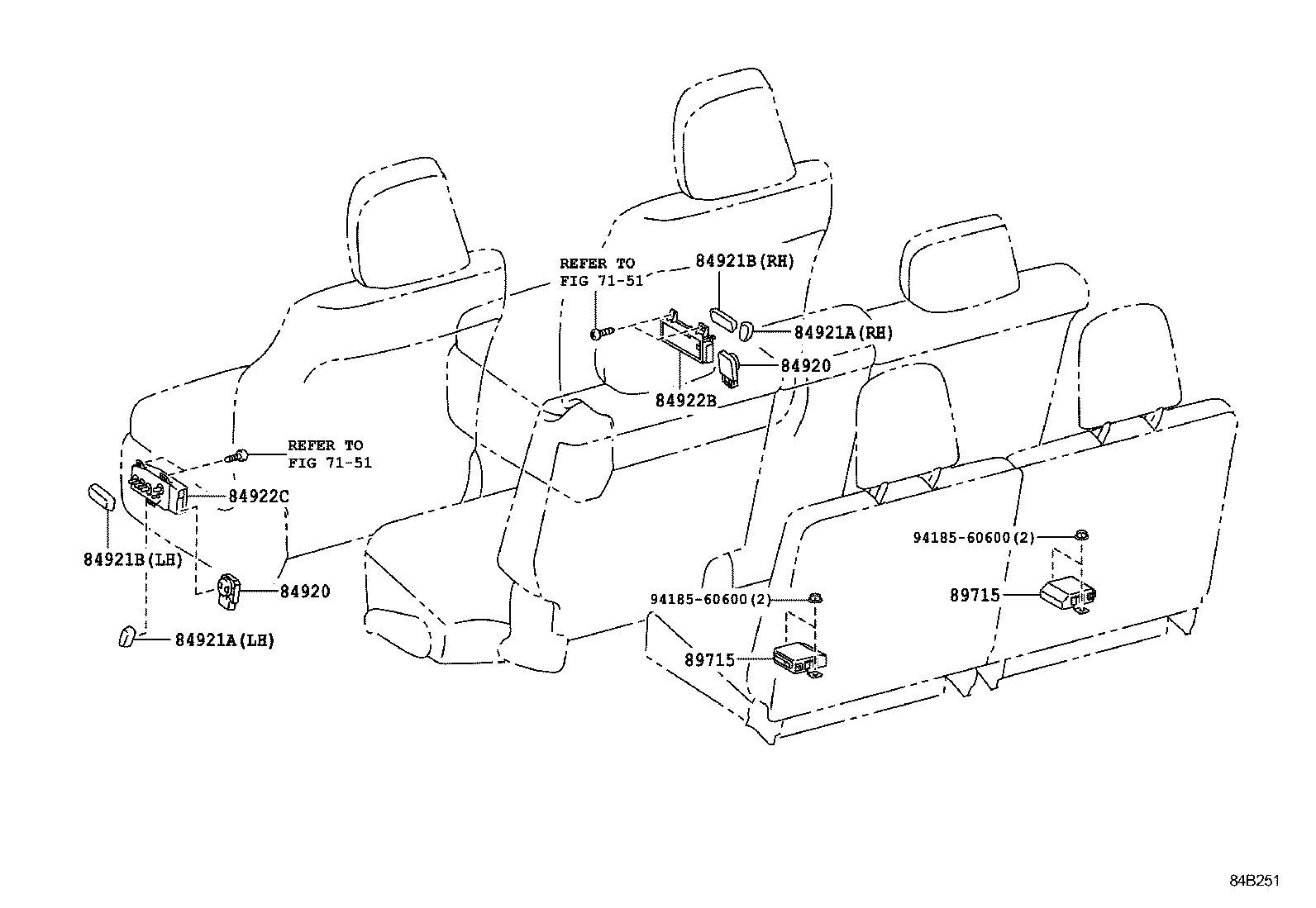

| 84920 | Switch Assy, Power Seat |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84923 | Switch, Rear Power Seat |
| 84927 | Switch, Seat Memory |
| 84947B | Cover, Switch |
| 84970 | Switch Assy, Combination |
| 84970E | Switch Assy, Combination NO.2 |
| 84975 | Switch, Trip |
| 84988L | Switch, Vsc Off |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85530E | Socket Assy, Power Outlet, NO.3 |
| 85532 | Socket, Usb Charger |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85536 | Bezel, Power Outlet Socket |
| 85539 | Label, Power Outlet Notice |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85910V | Relay, Seat Heater |
| 85912 | Relay, Defogger |
| 85913C | Relay, Heater, NO.1 |
| 85916C | Relay, Back UP Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916P | Relay, Headlamp |
| 85919E | Relay, Stop Lamp |
| 85926 | Relay, Headlamp Dimmer |
| 85930D | Relay |
| 85930K | Relay, Acc, NO.2 |
| 85934 | Relay, Magnet-clutch |
| 85934A | Relay Condenser Fan |
| 85940 | Relay Assy, Windshield Wiper |
| 85941A | Relay, Rear Windshield Washer |

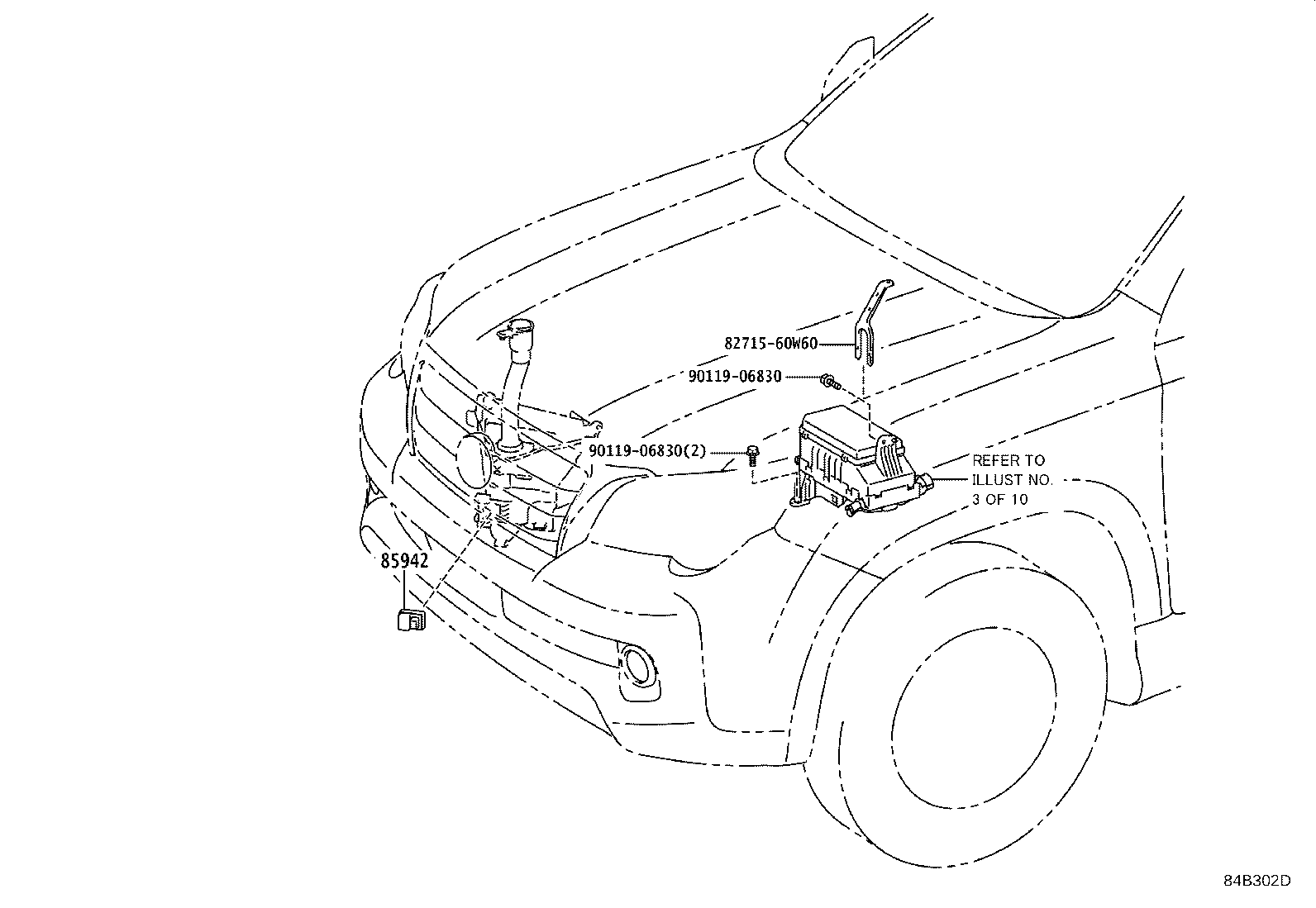

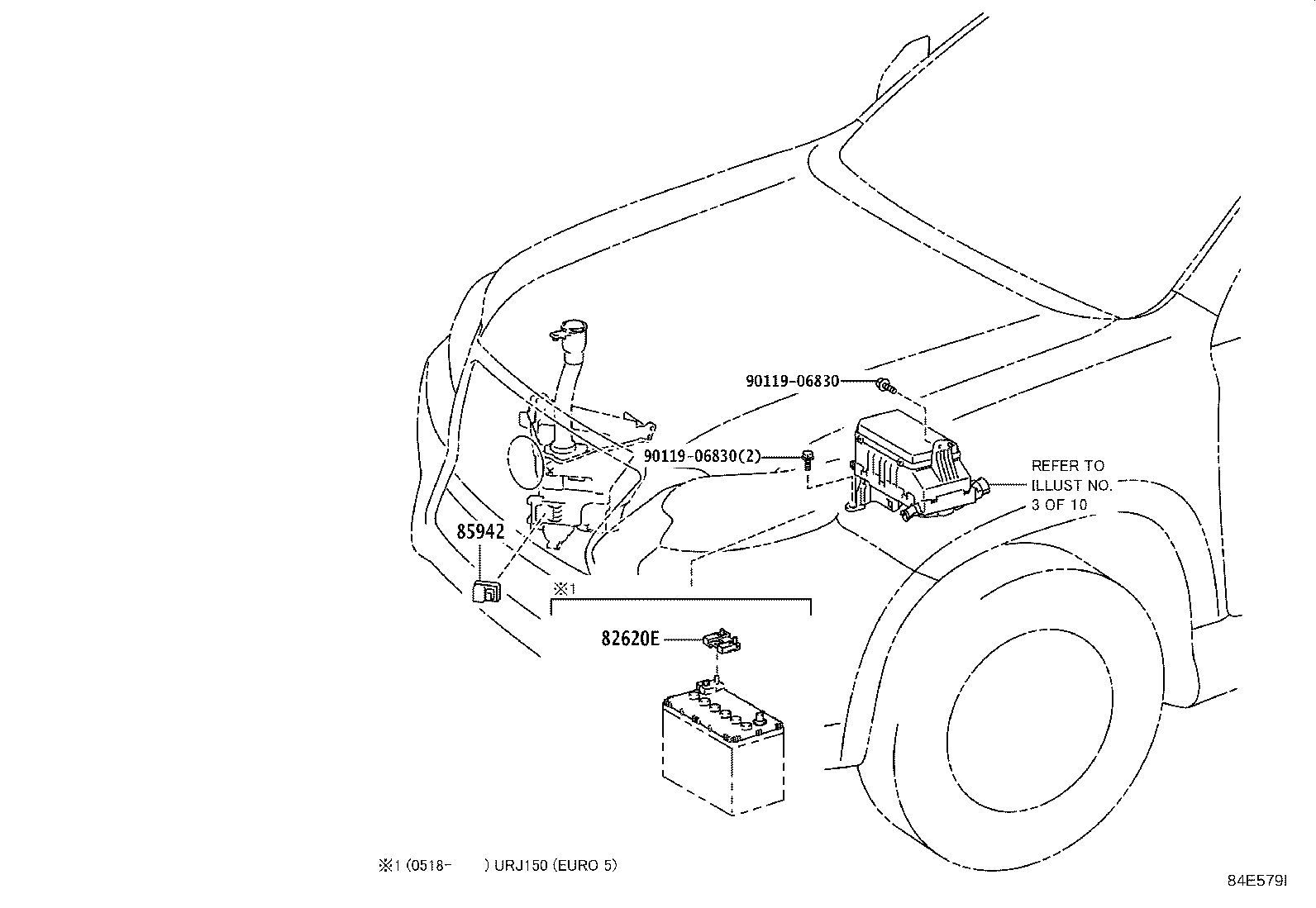

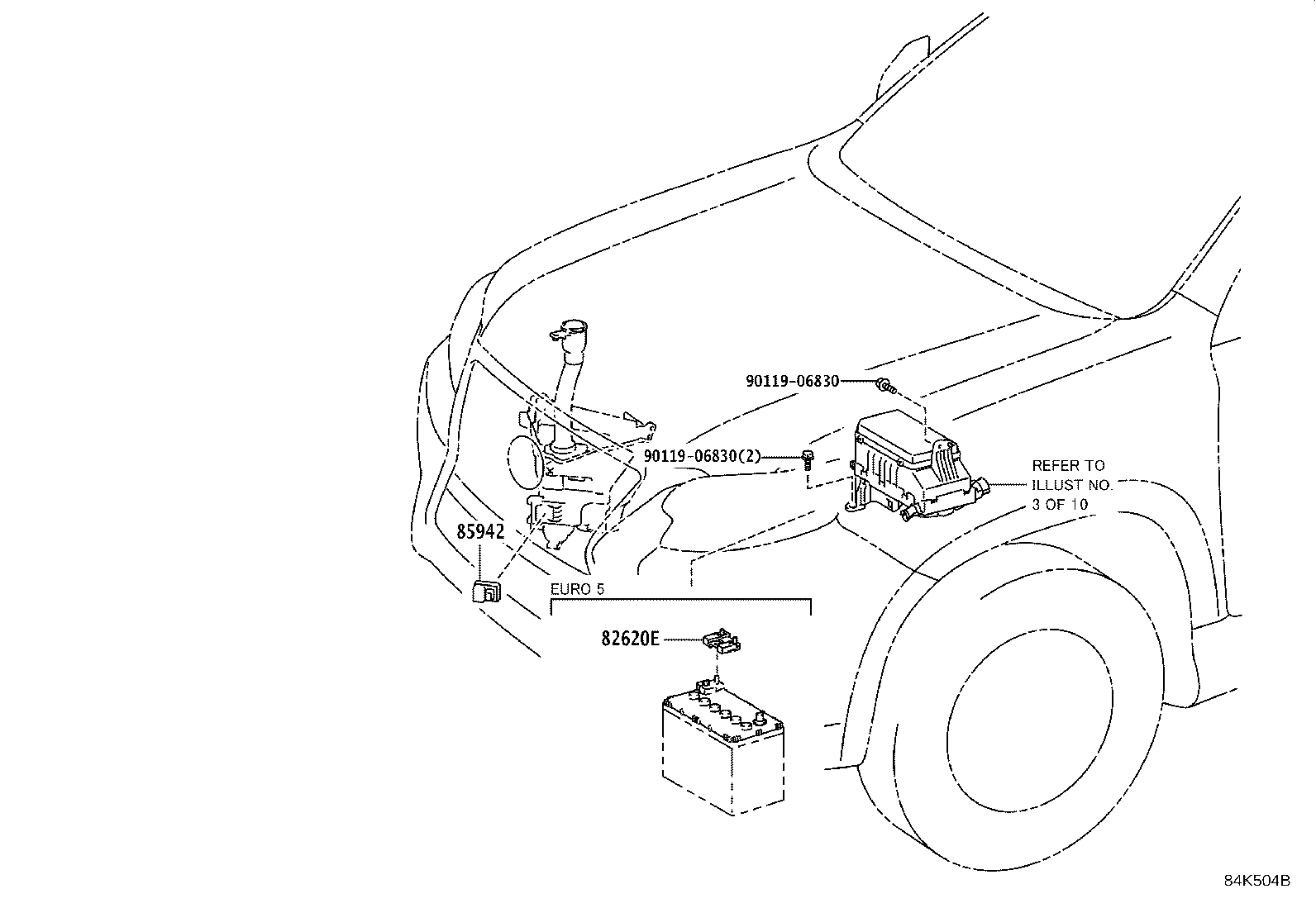

| 85942 | Relay, Headlamp Cleaner Control |
| 85960D | Relay, Headlamp, RH |
| 85960E | Relay, Headlamp, LH |
| 859A1 | Computer, Driving Support Switch Control |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 86530A | Relay, Horn |
| 88150A | Computer Assy, Driving Support |
| 88162 | Sensor, Blind Spot Monitor, RH |
| 88172 | Sensor, Blind Spot Monitor, LH |
| 89111 | Computer, Network Gateway |
| 89221 | Computer, Multiplex Network Body |
| 89227 | Computer, Multiplex Tilt & Telescopic |
| 89235A | Switch, Tilt & Telescopic |
| 89245B | Sensor, Steering |
| 89271A | Computer, Stabilizer Control |
| 89421B | Sensor, Vacuum |
| 89430 | Computer Assy, Outer Mirror Control |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89467B | Sensor, Air Fuel Ratio |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89533 | Computer, 4 Wheel Drive Control |
| 895A0 | Relay Assy, Stop Lamp Control |
| 895A0A | Computer Assy, Stop Lamp Control |
| 895A1 | Relay, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89681A | Computer, Power Management Control |
| 89715 | Computer, Fold Seat Control |
| 89747F | Buzzer, Blind Spot Monitor |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
