Toyota Lexus GX460
2009-11 → present · chassis URJ150 · catalogue 782510 · Europe
Supported model
Data version 2019-08
Air Bag
9 part groups · 2 illustrations

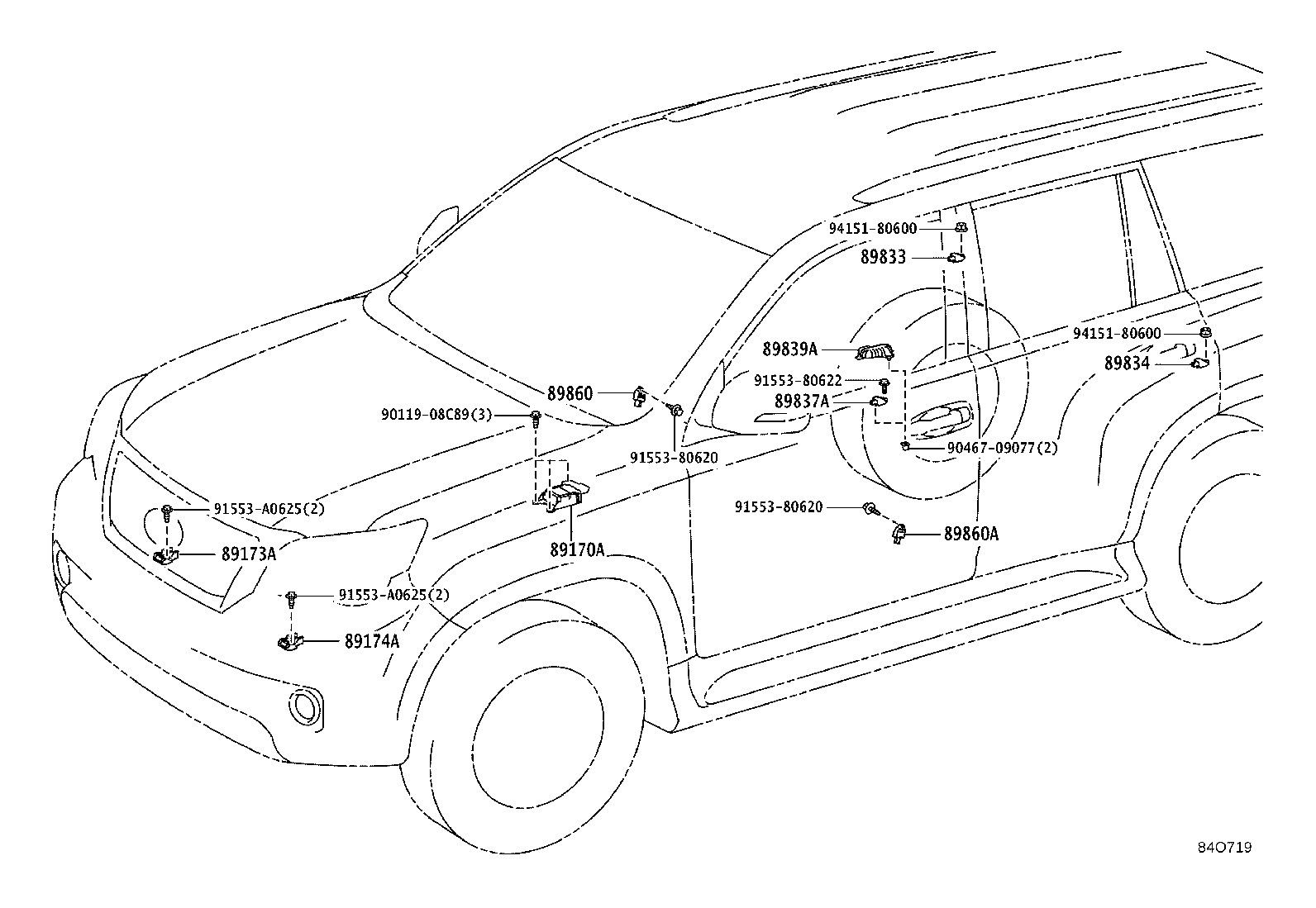

Part groups
| PNC | Description |
|---|---|
| 89170A | Computer Assy, Airbag |
| 89173A | Sensor, Airbag, Front RH |
| 89174A | Sensor, Airbag, Front LH |
| 89833 | Sensor, Airbag, Rear RH |
| 89834 | Sensor, Airbag, Rear LH |
| 89837A | Sensor, Rear Floor Side Airbag |
| 89839A | Cover, Rear Floor Side Airbag Sensor |
| 89860 | Sensor Assy, Side Airbag, RH |
| 89860A | Sensor Assy, Side Airbag, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
