Toyota Lexus GX460

2009-11 → present · chassis URJ150 · catalogue 782510 · Europe

Supported model Data version 2019-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

19 part groups · 3 illustrations

Illustrations

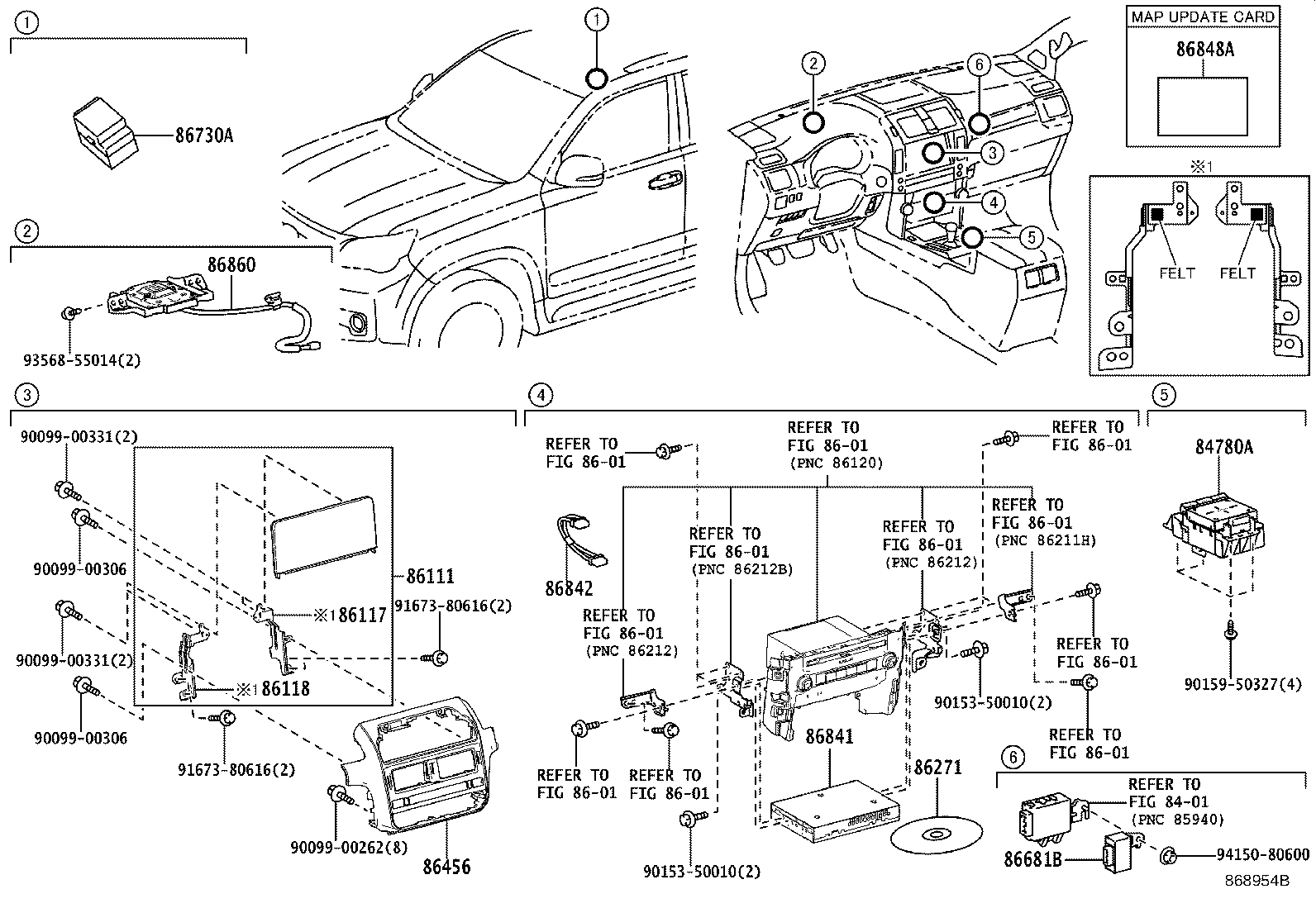

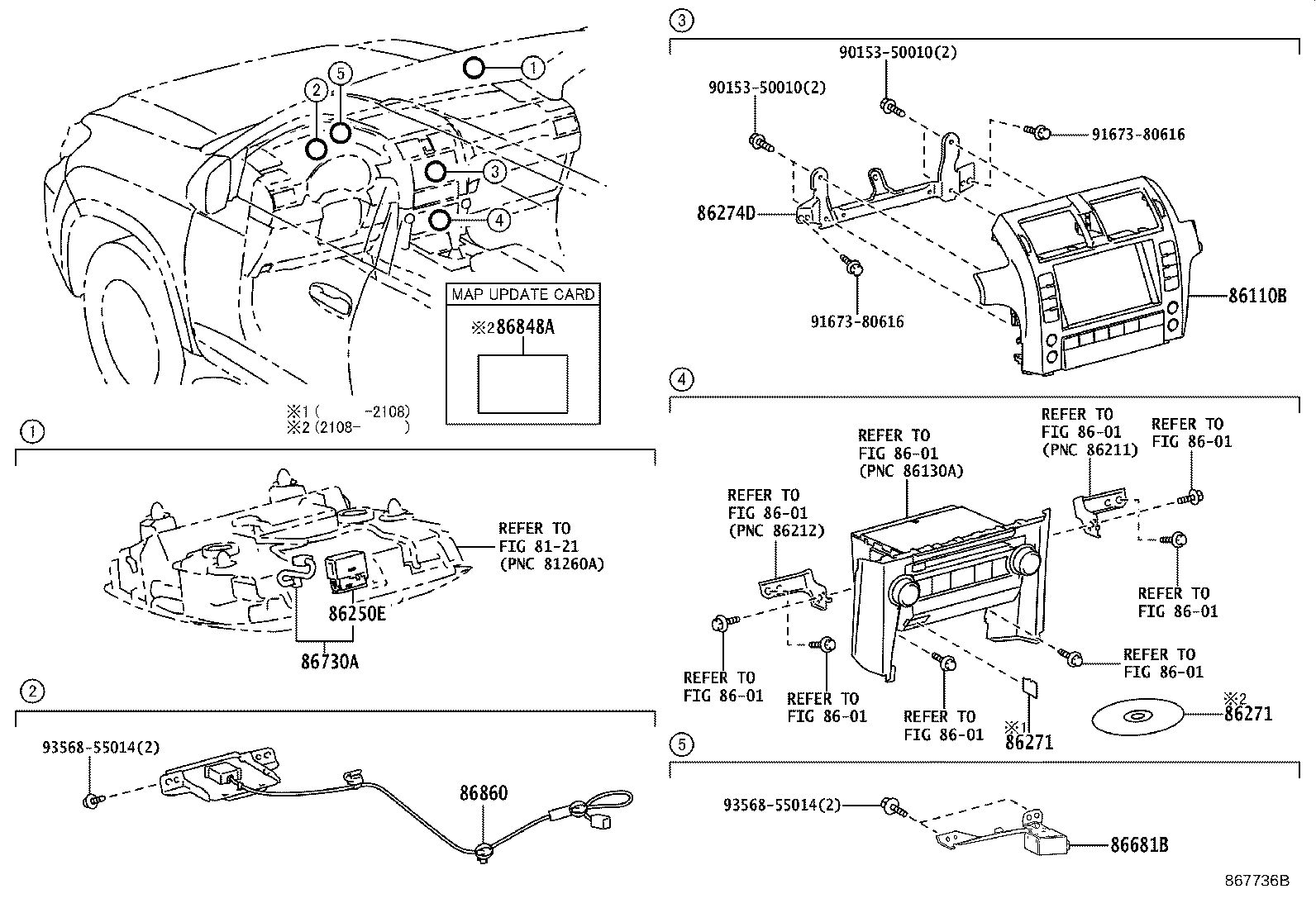

Figure 864158E 864158E 2009-11 → 2013-08 Figure 867736B 867736B 2013-08 → 2021-08 Figure 868954B 868954B 2021-08 → —

Part groups

PNCDescription
83290J Meter Assy, Accessory
84780A Controller Assy, Remote Operation
86110B Multi-display Assy
86111 Multi-display
86117 Bracket, Multi-display Controller, A
86118 Bracket, Multi-display Controler, B
86250E Microphone Assy, Amplifier
86271 Disc, Disc Player
86274D Bracket, Disc Player
86274F Bracket, Disc Player, NO.2
86431 Display, Display & Navigation Module
86456 Cover, Multi-media Module
86681B Divider, Antenna
86730A Microphone Assy, Telephone
86804 Cover Sub-assy, Navigation Computer
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86848A Card, Serial Number Map Update
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
