Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01

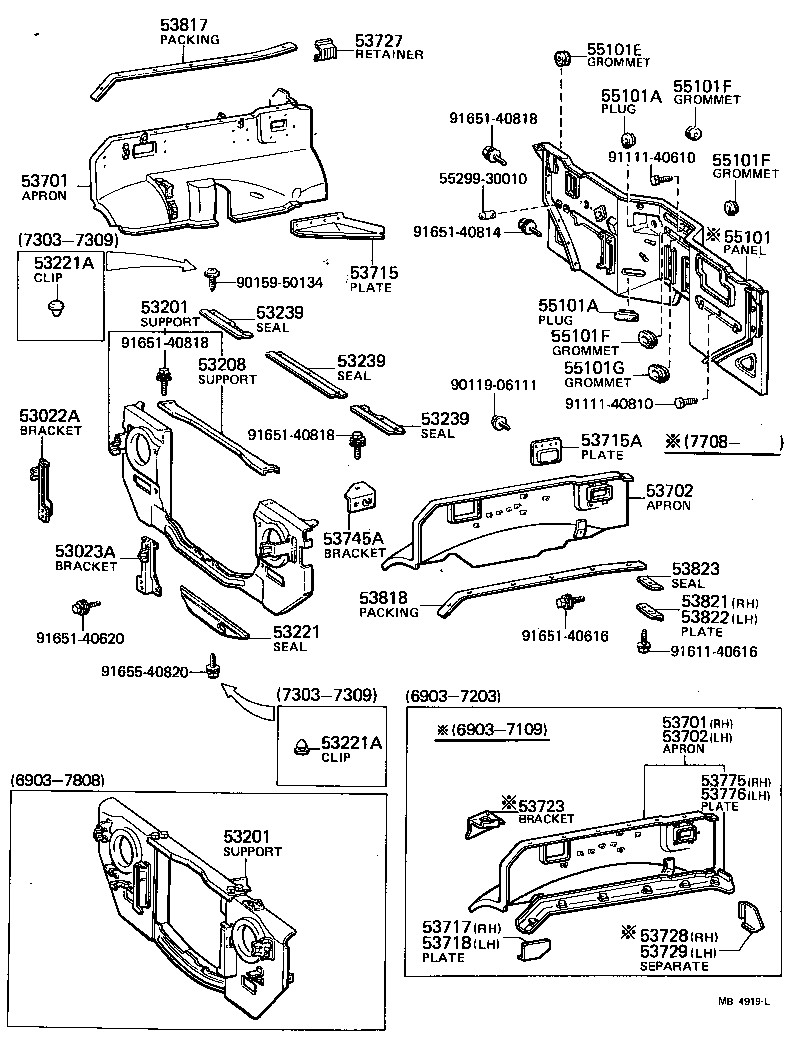

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53022A — Bracket Sub-assy,Radiator Grille Support, RH | ||||
| 53022-90351 |
Bracket Sub-assy,Radiator Grille Support, RH
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 53023A — Bracket Sub-assy, Radiator Grille Support, LH | ||||
| 53023-90351 |
Bracket Sub-assy, Radiator Grille Support, LH
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 53201 — Support Sub-assy, Radiator | ||||
| 53210-90353 |
Support Sub-assy, Radiator
1969-03 → 1972-01
ended
|
FJ55 | — | |
| 53210-90355 |
Support Sub-assy, Radiator
1972-01 → 1973-09
ended
|
FJ55 | — | |
| 53210-90357 |
Support Sub-assy, Radiator
1973-09 → 1975-01
ended
|
FJ55 | — | |
| 53210-90359 note |
Support Sub-assy, Radiator
1973-09 → 1975-01
ended
|
FJ55 | — | |
| 53210-90360 |
Support Sub-assy, Radiator
1975-01 → 1979-01
ended
|
FJ55 | — | |
| 53210-90362 note |
Support Sub-assy, Radiator
1975-01 → 1979-01
ended
|
FJ55 | — | |
| 53210-90365 |
Support Sub-assy, Radiator
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 53210-90367 note |
Support Sub-assy, Radiator
1979-01 → 1980-07
ended
|
FJ55 ARL,GEN | — | |
| 53208 — Support Sub-assy, Radiator Grille, Center | ||||
| 53208-90355 |
Support Sub-assy, Radiator Grille, Center
1978-08 → 1979-01
ended
|
FJ55 | — | |
| 53208-90356 |
Support Sub-assy, Radiator Grille, Center
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 53221 — Seal, Member Front Body Mounting TO Front Frame | ||||
| 53026-90351 |
Seal, Member Front Body Mounting TO Front Frame
1978-05 → 1980-07
ended
|
FJ55 | — | |
| 53255-90351 |
Seal, Member Front Body Mounting TO Front Frame
1973-03 → 1978-05
ended
|
FJ55 | — | |
| 53221A — Clip(FOR MEMBER FRONT BODY MOUNTING TO FRONT FRAME SEAL) | ||||
| 53256-90351 |
Clip(FOR MEMBER FRONT BODY MOUNTING TO FRONT FRAME SEAL)
1973-03 → 1973-09
ended
|
FJ55 | — | |
| 53239 — Seal, Radiator & Front Fender Apron | ||||
| 53252-90351 note |
Seal, Radiator & Front Fender Apron
1973-03 → 1979-01
ended
|
FJ55 | — | |
| 53252-90352 note |
Seal, Radiator & Front Fender Apron
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 53253-90351 note |
Seal, Radiator & Front Fender Apron
1973-03 → 1978-02
ended
|
FJ55 | — | |
| 53253-90351 note |
Seal, Radiator & Front Fender Apron
1978-02 → 1979-01
ended
|
FJ55 LHD | — | |
| 53253-90351 note |
Seal, Radiator & Front Fender Apron
1978-04 → 1979-01
ended
|
FJ55 RHD | — | |
| 53253-90352 note |
Seal, Radiator & Front Fender Apron
1978-02 → 1979-01
ended
|
FJ55 RHD | — | |
| 53253-90353 note |
Seal, Radiator & Front Fender Apron
1979-01 → 1980-07
ended
|
FJ55 RHD | — | |
| 53253-90354 note |
Seal, Radiator & Front Fender Apron
1979-01 → 1980-07
ended
|
FJ55 LHD | — | |
| 53253-90354 note |
Seal, Radiator & Front Fender Apron
1979-01 → 1980-07
ended
|
FJ55 RHD 4F VKC +1 | — | |
| 53254-90351 note |
Seal, Radiator & Front Fender Apron
1973-03 → 1980-07
ended
|
FJ55 | — | |
| 53701 — Apron Sub-assy, Front Fender, RH | ||||
| 53701-90357 |
Apron Sub-assy, Front Fender, RH
1972-04 → 1973-05
ended
|
FJ55 RHD | — | |
| 53701-90358 |
Apron Sub-assy, Front Fender, RH
1972-04 → 1973-02
ended
|
FJ55 LHD | — | |
| 53701-90359 note |
Apron Sub-assy, Front Fender, RH
1972-04 → 1973-05
ended
|
FJ55 RHD | — | |
| 53701-90360 note |
Apron Sub-assy, Front Fender, RH
1972-04 → 1973-02
ended
|
FJ55 LHD | — | |
| 53701-90361 |
Apron Sub-assy, Front Fender, RH
1973-02 → 1973-05
ended
|
FJ55 LHD | — | |
| 53701-90362 note |
Apron Sub-assy, Front Fender, RH
1973-02 → 1973-05
ended
|
FJ55 LHD | — | |
| 53701-90363 |
Apron Sub-assy, Front Fender, RH
1973-05 → 1973-09
ended
|
FJ55 RHD | — | |
| 53701-90364 |
Apron Sub-assy, Front Fender, RH
1973-05 → 1973-09
ended
|
FJ55 LHD | — | |
| 53701-90365 note |
Apron Sub-assy, Front Fender, RH
1973-05 → 1973-09
ended
|
FJ55 LHD | — | |
| 53701-90366 note |
Apron Sub-assy, Front Fender, RH
1973-05 → 1973-09
ended
|
FJ55 RHD | — | |
| 53701-90369 |
Apron Sub-assy, Front Fender, RH
1973-09 → 1975-01
ended
|
FJ55 RHD | — | |
| 53701-90370 |
Apron Sub-assy, Front Fender, RH
1973-09 → 1975-01
ended
|
FJ55 LHD | — | |
| 53701-90373 |
Apron Sub-assy, Front Fender, RH
1975-01 → 1977-09
ended
|
FJ55 RHD | — | |
| 53701-90374 |
Apron Sub-assy, Front Fender, RH
1975-01 → 1976-12
ended
|
FJ55 LHD | — | |
| 53701-90376 |
Apron Sub-assy, Front Fender, RH
1976-12 → 1977-09
ended
|
FJ55 LHD | — | |
| 53701-90380 |
Apron Sub-assy, Front Fender, RH
1977-09 → 1980-07
ended
|
FJ55 RHD | — | |
| 53701-90381 |
Apron Sub-assy, Front Fender, RH
1977-09 → 1980-07
ended
|
FJ55 LHD | — | |
| 53711-90903 |
Apron Sub-assy, Front Fender, RH
1969-03 → 1969-10
ended
|
FJ55 RHD | — | |
| 53711-90904 |
Apron Sub-assy, Front Fender, RH
1969-03 → 1971-09
ended
|
FJ55 LHD | — | |
| 53711-90907 |
Apron Sub-assy, Front Fender, RH
1969-10 → 1971-09
ended
|
FJ55 RHD | — | |
| 53711-90909 note |
Apron Sub-assy, Front Fender, RH
1969-10 → 1971-09
ended
|
FJ55 RHD | — | |
| 53711-90910 note |
Apron Sub-assy, Front Fender, RH
1969-10 → 1971-09
ended
|
FJ55 LHD | — | |
| 53711-90911 |
Apron Sub-assy, Front Fender, RH
1971-09 → 1972-03
ended
|
FJ55 RHD | — | |
| 53711-90912 |
Apron Sub-assy, Front Fender, RH
1971-09 → 1972-03
ended
|
FJ55 LHD | — | |
| 53711-90913 note |
Apron Sub-assy, Front Fender, RH
1971-09 → 1972-03
ended
|
FJ55 RHD | — | |
| 53711-90914 note |
Apron Sub-assy, Front Fender, RH
1971-09 → 1972-03
ended
|
FJ55 LHD | — | |
| 53702 — Apron Sub-assy, Front Fender, LH | ||||
| 53702-90355 |
Apron Sub-assy, Front Fender, LH
1972-04 → 1973-01
ended
|
FJ55 RHD | — | |
| 53702-90356 |
Apron Sub-assy, Front Fender, LH
1972-04 → 1973-05
ended
|
FJ55 LHD | — | |
| 53702-90358 |
Apron Sub-assy, Front Fender, LH
1973-01 → 1973-05
ended
|
FJ55 RHD | — | |
| 53702-90359 |
Apron Sub-assy, Front Fender, LH
1973-05 → 1973-09
ended
|
FJ55 RHD | — | |
| 53702-90360 |
Apron Sub-assy, Front Fender, LH
1973-05 → 1973-09
ended
|
FJ55 LHD | — | |
| 53702-90364 |
Apron Sub-assy, Front Fender, LH
1973-09 → 1975-01
ended
|
FJ55 LHD | — | |
| 53702-90365 |
Apron Sub-assy, Front Fender, LH
1973-09 → 1975-01
ended
|
FJ55 RHD | — | |
| 53702-90366 |
Apron Sub-assy, Front Fender, LH
1975-01 → 1975-11
ended
|
FJ55 RHD GEN | — | |
| 53702-90366 |
Apron Sub-assy, Front Fender, LH
1975-11 → 1978-04
ended
|
FJ55 RHD (ARL,GEN) | — | |
| 53702-90366 |
Apron Sub-assy, Front Fender, LH
1978-04 → 1979-01
ended
|
FJ55 RHD GEN | — | |
| 53702-90367 |
Apron Sub-assy, Front Fender, LH
1975-01 → 1975-11
ended
|
FJ55 ARL,EUR | — | |
| 53702-90367 |
Apron Sub-assy, Front Fender, LH
1975-11 → 1977-09
ended
|
FJ55 RHD EUR | — | |
| 53702-90368 |
Apron Sub-assy, Front Fender, LH
1975-01 → 1980-07
ended
|
FJ55 LHD | — | |
| 53702-90375 |
Apron Sub-assy, Front Fender, LH
1979-01 → 1980-07
ended
|
FJ55 RHD GEN | — | |
| 53702-90375 note |
Apron Sub-assy, Front Fender, LH
1978-04 → 1979-01
ended
|
FJ55 RHD | — | |
| 53702-90375 |
Apron Sub-assy, Front Fender, LH
1978-04 → 1979-01
ended
|
FJ55 ARL | — | |
| 53702-90378 |
Apron Sub-assy, Front Fender, LH
1979-01 → 1980-07
ended
|
FJ55 ARL | — | |
| 53702-90378 note |
Apron Sub-assy, Front Fender, LH
1979-01 → 1980-07
ended
|
FJ55 RHD 4F VKC +1 | — | |
| 53702-90379 note |
Apron Sub-assy, Front Fender, LH
1979-01 → 1979-07
ended
|
FJ55 RHD GEN | — | |
| 53702-90380 note |
Apron Sub-assy, Front Fender, LH
1979-01 → 1979-07
ended
|
FJ55 ARL | — | |
| 53702-90381 note |
Apron Sub-assy, Front Fender, LH
1979-01 → 1979-07
ended
|
FJ55 RHD 4F VKC +1 | — | |
| 53712-90903 |
Apron Sub-assy, Front Fender, LH
1969-03 → 1969-10
ended
|
FJ55 RHD | — | |
| 53712-90904 |
Apron Sub-assy, Front Fender, LH
1969-03 → 1971-09
ended
|
FJ55 LHD | — | |
| 53712-90907 |
Apron Sub-assy, Front Fender, LH
1969-10 → 1971-09
ended
|
FJ55 RHD | — | |
| 53712-90909 |
Apron Sub-assy, Front Fender, LH
1971-09 → 1972-03
ended
|
FJ55 RHD | — | |
| 53712-90910 |
Apron Sub-assy, Front Fender, LH
1971-09 → 1972-03
ended
|
FJ55 LHD | — | |
| 53715 — Plate, Front Fender Apron, Rear RH | ||||
| 53714-90351 |
Plate, Front Fender Apron, Rear RH
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 53715A — Plate, Hole Cover | ||||
| 53733-90351 |
Plate, Hole Cover
1972-09 → 1973-05
ended
|
FJ55 | — | |
| 53733-90352 |
Plate, Hole Cover
1973-05 → 1973-09
ended
|
FJ55 | — | |
| 53733-90353 |
Plate, Hole Cover
1973-09 → 1976-07
ended
|
FJ55 | — | |
| 53733-90353 |
Plate, Hole Cover
1976-07 → 1979-01
ended
|
FJ55 LHD | — | |
| 53733-90353 |
Plate, Hole Cover
1979-01 → 1980-07
ended
|
FJ55 EUR,GEN | — | |
| 53717 — Plate, Fender Apron, RH | ||||
| 53718-90351 |
Plate, Fender Apron, RH
1969-03 → 1972-03
ended
|
FJ55 | — | |
| 53718 — Plate, Fender Apron, LH | ||||
| 53719-90351 |
Plate, Fender Apron, LH
1969-03 → 1972-03
ended
|
FJ55 | — | |
| 53723 — Bracket, Brake Booster | ||||
| 53721-90354 |
Bracket, Brake Booster
1969-03 → 1971-09
ended
|
FJ55 | — | |
| 53727 — Retainer, Battery Set Bracket | ||||
| 53721-90351 |
Retainer, Battery Set Bracket
1969-03 → 1972-03
ended
|
FJ55 | — | |
| 53728 — Separate, Air Duct, RH | ||||
| 53724-90351 |
Separate, Air Duct, RH
1969-03 → 1971-09
ended
|
FJ55 | — | |
| 53729 — Separate, Air Duct, LH | ||||
| 53725-90351 |
Separate, Air Duct, LH
1969-03 → 1971-09
ended
|
FJ55 | — | |
| 53745A — Bracket, Air Cleaner Inlet | ||||
| 53745-90351 |
Bracket, Air Cleaner Inlet
1978-04 → 1979-01
ended
|
FJ55 ARL | — | |
| 53745-90351 note |
Bracket, Air Cleaner Inlet
1978-04 → 1979-01
ended
|
FJ55 RHD | — | |
| 53775 — Plate, Front Fender Apron, Inner RH | ||||
| 53775-90351 |
Plate, Front Fender Apron, Inner RH
1969-03 → 1972-03
ended
|
FJ55 | — | |
| 53776 — Plate, Front Fender Apron, Inner LH | ||||
| 53776-90351 |
Plate, Front Fender Apron, Inner LH
1969-03 → 1972-03
ended
|
FJ55 | — | |
| 53817 — Packing, Fender Trim, RH | ||||
| 53781-90351 |
Packing, Fender Trim, RH
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 53818 — Packing, Fender Trim, LH | ||||
| 53781-90351 |
Packing, Fender Trim, LH
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 53821 — Plate, Front Fender Splash Upper Seal, RH | ||||
| 53819-90351 |
Plate, Front Fender Splash Upper Seal, RH
1969-03 → 1971-01
ended
|
FJ55 | — | |
| 53827-90351 |
Plate, Front Fender Splash Upper Seal, RH
1971-01 → 1980-07
ended
|
FJ55 | — | |
| 53822 — Plate, Front Fender Splash Upper Seal, LH | ||||
| 53821-90351 |
Plate, Front Fender Splash Upper Seal, LH
1969-03 → 1971-01
ended
|
FJ55 | — | |
| 53827-90351 |
Plate, Front Fender Splash Upper Seal, LH
1971-01 → 1980-07
ended
|
FJ55 | — | |
| 53823 — Seal, Front Fender Splash, Upper | ||||
| 53818-90351 |
Seal, Front Fender Splash, Upper
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 55101 — Panel Sub-assy, Dash | ||||
| 55101-90274 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
FJ4# RHD | — | |
| 55101-90289 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
BJ4# RHD | — | |
| 55101-90414 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
BJ4# LHD | — | |
| 55101-90417 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
HJ45 RHD | — | |
| 55101-90419 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
HJ45 LHD | — | |
| 55101-90426 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
FJ4# LHD | — | |
| 55102-90371 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
FJ55 RHD | — | |
| 55102-90379 |
Panel Sub-assy, Dash
1980-02 → 1980-07
ended
|
FJ55 LHD | — | |
| 55101A — Plug, Hole, NO.1(FOR DASH PANEL) | ||||
| 90950-01003 note |
Plug, Hole, NO.1(FOR DASH PANEL)
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 90950-01006 note |
Plug, Hole, NO.1(FOR DASH PANEL)
1972-04 → 1977-09
ended
|
FJ55 LHD | — | |
| 90950-01060 note |
Plug, Hole, NO.1(FOR DASH PANEL)
1970-09 → 1972-01
ended
|
FJ55 | — | |
| 90950-01102 note |
Plug, Hole, NO.1(FOR DASH PANEL)
1973-09 → 1977-09
ended
|
FJ55 RHD | — | |
| 55101E — Grommet, Dash Panel, NO.2 | ||||
| 90480-15163 note |
Grommet, Dash Panel, NO.2
1972-09 → 1972-11
ended
|
FJ55 | — | |
| 90480-15415 note |
Grommet, Dash Panel, NO.2
1972-11 → 1980-07
ended
|
FJ55 | — | |
| 90480-16060 note |
Grommet, Dash Panel, NO.2
1969-03 → 1972-09
ended
|
FJ55 | — | |
| 55101F — Grommet, Dash Panel, NO.3 | ||||
| 90480-11124 note |
Grommet, Dash Panel, NO.3
1969-03 → 1971-05
ended
|
FJ55 | — | |
| 90480-13055 note |
Grommet, Dash Panel, NO.3
1972-04 → 1972-09
ended
|
FJ55 | — | |
| 90480-21336 note |
Grommet, Dash Panel, NO.3
1971-05 → 1972-09
ended
|
FJ55 | — | |
| 55101G — Grommet, Dash Panel, NO.4 | ||||
| 90480-20023 note |
Grommet, Dash Panel, NO.4
1969-03 → 1972-09
ended
|
FJ55 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
