Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01

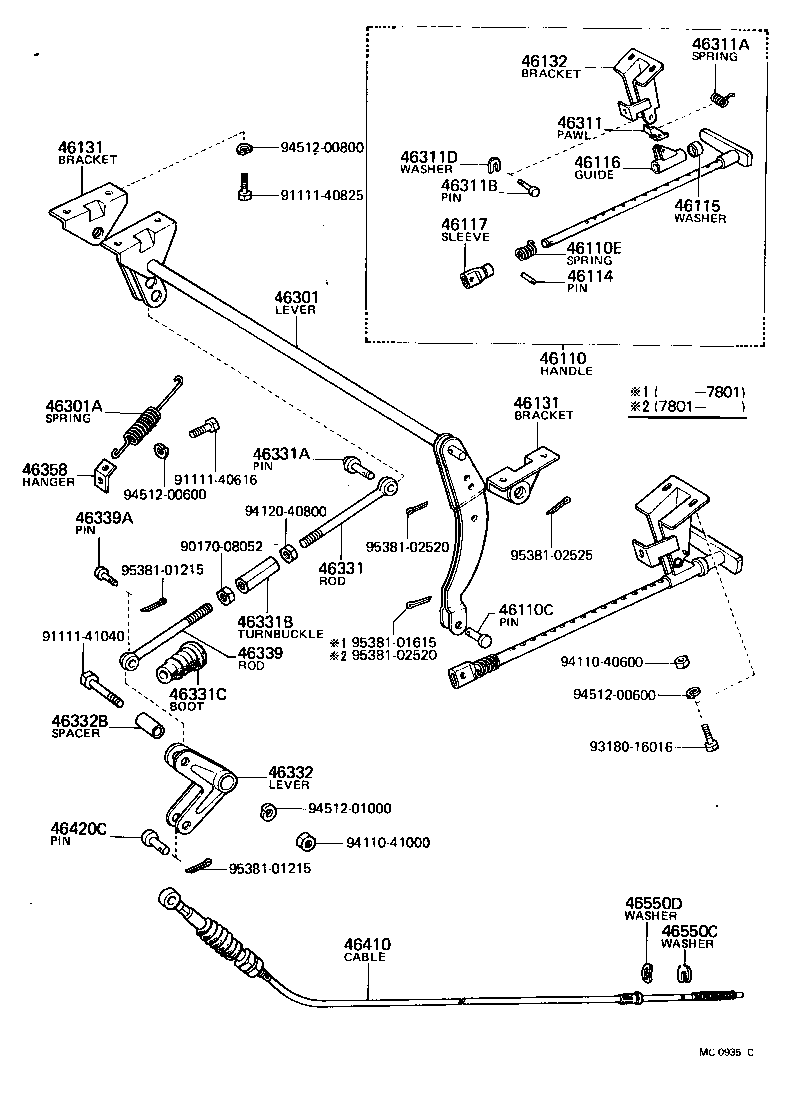

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 46110 — Handle Assy, Parking Brake Control | ||||
| 46120-60011 note |
Handle Assy, Parking Brake Control
1969-03 → 1975-01
ended
|
BJ4#,FJ40,43,45,HJ45 RHD | — | |
| 46120-60011 note |
Handle Assy, Parking Brake Control
1975-01 → 1976-08
ended
|
BJ4#,FJ4#,55,HJ45 RHD (EUR,GEN) | — | |
| 46120-60011 note |
Handle Assy, Parking Brake Control
1976-08 → 1977-09
ended
|
BJ40 RHD GEN | — | |
| 46120-60011 note |
Handle Assy, Parking Brake Control
1976-08 → 1977-09
ended
|
FJ40 RHD GEN | — | |
| 46120-60021 note |
Handle Assy, Parking Brake Control
1969-03 → 1976-08
ended
|
BJ4#,FJ4#,HJ45 LHD | — | |
| 46120-60021 note |
Handle Assy, Parking Brake Control
1976-08 → 1977-09
ended
|
BJ40,FJ40 LHD GEN | — | |
| 46120-60031 note |
Handle Assy, Parking Brake Control
1969-03 → 1975-01
ended
|
FJ55 RHD | — | |
| 46120-60031 note |
Handle Assy, Parking Brake Control
1975-01 → 1976-08
ended
|
FJ55 RHD (EUR,GEN) | — | |
| 46120-60041 note |
Handle Assy, Parking Brake Control
1969-03 → 1976-08
ended
|
FJ55 LHD | — | |
| 46120-60050 note |
Handle Assy, Parking Brake Control
1971-01 → 1973-01
ended
|
FJ40 LHD | — | |
| 46120-60050 note |
Handle Assy, Parking Brake Control
1973-01 → 1973-09
ended
|
FJ40,43 LHD | — | |
| 46120-60050 note |
Handle Assy, Parking Brake Control
1973-09 → 1973-11
ended
|
FJ4# LHD | — | |
| 46120-60050 note |
Handle Assy, Parking Brake Control
1973-11 → 1979-01
ended
|
BJ4#,FJ4#,HJ45 LHD | — | |
| 46120-60060 note |
Handle Assy, Parking Brake Control
1971-01 → 1980-07
ended
|
FJ55 LHD | — | |
| 46120-60070 note |
Handle Assy, Parking Brake Control
1971-09 → 1973-01
ended
|
FJ40 RHD | — | |
| 46120-60070 note |
Handle Assy, Parking Brake Control
1973-11 → 1979-01
ended
|
BJ4#,FJ4#,HJ45 RHD | — | |
| 46120-60070 note |
Handle Assy, Parking Brake Control
1973-09 → 1973-11
ended
|
FJ4# RHD | — | |
| 46120-60070 note |
Handle Assy, Parking Brake Control
1973-01 → 1973-09
ended
|
FJ40,43 RHD | — | |
| 46120-60080 note |
Handle Assy, Parking Brake Control
1971-09 → 1979-01
ended
|
FJ55 RHD | — | |
| 46120-60080 note |
Handle Assy, Parking Brake Control
1979-01 → 1980-07
ended
|
FJ55 RHD GEN | — | |
| 46120-60090 |
Handle Assy, Parking Brake Control
1979-01 → 1980-07
ended
|
FJ55 ARL | — | |
| 46210-60020 |
Handle Assy, Parking Brake Control
1979-01 → 1980-07
ended
|
BJ4#,FJ4#,HJ45 LHD | — | |
| 46210-60030 |
Handle Assy, Parking Brake Control
1979-01 → 1980-07
ended
|
BJ4#,FJ4#,HJ45 RHD | — | |
| 46110C — Pin(FOR PARKING BRAKE HANDLE SET) | ||||
| 90240-08038 note |
Pin(FOR PARKING BRAKE HANDLE SET)
1969-03 → 1978-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90240-08094 note |
Pin(FOR PARKING BRAKE HANDLE SET)
1978-01 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90240-08094 note |
Pin(FOR PARKING BRAKE HANDLE SET)
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46110E — Spring, Torsion(FOR PARKING BRAKE PLUNGER) | ||||
| 90508-14038 |
Spring, Torsion(FOR PARKING BRAKE PLUNGER)
1969-03 → 1979-01
ended
|
BJ4#,FJ40,43,45,55,HJ45 RHD | — | |
| 90508-14038 |
Spring, Torsion(FOR PARKING BRAKE PLUNGER)
1979-01 → 1980-07
ended
|
FJ55 RHD | — | |
| 90508-14039 |
Spring, Torsion(FOR PARKING BRAKE PLUNGER)
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 LHD | — | |
| 90508-14039 |
Spring, Torsion(FOR PARKING BRAKE PLUNGER)
1979-01 → 1980-07
ended
|
FJ55 LHD | — | |
| 46114 — Pin, Parking Brake Plunger | ||||
| 46114-30010 |
Pin, Parking Brake Plunger
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 46114-30010 |
Pin, Parking Brake Plunger
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46115 — Washer, Parking Brake Plunger | ||||
| 46115-30010 |
Washer, Parking Brake Plunger
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 46115-30010 |
Washer, Parking Brake Plunger
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46116 — Guide, Parking Brake Plunger | ||||
| 46116-30010 |
Guide, Parking Brake Plunger
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 46116-30010 |
Guide, Parking Brake Plunger
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46117 — Sleeve, Parking Brake Plunger | ||||
| 46117-30010 |
Sleeve, Parking Brake Plunger
1969-03 → 1979-01
ended
|
BJ4#,FJ40,43,45,55,HJ45 RHD | — | |
| 46117-30010 |
Sleeve, Parking Brake Plunger
1979-01 → 1980-07
ended
|
FJ55 RHD GEN | — | |
| 46117-30020 |
Sleeve, Parking Brake Plunger
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 LHD | — | |
| 46117-30020 |
Sleeve, Parking Brake Plunger
1979-01 → 1980-07
ended
|
FJ55 LHD | — | |
| 46117-60010 |
Sleeve, Parking Brake Plunger
1979-01 → 1980-07
ended
|
FJ55 ARL | — | |
| 46131 — Bracket Sub-assy, Parking Brake | ||||
| 46132-60010 |
Bracket Sub-assy, Parking Brake
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 55107-60011 |
Bracket Sub-assy, Parking Brake
1969-03 → 1971-09
ended
|
FJ4# | — | |
| 55107-90300 |
Bracket Sub-assy, Parking Brake
1975-01 → 1977-09
ended
|
BJ4#,HJ45;FJ4# RHD | — | |
| 55107-90300 |
Bracket Sub-assy, Parking Brake
1971-09 → 1975-01
ended
|
BJ4#,FJ4#,HJ45 | — | |
| 55107-90301 |
Bracket Sub-assy, Parking Brake
1975-01 → 1977-09
ended
|
FJ4# LHD | — | |
| 55107-90302 |
Bracket Sub-assy, Parking Brake
1977-09 → 1979-01
ended
|
BJ4#,FJ4#,HJ45 | — | |
| 46132 — Bracket, Parking Brake Plunger, NO.2 | ||||
| 46131-60011 note |
Bracket, Parking Brake Plunger, NO.2
1976-08 → 1977-09
ended
|
BJ40,FJ40 GEN | — | |
| 46131-60011 note |
Bracket, Parking Brake Plunger, NO.2
1975-01 → 1976-08
ended
|
BJ4#,FJ4#,HJ45 EUR,GEN | — | |
| 46131-60011 note |
Bracket, Parking Brake Plunger, NO.2
1969-03 → 1975-01
ended
|
BJ4#,FJ4#,HJ45 | — | |
| 46131-60020 note |
Bracket, Parking Brake Plunger, NO.2
1975-01 → 1976-08
ended
|
FJ55 EUR,GEN | — | |
| 46131-60020 note |
Bracket, Parking Brake Plunger, NO.2
1969-03 → 1975-01
ended
|
FJ55 | — | |
| 46131-60030 note |
Bracket, Parking Brake Plunger, NO.2
1973-09 → 1973-11
ended
|
FJ4# | — | |
| 46131-60030 note |
Bracket, Parking Brake Plunger, NO.2
1973-11 → 1979-01
ended
|
BJ4#,FJ4#,HJ45 | — | |
| 46131-60030 note |
Bracket, Parking Brake Plunger, NO.2
1973-01 → 1973-09
ended
|
FJ40,43 | — | |
| 46131-60030 note |
Bracket, Parking Brake Plunger, NO.2
1971-09 → 1973-01
ended
|
FJ40 | — | |
| 46131-60030 note |
Bracket, Parking Brake Plunger, NO.2
1971-01 → 1971-09
ended
|
FJ40 LHD | — | |
| 46131-60040 note |
Bracket, Parking Brake Plunger, NO.2
1971-01 → 1971-09
ended
|
FJ55 LHD | — | |
| 46131-60040 note |
Bracket, Parking Brake Plunger, NO.2
1971-09 → 1980-07
ended
|
FJ55 | — | |
| 46301 — Lever Sub-assy, Parking Brake Intermediate | ||||
| 46301-30010 |
Lever Sub-assy, Parking Brake Intermediate
1976-06 → 1980-07
ended
|
FJ55 RHD | — | |
| 46301-30010 |
Lever Sub-assy, Parking Brake Intermediate
1975-01 → 1976-06
ended
|
BJ4#,HJ45;FJ4#,55 RHD | — | |
| 46301-30010 |
Lever Sub-assy, Parking Brake Intermediate
1969-03 → 1975-01
ended
|
FJ55 RHD;BJ4#,FJ4#,HJ45 | — | |
| 46307-60010 |
Lever Sub-assy, Parking Brake Intermediate
1969-03 → 1980-07
ended
|
FJ55 LHD | — | |
| 46307-60021 |
Lever Sub-assy, Parking Brake Intermediate
1975-01 → 1976-03
ended
|
FJ4# LHD | — | |
| 46307-60022 |
Lever Sub-assy, Parking Brake Intermediate
1976-03 → 1977-09
ended
|
FJ4# LHD | — | |
| 46307-60022 |
Lever Sub-assy, Parking Brake Intermediate
1977-09 → 1979-01
ended
|
BJ4#,FJ4#,HJ45 | — | |
| 46307-60030 |
Lever Sub-assy, Parking Brake Intermediate
1976-06 → 1977-09
ended
|
BJ4#,HJ45;FJ4# RHD | — | |
| 46301A — Spring, Tension(FOR INTERMEDIATE LEVER) | ||||
| 90506-12023 |
Spring, Tension(FOR INTERMEDIATE LEVER)
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,HJ45 | — | |
| 90506-18055 |
Spring, Tension(FOR INTERMEDIATE LEVER)
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46311 — Pawl, Parking Brake | ||||
| 46311-30020 note |
Pawl, Parking Brake
1969-03 → 1975-01
ended
|
BJ4#,FJ40,43,45,55,HJ45 | — | |
| 46311-30020 note |
Pawl, Parking Brake
1975-01 → 1976-08
ended
|
BJ4#,FJ4#,55,HJ45 EUR,GEN | — | |
| 46311-30020 note |
Pawl, Parking Brake
1976-08 → 1977-09
ended
|
BJ40,FJ40 GEN | — | |
| 46311-60010 note |
Pawl, Parking Brake
1971-01 → 1971-09
ended
|
FJ40,55 LHD | — | |
| 46311-60010 note |
Pawl, Parking Brake
1971-09 → 1973-01
ended
|
FJ40,55 | — | |
| 46311-60010 note |
Pawl, Parking Brake
1973-01 → 1973-09
ended
|
FJ40,43,55 | — | |
| 46311-60010 note |
Pawl, Parking Brake
1973-09 → 1973-11
ended
|
FJ4#,55 | — | |
| 46311-60010 note |
Pawl, Parking Brake
1973-11 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 46311-60010 |
Pawl, Parking Brake
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46311A — Spring(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
Spring(FOR PARKING BRAKE PAWL)
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90508-08041 |
Spring(FOR PARKING BRAKE PAWL)
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46311B — Pin, Parking Brake Pawl Pivot | ||||
| 90249-05010 |
Pin, Parking Brake Pawl Pivot
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 90249-05010 |
Pin, Parking Brake Pawl Pivot
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 46311D — Washer, Type C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
Washer, Type C(FOR PARKING BRAKE PAWL)
1969-03 → 1979-01
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90213-03007 |
Washer, Type C(FOR PARKING BRAKE PAWL)
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46331 — Rod, Intermediate Lever Pull | ||||
| 46331-60010 |
Rod, Intermediate Lever Pull
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46331A — Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD) | ||||
| 90249-08012 |
Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD)
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46331B — Turnbuckle(FOR INTERMEDIATE LEVER PULL ROD) | ||||
| 90587-08008 |
Turnbuckle(FOR INTERMEDIATE LEVER PULL ROD)
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46331C — Boot(FOR INTERMEDIATE LEVER PULL ROD) | ||||
| 36371-60010 |
Boot(FOR INTERMEDIATE LEVER PULL ROD)
1969-03 → 1970-06
ended
|
FJ55 | — | |
| 36371-60011 |
Boot(FOR INTERMEDIATE LEVER PULL ROD)
1970-06 → 1980-07
ended
|
FJ55 | — | |
| 46332 — Lever, Parking Brake Link | ||||
| 46332-60010 |
Lever, Parking Brake Link
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46332B — Spacer(FOR PARKING BRAKE LINK LEVER) | ||||
| 90560-10237 |
Spacer(FOR PARKING BRAKE LINK LEVER)
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46339 — Rod, Intermediate Lever Pull NO.2 | ||||
| 46339-60010 |
Rod, Intermediate Lever Pull NO.2
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46339A — Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD NO.2) | ||||
| 90240-08038 |
Pin, W/Hole(FOR INTERMEDIATE LEVER PULL ROD NO.2)
1969-03 → 1980-07
ended
|
FJ55 | — | |
| 46358 — Hanger, Pull Rod Return Spring | ||||
| 46358-60010 |
Hanger, Pull Rod Return Spring
1969-03 → 1973-09
ended
|
FJ4#,55,HJ45 | — | |
| 46358-60010 |
Hanger, Pull Rod Return Spring
1973-09 → 1979-01
ended
|
FJ55;BJ4#,FJ4#,HJ45 RHD | — | |
| 46358-60010 |
Hanger, Pull Rod Return Spring
1979-01 → 1980-07
ended
|
FJ55 | — | |
| 46410 — Cable Assy, Parking Brake, NO.1 | ||||
| 46410-60010 note |
Cable Assy, Parking Brake, NO.1
1969-03 → 1970-07
ended
|
FJ40,43,45 RHD | — | |
| 46410-60011 note |
Cable Assy, Parking Brake, NO.1
1970-07 → 1972-09
ended
|
FJ40,43,45 RHD | — | |
| 46410-60011 |
Cable Assy, Parking Brake, NO.1
1972-09 → 1977-09
ended
|
BJ4#,FJ4# RHD | — | |
| 46410-60012 |
Cable Assy, Parking Brake, NO.1
1977-09 → 1979-01
ended
|
BJ4#,FJ4# RHD | — | |
| 46410-60013 |
Cable Assy, Parking Brake, NO.1
1979-01 → 1980-07
ended
|
BJ4#,FJ4#,HJ45 RHD | — | |
| 46410-60020 note |
Cable Assy, Parking Brake, NO.1
1969-03 → 1970-07
ended
|
FJ4# LHD | — | |
| 46410-60021 note |
Cable Assy, Parking Brake, NO.1
1970-07 → 1975-01
ended
|
FJ4# LHD | — | |
| 46410-60022 |
Cable Assy, Parking Brake, NO.1
1975-01 → 1976-03
ended
|
FJ4# LHD 3F | — | |
| 46410-60023 |
Cable Assy, Parking Brake, NO.1
1976-03 → 1979-01
ended
|
FJ4# LHD 3F | — | |
| 46410-60024 |
Cable Assy, Parking Brake, NO.1
1979-01 → 1980-07
ended
|
BJ4#,FJ4#,HJ45 LHD | — | |
| 46410-60031 note |
Cable Assy, Parking Brake, NO.1
1969-03 → 1972-09
ended
|
FJ55 | — | |
| 46410-60031 note |
Cable Assy, Parking Brake, NO.1
1975-01 → 1980-07
ended
|
FJ55 RHD 3F | — | |
| 46410-60031 note |
Cable Assy, Parking Brake, NO.1
1972-09 → 1975-01
ended
|
FJ55 RHD | — | |
| 46410-60041 note |
Cable Assy, Parking Brake, NO.1
1969-03 → 1972-09
ended
|
FJ55 | — | |
| 46410-60041 note |
Cable Assy, Parking Brake, NO.1
1972-09 → 1975-01
ended
|
FJ55 RHD | — | |
| 46410-60041 note |
Cable Assy, Parking Brake, NO.1
1972-09 → 1980-07
ended
|
FJ55 LHD | — | |
| 46410-60041 note |
Cable Assy, Parking Brake, NO.1
1975-01 → 1980-07
ended
|
FJ55 RHD 4F | — | |
| 46410-60050 note |
Cable Assy, Parking Brake, NO.1
1971-10 → 1972-09
ended
|
FJ45 LHD | — | |
| 46410-60050 note |
Cable Assy, Parking Brake, NO.1
1975-01 → 1977-09
ended
|
BJ4# LHD | — | |
| 46410-60050 note |
Cable Assy, Parking Brake, NO.1
1972-09 → 1975-01
ended
|
BJ4#,FJ4# LHD | — | |
| 46410-60060 note |
Cable Assy, Parking Brake, NO.1
1972-04 → 1977-09
ended
|
HJ45 RHD | — | |
| 46410-60061 |
Cable Assy, Parking Brake, NO.1
1977-09 → 1979-01
ended
|
HJ45 RHD | — | |
| 46410-60070 note |
Cable Assy, Parking Brake, NO.1
1972-04 → 1977-09
ended
|
HJ45 LHD | — | |
| 46410-60071 |
Cable Assy, Parking Brake, NO.1
1977-09 → 1979-01
ended
|
HJ45 LHD | — | |
| 46410-60091 |
Cable Assy, Parking Brake, NO.1
1975-01 → 1976-03
ended
|
FJ4# LHD 4F | — | |
| 46410-60092 |
Cable Assy, Parking Brake, NO.1
1977-09 → 1979-01
ended
|
BJ4#,FJ4# LHD 4F | — | |
| 46410-60092 |
Cable Assy, Parking Brake, NO.1
1976-03 → 1977-09
ended
|
FJ4# LHD 4F | — | |
| 46420C — Pin, W/Hole(FOR PARKING BRAKE CABLE) | ||||
| 90240-08038 |
Pin, W/Hole(FOR PARKING BRAKE CABLE)
1969-03 → 1976-03
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90240-08038 |
Pin, W/Hole(FOR PARKING BRAKE CABLE)
1976-03 → 1977-09
ended
|
FJ4# RHD;BJ4#,FJ55,HJ45 | — | |
| 90240-08038 |
Pin, W/Hole(FOR PARKING BRAKE CABLE)
1977-09 → 1980-07
ended
|
FJ55 | — | |
| 46550C — Washer, Type C(FOR PARKING BRAKE SHOE) | ||||
| 90213-04004 note |
Washer, Type C(FOR PARKING BRAKE SHOE)
1969-03 → 1972-11
ended
|
FJ4#,55,HJ45 | — | |
| 90213-06013 note |
Washer, Type C(FOR PARKING BRAKE SHOE)
1972-11 → 1974-02
ended
|
FJ4#,55,HJ45 | — | |
| 90213-06013 note |
Washer, Type C(FOR PARKING BRAKE SHOE)
1974-02 → 1980-07
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90213-07006 note |
Washer, Type C(FOR PARKING BRAKE SHOE)
1969-03 → 1980-07
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90213-09005 note |
Washer, Type C(FOR PARKING BRAKE SHOE)
1969-03 → 1980-07
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 46550D — Washer, Wave(FOR PARKING BRAKE SHOE) | ||||
| 90206-08024 |
Washer, Wave(FOR PARKING BRAKE SHOE)
1969-03 → 1978-08
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
| 90206-08024 |
Washer, Wave(FOR PARKING BRAKE SHOE)
1978-08 → 1980-07
ended
|
BJ4#,FJ4#,55,HJ45 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
