Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

12 part groups · 4 illustrations

Illustrations

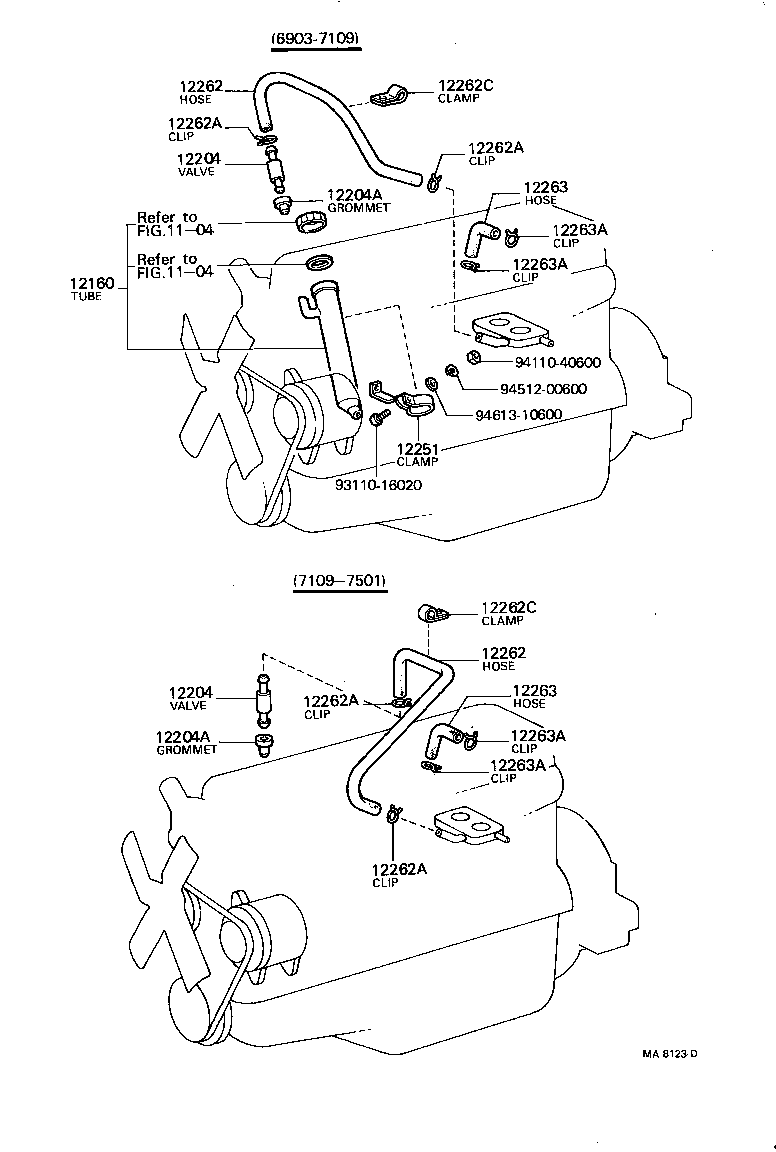

Figure MA3053A MA3053A 1972-04 → 1980-07 Figure MA8123D MA8123D 1969-03 → 1975-01 Figure MA3618 MA3618 1975-01 → 1980-07 Figure MA3053A MA3053A 1972-04 → 1980-07

Part groups

PNCDescription
12160 Tube Assy, Oil Filler
12201 Tube Sub-assy, Ventilation
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12251 Clamp, Ventilation Tube
12255 Gasket, Ventilation
12261B Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12262C Clamp, Ventilation Hose, NO.2
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
