Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

50 part groups · 6 illustrations

Illustrations

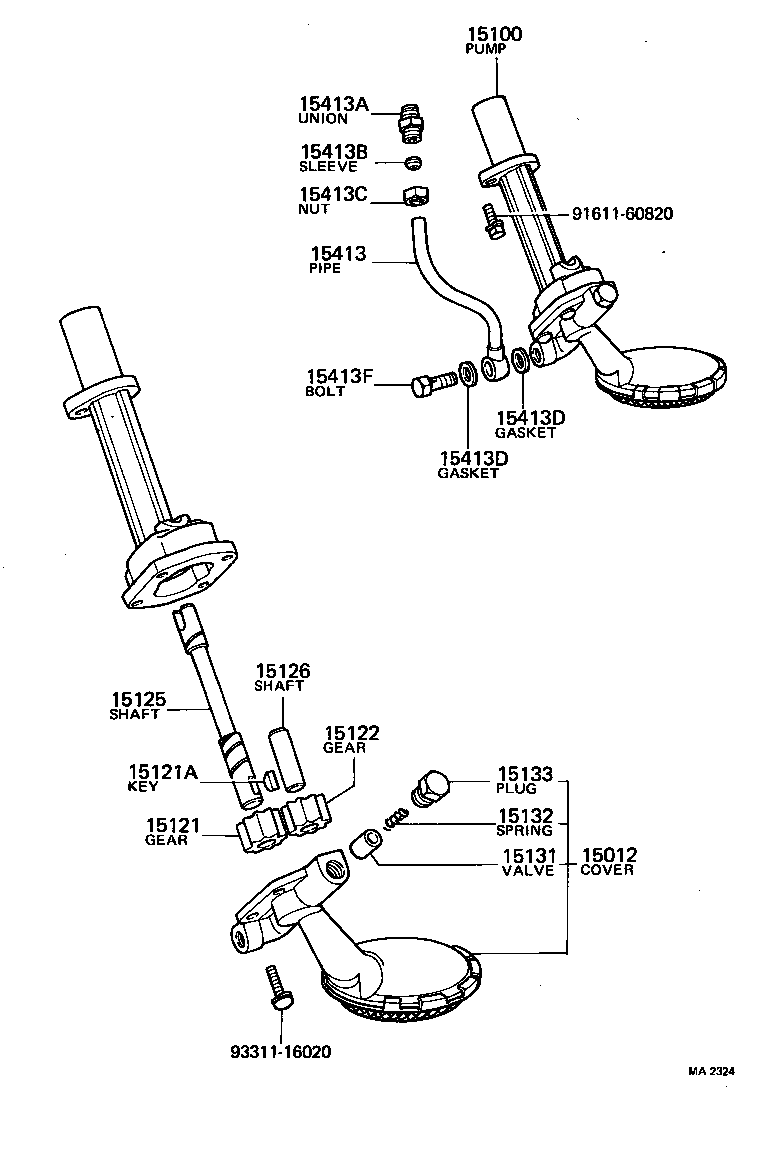

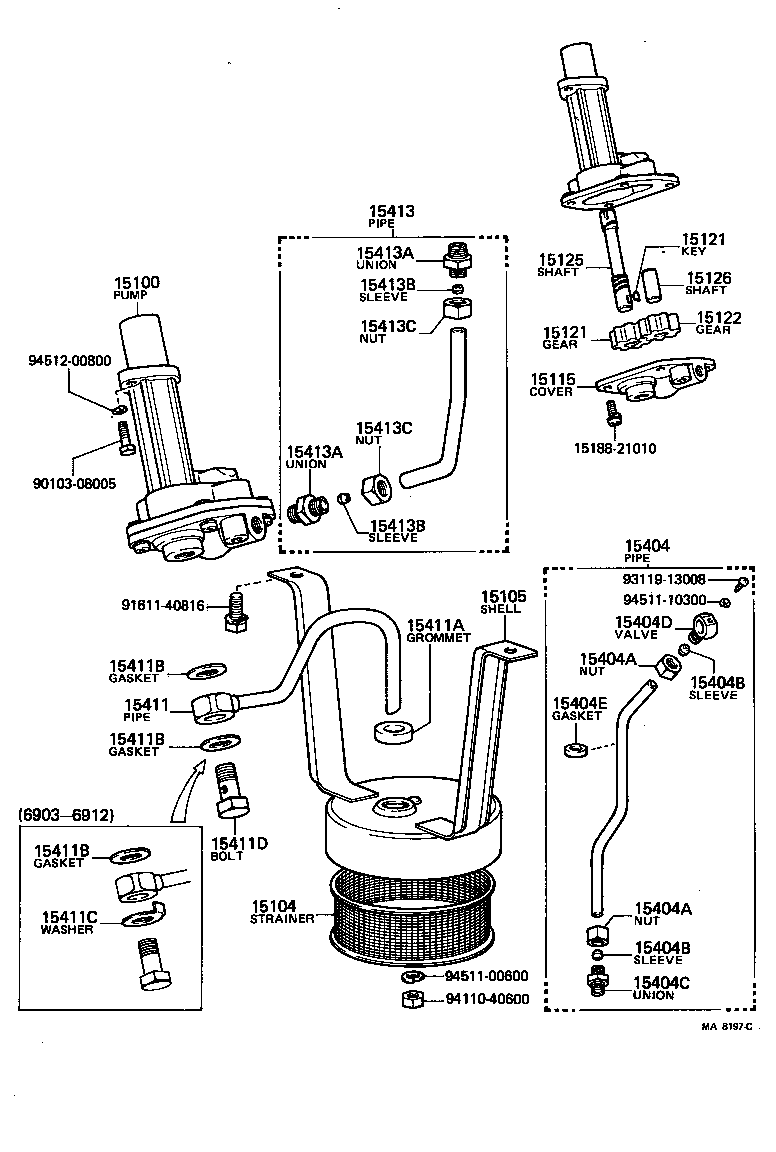

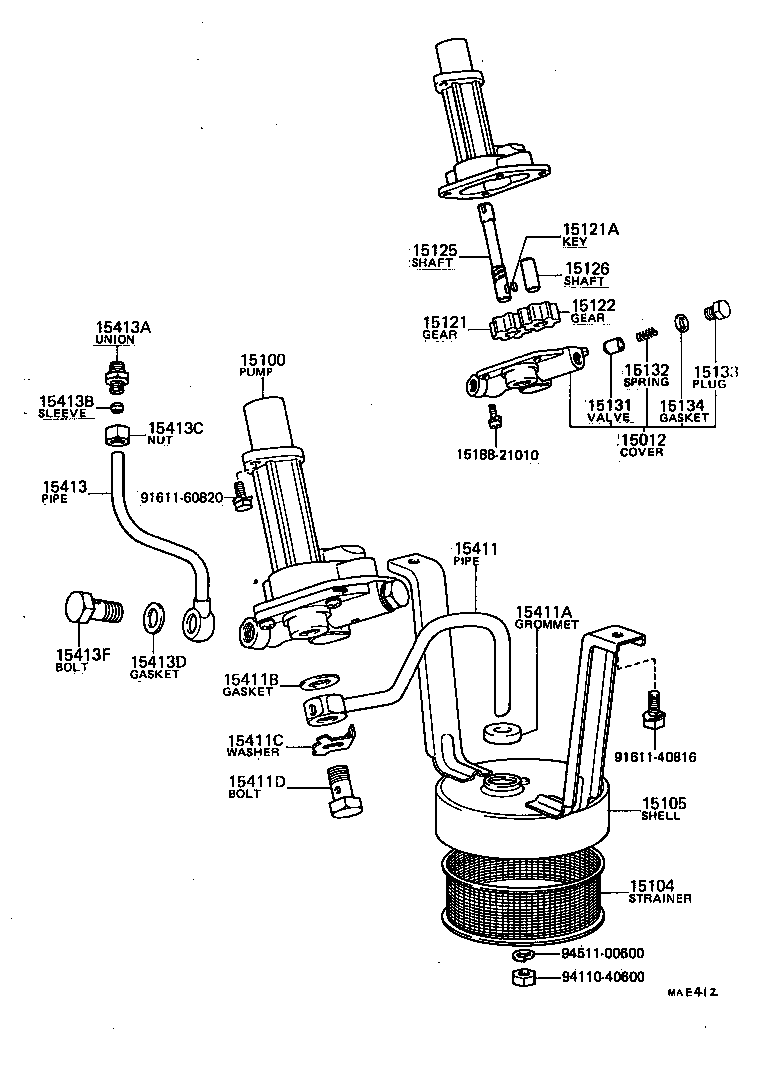

Figure MA1312B MA1312B 1974-02 → 1977-09 Figure MA2995C MA2995C 1977-09 → 1980-07 Figure MA8197C MA8197C 1969-03 → 1973-09 Figure MAE412 MAE412 1973-09 → 1976-06 Figure MA2324 MA2324 1976-06 → 1980-07 Figure MA0259I MA0259I 1972-04 → 1980-07

Part groups

PNCDescription
15012 Cover Sub-assy, Oil Pump
15100 Pump Assy, Oil
15100A Pin, Ring(FOR OIL PUMP SET)
15104 Strainer Sub-assy, Oil
15104A Ring, O(FOR OIL STRAINER)
15104C Gasket(FOR OIL STRAINER)
15105 Shell Sub-assy, Oil Strainer
15114 Ring, Shaft Snap
15115 Cover, Oil Pump
15121 Gear, Oil Pump Drive
15121A Key, Oil Pump Drive Shaft
15122 Gear, Oil Pump Driven
15125 Shaft, Oil Pump
15126 Shaft, Oil Pump Driven
15131 Valve, Oil Pump Relief
15132 Spring, Oil Pump Relief Valve
15133 Plug, Oil Pump Relief Valve
15134 Gasket, Oil Pump Relief Valve
15147 Gasket, Oil Strainer
15163 Gear, Oil Pump Drive Shaft
15163A Pin, Straight(FOR OIL PUMP DRIVE SHAFT GEAR)
15163B Key, Woodruff(FOR OIL PUMP DRIVE SHAFT GEAR)
15181 Ring, Oil Pump Shaft Snap
15195 Bracket, Oil Strainer
15403 Pipe Sub-assy, Oil Pump Outlet
15403A Union(FOR OIL PUMP OUTLET PIPE)
15403B Gasket(FOR OIL PUMP OUTLET PIPE)
15404 Pipe Sub-assy, Valve Rocker Shaft Oil
15404A Nut, Valve Rocker Shaft Oil Pipe Union
15404B Sleeve, Valve Rocker Shaft Oil Pipe Ball
15404C Union, Valve Rocker Shaft Oil Pipe
15404D Valve, Rocker Shaft Oil Pipe Union
15404E Gasket, Valve Rocker Shaft Oil Pipe Union
15411 Pipe, Oil Pump Inlet
15411A Grommet(FOR OIL PUMP INLET PIPE)
15411B Gasket OR Ring, O(FOR OIL PUMP INLET PIPE)
15411C Washer, Lock(FOR OIL PUMP INLET PIPE)
15411D Bolt, Union(FOR OIL PUMP INLET PIPE)
15413 Pipe, Oil Pump Outlet
15413A Union(FOR OIL PUMP OUTLET PIPE)
15413B Sleeve, Ball(FOR OIL PUMP OUTLET PIPE)
15413C Nut, Union(FOR OIL PUMP OUTLET PIPE)
15413D Gasket(FOR OIL PUMP OUTLET PIPE)
15413F Bolt, Union(FOR OIL PUMP OUTLET PIPE)
15705 Pipe Sub-assy, Oil, Injection Pump Inlet
15705A Union(FOR INJECTION PUMP INLET PIPE)
15705B Gasket(FOR INJECTION PUMP INLET PIPE)
15706 Pipe Sub-assy, Oil, Injection Pump Outlet
15706A Union(FOR INJECTION PUMP OUTLET PIPE)
15706B Gasket(FOR INJECTION PUMP OUTLET PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
