Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

26 part groups · 15 illustrations

Illustrations

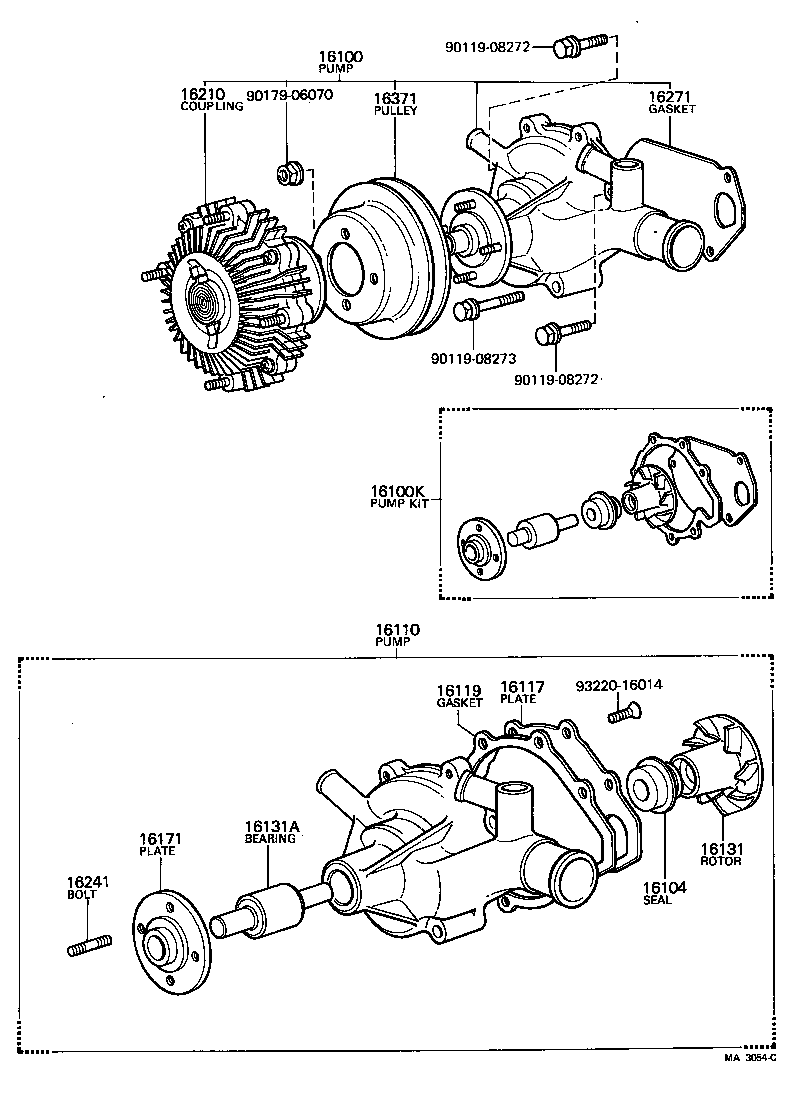

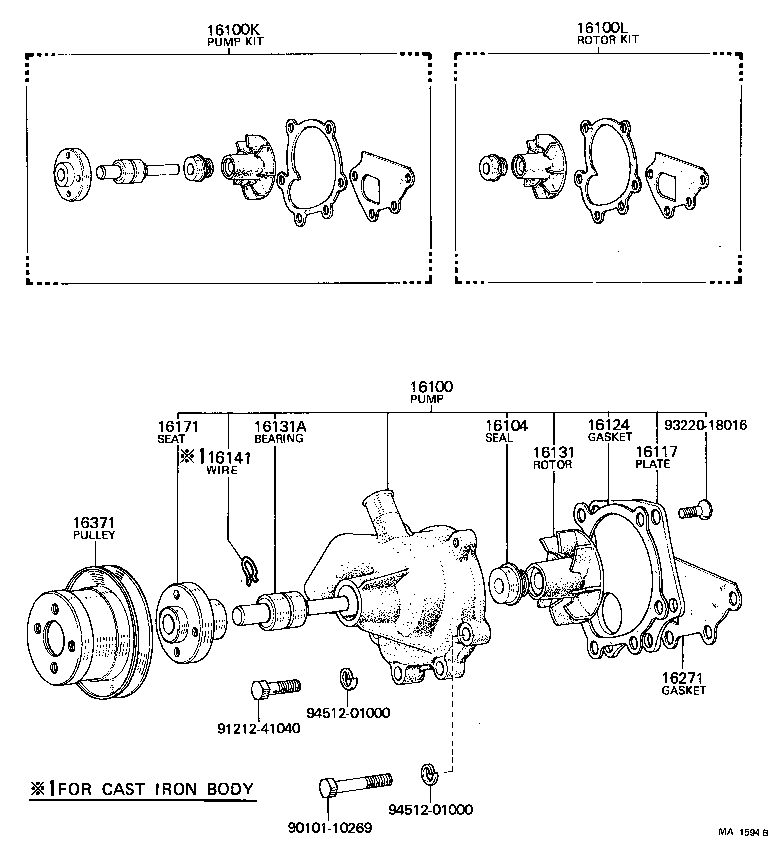

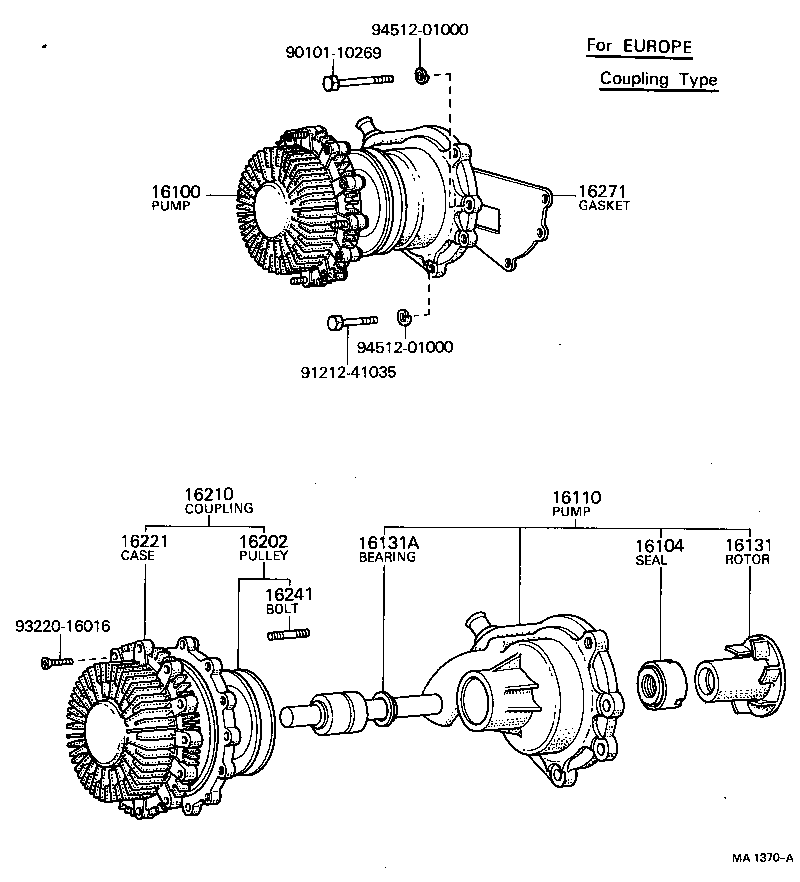

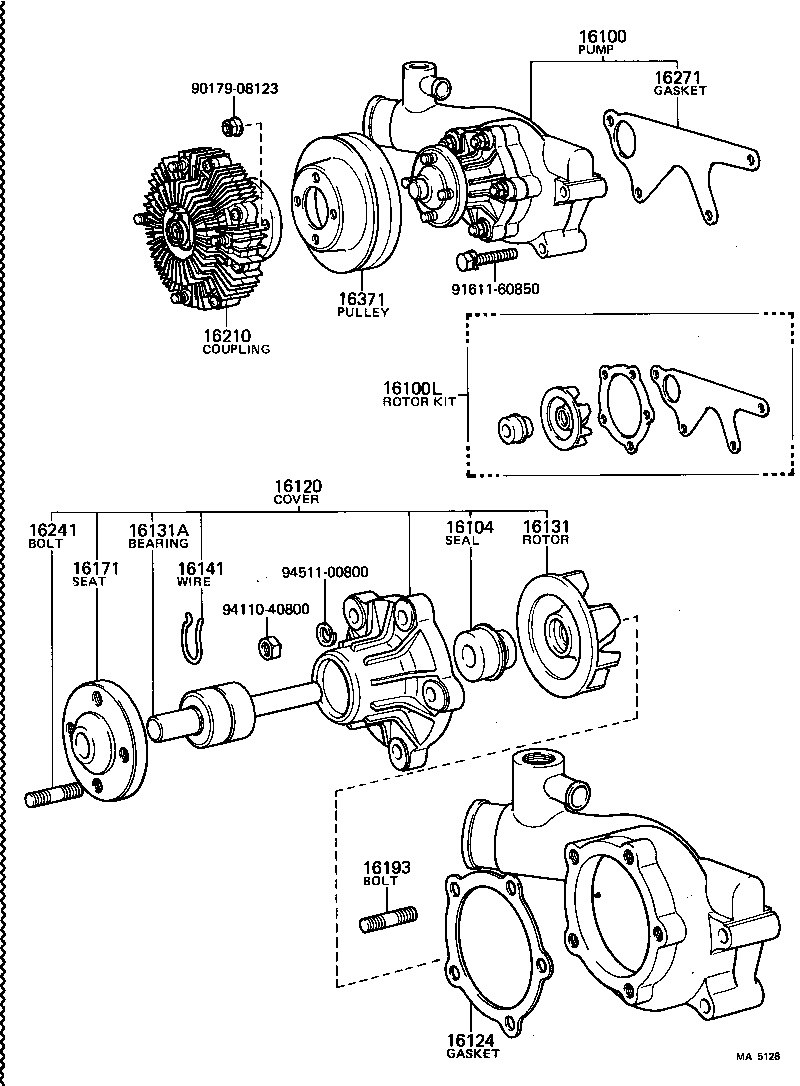

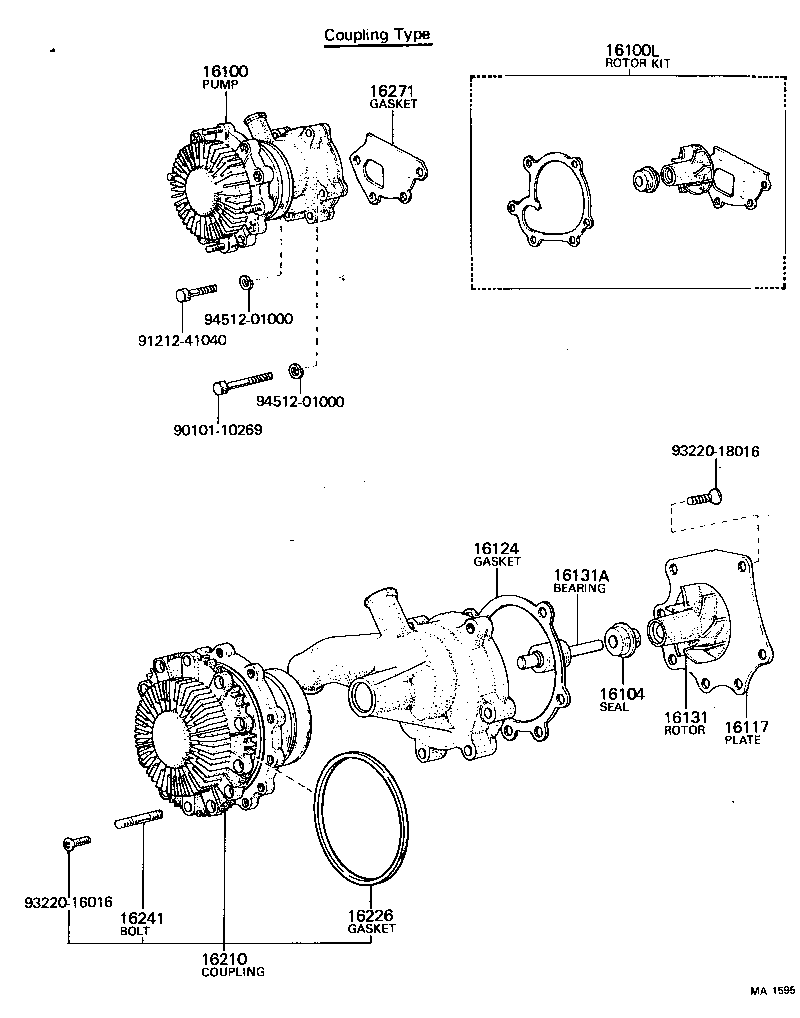

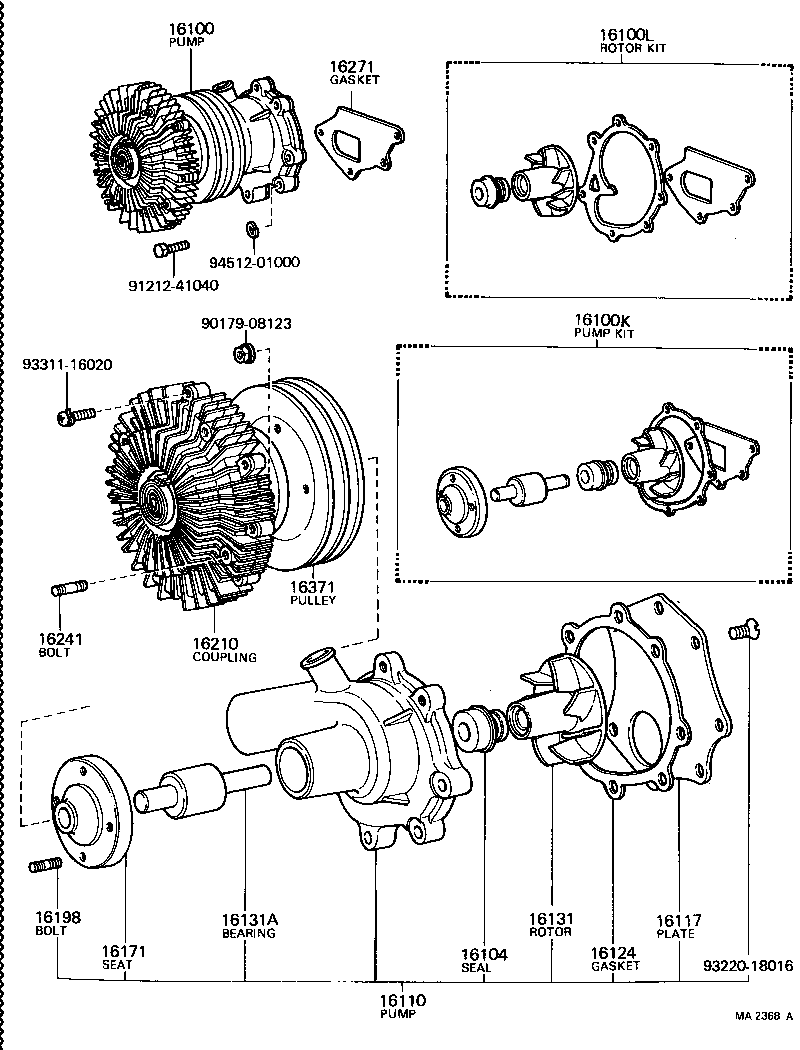

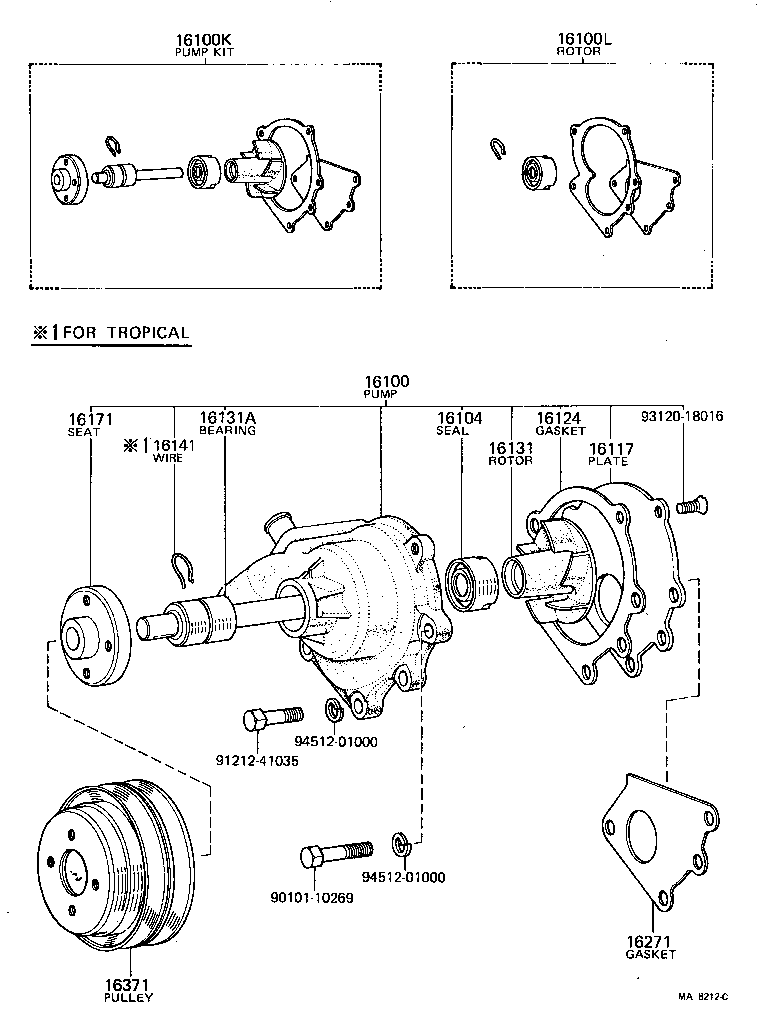

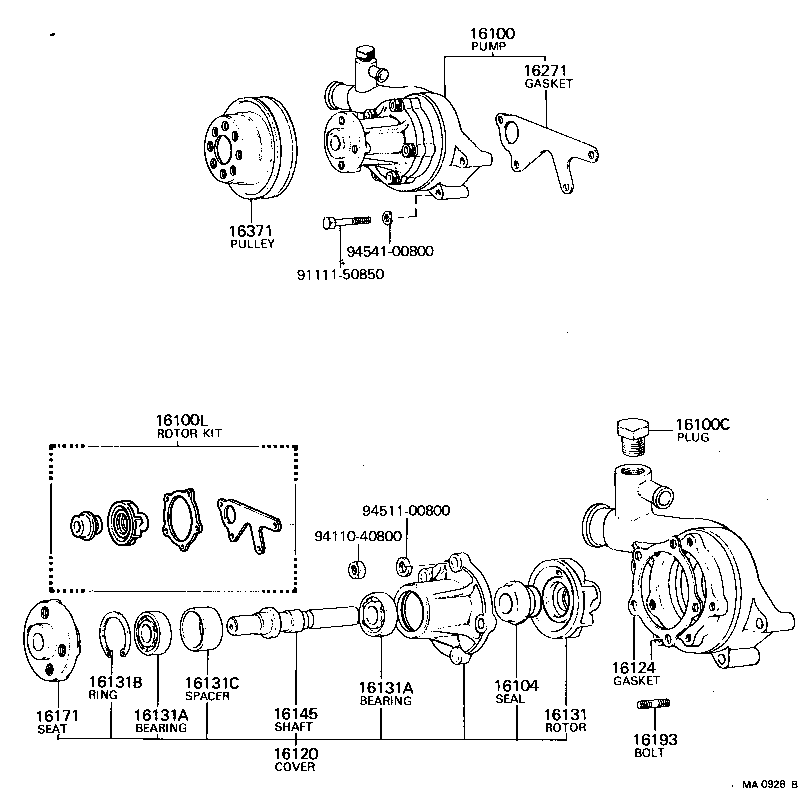

Figure MA1315C MA1315C 1974-02 → 1980-07 Figure MA3054C MA3054C 1977-09 → 1980-07 Figure MA8212C MA8212C 1969-03 → 1975-01 Figure MA1370A MA1370A 1974-01 → 1975-01 Figure MA1594B MA1594B 1975-01 → 1976-08 Figure MA1594B MA1594B 1976-08 → 1980-07 Figure MA1595 MA1595 1975-01 → 1976-08 Figure MA1595 MA1595 1976-08 → 1979-01 Figure MA2368A MA2368A 1976-08 → 1979-01 Figure MA2368A MA2368A 1979-01 → 1979-09 Figure MA2368A MA2368A 1979-09 → 1980-07 Figure MA2368A MA2368A 1979-09 → 1980-07 Figure MA0928B MA0928B 1972-04 → 1980-04 Figure MA0928B MA0928B 1980-04 → 1980-07 Figure MA5128 MA5128 1980-04 → 1980-07

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16100C Plug, W/Head Taper Screw
16100K Pump Kit, Water
16100L Rotor Kit, Water Pump
16104 Seal Set, Water Pump
16110 Pump Assy, Water, W/O Coupling
16117 Plate, Water Pump
16119 Gasket, Water Pump Body
16120 Cover Assy, Water Pump
16124 Gasket, Water Pump Cover
16131 Rotor, Water Pump
16131A Bearing, Water Pump
16131B Ring, Retainer(FOR WATER PUMP BEARING)
16131C Spacer(FOR WATER PUMP ROTOR)
16141 Wire, Water Pump Bearing Retaining
16145 Shaft, Water Pump
16171 Seat, Water Pump Pulley
16193 Bolt, Stud(FOR WATER PUMP COVER)
16198 Bolt, Stud(FOR WATER PUMP PULLEY SEAT)
16202 Pulley & Bearing Case Sub-assy, Fluid Coupling
16210 Coupling Assy, Fluid
16221 Case, Fluid Coupling
16226 Gasket, Fluid Coupling Case
16241 Bolt, Stud(FOR WATER PUMP COUPLING)
16271 Gasket, Water Pump
16371 Pulley, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
