Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

51 part groups · 21 illustrations

Illustrations

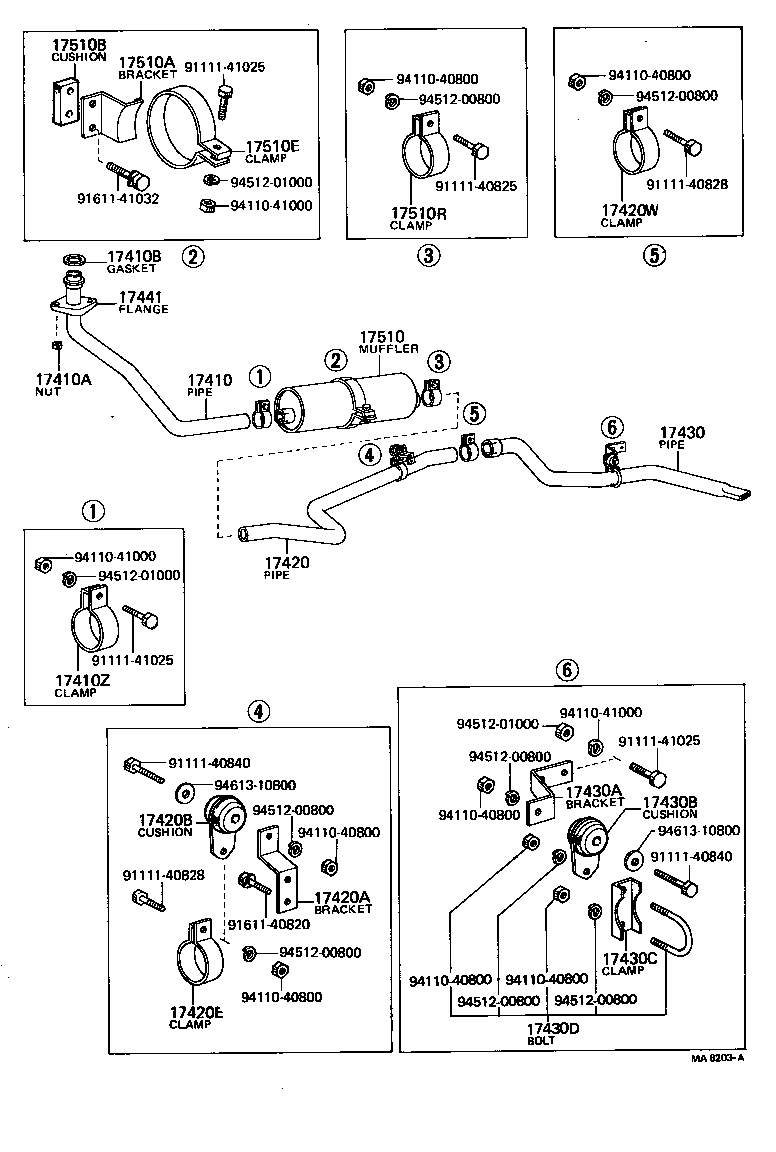

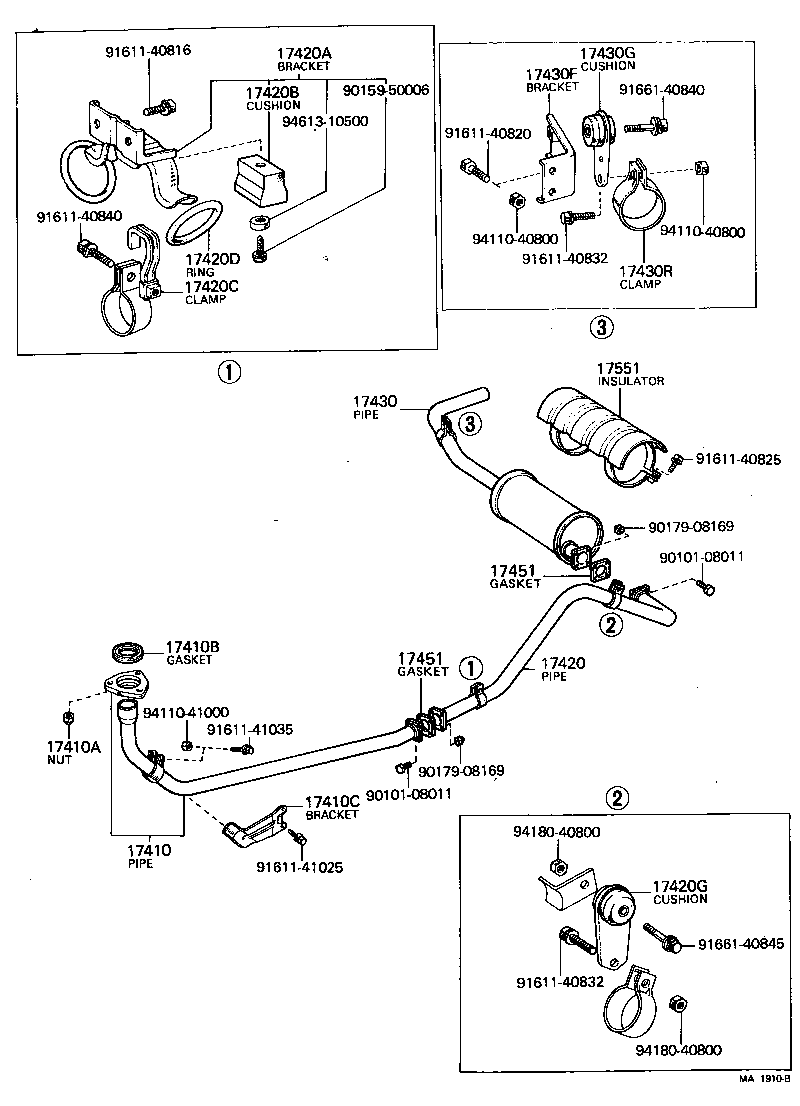

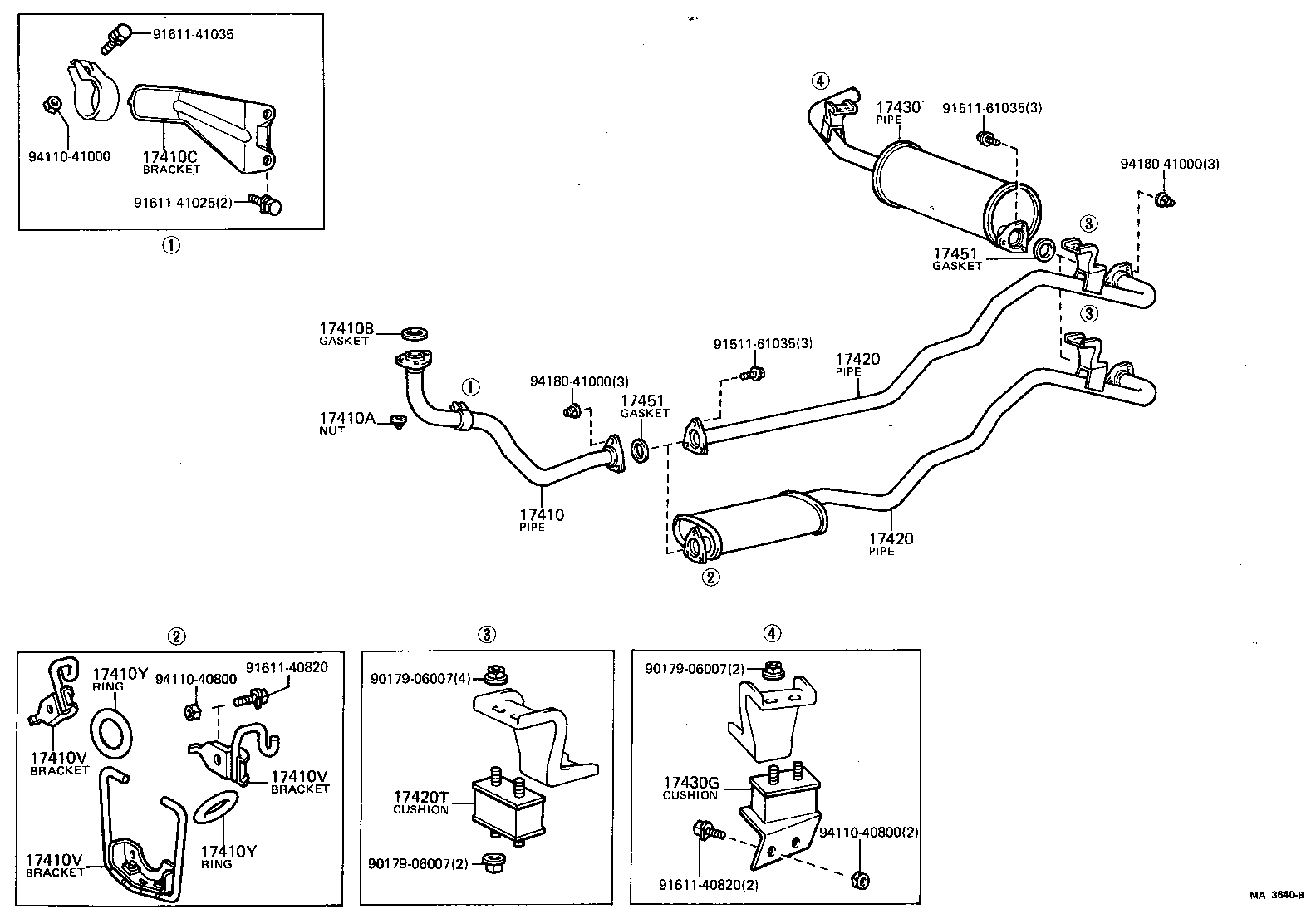

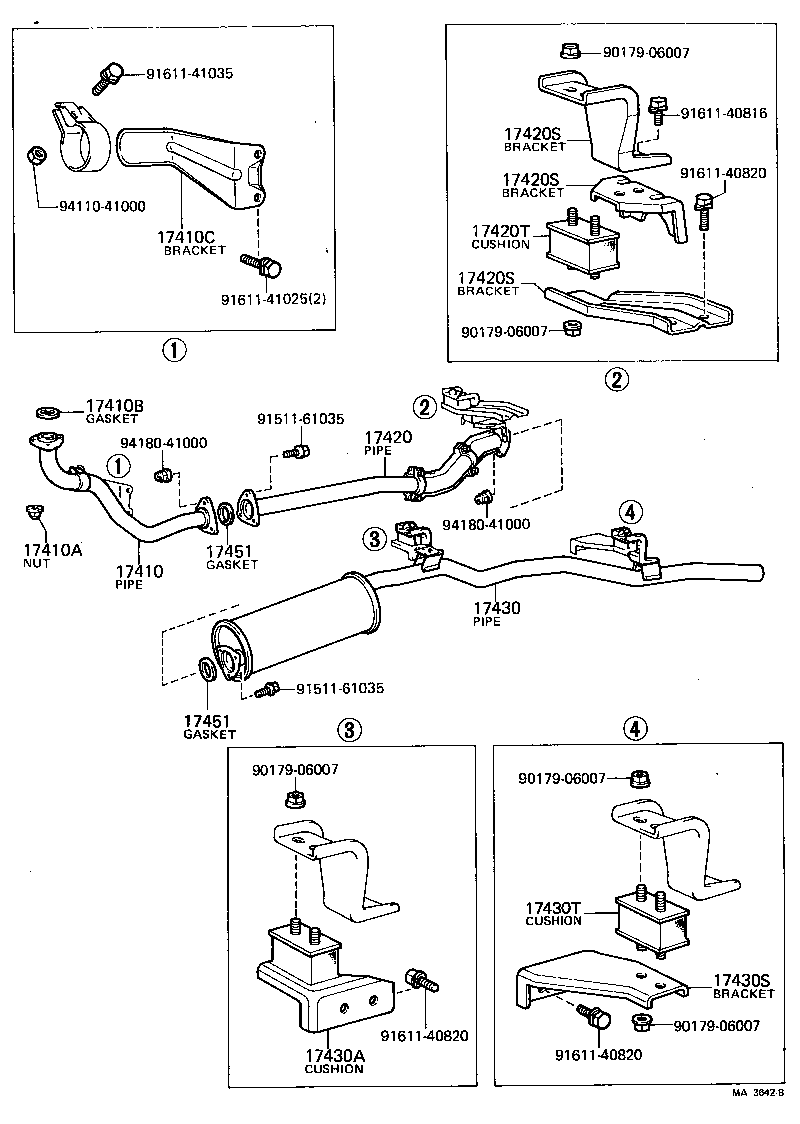

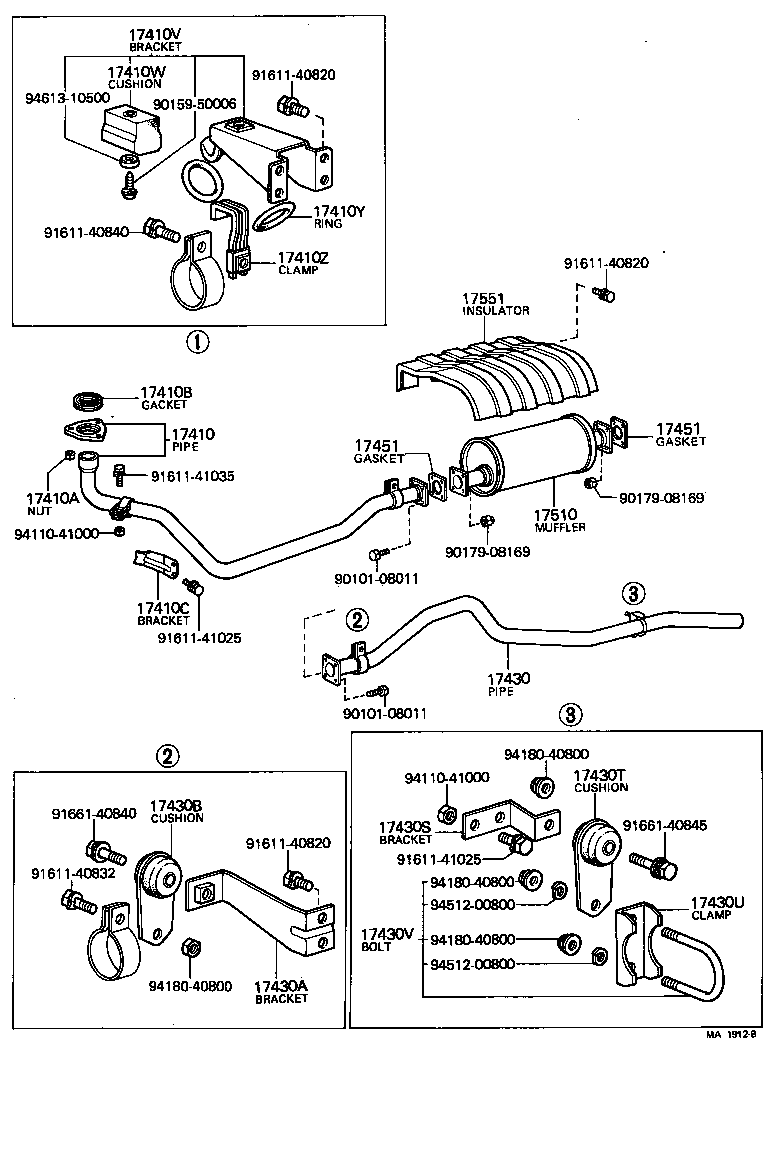

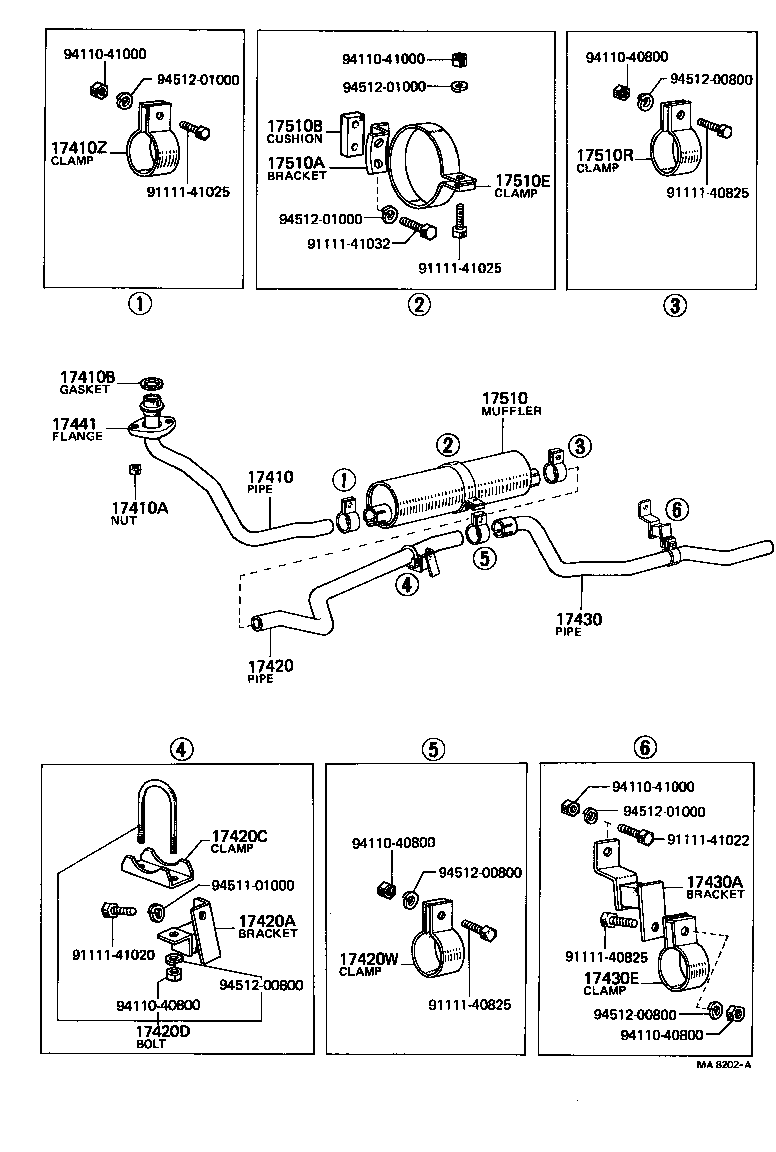

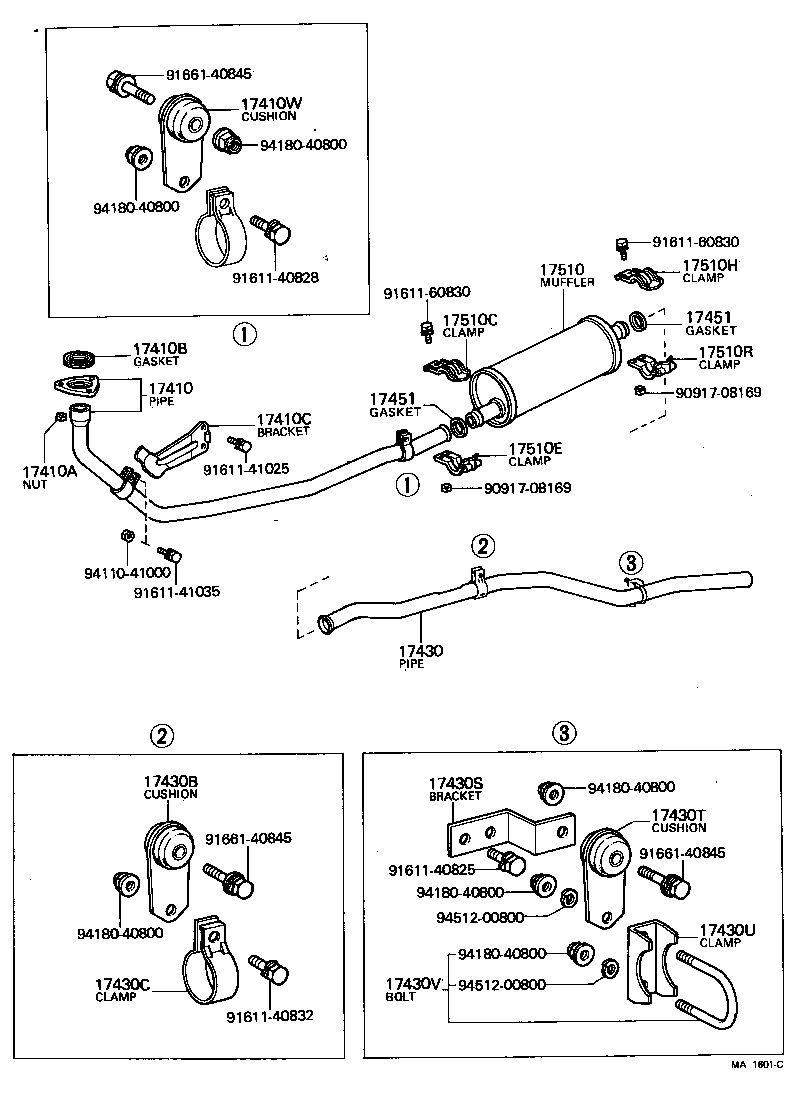

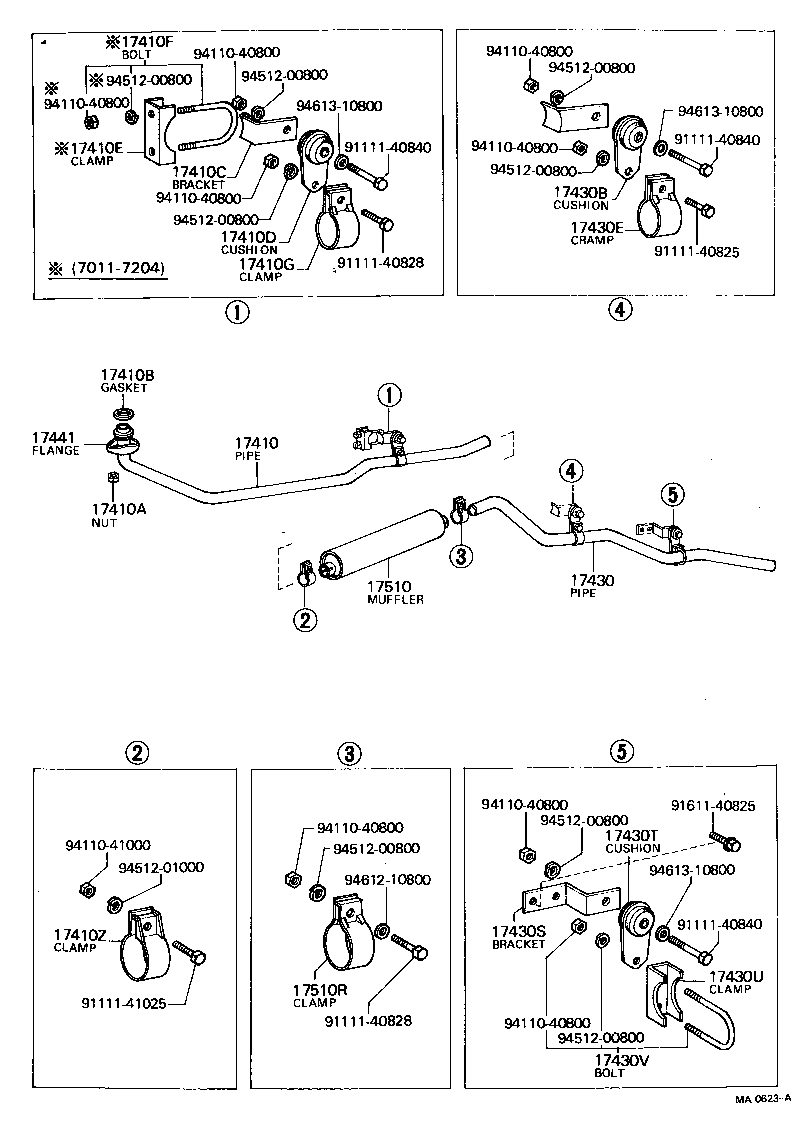

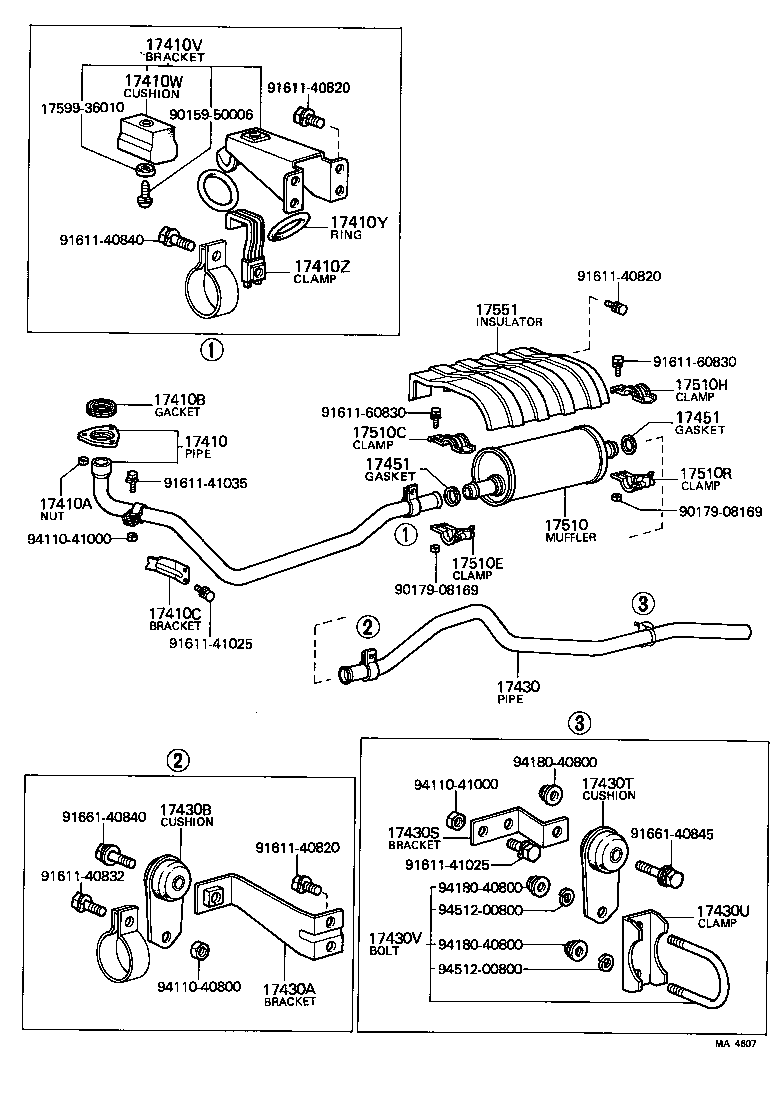

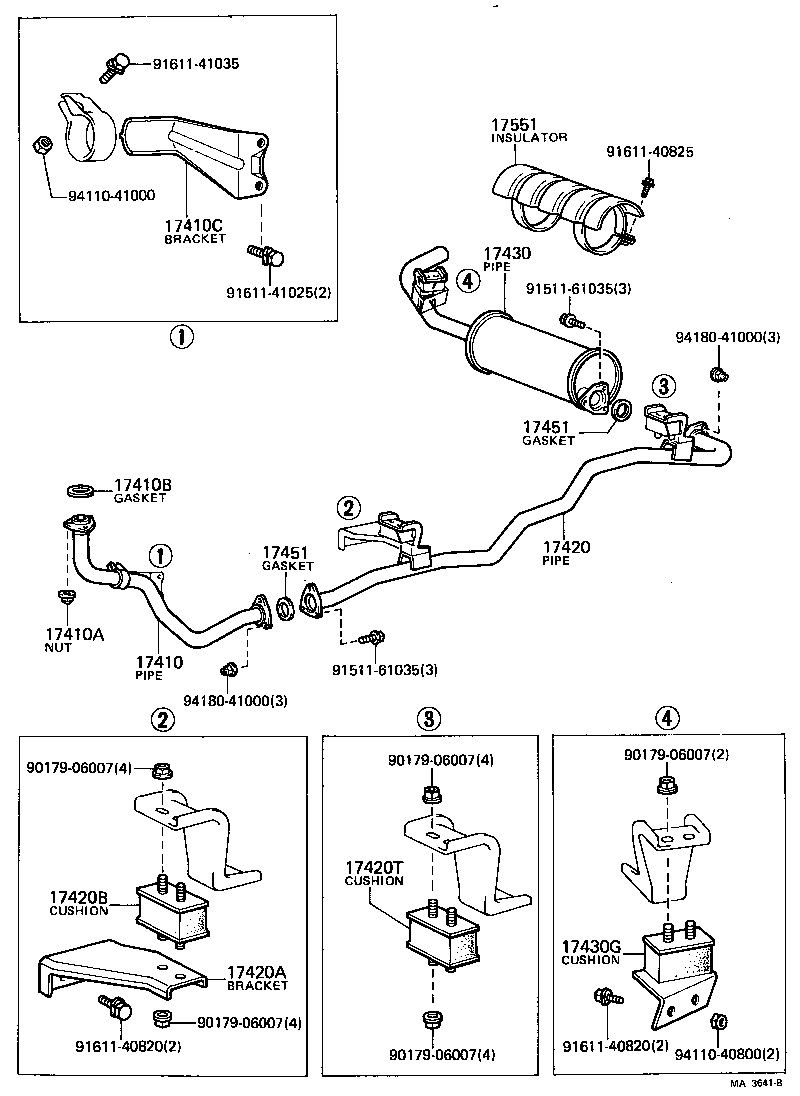

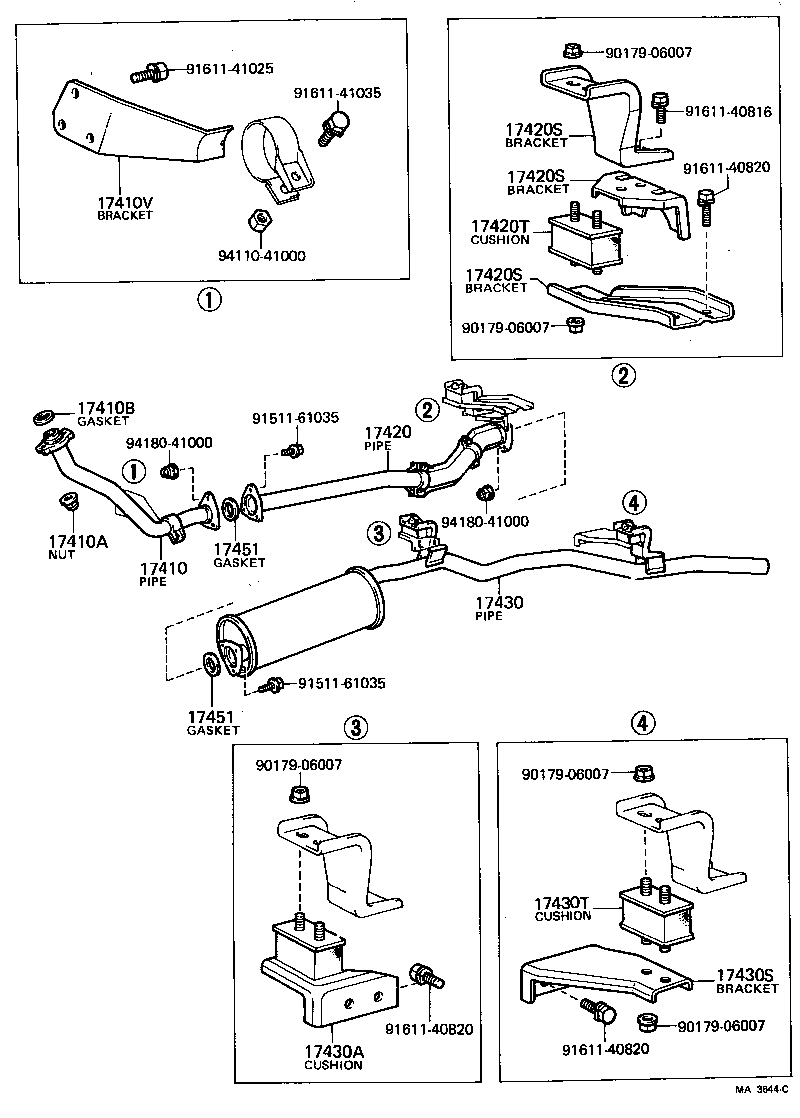

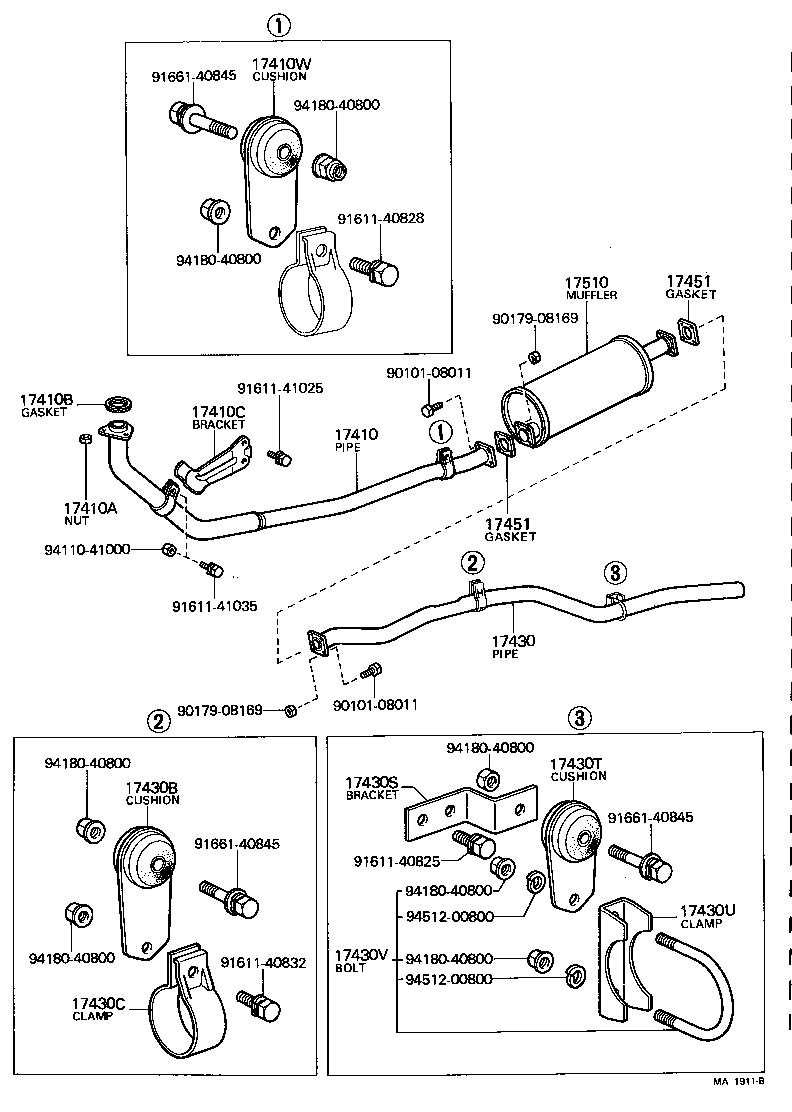

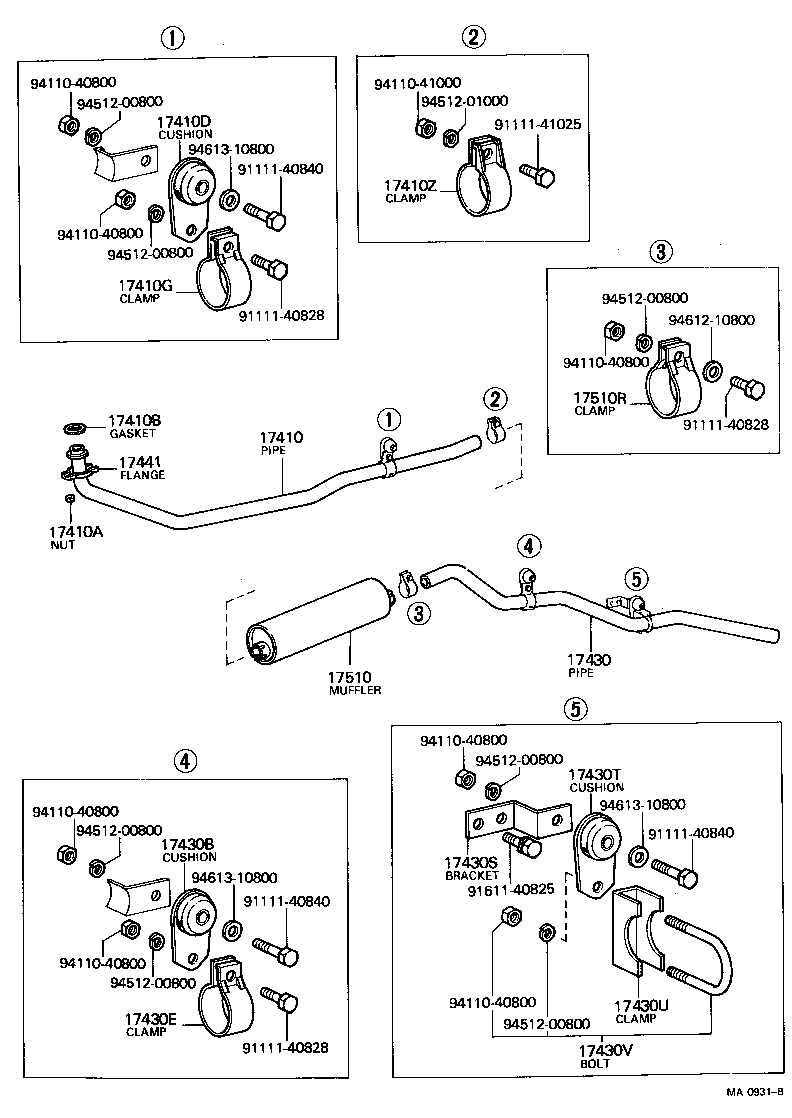

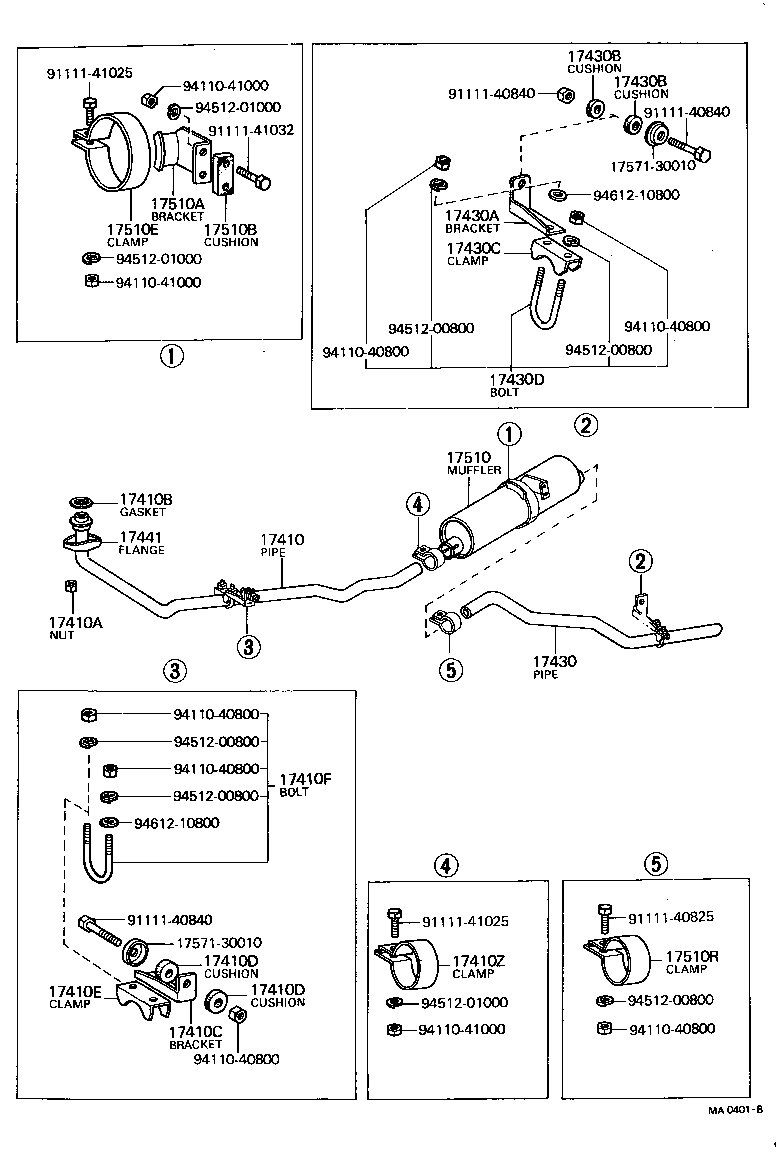

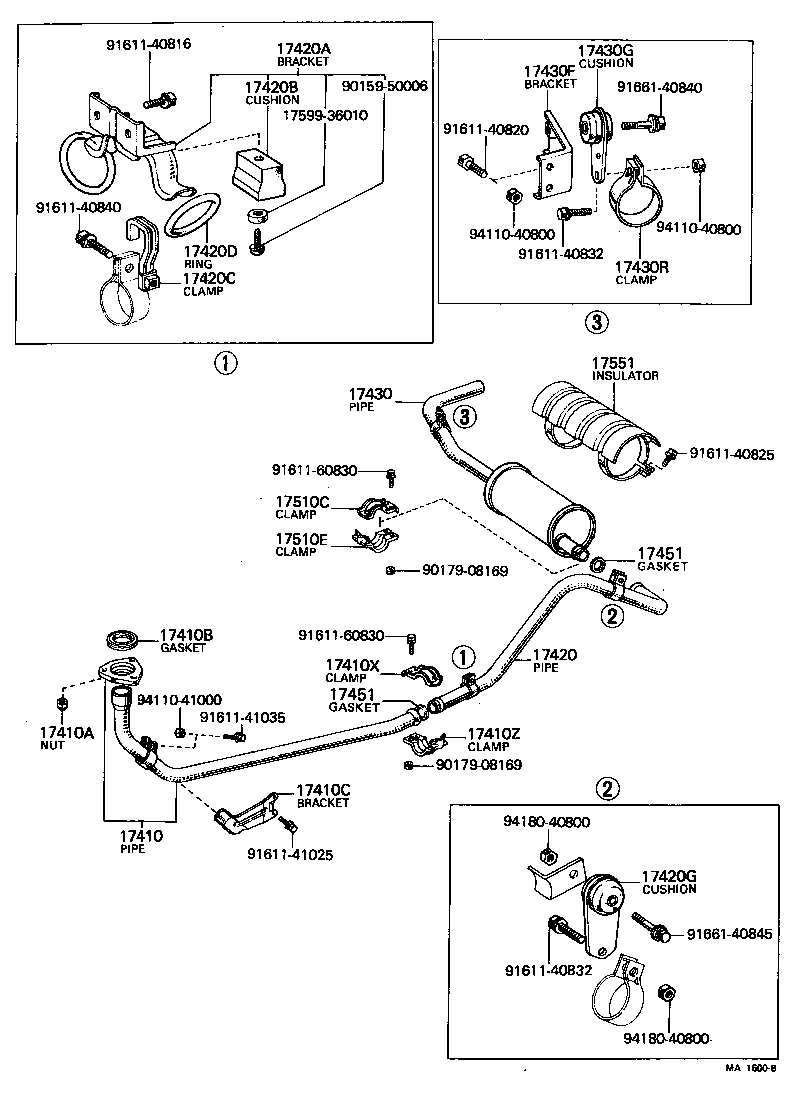

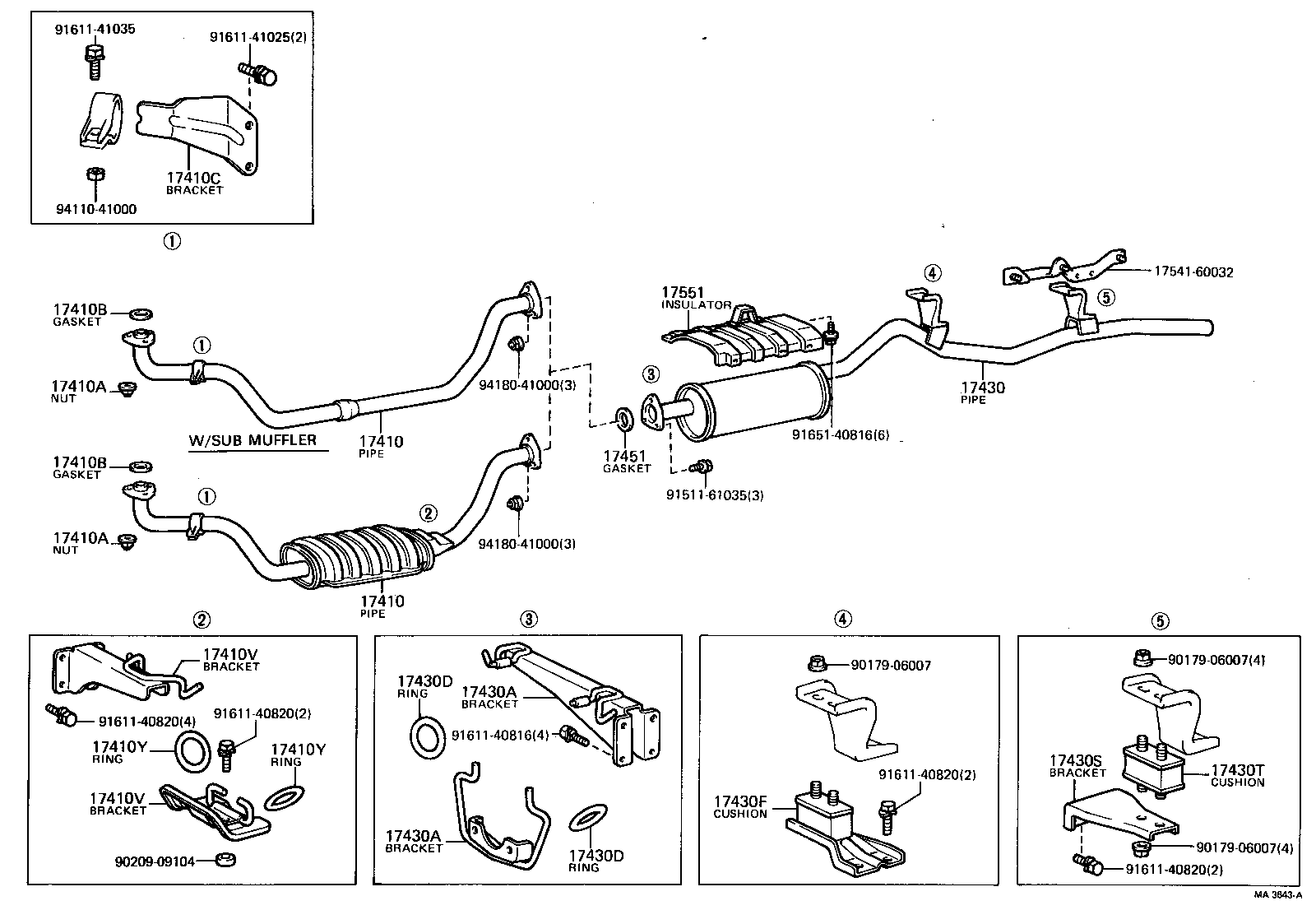

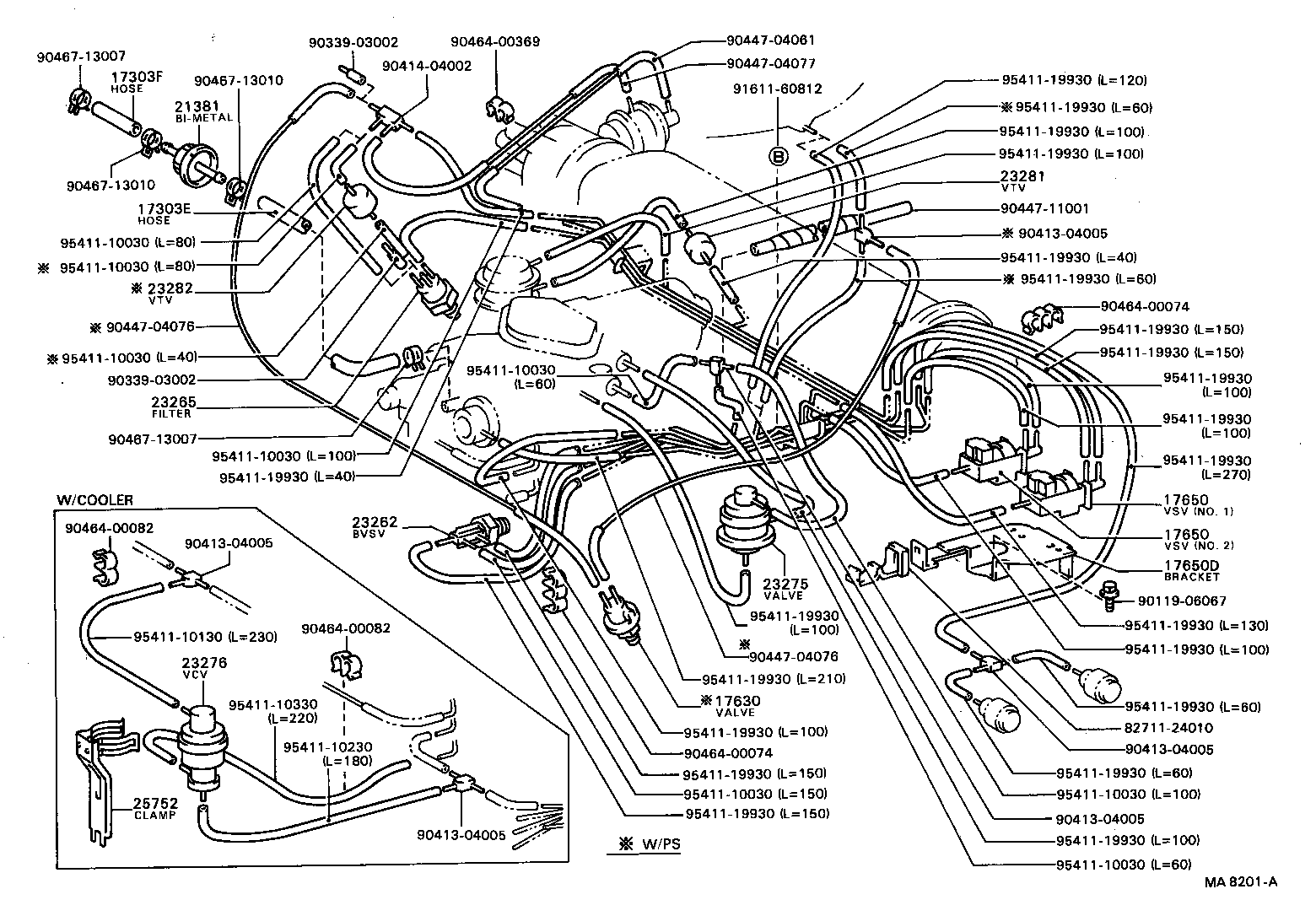

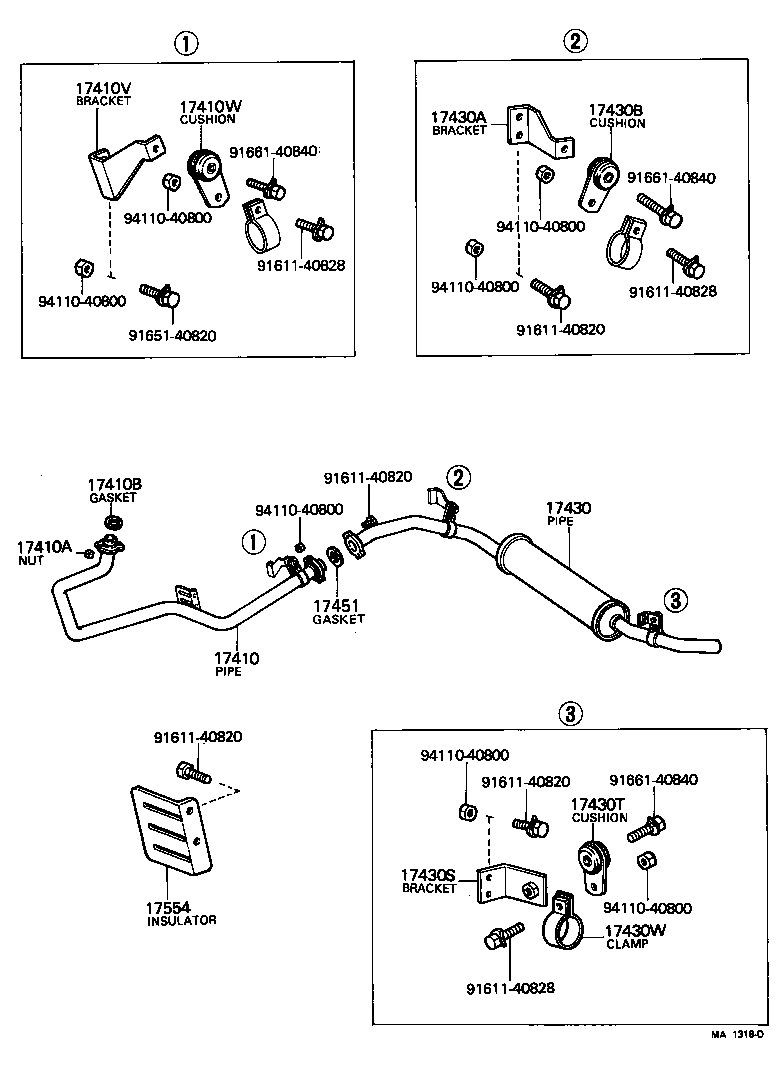

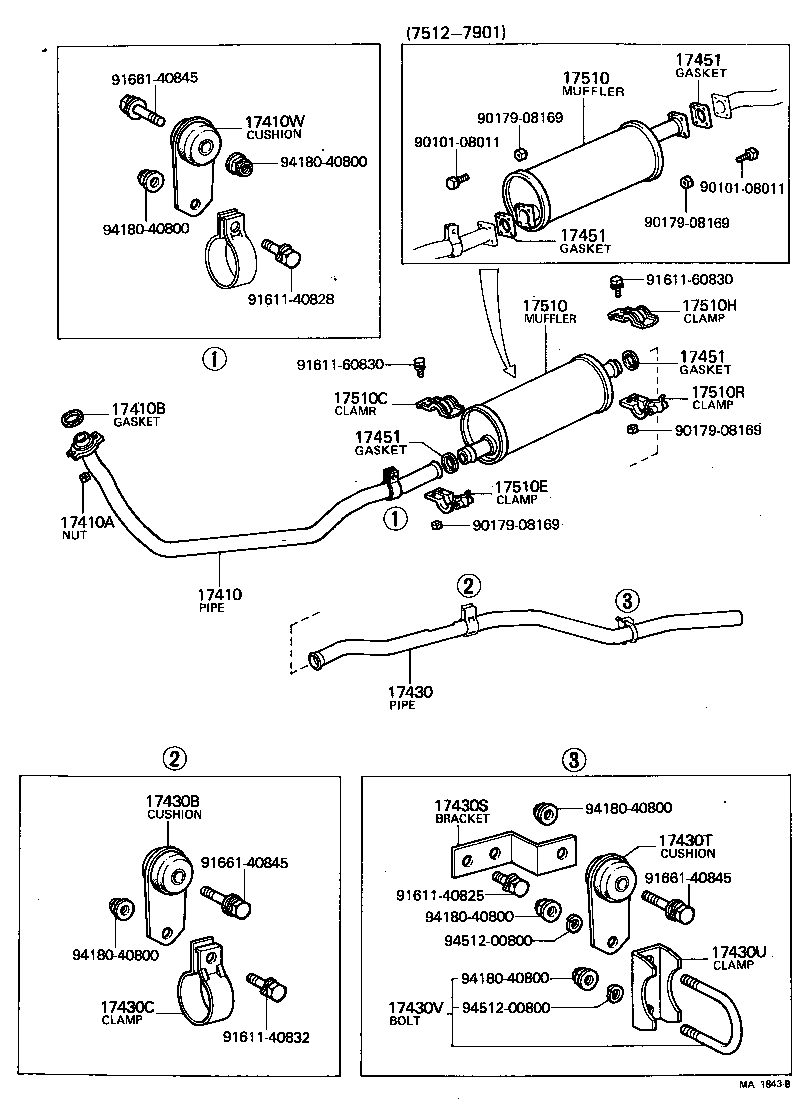

Figure MA0399C MA0399C 1969-03 → 1975-01 Figure MA8201A MA8201A 1969-03 → 1975-01 Figure MA0401B MA0401B 1969-03 → 1970-11 Figure MA0623A MA0623A 1970-11 → 1975-01 Figure MA8202A MA8202A 1969-03 → 1969-09 Figure MA8203A MA8203A 1969-09 → 1975-01 Figure MA1600B MA1600B 1975-01 → 1975-12 Figure MA1910B MA1910B 1975-12 → 1979-01 Figure MA3640B MA3640B 1979-01 → 1980-07 Figure MA3641B MA3641B 1979-01 → 1980-07 Figure MA1601C MA1601C 1975-01 → 1975-12 Figure MA1911B MA1911B 1975-12 → 1979-01 Figure MA3642B MA3642B 1979-01 → 1980-07 Figure MA4277 MA4277 1979-01 → 1980-07 Figure MA4607 MA4607 1975-01 → 1975-12 Figure MA1912B MA1912B 1975-12 → 1979-01 Figure MA3643A MA3643A 1979-01 → 1980-07 Figure MA0931B MA0931B 1972-04 → 1975-05 Figure MA1843B MA1843B 1975-05 → 1979-01 Figure MA3644C MA3644C 1979-01 → 1980-07 Figure MA1318D MA1318D 1974-02 → 1980-07

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410C Bracket, Exhaust Pipe Front (FOR FRONT)
17410D Cushion, Exhaust Pipe Front (FOR FRONT)
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17410F Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
17410G Clamp NO.2, Exhaust Pipe Front (FOR FRONT)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410W Cushion, Exhaust Pipe Front (FOR REAR)
17410X Clamp NO.1, Exhaust Pipe Front (FOR REAR)
17410Y Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
17410Z Clamp NO.2, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420A Bracket, Exhaust Pipe Center, Front
17420B Cushion, Exhaust Pipe Center, Front
17420C Clamp NO.1, Exhaust Pipe Center, Front
17420D Bolt OR Ring, Exhaust Pipe Center, Front
17420E Clamp NO.2, Exhaust Pipe Center, Front
17420G Cushion, Exhaust Pipe Center, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420T Cushion, Exhaust Pipe Center, Rear
17420W Clamp NO.2, Exhaust Pipe Center, Rear
17430 Pipe Assy, Exhaust, Tail
17430A Bracket, Exhaust Tailpipe(FOR FRONT)
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430C Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
17430D Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17430E Clamp NO.2, Exhaust Tailpipe(FOR FRONT)
17430F Bracket, Exhaust Tailpipe(FOR CENTER)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17430R Clamp NO.2, Exhaust Tailpipe (FOR CENTER)
17430S Bracket, Exhaust Tailpipe (FOR REAR)
17430T Cushion, Exhaust Tailpipe (FOR REAR)
17430U Clamp NO.1, Exhaust Tailpipe (FOR REAR)
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17430W Clamp NO.2, Exhaust Tailpipe (FOR REAR)
17435 Insulator, Exhaust Pipe Heat
17441 Flange, Exhaust Pipe
17451 Gasket, Exhaust Pipe
17510 Muffler Assy
17510A Bracket, Muffler, Front
17510B Cushion, Muffler, Front
17510C Clamp NO.1, Muffler, Front
17510E Clamp NO.2, Muffler, Front
17510H Clamp NO.1, Muffler, Rear
17510R Clamp NO.2, Muffler, Rear
17551 Insulator, Exhaust Pipe Heat, NO.1
17554 Insulator, Exhaust Pipe Heat, Front
17586 Bracket, Heat Insulator, NO.1
17587 Bracket, Heat Insulator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
