Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

28 part groups · 17 illustrations

Illustrations

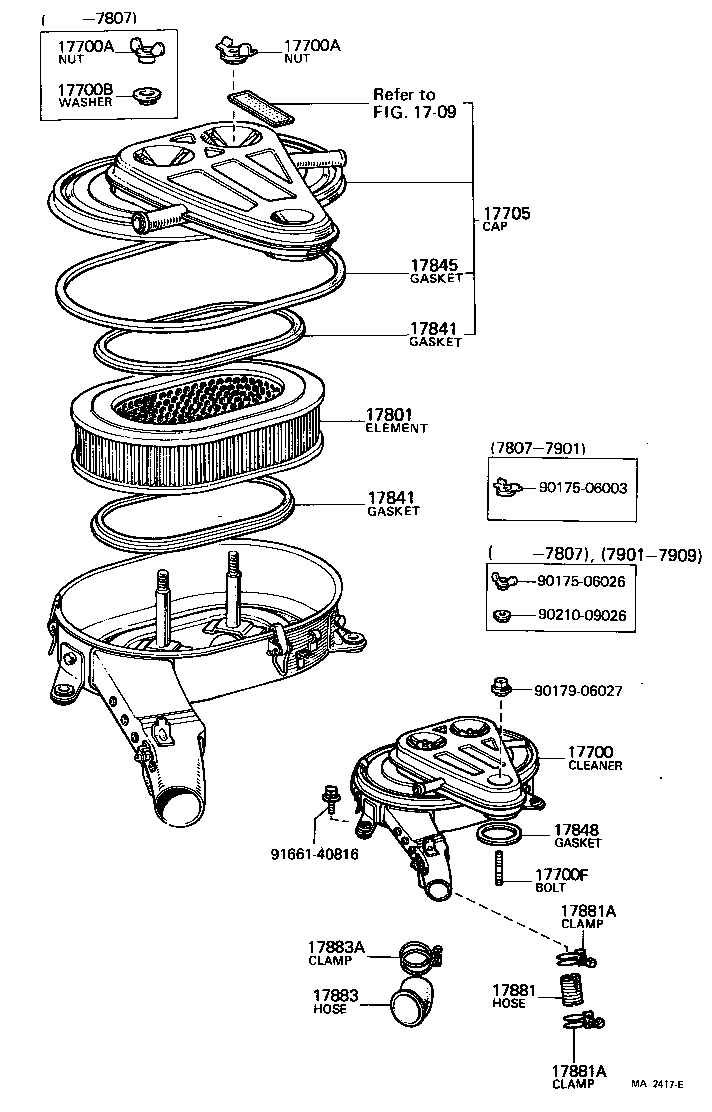

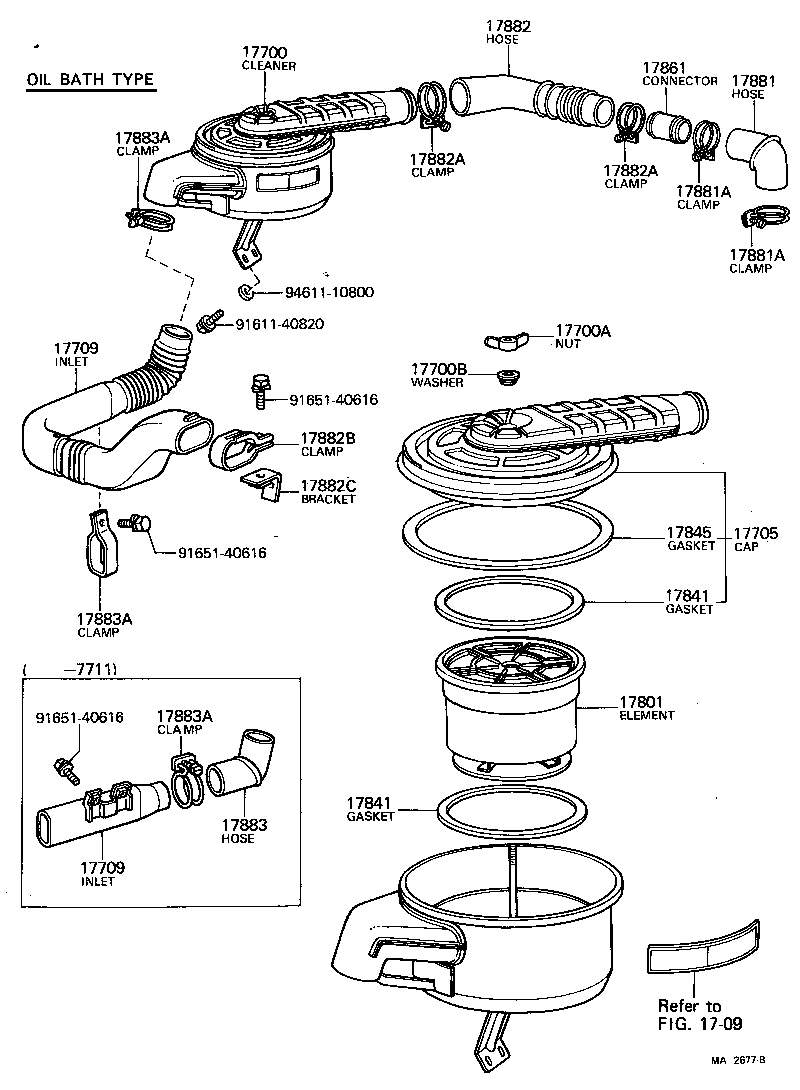

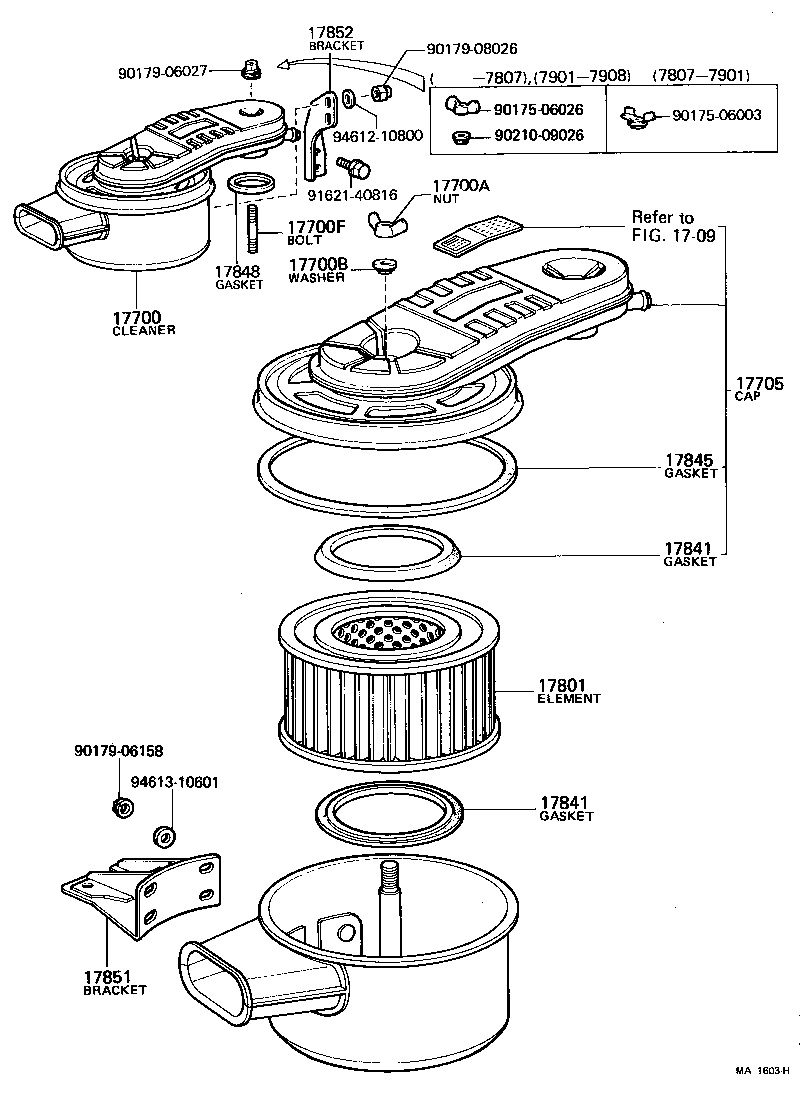

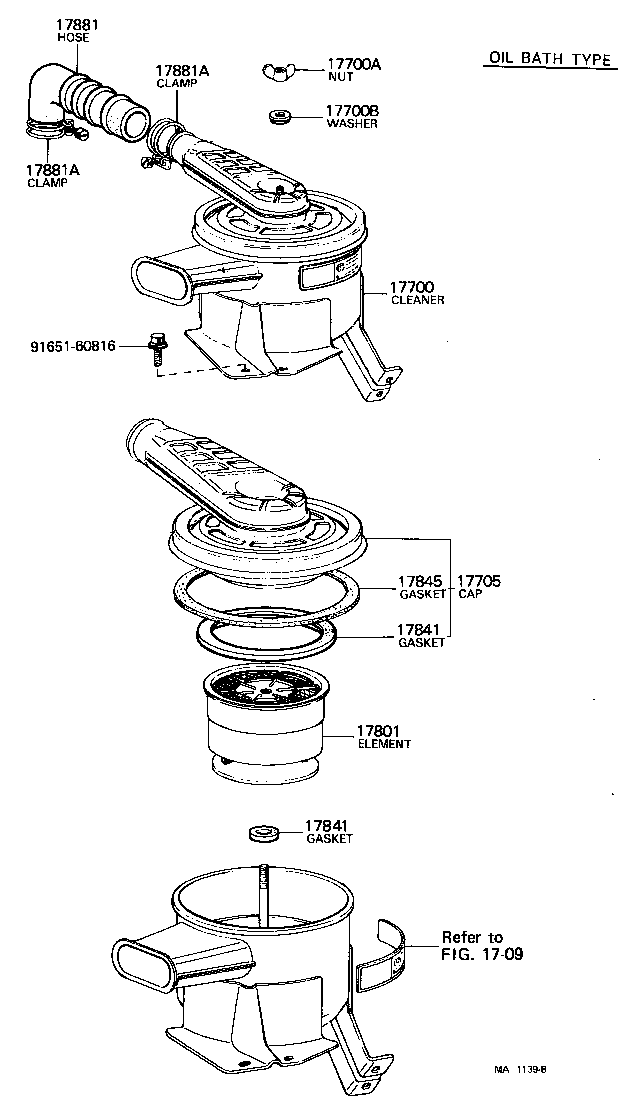

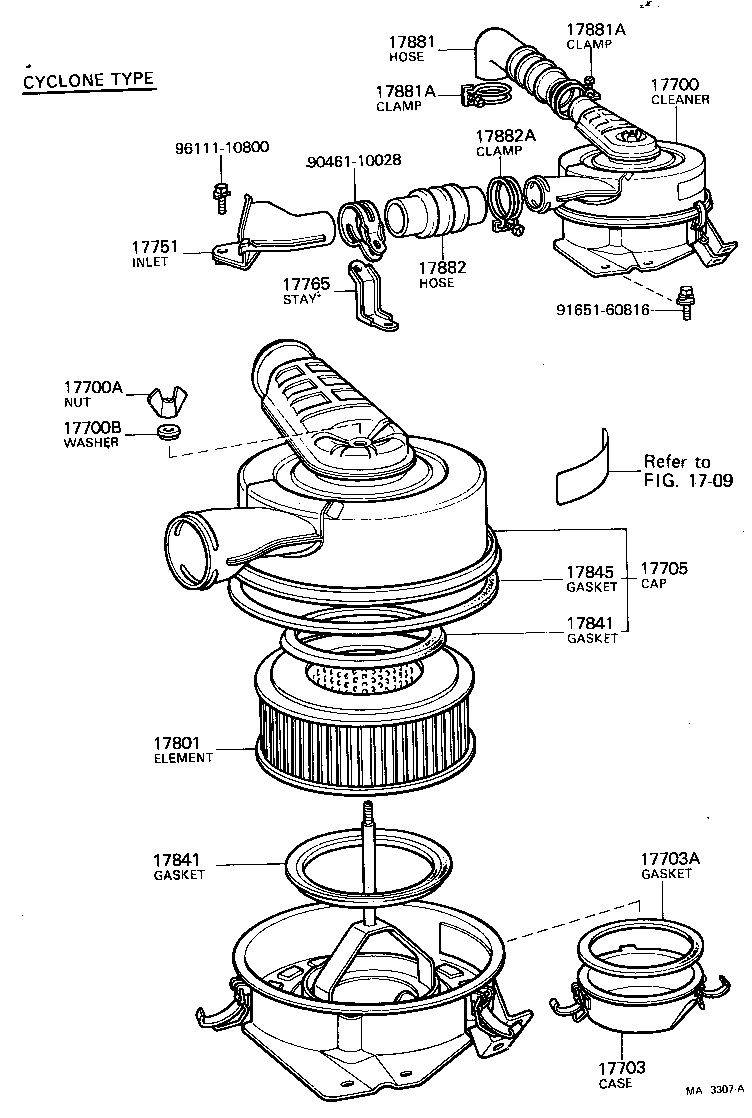

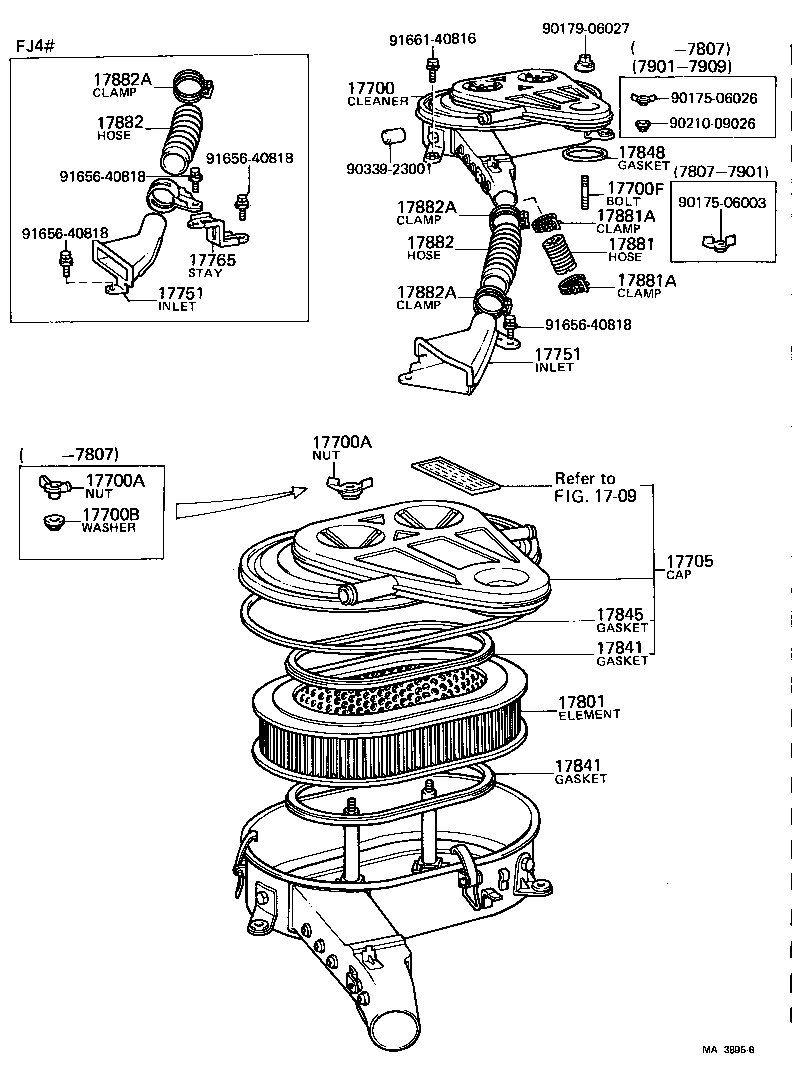

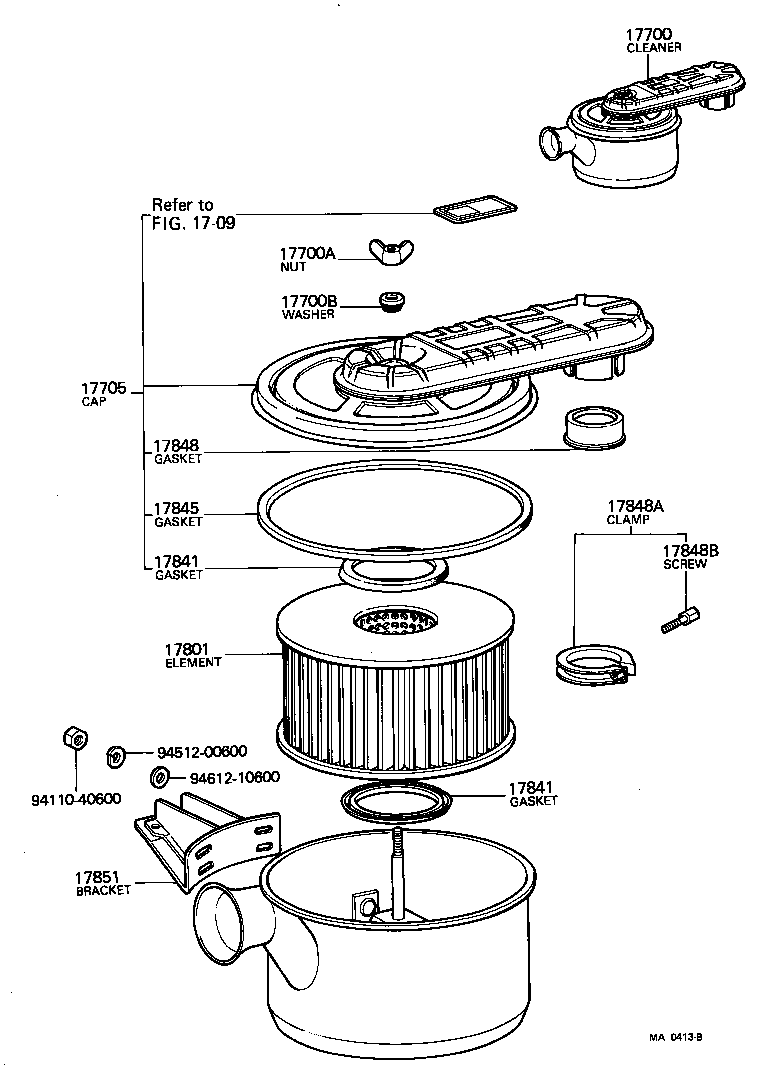

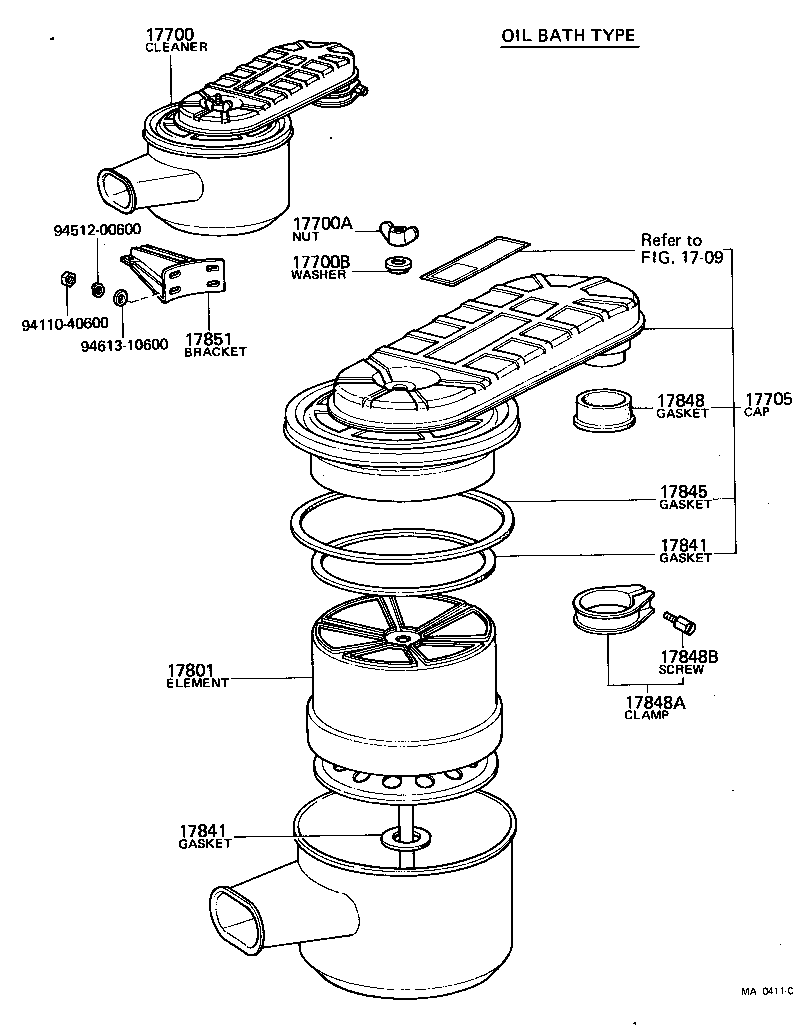

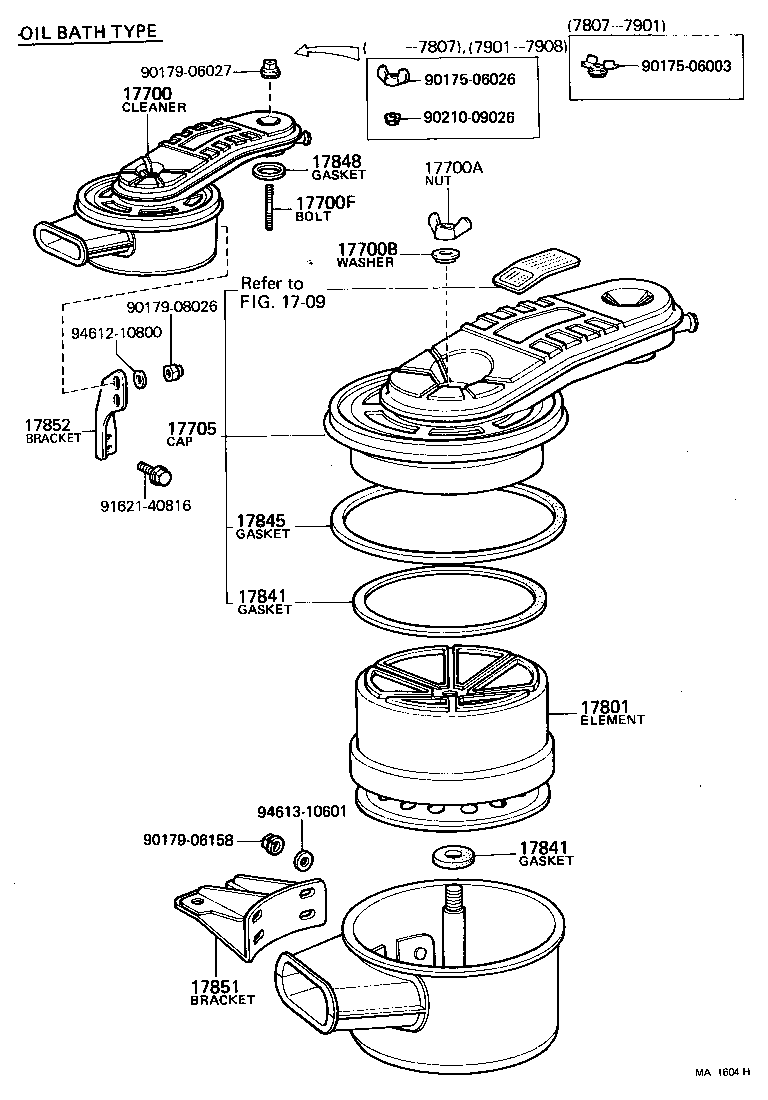

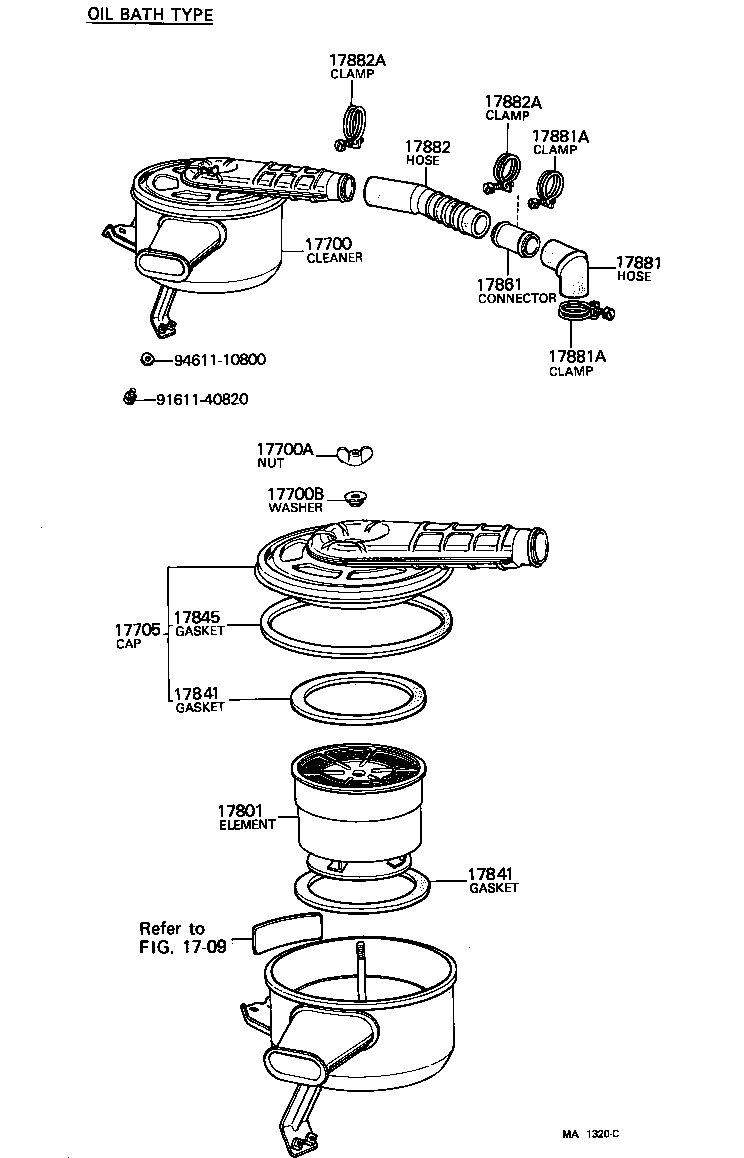

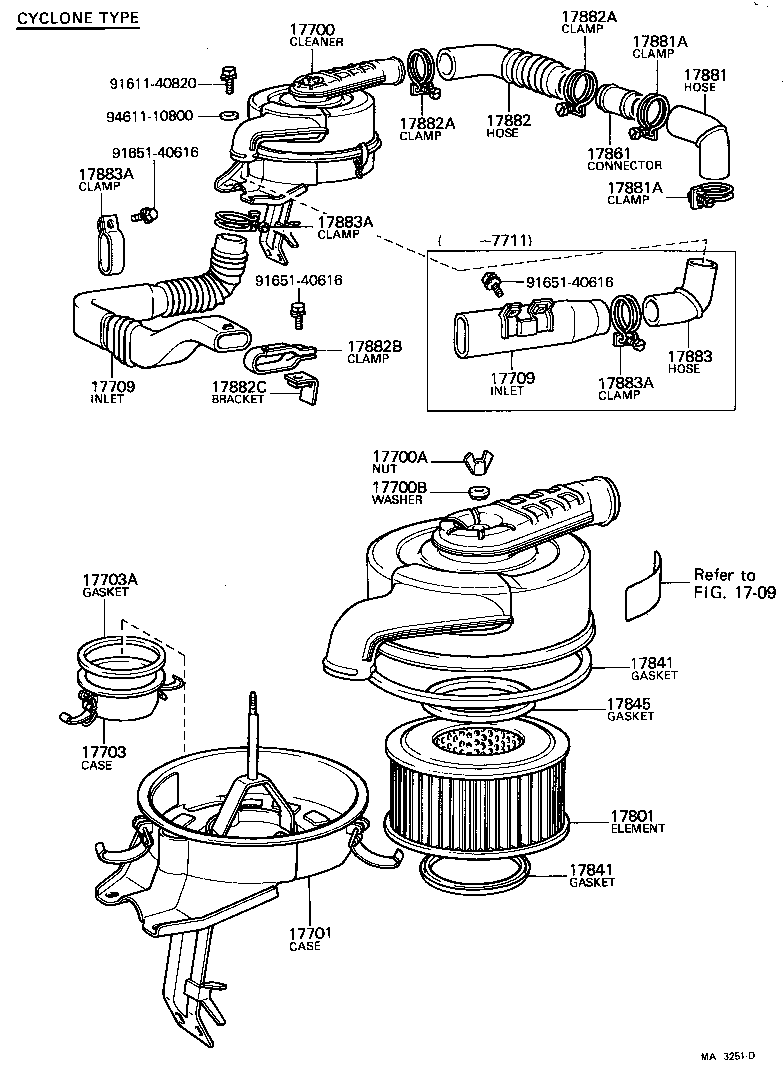

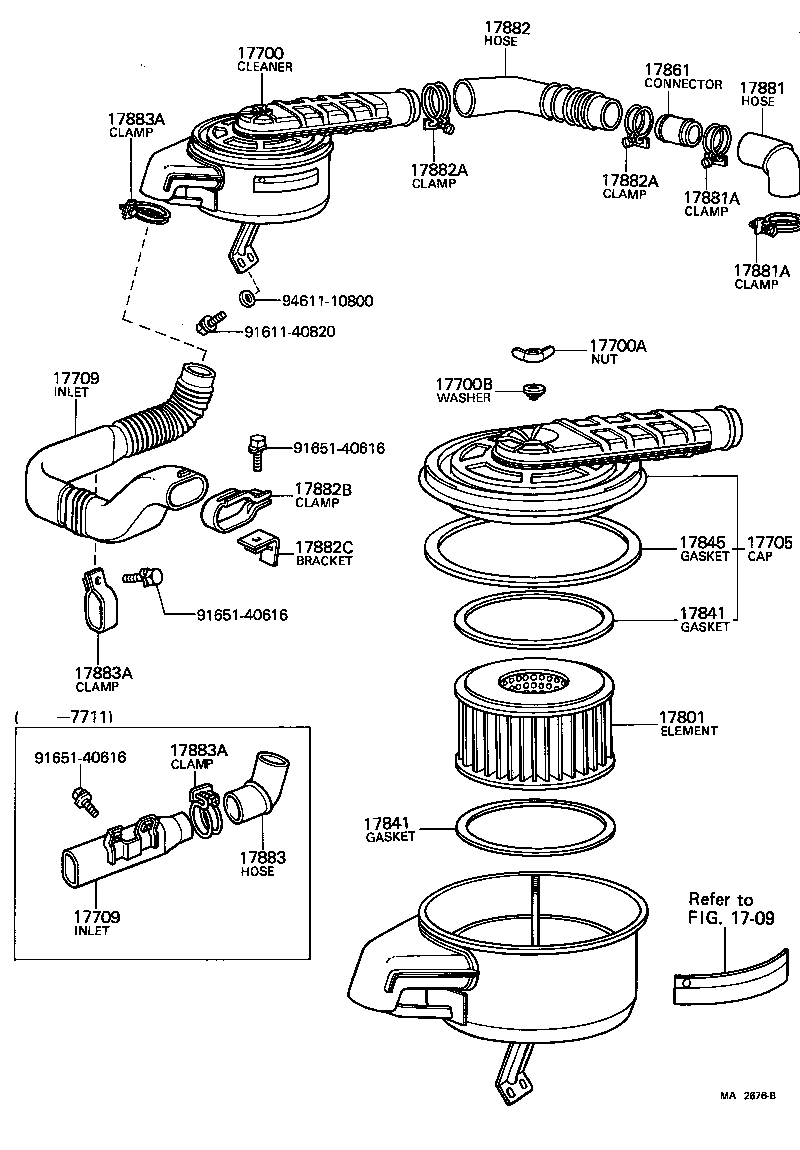

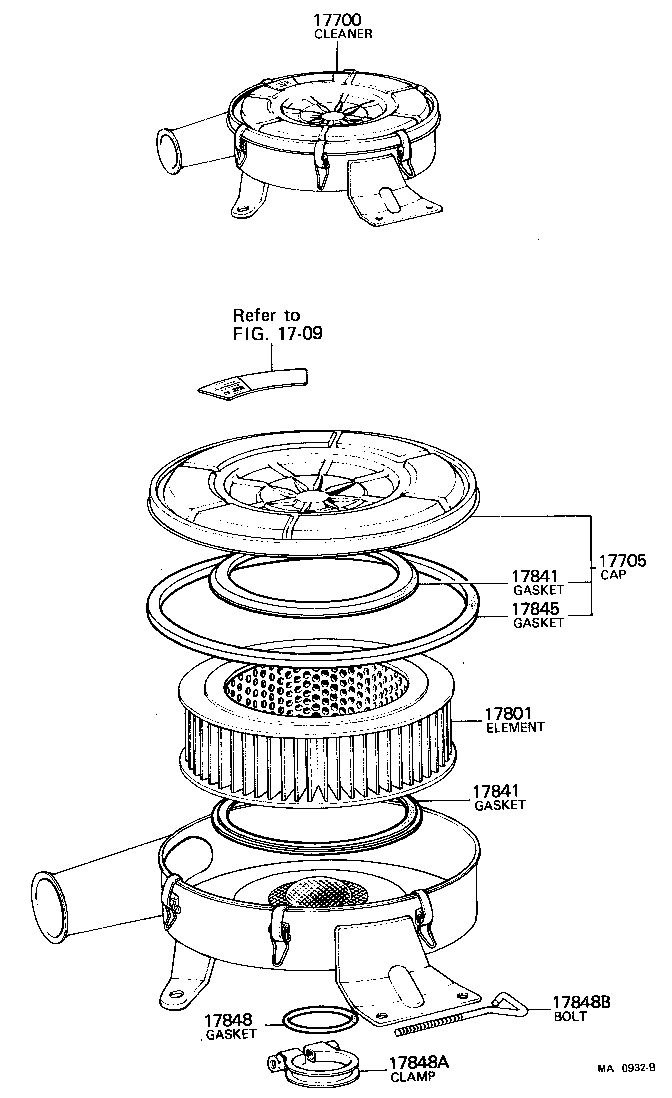

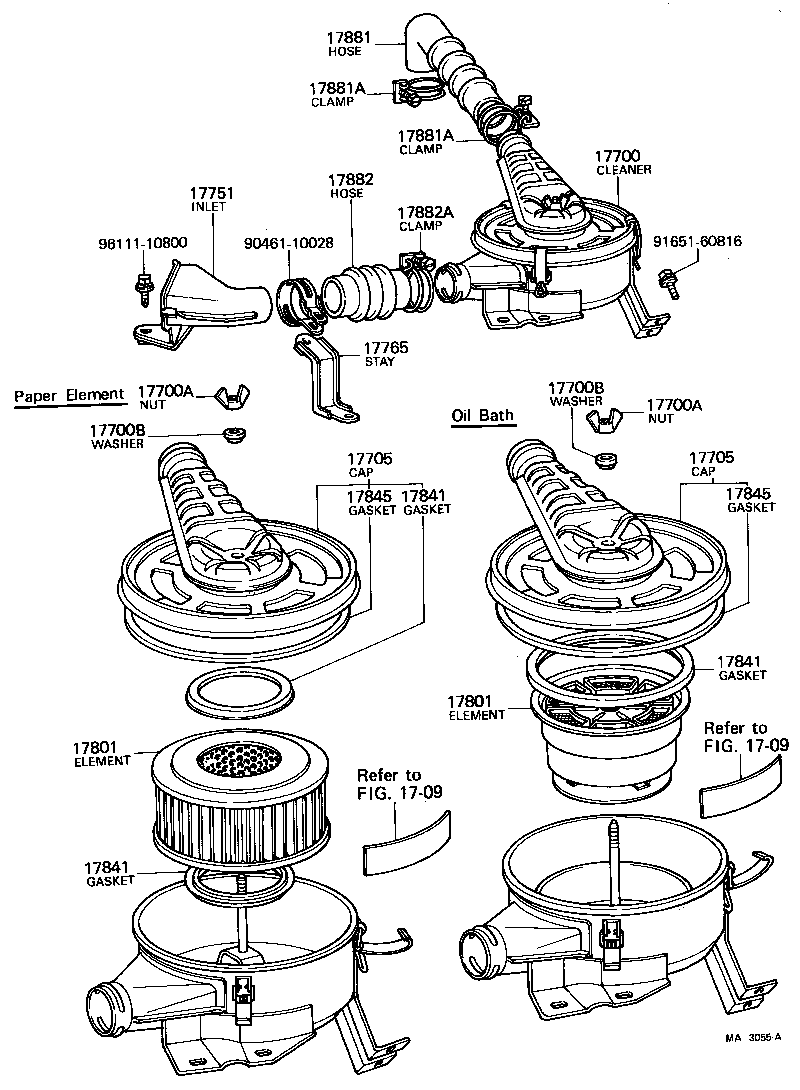

Figure MA1319B MA1319B 1974-02 → 1976-09 Figure MA1320C MA1320C 1974-02 → 1976-09 Figure MA2676B MA2676B 1976-09 → 1980-07 Figure MA2677B MA2677B 1976-09 → 1980-07 Figure MA3251D MA3251D 1977-09 → 1980-07 Figure MA0413B MA0413B 1969-03 → 1975-01 Figure MA0411C MA0411C 1969-03 → 1975-01 Figure MA1603H MA1603H 1975-01 → 1980-07 Figure MA1604H MA1604H 1975-01 → 1980-07 Figure MA1604H MA1604H 1976-08 → 1980-07 Figure MA3895B MA3895B 1975-01 → 1975-02 Figure MA3895B MA3895B 1975-02 → 1980-07 Figure MA2417E MA2417E 1976-08 → 1980-07 Figure MA0932B MA0932B 1972-04 → 1977-09 Figure MA1139B MA1139B 1973-03 → 1977-09 Figure MA3055A MA3055A 1977-09 → 1980-07 Figure MA3307A MA3307A 1977-09 → 1980-07

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17703 Case Sub-assy, Bottom Air Cleaner Filter
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17765 Stay, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17848A Clamp(FOR AIR CLEANER TO CARBURETOR GASKET)
17848B Bolt, Clamp(FOR AIR CLEANER TO CARBURETOR GASKET)
17851 Bracket, Air Cleaner Support
17852 Bracket, Air Creaner Support, NO.2
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17882B Clamp(FOR COOL AIR INTAKE)
17882C Bracket(FOR COOL AIR INTAKE)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
