Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

9 part groups · 8 illustrations

Illustrations

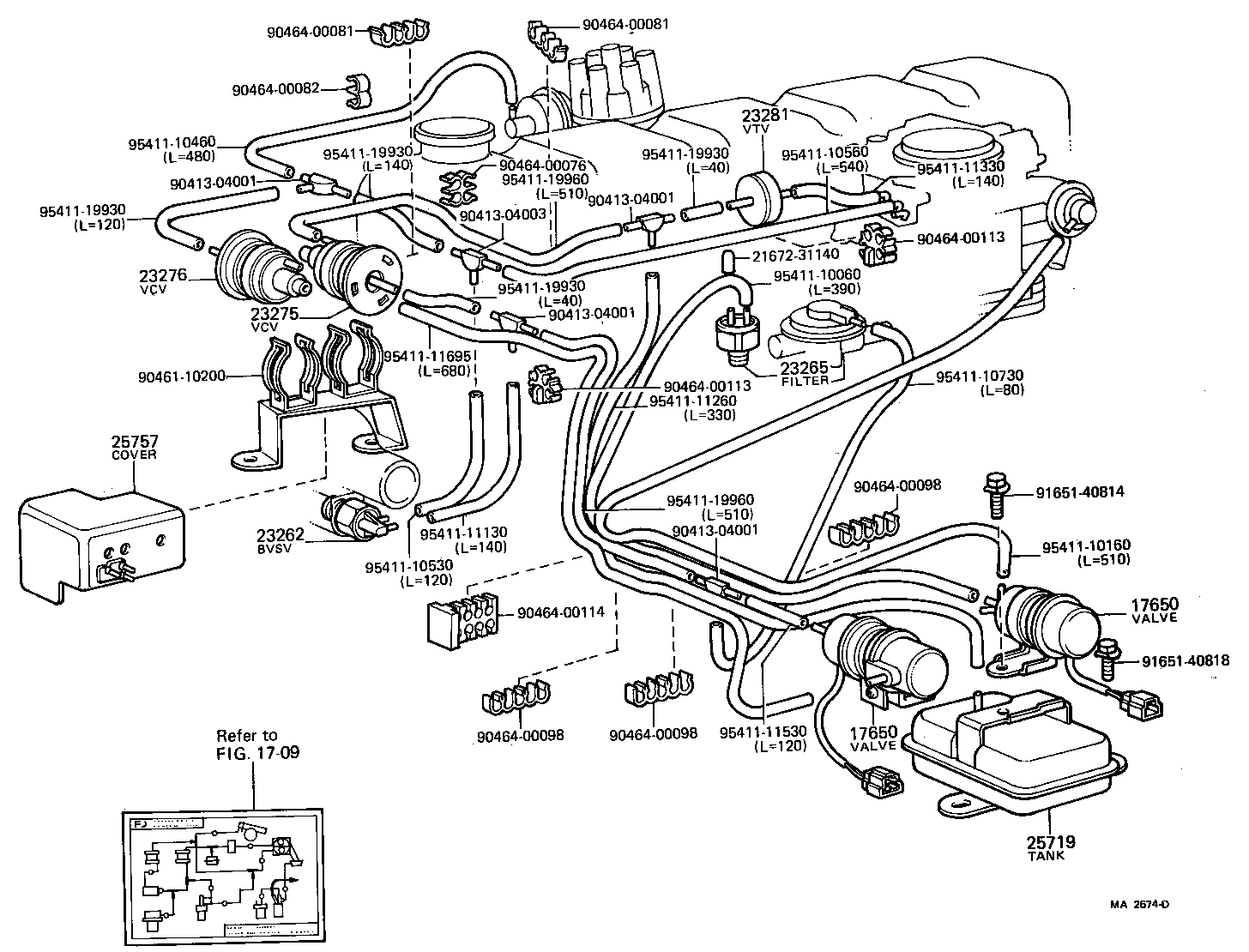

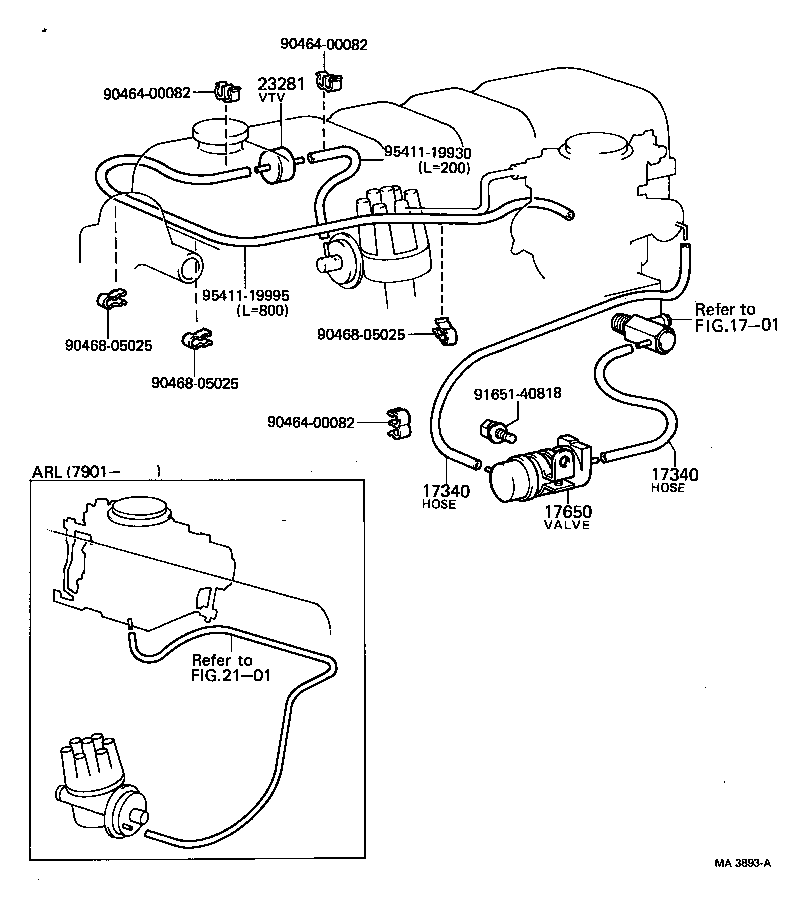

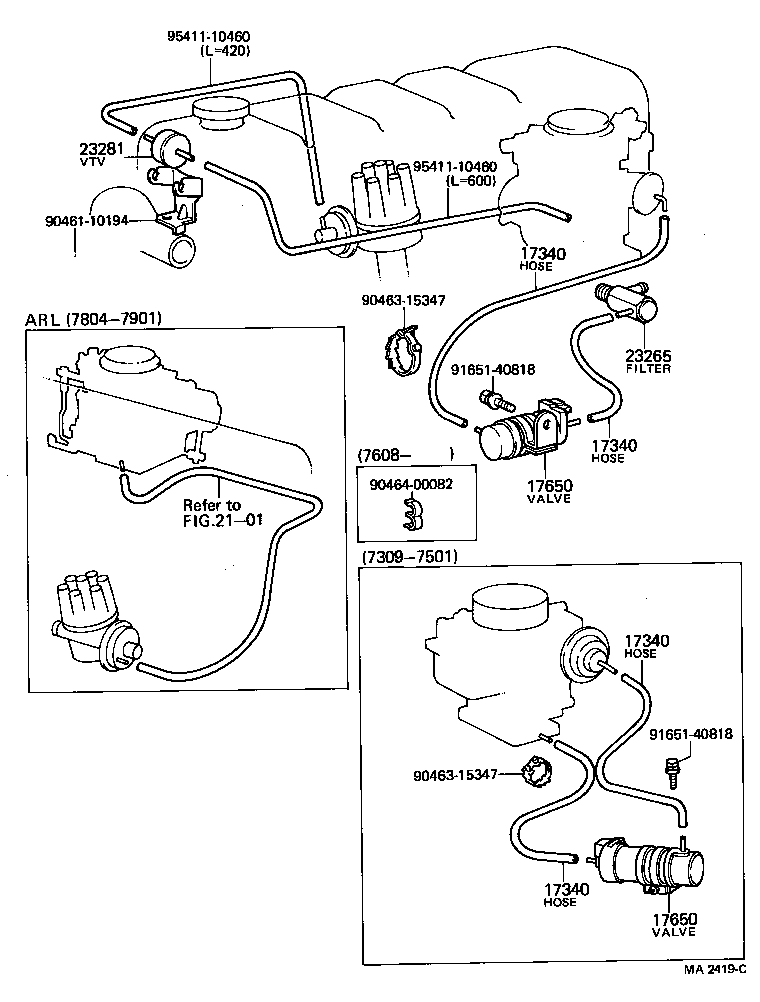

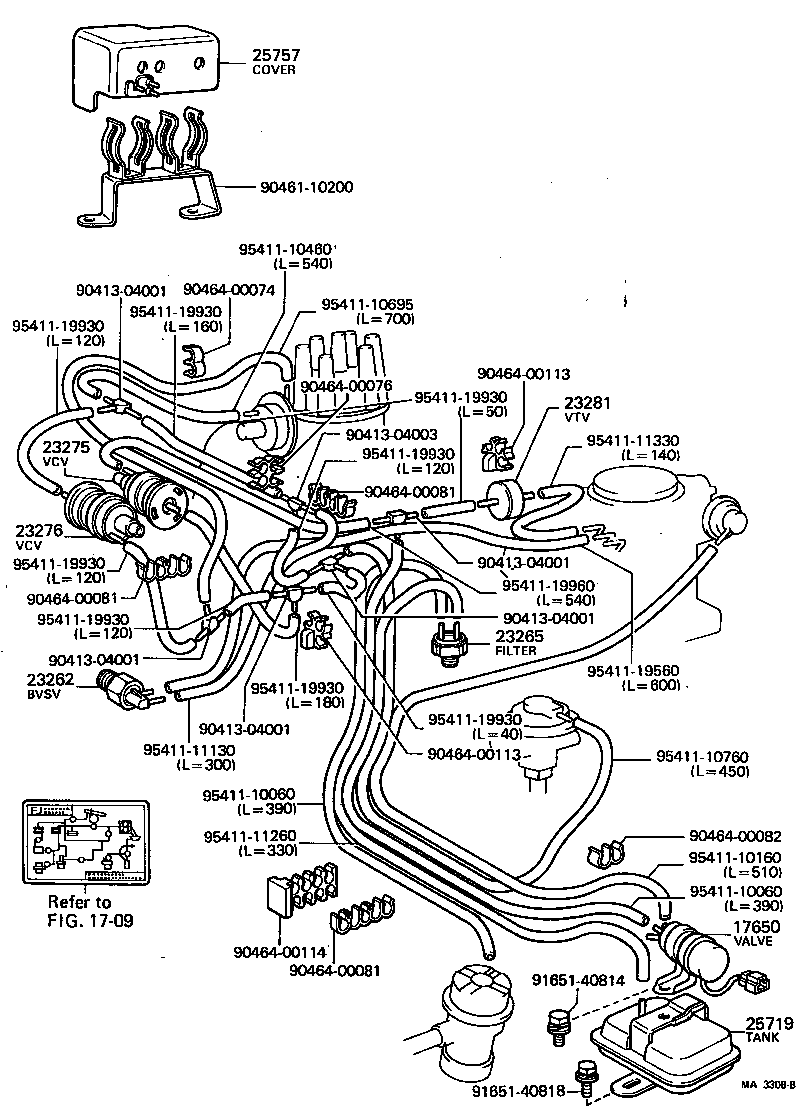

Figure MA9501 MA9501 1976-08 → 1980-07 Figure MA2419C MA2419C 1975-01 → 1975-02 Figure MA2419C MA2419C 1975-02 → 1978-04 Figure MA2419C MA2419C 1978-04 → 1979-01 Figure MA2419C MA2419C 1978-04 → 1979-01 Figure MA3893A MA3893A 1979-01 → 1980-07 Figure MA2674D MA2674D 1976-08 → 1978-04 Figure MA3308B MA3308B 1978-04 → 1980-07

Part groups

PNCDescription
17340 Hose Assy, Vacuum Switching Valve
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
25719 Tank, Vacuum Surge
25757 Cover, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
