Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

23 part groups · 6 illustrations

Illustrations

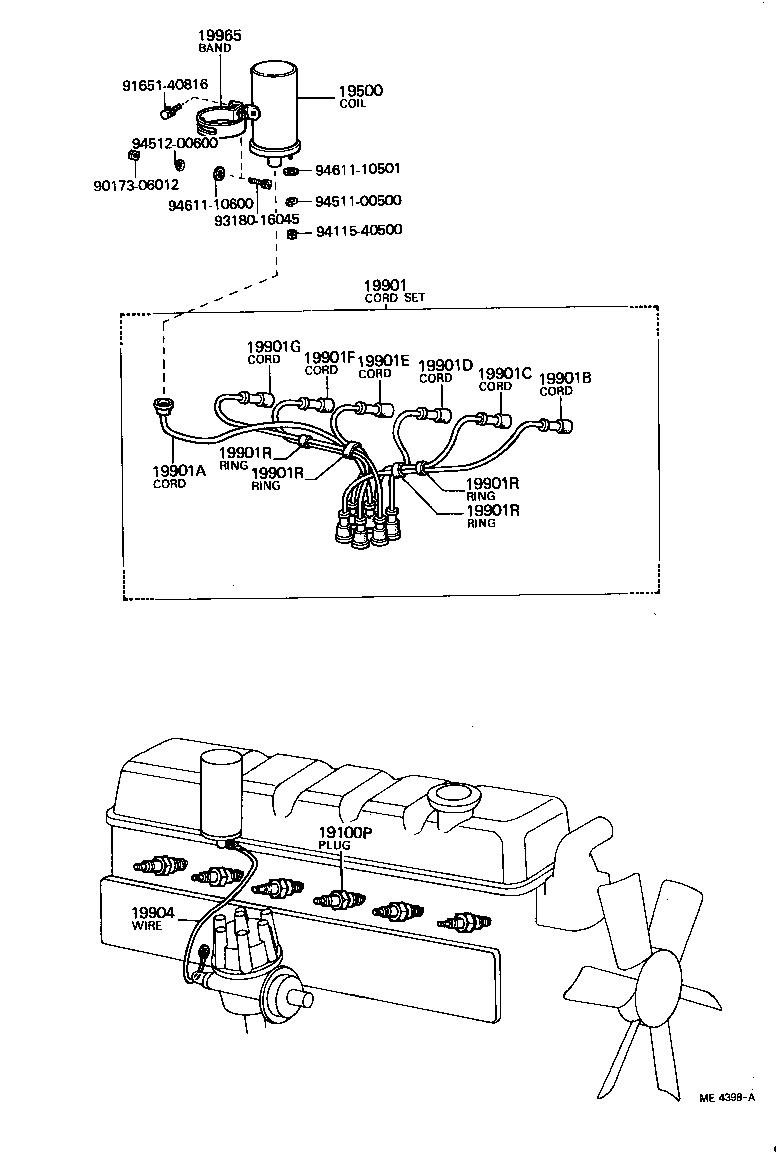

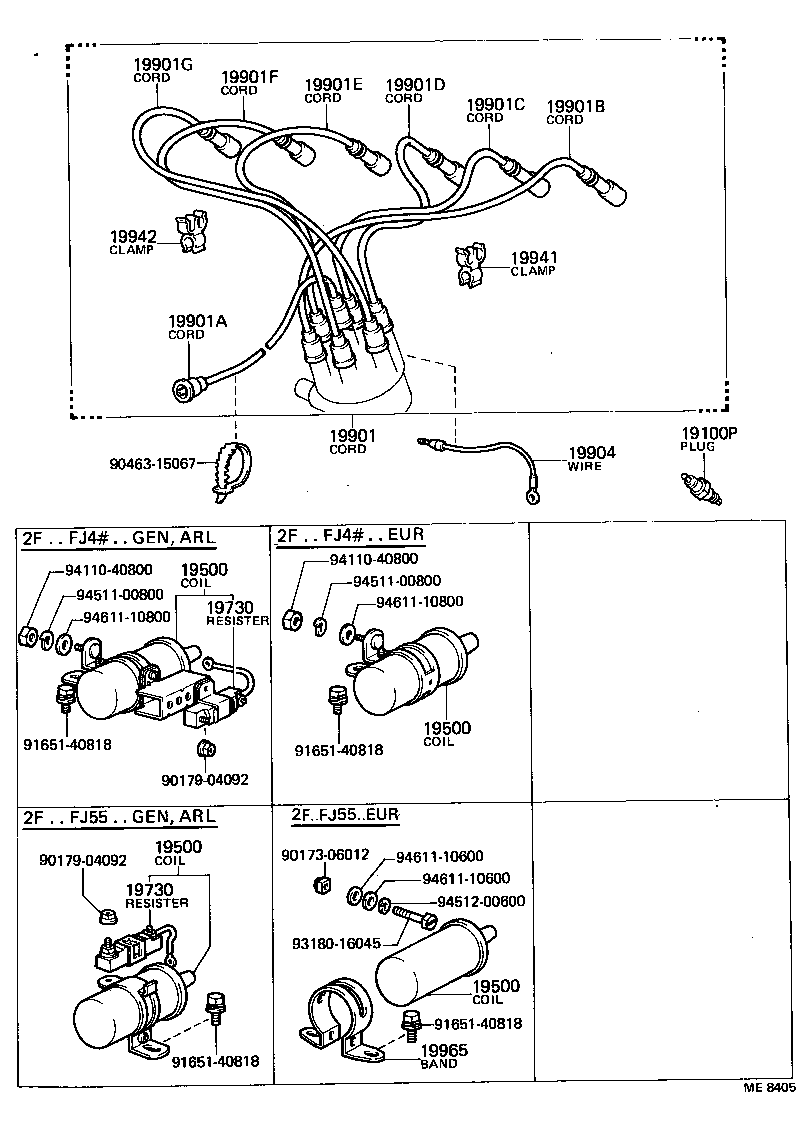

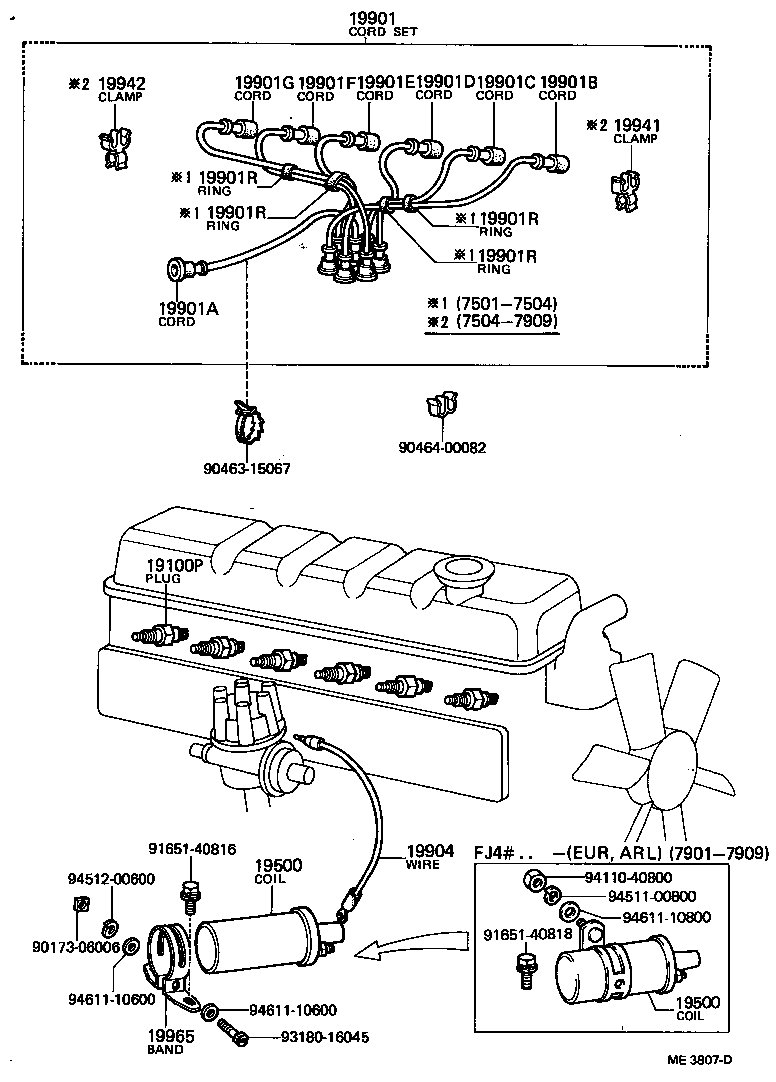

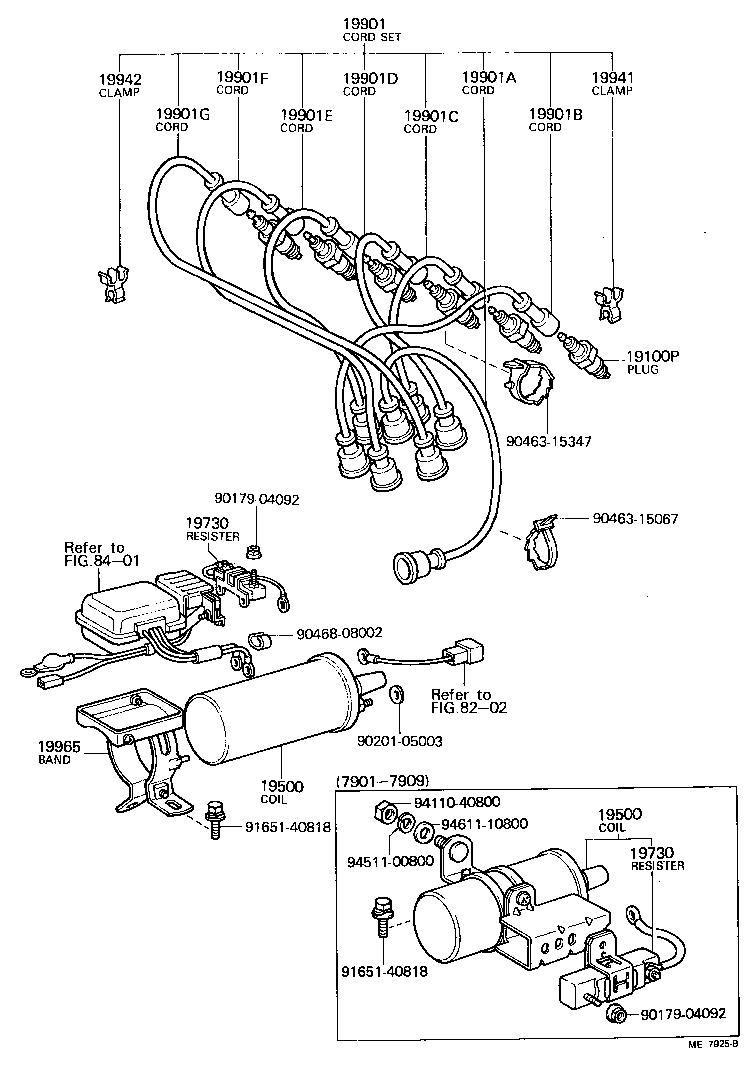

Figure ME4400C ME4400C 1972-04 → 1980-07 Figure ME4398A ME4398A 1969-03 → 1975-01 Figure ME3807D ME3807D 1975-01 → 1979-09 Figure ME7925B ME7925B 1976-08 → 1979-09 Figure ME8405 ME8405 1979-09 → 1980-07 Figure ME4400C ME4400C 1972-04 → 1980-07

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19807 Insulator Sub-assy, Glow Plug, NO.1
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19872 Connector, Glow Plug, NO.2
19873 Connector, Glow Plug, NO.3
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19901R Ring, Rubber Spark Plug Resistive Cord
19904 Wire Sub-assy, Distributor Primary
19941 Clamp, Resistive Cord, NO.1
19942 Clamp, Resistive Cord, NO.2
19965 Band, Ignition Coil, NO.1
22560 Magnet Assy, Over Injection
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
