Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

45 part groups · 6 illustrations

Illustrations

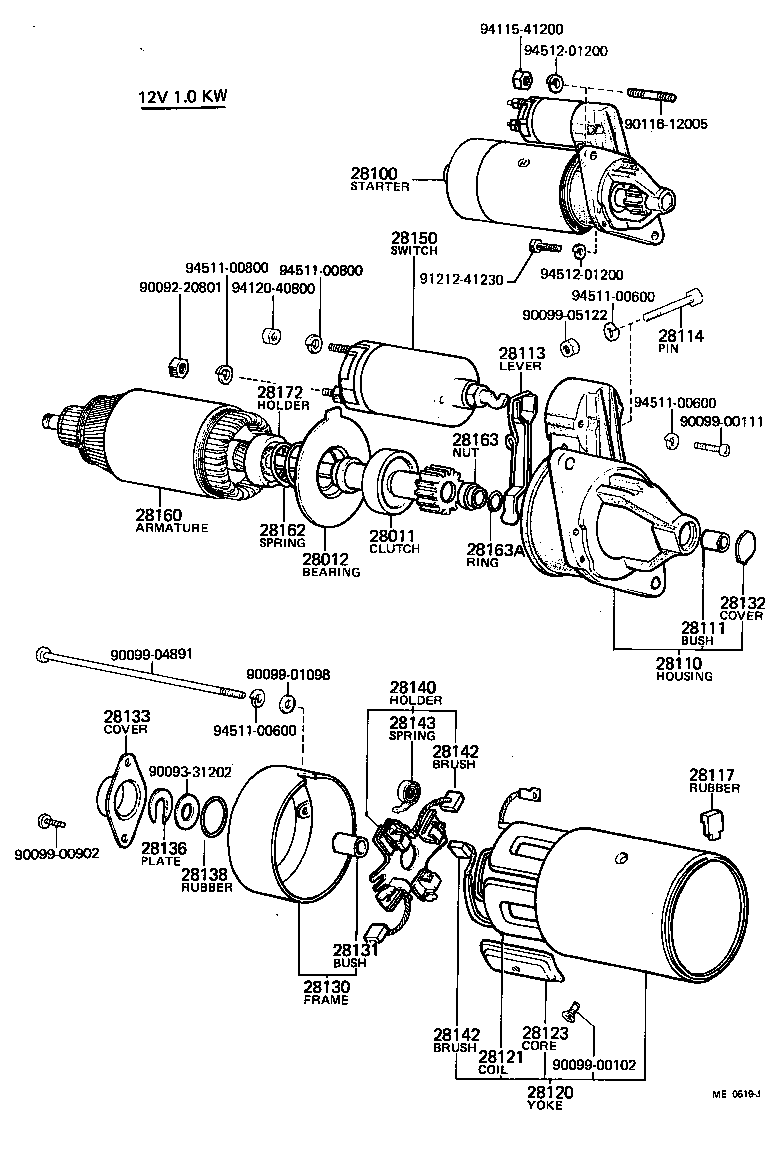

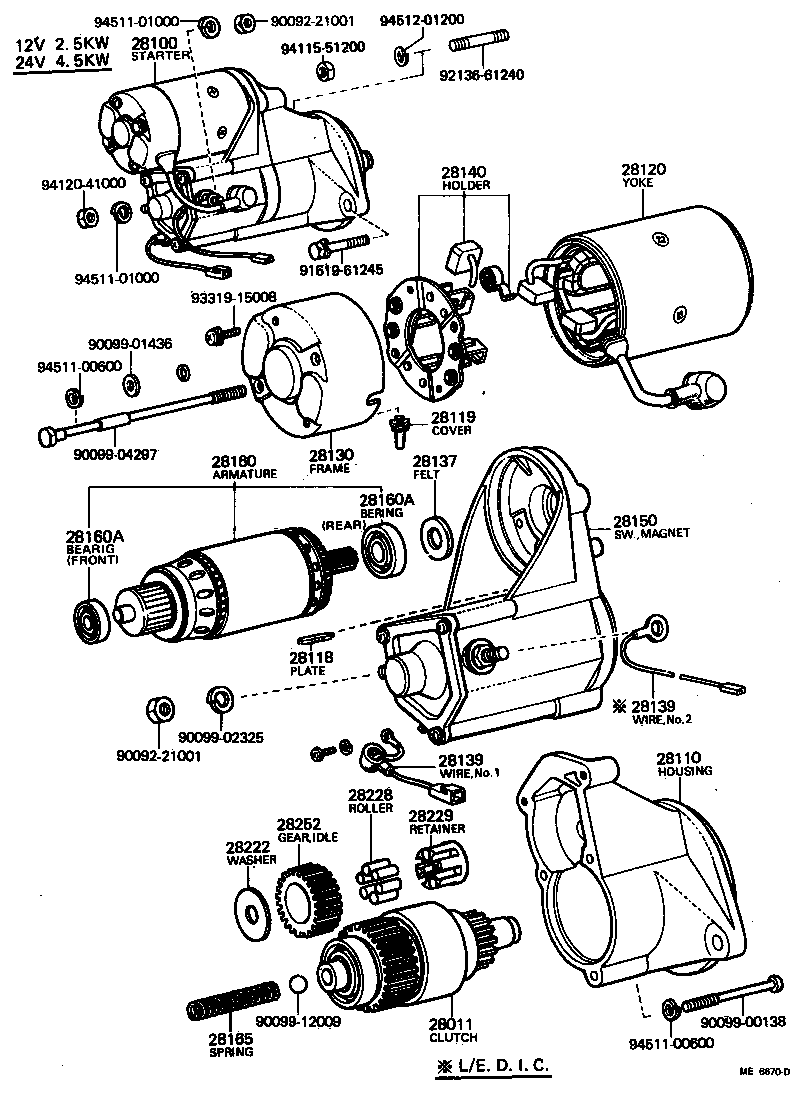

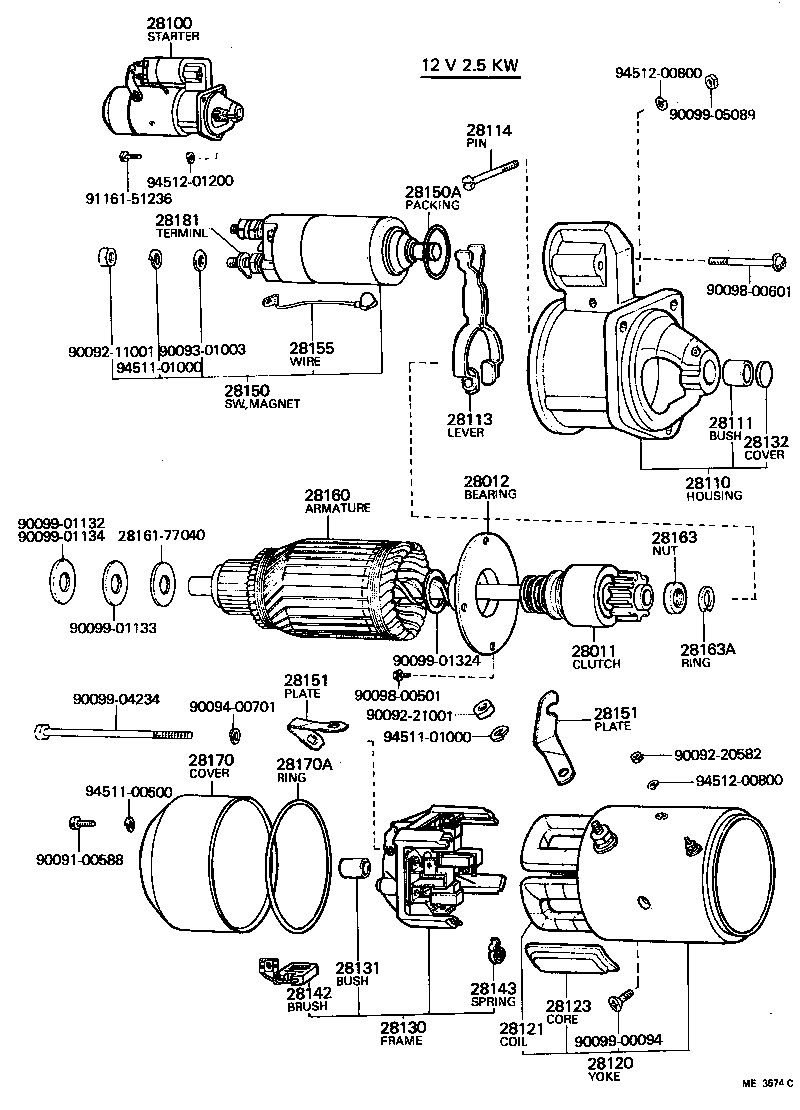

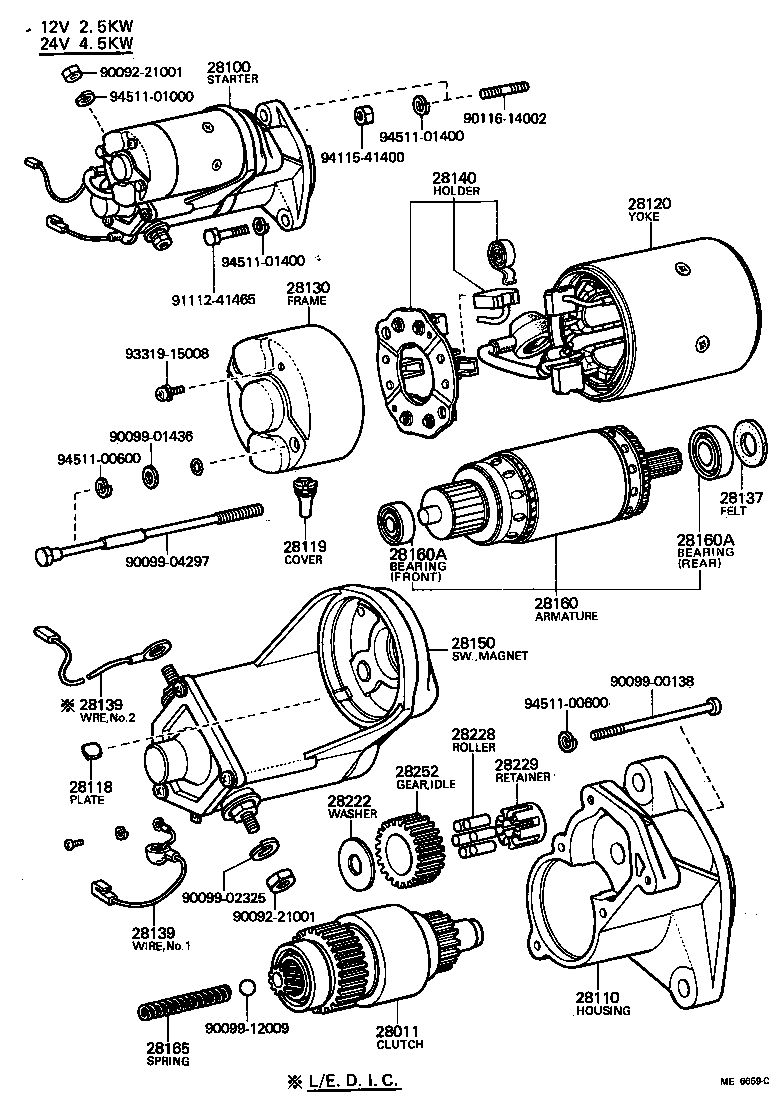

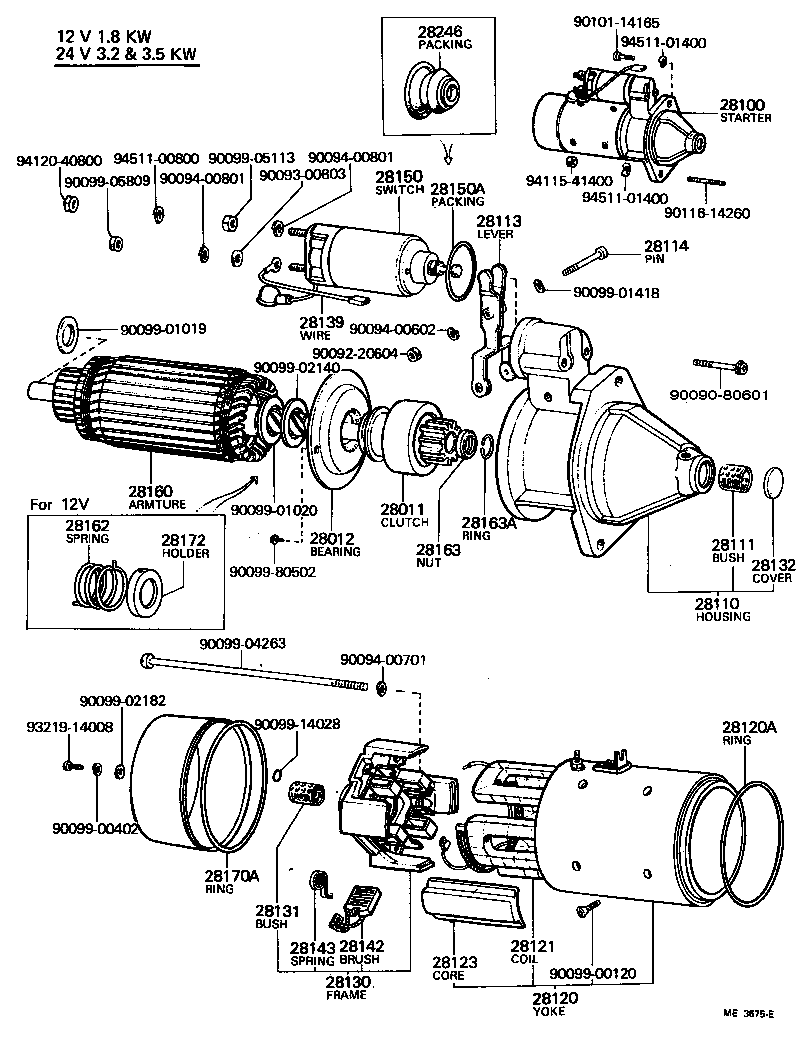

Figure ME0618I ME0618I 1969-03 → 1969-07 Figure ME0619J ME0619J 1969-07 → 1980-07 Figure ME3674C ME3674C 1972-04 → 1977-09 Figure ME6670D ME6670D 1977-09 → 1980-07 Figure ME3675E ME3675E 1974-02 → 1977-09 Figure ME6669C ME6669C 1977-09 → 1980-07

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28012 Bearing Sub-assy, Center
28100 Starter Assy
28110 Housing Assy, Starter Drive
28111 Bush(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28117 Rubber(FOR STARTER YOKE)
28118 Plate(FOR STARTER YOKE)
28119 Cover, Starter End Frame
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28121 Coil, Starter Field
28123 Core, Starter Pole
28130 Frame Assy, Starter Commutator End
28131 Bush, Commutator End Frame
28132 Cover, Starter Bearing(FOR DRIVE HOUSING)
28133 Cover, Bearing(FOR END FRAME)
28136 Plate, Starter Lock
28137 Washer, Felt, Starter
28138 Rubber(FOR STARTER BEARING COVER)
28139 Wire, Lead, NO.1(FOR STARTER)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28150A Packing(FOR STARTER MAGNET SWITCH)
28151 Plate, Lead, Switch Connecting
28155 Wire, Lead, Switch Connecting
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28162 Spring, Starter Brake
28163 Nut OR Collar, Pinion Stop, Starter
28163A Ring, Snap(FOR STARTER PINION STOP NUT)
28165 Spring, Starter Magnet Switch Return
28166 Bush, Starter Insulation
28170 Cover Assy, Starter
28170A Ring, O(FOR STARTER COVER)
28172 Holder, Starter Spring
28181 Terminal, Starter
28222 Washer, Starter Idle Gear Clutch
28228 Roller, Starter Idle Gear Clutch
28229 Retainer, Starter Idle Gear
28246 Cover, Magnet Switch
28252 Gear, Starter Idle
