Vacuum Pump

8 part groups · 3 illustrations

Illustrations

Figure ME3676C

ME3676C 1974-02 → 1977-09

Figure ME3676C

ME3676C 1975-01 → 1977-09

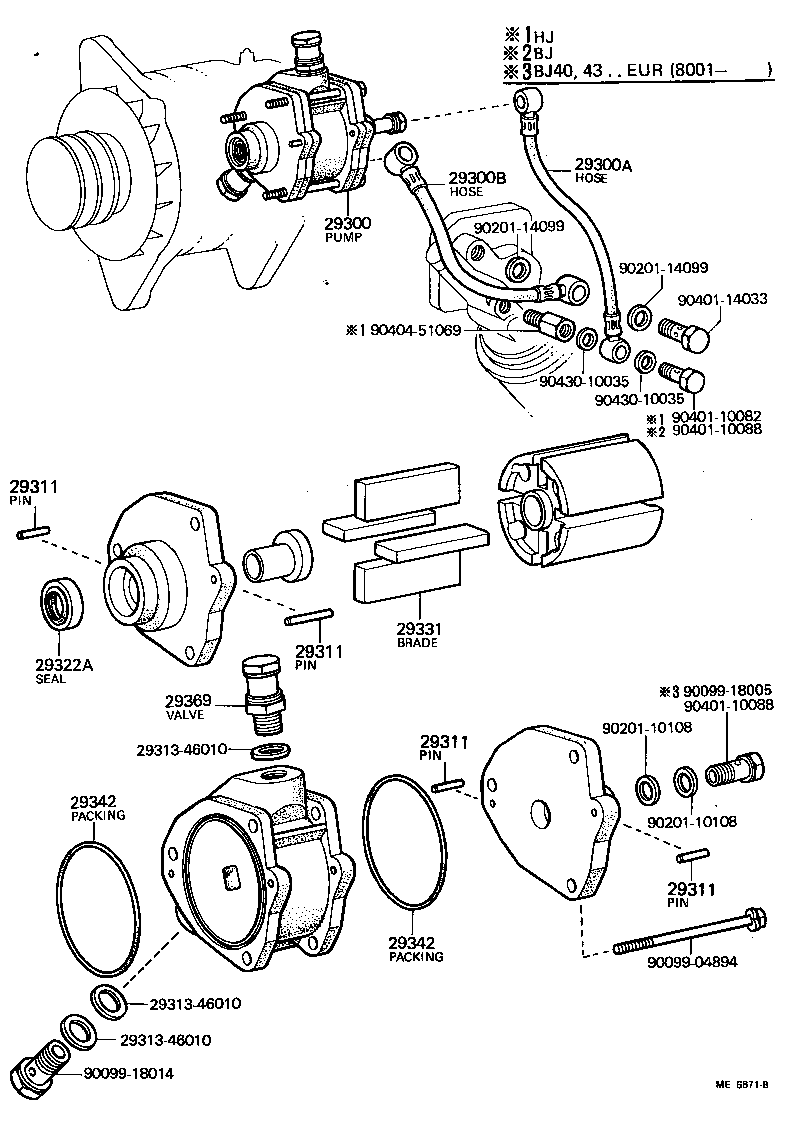

Figure ME6671B

ME6671B 1977-09 → 1980-07

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29300A	Hose, Vacuum Pump Oil Inlet
29300B	Hose, Vacuum Pump Oil Outlet
29311	Pin, Vacuum Pump Dowel, NO.1
29322A	Seal, Vacuum Pump Oil
29331	Blade, Vacuum Pump, A
29342	Packing, Vacuum Pump
29369	Valve Sub-assy, Check

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
