Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01

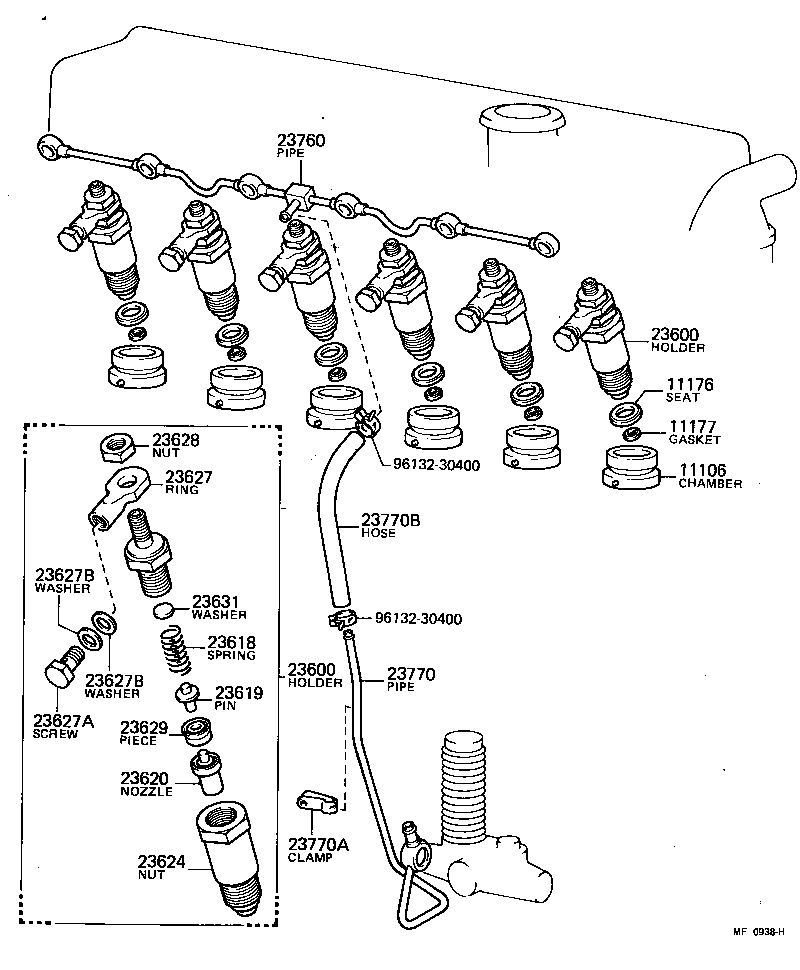

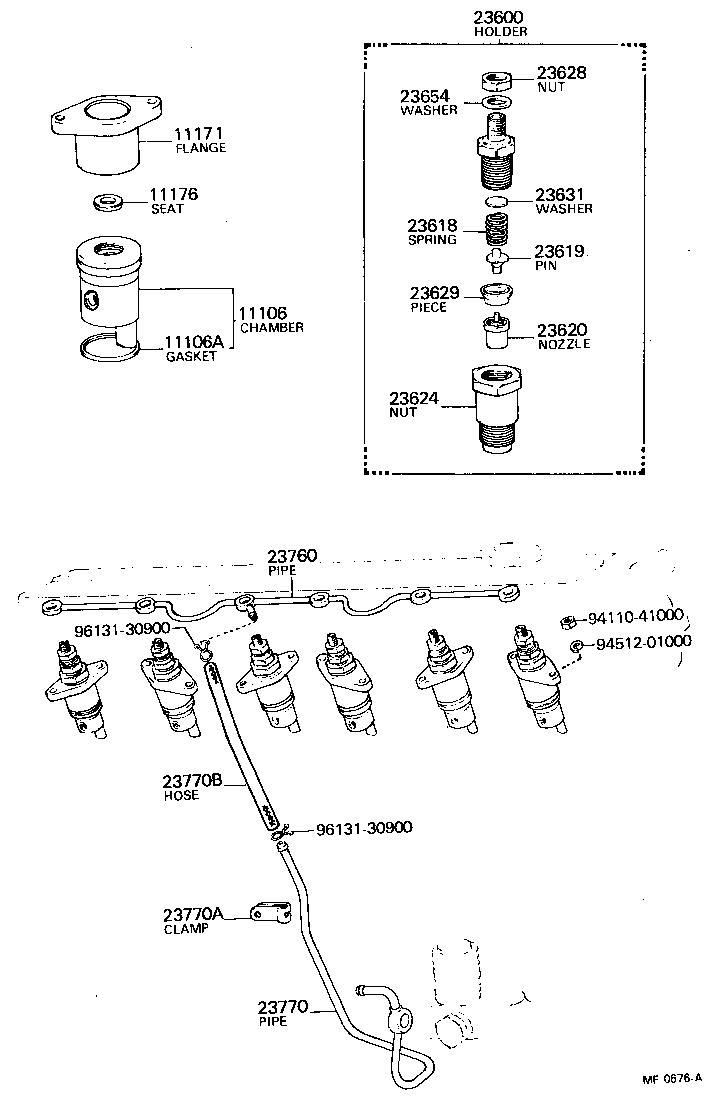

Injection Nozzle
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11106 | Chamber Sub-assy, Combustion |
| 11106A | Gasket(FOR COMBUSTION CHAMBER) |
| 11171 | Flange, Combustion Chamber Set |
| 11176 | Seat, Injection Nozzle |
| 11177 | Gasket, Injection Nozzle Seat |
| 23600 | Holder & Nozzle Set, Nozzle |
| 23618 | Spring, Nozzle Holder Pressure |
| 23619 | Pin, Nozzle Holder Pressure |
| 23620 | Nozzle Assy |
| 23624 | Nut, Nozzle Retaining |
| 23627 | Ring, Packing, NO.1(FOR NOZZLE) |
| 23627A | Screw, Follow(FOR NOZZLE) |
| 23627B | Washer, Copper Plate(FOR NOZZLE) |
| 23628 | Nut(FOR RING PACKING SETTING) |
| 23629 | Piece, Distance(FOR NOZZLE) |
| 23631 | Washer(FOR NOZZLE HOLDER PRESSURE SPRING) |
| 23654 | Washer(FOR RING PACKING) |
| 23760 | Pipe Assy, Nozzle Leakage |
| 23770 | Pipe Assy, Nozzle Leakage, NO.2 |
| 23770A | Clamp OR Clip(FOR NOZZLE LEAKAGE PIPE SET) |
| 23770B | Hose, Fuel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
