Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

17 part groups · 4 illustrations

Illustrations

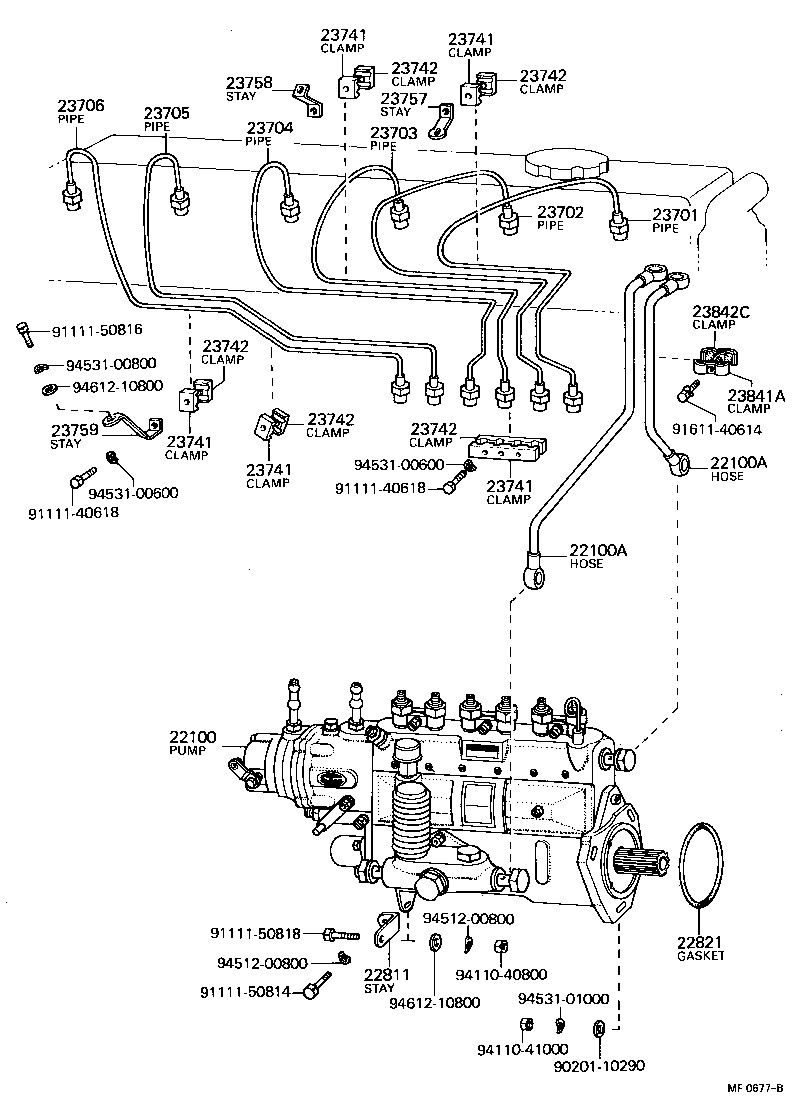

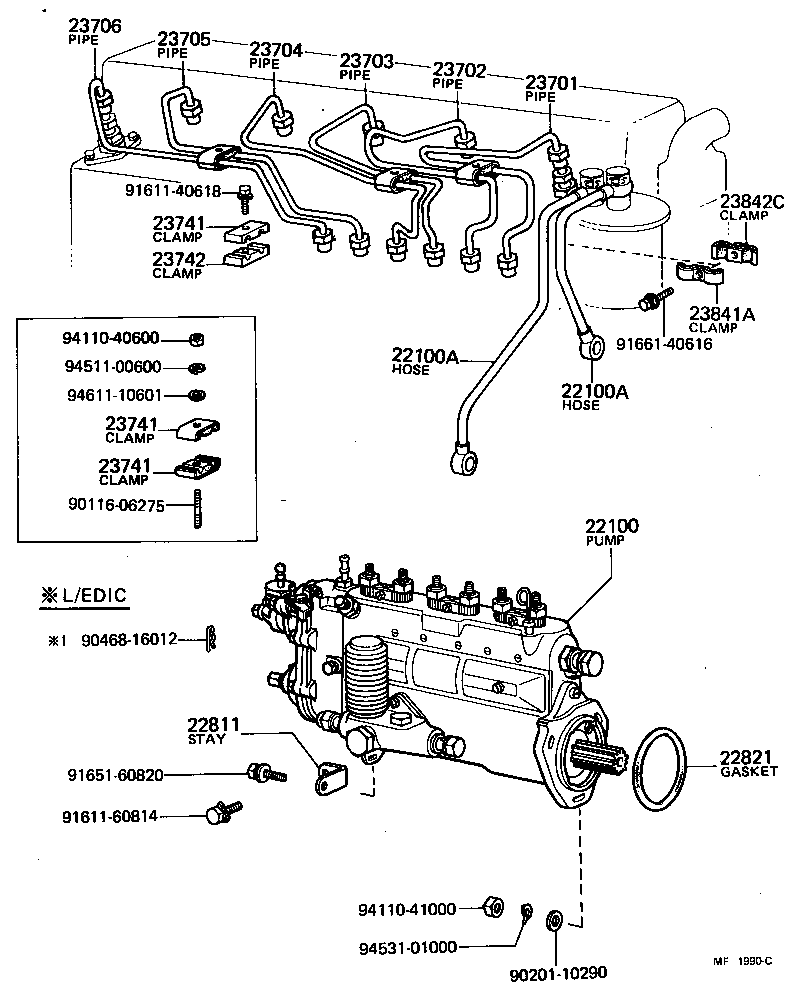

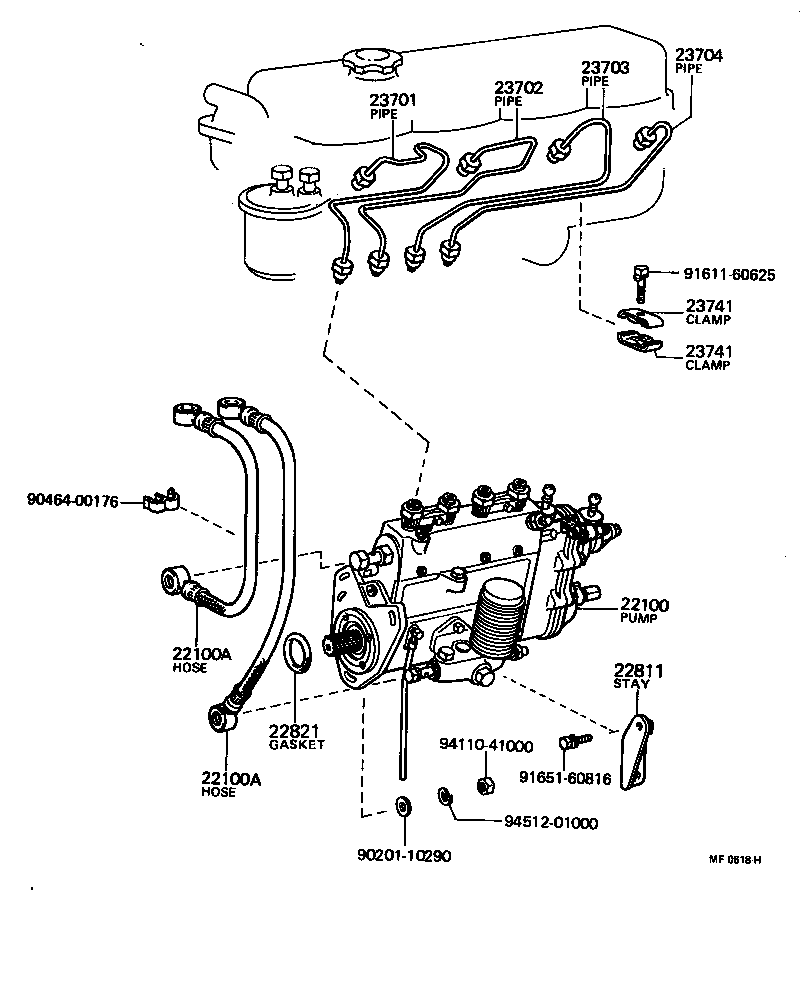

Figure MF2115 MF2115 1974-02 → 1977-09 Figure MF0618H MF0618H 1977-09 → 1980-07 Figure MF0677B MF0677B 1972-04 → 1977-09 Figure MF1990C MF1990C 1977-09 → 1980-07

Part groups

PNCDescription
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22811 Stay, Injection Pump, NO.1
22821 Gasket, Injection Pump
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23705 Pipe Sub-assy, Injection, NO.5
23706 Pipe Sub-assy, Injection, NO.6
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23757 Stay, Injection Pipe Clamp, NO.1
23758 Stay, Injection Pipe Clamp, NO.2
23759 Stay, Injection Pipe Clamp, NO.3
23841A Clamp, Fuel Pipe, NO.1(FOR INJECTION PUMP)
23842C Clamp, Fuel Pipe, NO.2(FOR INJECTION PUMP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
