Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01

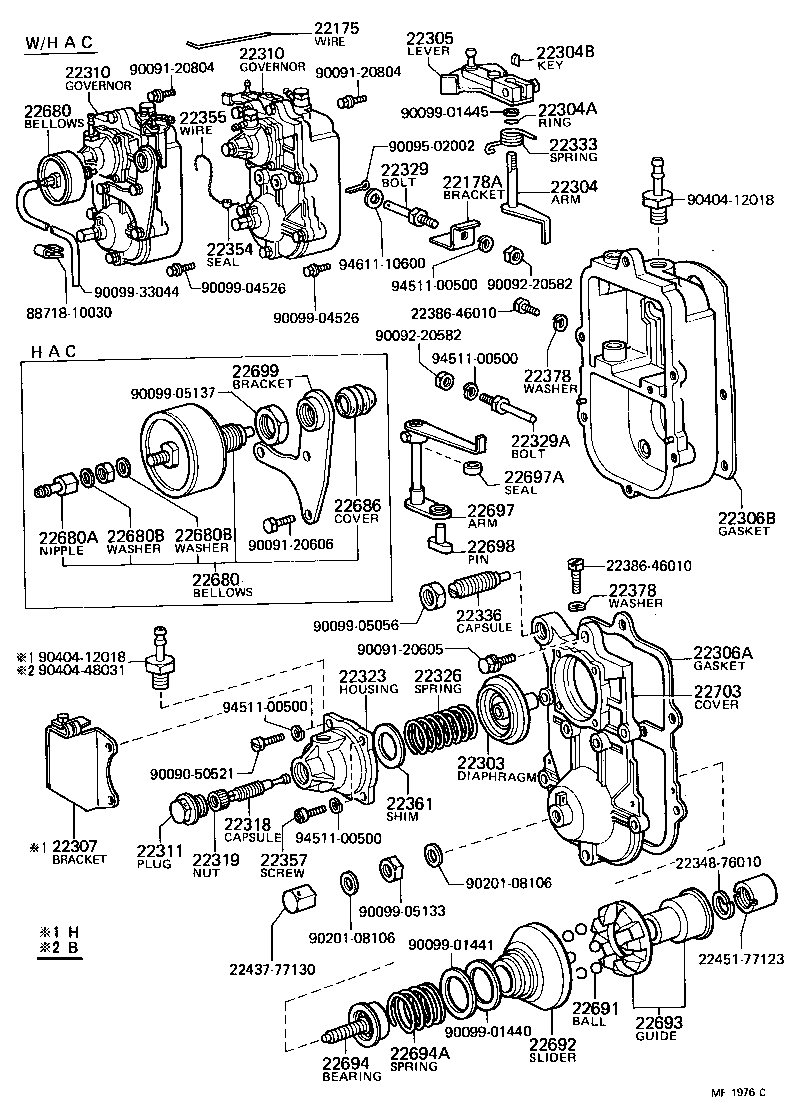

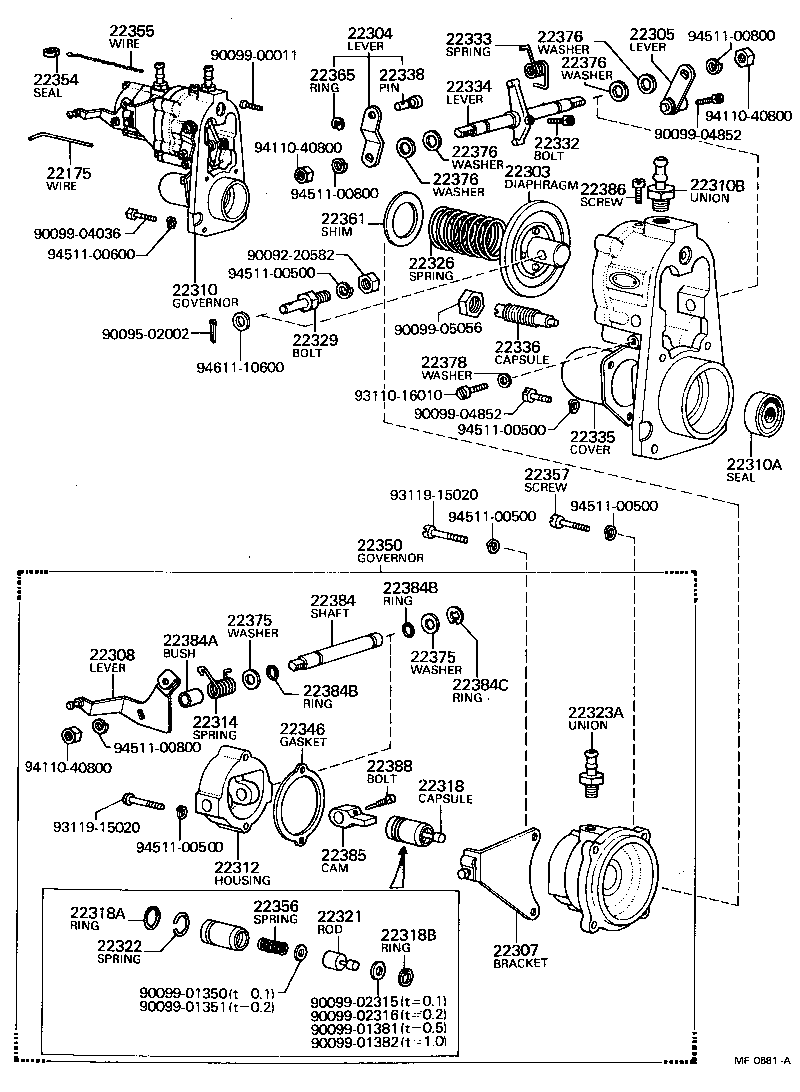

Pneumatic Governor
69 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22175 | Wire, Over Injection |
| 22178A | Bracket, Diaphragm Connecting |
| 22303 | Diaphragm Sub-assy, Governor |
| 22304 | Lever Sub-assy, Injection Pump, NO.3 |
| 22304A | Ring, O(FOR NO.3 LEVER) |
| 22304B | Key(FOR NO.3 LEVER) |
| 22305 | Lever Sub-assy, Injection Pump, NO.1 |
| 22306A | Gasket(FOR GOVERNOR HOUSING) |
| 22306B | Gasket(FOR INJECTION PUMP HOUSING) |
| 22307 | Bracket Sub-assy, Stop Wire |
| 22308 | Lever Sub-assy, Injection Pump, NO.2 |
| 22310 | Governor Assy, Injection Pump |
| 22310A | Seal, Oil(FOR INJECTION PUMP GOVERNOR) |
| 22310B | Union, Venturi Pipe |
| 22310C | Nipple(FOR GOVERNOR) |
| 22311 | Plug, Diaphragm Housing Sealing Screw |
| 22312 | Housing, Lever |
| 22314 | Spring, Back(FOR GOVERNOR SHAFT) |
| 22318 | Capsule, Idling |
| 22318A | Ring, Shaft Snap |
| 22318B | Ring, Snap |
| 22319 | Nut, Governor Idling Spring Set |
| 22321 | Rod, Push |
| 22322 | Spring, Return(FOR IDLING CAPSULE) |
| 22323 | Housing, Governor Diaphragm |
| 22323A | Union, Venturi Pipe |
| 22323B | Nipple(FOR GOVERNOR HOUSING) |
| 22326 | Spring, Governor Main |
| 22329 | Bolt, Diaphragm Connecting |
| 22329A | Bolt, Diaphragm Connecting, NO.2 |
| 22332 | Bolt, Governor Stop |
| 22333 | Spring, Diaphragm Stop Lever Return |
| 22334 | Lever, W/Shaft Governor Stop |
| 22335 | Cover, Camshaft |
| 22336 | Capsule, Full Stop |
| 22338 | Pin, Lever |
| 22346 | Gasket, Governor Cap |
| 22350 | Governor Assy, Pneumatic Small |
| 22354 | Seal, Lead |
| 22355 | Wire, Governor Housing Seal |
| 22356 | Spring, Governor Idling |
| 22357 | Screw, Diaphragm Housing Set |
| 22361 | Shim, Main Spring |
| 22365 | Ring, E(FOR INJECTION PUMP LEVER) |
| 22375 | Washer, Stop Lever Shaft |
| 22376 | Washer, Stop Lever Shaft |
| 22378 | Washer, Drain Screw |
| 22384 | Shaft, Governor |
| 22384A | Bush(FOR GOVERNOR SHAFT) |
| 22384B | Ring, O(FOR GOVERNOR SHAFT) |
| 22384C | Ring, E(FOR GOVERNOR SHAFT) |
| 22385 | Cam(FOR INJECTION PUMP GOVERNOR) |
| 22386 | Screw(FOR INJECTION PUMP GOVERNOR) |
| 22388 | Screw |
| 22399 | Lever, Injection Pump Fuel Cut |
| 22680 | Bellows Assy, Pneumatic |
| 22680A | Nipple Sub-assy, Overflow(FOR PNEUMATIC BELLOWS) |
| 22680B | Washer(FOR PNEUMATIC BELLOWS) |
| 22686 | Cover, Pneumatic Bellows |
| 22691 | Ball, Speed Control |
| 22692 | Slider(FOR SPEED CONTROL) |
| 22693 | Guide, Ball |
| 22694 | Bearing Sub-assy |
| 22694A | Spring, Speed Control |
| 22697 | Arm Sub-assy |
| 22697A | Seal, Oil(FOR NO.3 LEVER) |
| 22698 | Pin, Shifting |
| 22699 | Bracket Sub-assy, Adjusting |
| 22703 | Cover, Governor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
