Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01

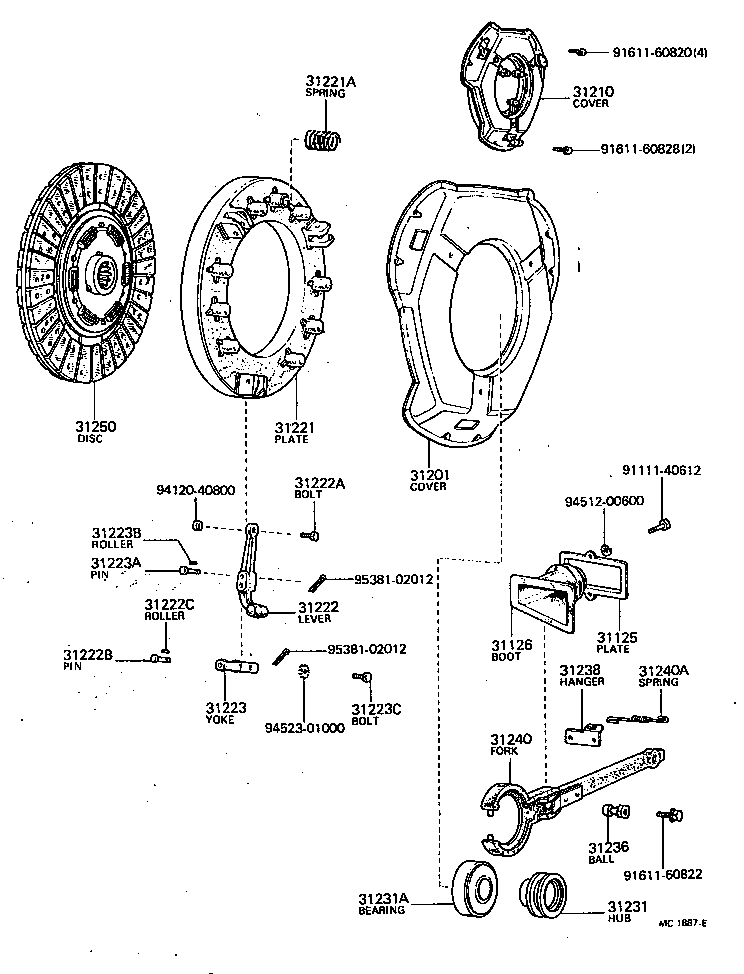

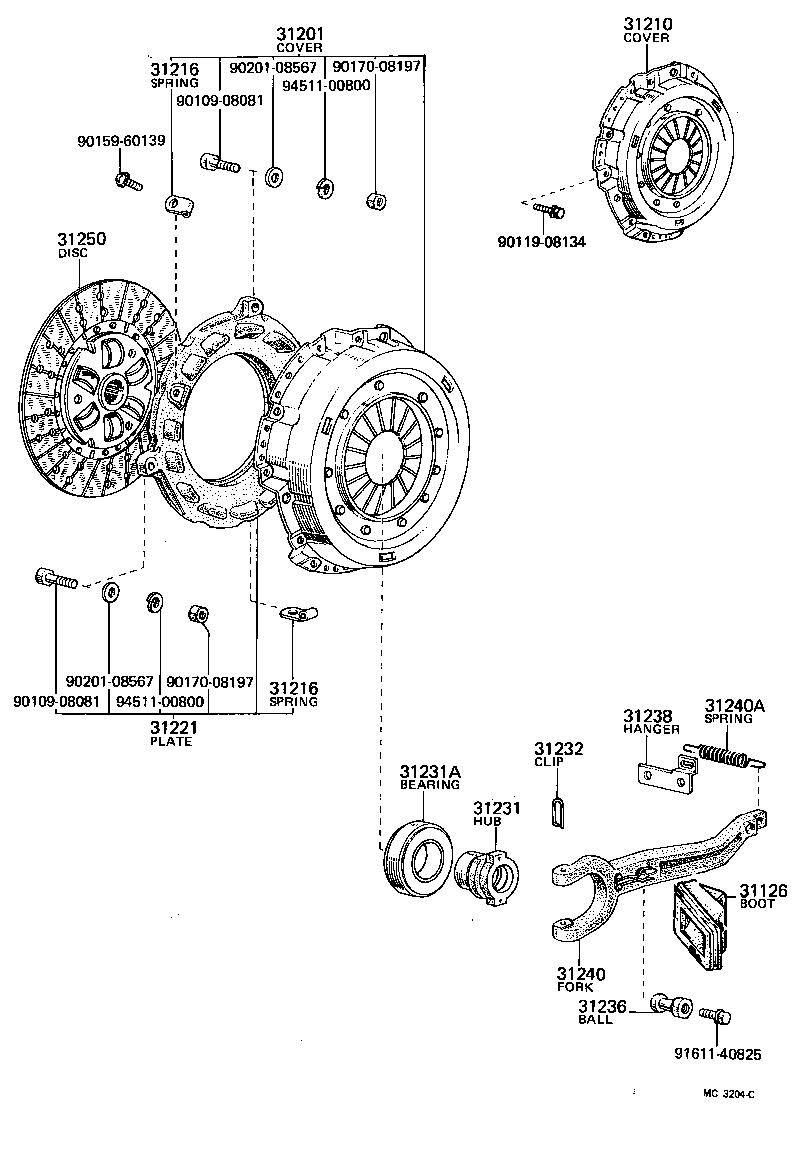

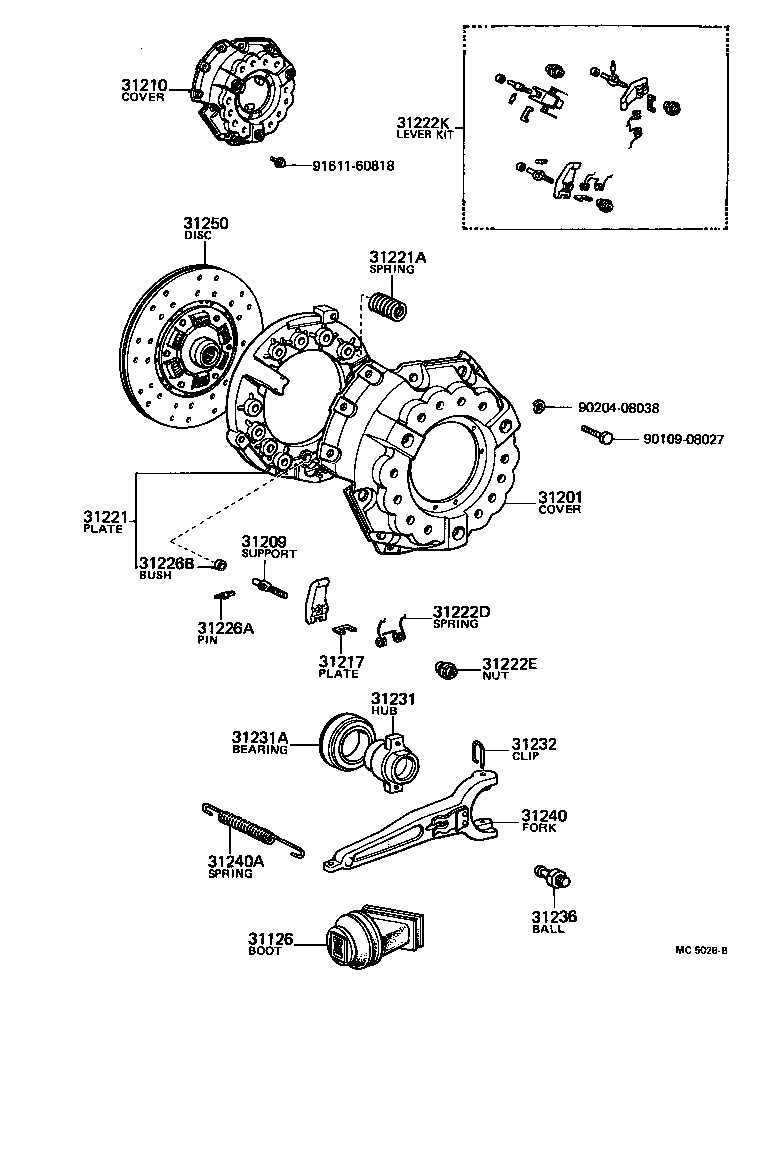

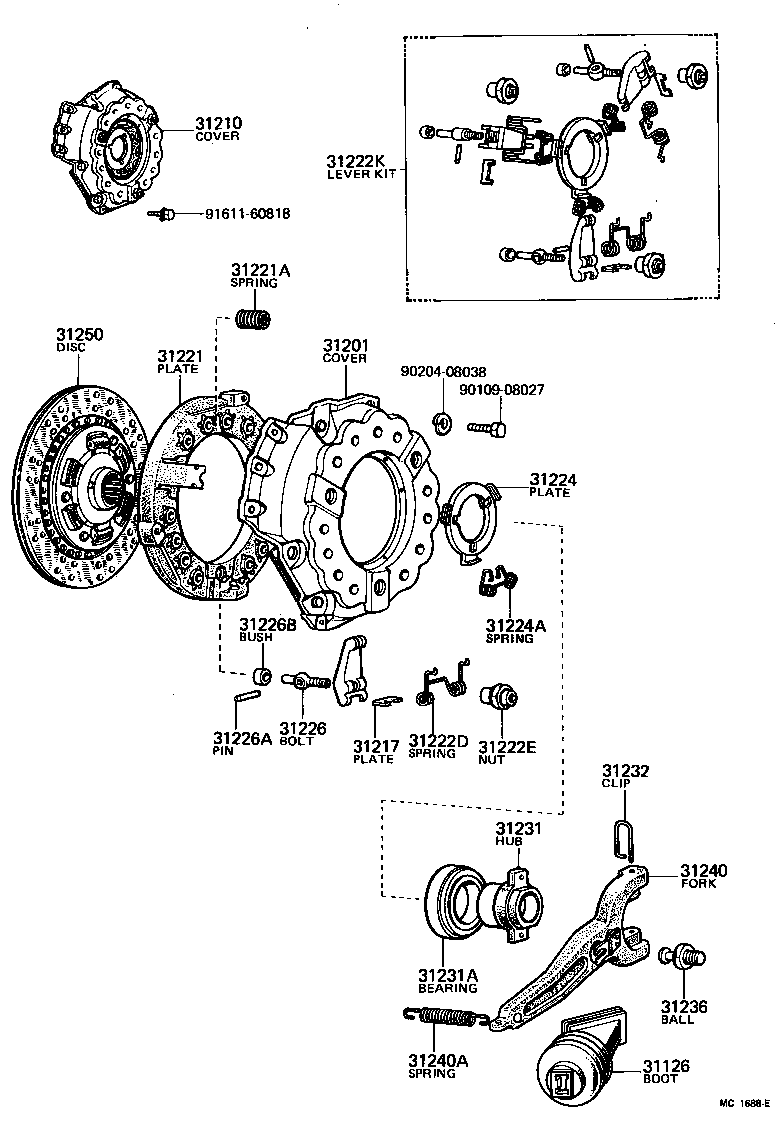

Clutch & Release Fork
33 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 31125 | Plate, Release Fork Boot |
| 31126 | Boot, Clutch Release Fork |
| 31201 | Cover Sub-assy, Clutch |
| 31209 | Support Sub-assy, Clutch Release Lever |
| 31210 | Cover Assy, Clutch |
| 31216 | Spring, Clutch Retracting |
| 31217 | Plate, Release Lever Support |
| 31221 | Plate, Clutch Pressure |
| 31221A | Spring, Compression(FOR CLUTCH) |
| 31222 | Lever, Clutch Pressure |
| 31222A | Bolt, Clutch Pressure Lever Adjust |
| 31222B | Pin, W/Hole(FOR CLUTCH PRESSURE LEVER) |
| 31222C | Roller OR Bearing, Clutch Pressure Plate Pin |
| 31222D | Spring, Tension(FOR CLUTCH PRESSURE LEVER) |
| 31222E | Nut(FOR CLUTCH PRESSURE LEVER ADJUST) |
| 31222K | Lever Kit, Clutch Pressure |
| 31223 | Yoke, Clutch Release Lever |
| 31223A | Pin(FOR CLUTCH PRESSURE LEVER) |
| 31223B | Roller, Clutch Pressure Lever |
| 31223C | Bolt, Hexagon(FOR CLUTCH RELEASE LEVER YOKE) |
| 31224 | Plate, Clutch Release Bearing |
| 31224A | Spring(FOR CLUTCH RELEASE BEARING PLATE) |
| 31226 | Bolt, Clutch Pressure Plate |
| 31226A | Rivet OR Pin(FOR CLUTCH PRESSURE PLATE BOLT LOCK) |
| 31226B | Bush(FOR CLUTCH PRESSURE PLATE BOLT) |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31232 | Clip OR Spring, Release Bearing Hub |
| 31236 | Ball, Release Fork |
| 31238 | Hanger, Release Fork Retracting Spring |
| 31240 | Fork Assy, Clutch Release |
| 31240A | Spring, Tension(FOR CLUTCH RELEASE FORK RETURN) |
| 31250 | Disc Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
