Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

13 part groups · 7 illustrations

Illustrations

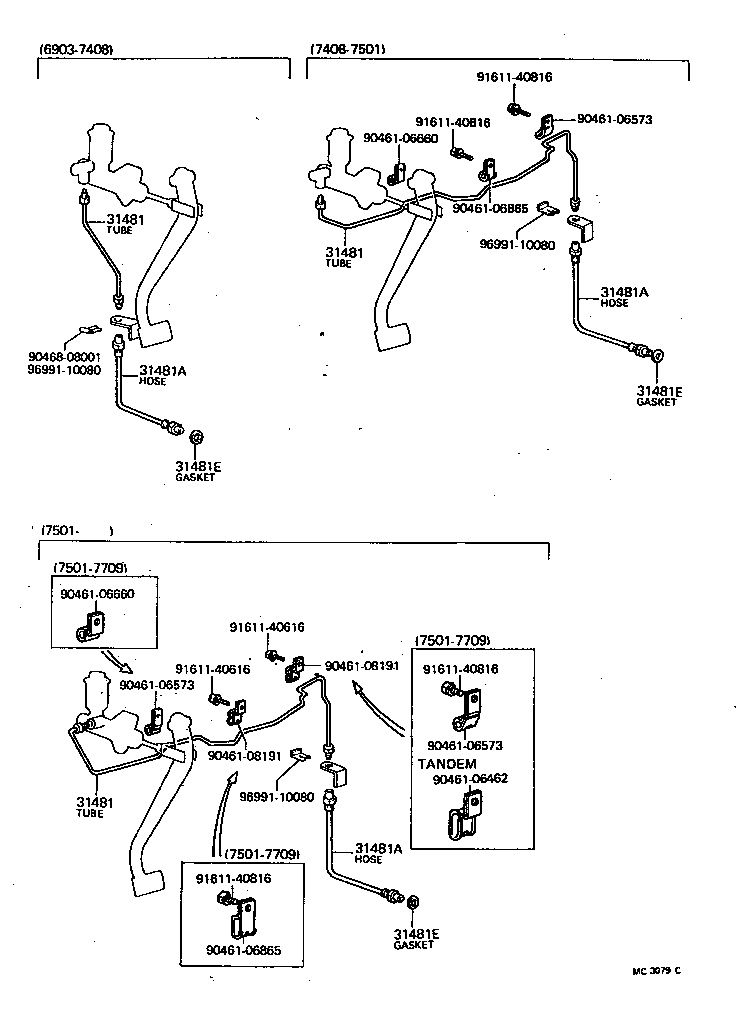

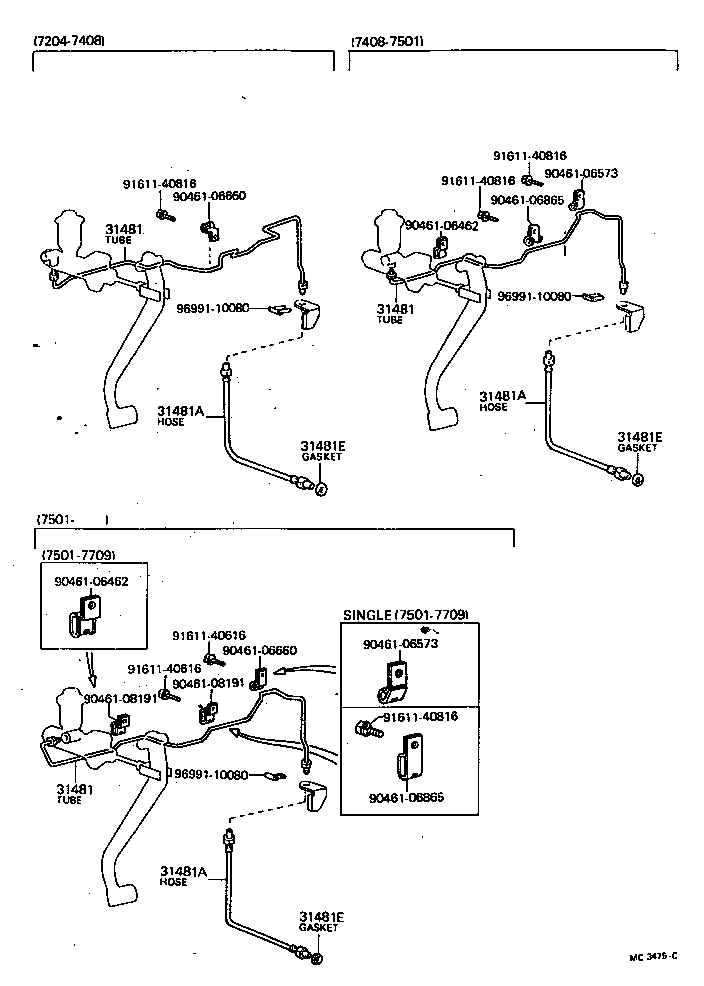

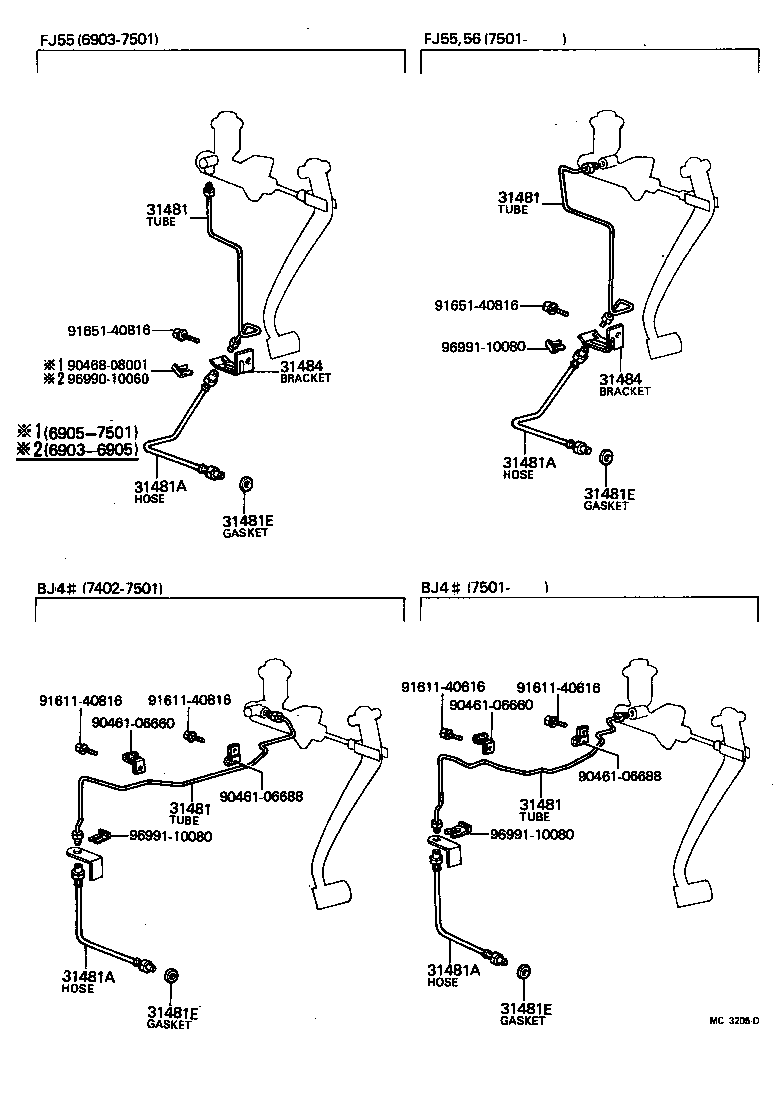

Figure MC2865D MC2865D 1969-03 → 1980-07 Figure MC3078B MC3078B 1969-03 → 1980-07 Figure MC3079C MC3079C 1969-03 → 1980-07 Figure MC3205D MC3205D 1969-03 → 1980-07 Figure MC3206B MC3206B 1969-03 → 1980-07 Figure MC3474B MC3474B 1972-04 → 1980-07 Figure MC3475C MC3475C 1972-04 → 1980-07

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31481E Gasket(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)
31484 Bracket, Flexible Hose(FOR CLUTCH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
