Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 4 illustrations

Illustrations

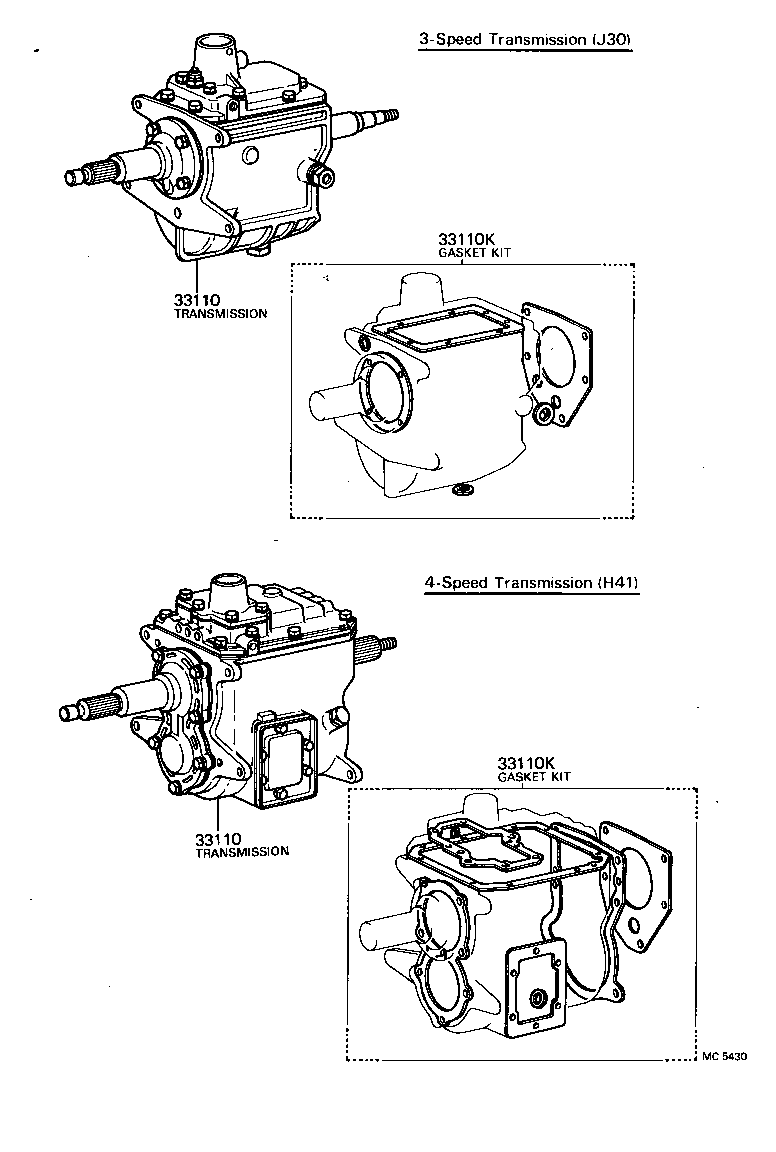

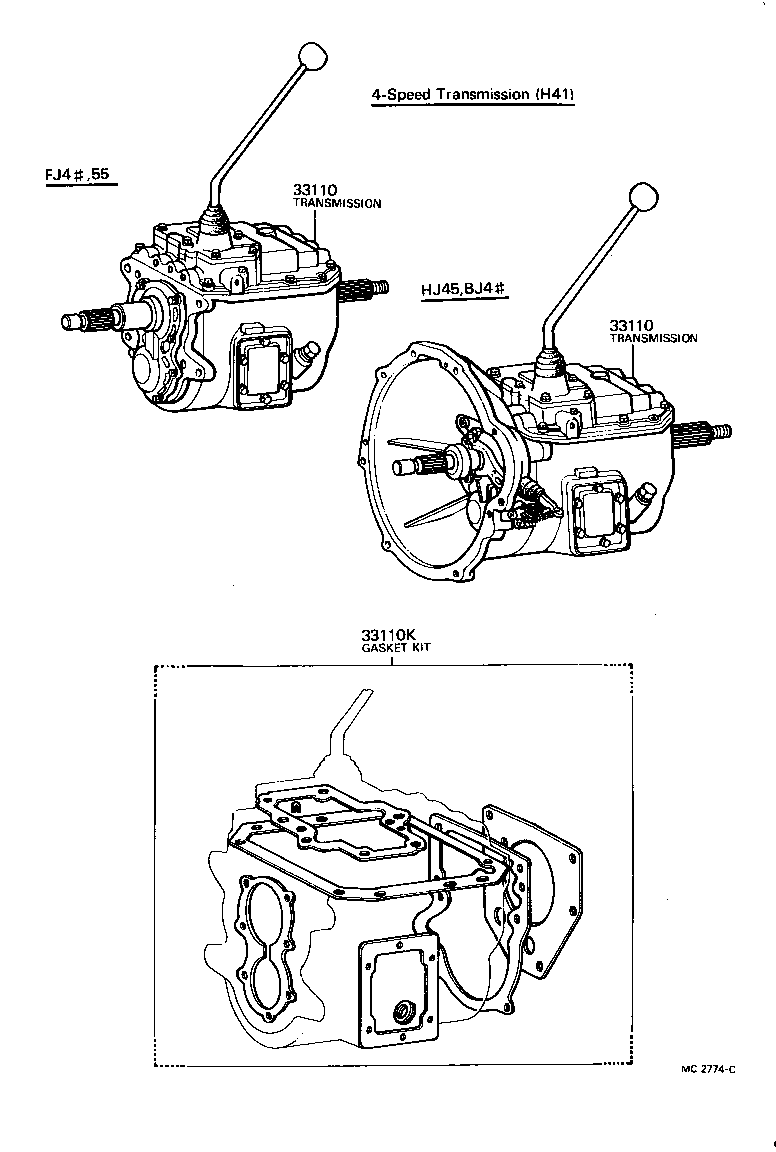

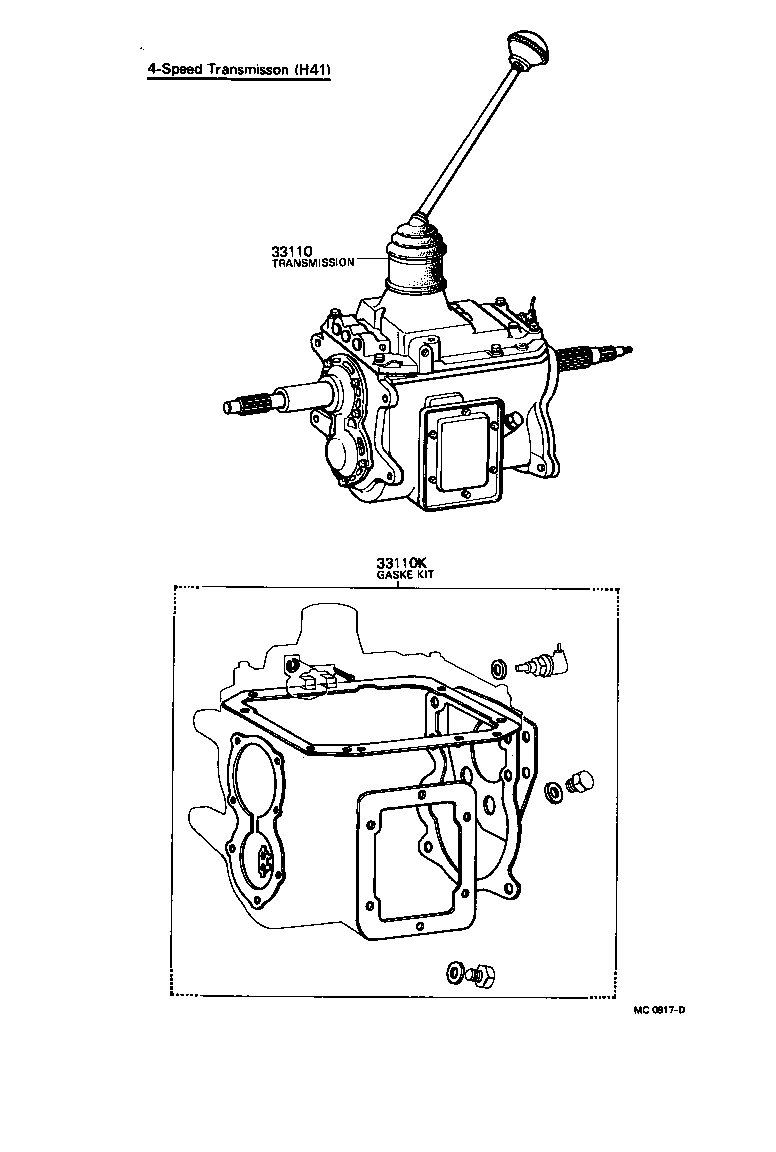

Figure MC0816E MC0816E 1969-03 → 1977-09 Figure MC0817D MC0817D 1969-03 → 1973-09 Figure MC2774C MC2774C 1973-09 → 1977-09 Figure MC5430 MC5430 1977-09 → 1980-07

Part groups

PNCDescription
33110 Transmission Assy, Manual
33110K Gasket Kit, Manual Transmission Overhaul
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
